Auto Lift AL2-9K-ACX 9,000 lb. Asymmetric 2 Post Car Lifts

Product Overview

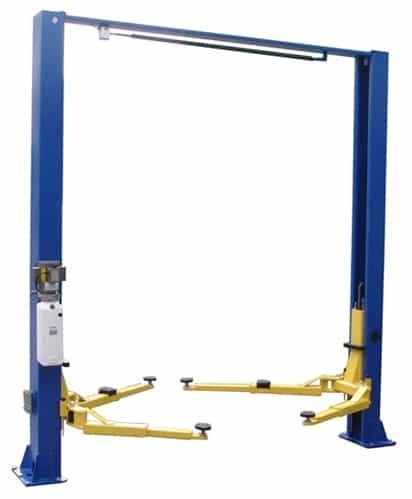

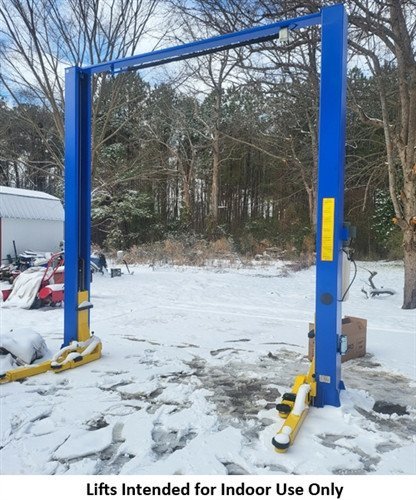

Auto Lift AL2-9K-ACX 9,000 lb. Asymmetric 2 Post Car Lift

The Auto Lift AL2-9K-ACX represents the latest evolution in professional automotive lifting technology. This 9,000 lb. capacity asymmetric two-post clear floor lift is engineered with the most sought-after features demanded by professional technicians and serious DIY enthusiasts. With its single-piece column construction, internal hose routing, and innovative drop-in swivel pad system, the AL2-9K-ACX delivers exceptional performance, safety, and versatility—making it one of the best two-post lift values in the industry today.

The NEW 9K "X" Series – Redesigned for Performance

The 9K-ACX "X" Series clear floor lift has been completely redesigned from the ground up to incorporate premium features that were once only available on higher-priced models. This isn't just an incremental update—it's a reimagining of what a two-post lift should be. Auto Lift has taken years of customer feedback, field experience, and engineering innovation to create a lift that exceeds expectations in build quality, ease of use, and long-term reliability.

From the single-piece column construction that eliminates weak points to the padded overhead shut-off bar with integrated kill switch that enhances safety, every detail has been refined. The reduced overall width of just 138 inches thanks to front-side power unit mounting means this lift fits in more bays without sacrificing the generous 113.6-inch width between columns and 96-inch drive-thru clearance. The internal hose routing with integrated hose guards protects hydraulic lines from damage while maintaining a clean, professional appearance. Add in the rubber door guards that protect vehicle doors from column contact, and you have a lift that's truly ready for daily professional use.

Key Highlights

• 9,000 lb. lifting capacity with asymmetric design for optimal vehicle positioning and door clearance

• Clear floor design no floor plates to trip over or interfere with creepers and rolling equipment

• 72-inch max lift height with adjustable arms: front reach 29" – 41", rear reach 37" – 57"

• Chain drive system with dual-point lock release for smooth, reliable operation and enhanced safety

• High-quality construction: 5mm column and carriage steel, 6mm arm steel thickness, 3/8" steel cable

Innovative Features that Make a Difference

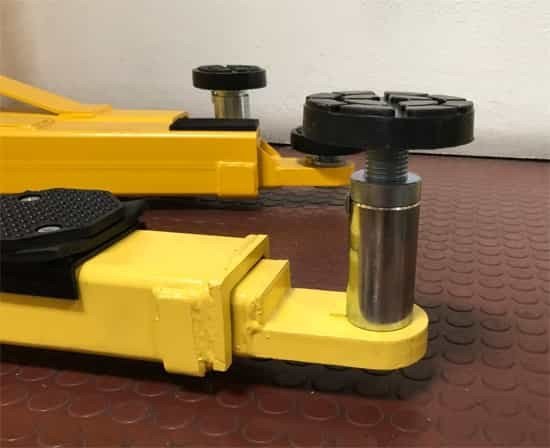

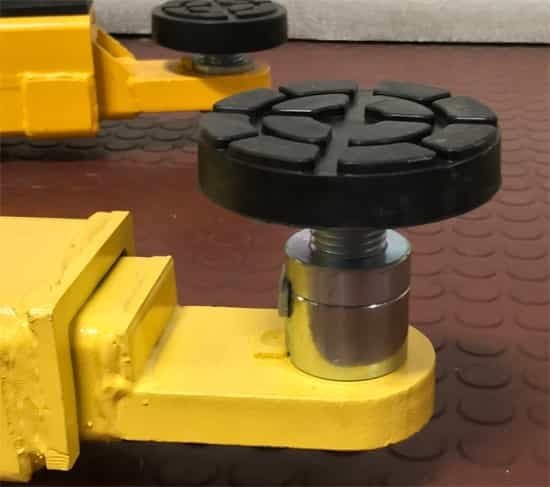

Low-Profile Drop-In Swivel Pads
The AL2-9K-ACX features an innovative low-profile drop-in swivel pad system with 1-1/2" adjustable height. These pads provide exceptional flexibility when positioning the lift arms under a wide variety of vehicles. The drop-in design makes installation and height adjustment quick and tool-free, while the swivel mechanism ensures secure contact with lift points regardless of angle. This system minimizes the pad height at just 4 inches, allowing you to work on lowered vehicles and sports cars with ease.

Stackable Drop-In Height Adapters
Every AL2-9K-ACX includes a complete set of 4 each: 1-3/8" and 4" stackable drop-in height adapters. These FREE adapters dramatically expand your lift's versatility, allowing you to quickly and securely lift trucks, SUVs, and vehicles with non-standard lift points. The drop-in design means no bolts or tools required—just drop them into place and you're ready to lift. Stack them in various combinations to achieve the exact height you need for any job.

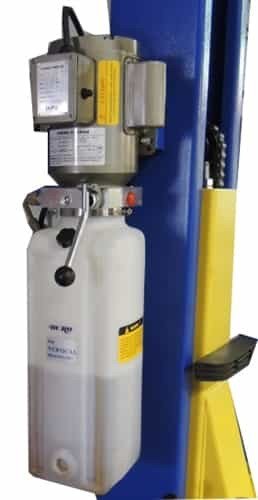

Front-Side Power Unit Mounting
The redesigned front-side power unit mounting configuration reduces the overall width of the lift while maintaining full structural integrity and lifting capacity. This smart design choice means you get a narrower footprint for easier installation in tight bays, without sacrificing the generous drive-thru clearance or arm reach you need for modern vehicles. The 220V, 20 AMP, single-phase power unit delivers fast 50-second lifting speed and reliable performance shift after shift.

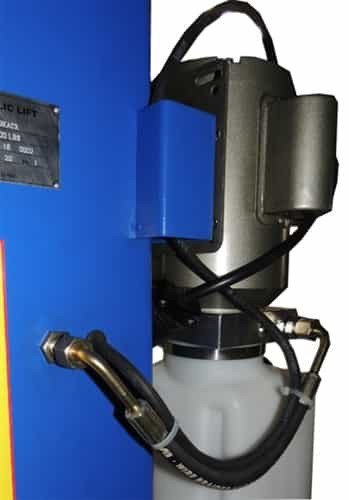

Internal Hose Routing with Integrated Hose Guards
Say goodbye to exposed hydraulic hoses that snag, wear, and create hazards. The AL2-9K-ACX features internal hose routing that runs hydraulic lines through the columns and carriages, protecting them from damage and eliminating trip hazards. Integrated hose guards provide additional protection at critical transition points, ensuring your lift operates safely for years to come. This professional-grade feature also gives your shop a cleaner, more organized appearance.

Rubber Door Guards
Customer vehicles deserve protection, and the AL2-9K-ACX delivers with strategically placed rubber door guards on the columns. These durable rubber guards cushion vehicle doors and prevent costly dings, scratches, and damage when doors are opened while the vehicle is on the lift. It's a simple feature that demonstrates Auto Lift's commitment to protecting your customers' vehicles and your shop's reputation.

Safety You Can Trust

Safety is paramount in any professional shop, and the AL2-9K-ACX is engineered with multiple safety systems to protect technicians and vehicles. The dual-point lock release system requires intentional action at two locations before the lift can descend, preventing accidental lowering. The overhead padded shut-off bar with integrated kill switch positioned at 137-1/4 inches automatically stops upward travel before vehicles contact the ceiling or overhead obstacles, while the padding protects vehicles from damage.

The single-piece column construction eliminates the weak points and potential failure zones found in multi-piece columns, providing superior strength and rigidity. Each arm is rated for 2,250 lbs. maximum load, and the robust 3/8" steel cable system ensures synchronized lifting every time. With a durable powder coat finish protecting against corrosion and wear, this lift is built to deliver safe, reliable performance for decades.

Expand Your Capabilities

Optional Accessory Available
Take your lift's versatility to the next level with the TP9KX-SPNCA Optional Set of 4 Spin-Up Cradle Adapters. These precision-engineered adapters provide secure, stable support for vehicles with challenging lift points or specialty applications. The spin-up design allows for precise positioning and quick adjustments, making difficult lifts easier and safer.

Why Choose the Auto Lift AL2-9K-ACX?

The AL2-9K-ACX represents the perfect intersection of value, performance, and innovation. Whether you're setting up a new professional shop, upgrading aging equipment, or building the ultimate home garage, this lift delivers the features and build quality you need at a price point that makes sense. The asymmetric design provides superior vehicle positioning with better door clearance than symmetric lifts, while the clear floor design keeps your bay free of trip hazards and allows unobstructed floor access.

With an overall height of just 142.9 inches and the ability to lift vehicles to a full 72 inches, the AL2-9K-ACX fits in standard commercial bays while providing comfortable working height for technicians of all sizes. The included saddle pad adapters and comprehensive set of drop-in height adapters mean you're ready to handle everything from low-profile sports cars to lifted trucks right out of the box.

Backed by Auto Lift's reputation for quality and support, and built with high-quality construction throughout, the AL2-9K-ACX is a lift you can count on for years of reliable service. When you consider the premium features, robust construction, and competitive pricing, it's clear why the AL2-9K-ACX is one of the best two-post lift values in the industry today.

Product Features

• 9,000 lb lifting capacity

• High Quality Construction

• Chain Drive

• Dual Point Lock Release

• Saddle Pad Adapters included (1 pair)

• Powder coat finish

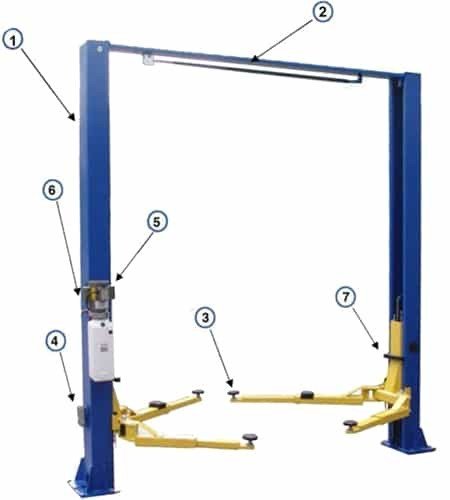

New Features

• 1) Single Piece Column construction (TP9KACX – TP9KSCX)

• 2) Padded ‘Shut-Off’ Bar w/ Kill Switch (TP9KACX – TP9KSCX)

• 3) Low Profile ‘drop-in’ Swivel Pads w/1-1/2” adjustable height

• 4) 4ea Stackable 1-3/8” & 4” ‘drop-in’ Height Adapters

• 5) Reduced overall Width w/ front-side Power Unit mounting

• 6) Internal Hose Routing w/ integrated Hose Guards

• 7) Rubber Door Guards

Free Drop-In Stackable Height Adapters
Set of 4 each: 1-3/8" & 4"

Product Specifications

Specifications
AL2 9K-ACX

Capacity
9,000 lbs.

Overall Height
142.9"

Height Shut Off Bar
137-1/4"

Width Overall w/Power Unit
138"

Max Lift Height
72"

Width Between Columns
113.6"

Min Pad Height
4"

Drive thru Clearance
96"

Lifting speed
50 sec

Asymmetric / Symmetric
Asymmetric

Clear Floor / Floor Plate
Clear Floor

Front Arm Reach – min/max
29" – 41"

Rear Arm Reach – min/max
37" – 57"

Max Load Per Arm
2,250 lbs.

Cable Diameter
3/8"

Column Size
7.25" x 10.87"

Column Steel Thickness
5mm

Carriage Steel Thickness
5mm

Arm Steel Thickness
6mm

Power
220V – 20 AMP – 1 PH

Ship Weight
1,370 lbs.

Key Features

• Published product configuration: Auto Lift AL2-9K-ACX 9,000 lb. Asymmetric 2 Post Car Lift The Auto Lift AL2-9K-ACX represents the latest evolution in professional automotive lifting technology. This 9,000 lb. capacity asymmetric two-post clear floor lift is engineered with the most sought-after features demanded by professional technicians and
• Exact manufacturer model or part number: AL2-9K-ACX-V001
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model AL2-9K-ACX-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
