AMGO® Hydraulics PRO-14A 4 Post Alignment Lift 14,000 lbs

Product Overview

AMGO® Hydraulics PRO-14A 4 Post Alignment Lift 14,000 lbs

Professional-Grade Alignment Lift for Your Shop

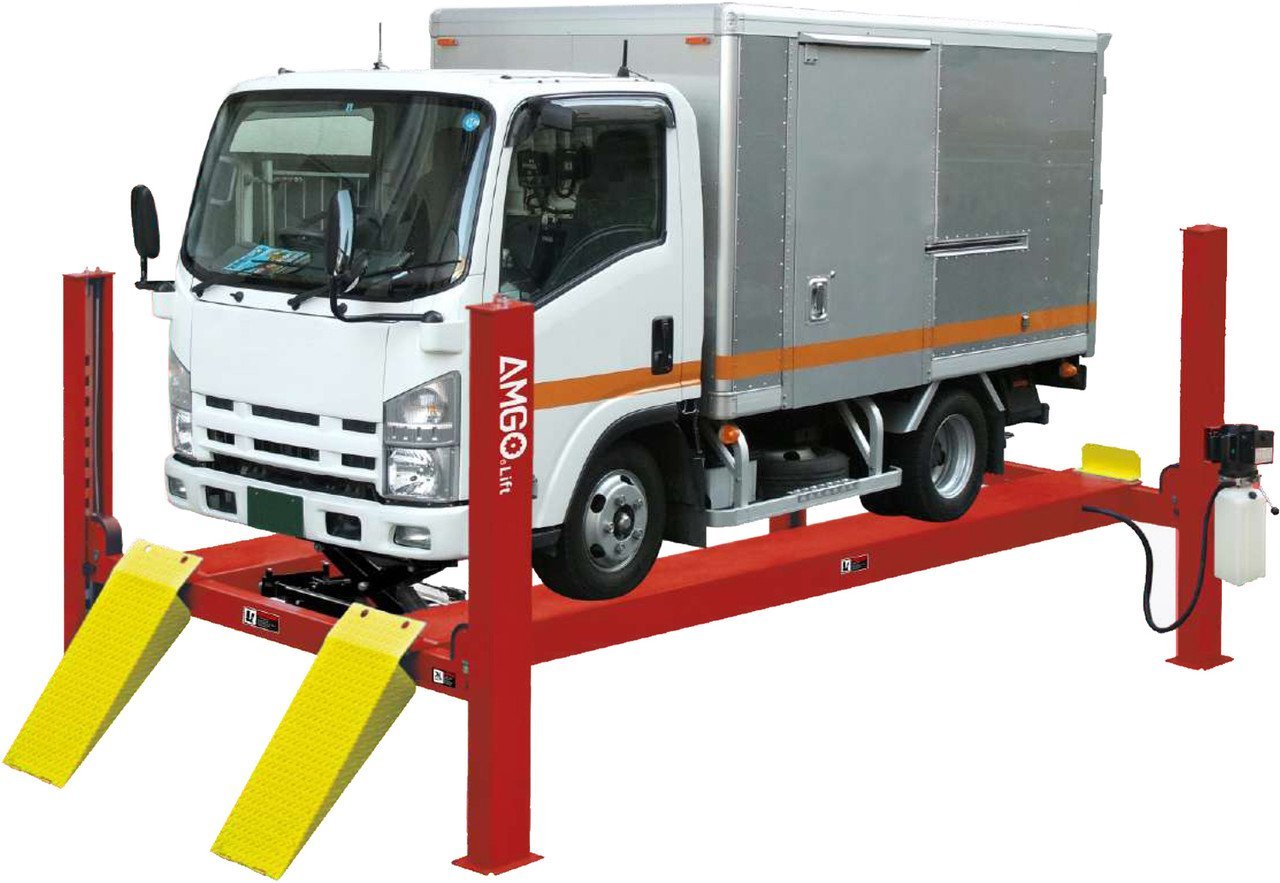

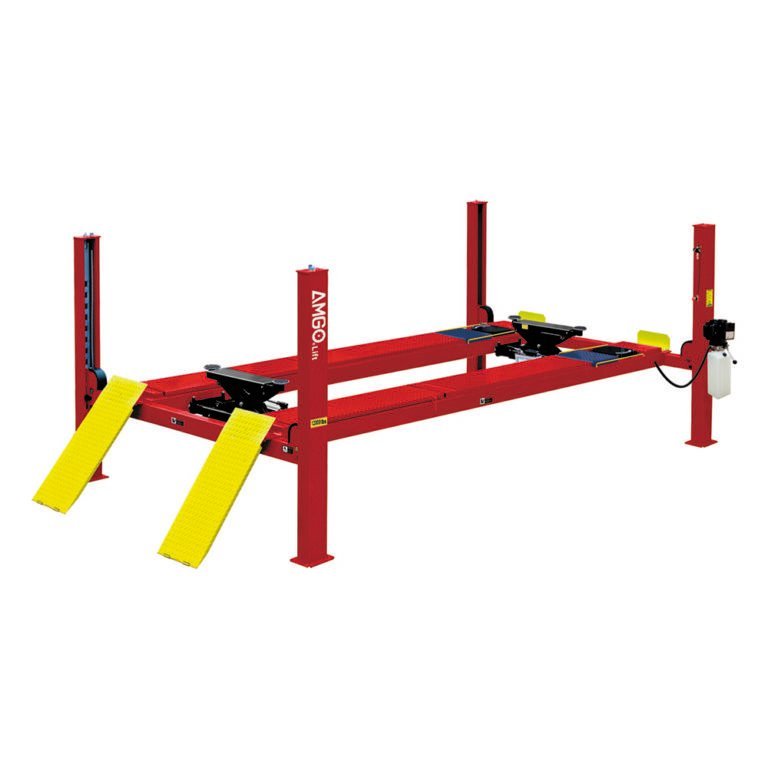

The AMGO PRO-14A is a powerful commercial-grade 4-post alignment lift engineered to deliver a generous 14,000 lbs lifting capacity with the precision and features professional shops demand. Built on the proven foundation of the PRO-14 model, the PRO-14A alignment version provides the same exceptional lifting performance while adding alignment-specific capabilities to expand your shop's service offerings.

Designed with extra wide runways and adjustable positioning, this lift accommodates a wide variety of vehicle types and wheel bases, from compact cars to full-size trucks. Whether you're performing routine maintenance, tire service, exhaust work, or precision wheel alignment procedures, the PRO-14A delivers the stability, clearance, and accessibility you need to work efficiently and safely.

With a maximum lifting height of 77 9/16 inches and 66 3/4 inches of underneath clearance, technicians enjoy comfortable standing room beneath raised vehicles. The drive-through design provides 102 1/16 inches of clearance, allowing easy vehicle entry and exit. Built to commercial grade standards with robust construction and safety features, the PRO-14A is engineered to provide many years of reliable service in demanding professional environments.

Key Highlights

• 14,000 lbs capacity handles a wide range of passenger vehicles and light trucks with confidence

• Alignment-ready design built specifically for wheel alignment work (turn plates sold separately)

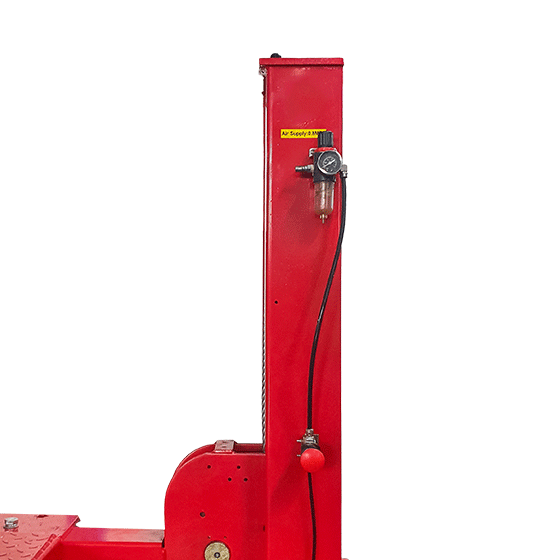

• Air-released safety lock system provides convenient operation with exceptional reliability and mechanical self-locking protection

• High-quality hydraulic cylinders with flow restrictors ensure stable, smooth lifting and lowering operations

• 1/2-inch aircraft quality cable with cable-breaking protection for enhanced safety and durability

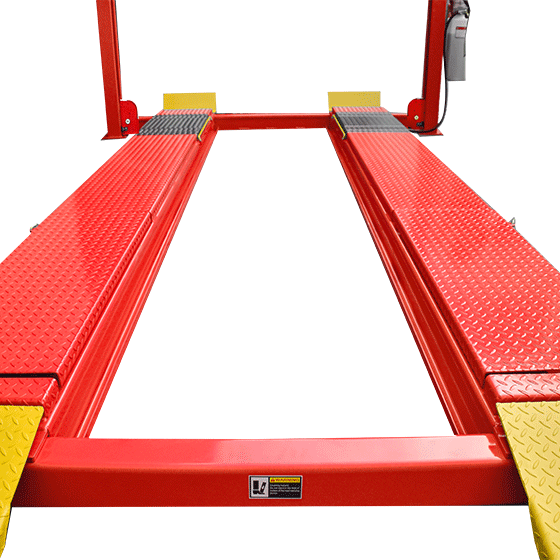

• Skid-proof diamond platform provides secure footing and vehicle traction throughout the lift cycle

• Runway width accommodates various vehicle track widths 46 inches between runways

• Powered by 2.0HP motor on 220V/60Hz single phase power for efficient operation

Note: Turn plates are NOT included as standard equipment with the PRO-14A. Front turn plates must be purchased separately to perform alignment services. See optional accessories below for available turn plate kits and other add-ons.

Alignment Capabilities

The PRO-14A is specifically engineered to support professional wheel alignment procedures. The lift accommodates four-wheel alignment for vehicles with wheelbases ranging from 92 5/8 inches minimum to 177 3/16 inches maximum. For two-wheel alignment applications, the lift supports wheelbases up to 178 9/16 inches, providing exceptional versatility for virtually any passenger vehicle or light truck in your shop.

The generous 116-inch width between columns ensures ample clearance for wide vehicles, while the adjustable runway positioning allows precise setup for each specific vehicle. Combined with the lift's stable platform and precise height control, technicians can perform accurate alignment measurements and adjustments with confidence.

Safety and Reliability

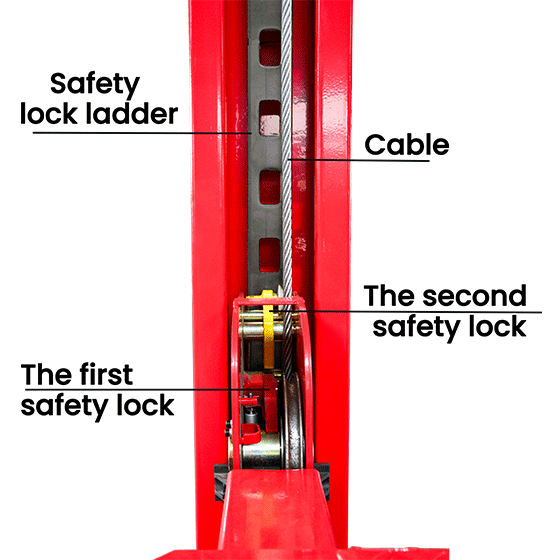

Safety is engineered into every aspect of the PRO-14A. The air-released safety lock mechanism provides reliable load holding throughout the entire lift range, while the mechanical self-lock system offers redundant protection in the unlikely event of hydraulic failure. Cable-breaking protection adds another layer of security, and the use of 1/2-inch aircraft quality cable ensures exceptional strength and longevity under continuous commercial use.

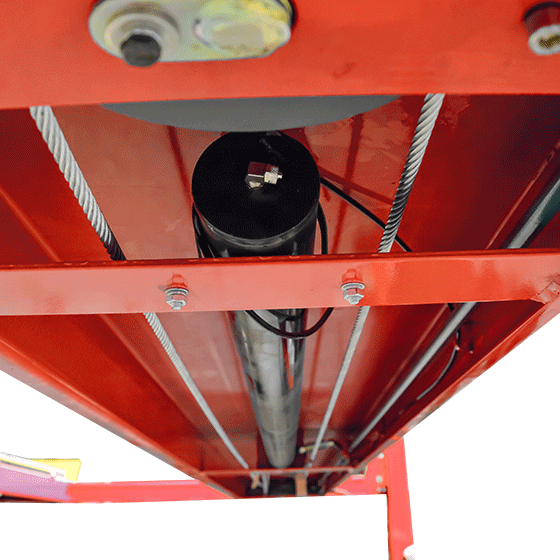

The hydraulic cylinders undergo strict quality control during manufacturing and are designed to exacting standards. Each cylinder features an integrated flow restrictor that ensures smooth, stable lifting and lowering speeds, preventing sudden movements and enhancing both operator safety and vehicle protection.

Optional Accessories

Enhance your PRO-14A with these available accessories designed to expand functionality and improve shop efficiency:

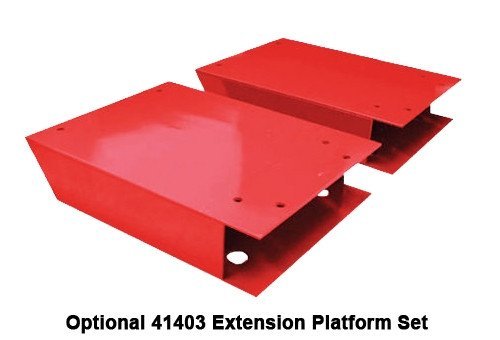

• 41403 Extension Platform Set for PRO-14 & PRO-14A (2 pieces) – extends usable platform length

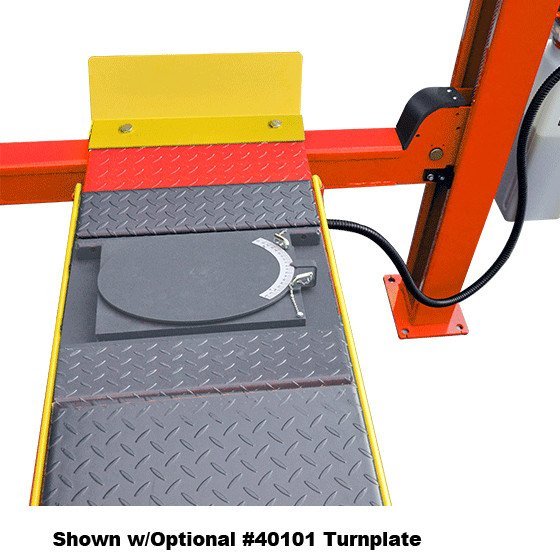

• 40101 Front Turnplate Kit essential for performing alignment services

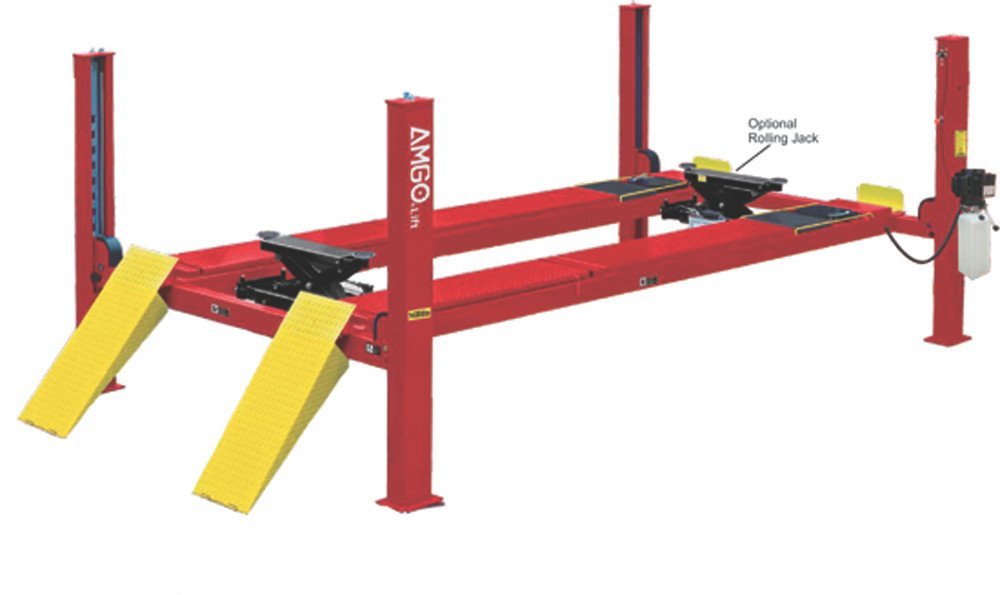

• RJ-8A Pneumatic Rolling Jacks (8,000 lbs capacity) – convenient for lifting individual axles or corners

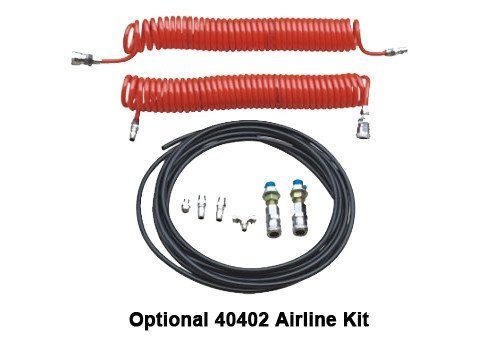

• 40102 Airline Kit for 4 Post Lifts less than 18K – integrate compressed air service into your lift

• 40103 LED Light Kit for 4 Post Lifts – illuminate the undercarriage work area

California Residents:

WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 14,000 lbs capacity

• Turn plates are NOT standard. Must be purchased separately

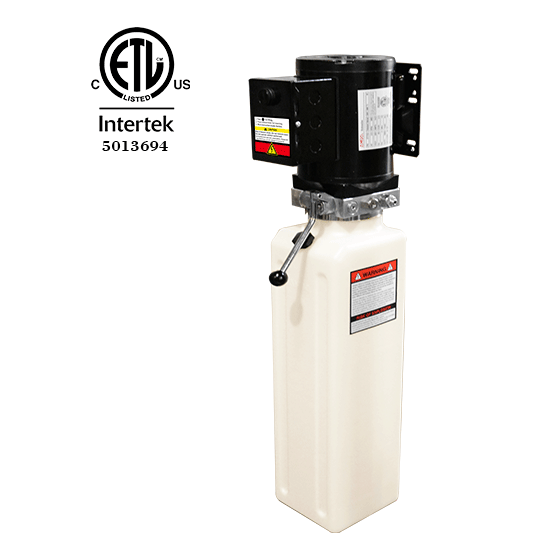

• AMGO ETL certified power unit comes as standard

• Mechanical self-locking safety device with air-driven lock release

• Primary multiple safety locks and cable-slack protection system come standard

• Cable-driven, utilizing aircraft standard high quality cables

• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve

• Non-skid diamond platforms

• Integrated slip plates and adjustable turnplate pockets

Optional Accessories Available

• 41403 Extension Platform Set for PRO-14 & PRO-14A (2Pcs)

• RJ-8A Pneumatic 8,000lbs Rolling Jacks

• 40102 Airline Kit for 4 Post Lifts less than 18K

Product Specifications

Model

PRO-14A

Style
Alignment

Lifting Capacity
14,000 lbs

A Overall Length w/Ramp
257 1/2"

A Overall Length w/o Ramp
N/A

B Runway Length
200 1/2"

C Overall Width
130 7/8"

D Width Between Columns
116"

E Max Lifting Height
77 9/16"

E Max. Lock Height (to Top of Runway)
74 7/16"

F Overall Height
86 3/16"

G Minimum Height
9 13/16"

H Max. Underneath Height
68 7/8"

H Max. Lock Underneath Height
65 3/4"

I Drive-Thru Clearance
102 1/16"

J Width Between Runways
46"

K Outside Edge of Runways
86"

L Min. Four Wheel Align
92 5/8"

M Max Four Wheel Align
177 3/16"

N Max. Two Wheel Align
178 9/16"

Lifting Time
81 S

Motor
2.0HP, 220V/60Hz Single Phase

Gross Weight
3,560 lbs

Key Features

• Published product configuration: AMGO® Hydraulics PRO-14A 4 Post Alignment Lift 14,000 lbs Professional-Grade Alignment Lift for Your Shop The AMGO PRO-14A is a powerful commercial-grade 4-post alignment lift engineered to deliver a generous 14,000 lbs lifting capacity with the precision and features professional shops demand. Built on the proven
• Exact manufacturer model or part number: PRO-14A
• Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model PRO-14A, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
