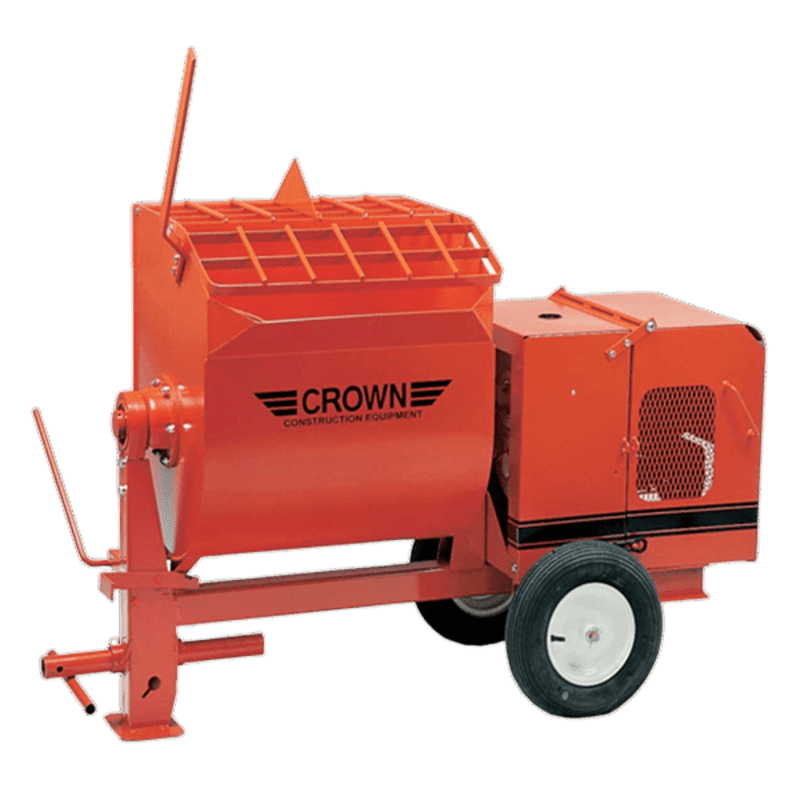

4 Cu Ft Mortar/Plaster Mixer Honda Gas Engine | Tow Optional
$2,740.20
- Brand
- Crown Construction Equipment
- SKU
- 609784
- Model
- 4S Series
- MPN
- 609784
Crown Equipment 4S Series Mortar/Plaster Mixer is configured for mixing mortar, stucco, grout, and other dense masonry materials. Key configuration: Gasoline power source, Honda 5.5 HP gas or Baldor 1.5 HP electric power, and 4 cu ft drum capacity.
Crown Equipment 4S Series Mortar/Plaster Mixer is a mortar/plaster mixer designed for mixing mortar, stucco, grout, and other dense masonry materials. The 4S Series configuration pairs Gasoline power source, Honda 5.5 HP gas or Baldor 1.5 HP electric power, and 4 cu ft drum capacity.
Key differentiators
- 4 ft³ batch/output detail helps crews plan mix cycles
- Honda gas engine power package matched to the SKU configuration
- Steel drum construction selected for jobsite wear and cleanup
- Pinions & Gear Rings drive system for consistent material turnover
- Built for mortar, plaster, stucco, grout, and masonry workflows
- Paddle mixing format is suited to repeated contractor batches
Specifications
- Drum Capacity
- 4 cu ft
- Drum Material
- Steel drum
- Horse Power
- 5.5 HP
- Power Source
- Gasoline
- Weight
- 610 lb max
- Product Type
- Mortar/Plaster Mixer
- Product Subtype
- Tow Optional
- Model/Series
- 4S Series
- Part #
- 609784
- Frame
- High Strength
- Mixing Blades
- Regular Paddles
- Engine/Motor
- Honda gas engine

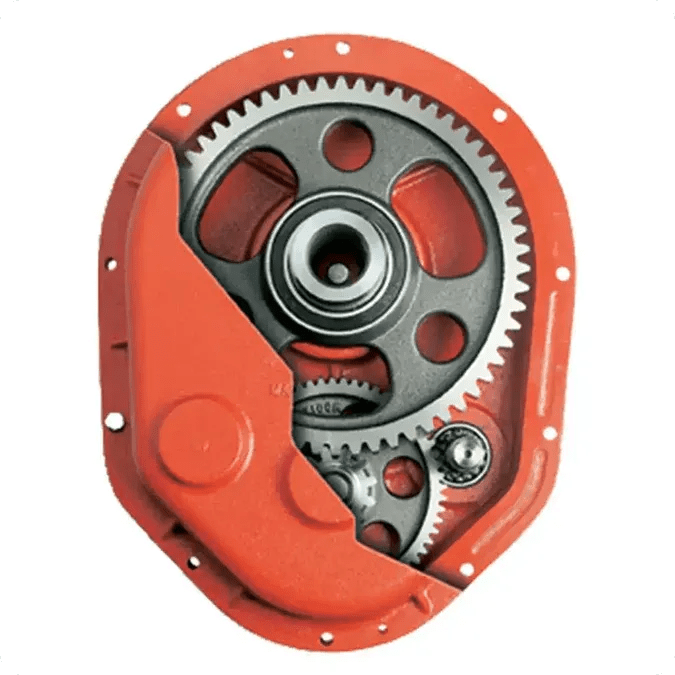

- Gearbox Drive Type
- Cast Iron
- Drive
- Pinions & Gear Rings
- Batch Input
- 1 – 1.5 bags
- Batch Output
- 4 ft³
- Charging Height
- 46"
- Batch Materials
- Mortar, Plaster, Grout
- Axle Type
- Heavy-Duty w/ High-Speed Taper Rolling Bearings
- Wheel Size
- 5.3" x 12"
- Wheel Type
- Pneumatic
- Stand Type
- High-Strength
- Width (in)
- 28"
- Operating Length (in)
- 62"
- Height (in)
- 43"
- Warranty
- 1 year limited
- Manufacturer family
- 4S Mortar Mixer
- Batch Capacity Bags
- 1-1.5 bags
- Power
- Honda 5.5 HP gas or Baldor 1.5 HP electric
- Overall Height
- 43"
- Overall Width
- 28"
- Overall Length
- 62" tow pole in
- Tires
- 4.8 x 8 pneumatic
- Spiral Blade Option
- Yes
- Highway Towable
- No
- Included
- Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
Best-fit applications
The 4S Series is best matched to mixing mortar, stucco, grout, and other dense masonry materials where the job requires Gasoline power source, Honda 5.5 HP gas or Baldor 1.5 HP electric power, and 4 cu ft drum capacity.
- Site utility or fuel: Gasoline
- Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
- Handling reference: 610 lb max
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
| Weight | 850.001 lbs |
|---|---|
| Brand | Crown Construction Equipment |
| Product Type | Mortar/Plaster Mixer |
