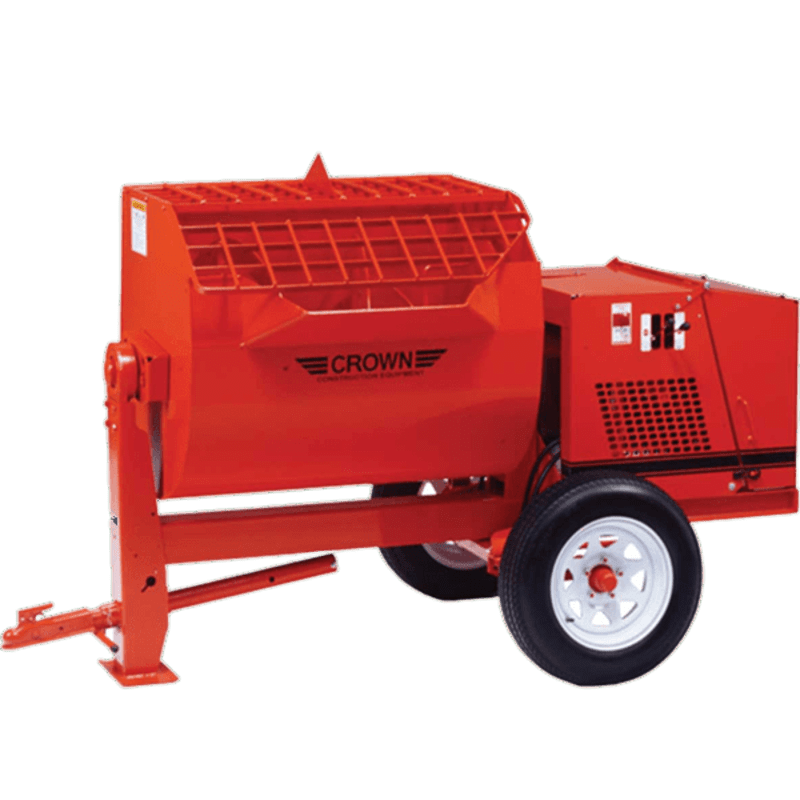

16 Cu Ft Mortar/Plaster Mixer Baldor Electric Motor | Hydraulic Drive/Dump | Highway Towable
$8,071.20
- Brand
- Crown Construction Equipment
- SKU
- 609556p
- Model
- S16SH Series
- MPN
- 609556
Crown Equipment S16SH Series Mortar/Plaster Mixer is configured for mixing mortar, stucco, grout, and other dense masonry materials. Key configuration: AC-powered power source, Honda 13 HP gas or Baldor 7.5 HP electric power, and 16 cu ft drum capacity.
Crown Equipment S16SH Series Mortar/Plaster Mixer is a mortar/plaster mixer designed for mixing mortar, stucco, grout, and other dense masonry materials. The S16SH Series configuration pairs AC-powered power source, Honda 13 HP gas or Baldor 7.5 HP electric power, and 16 cu ft drum capacity.
Key differentiators
- 16 ft³ batch/output detail helps crews plan mix cycles
- Baldor electric motor power package matched to the SKU configuration
- Steel drum construction selected for jobsite wear and cleanup
- Hydraulic drive/dump drive system for consistent material turnover
- Built for mortar, plaster, stucco, grout, and masonry workflows
- Paddle mixing format is suited to repeated contractor batches
Specifications
- Drum Capacity
- 16 cu ft
- Drum Material
- Steel drum
- Horse Power
- 7.5 HP
- Power Source
- AC-powered
- Weight
- 1355 lb max
- Product Type
- Mortar/Plaster Mixer
- Product Subtype
- Highway
- Model/Series
- S16SH Series
- Part #
- 609556
- Frame
- High Strength
- Mixing Blades
- Regular Paddles
- Engine/Motor
- Baldor electric motor
- Gearbox Drive Type
- Hydraulic
- Drive
- Hydraulic drive/dump
- Batch Input
- 4-5 bags
- Batch Output
- 16 ft³
- Charging Height
- 58"
- Batch Materials
- Mortar, Plaster, Grout
- Axle Type
- Rubber Torsion Suspension System
- Wheel Size
- B78 x 13"
- Wheel Type
- Pneumatic
- Stand Type
- High-Strength
- Width (in)
- 52.5"
- Operating Length (in)
- 97.5"
- Towing Length (in)
- 118"
- Height (in)
- 58"
- Warranty
- 1 year limited
- Manufacturer family
- 16SH/S16SH Hydraulic Mortar Mixer
- Batch Capacity Bags
- 4-5 bags
- Power
- Honda 13 HP gas or Baldor 7.5 HP electric
- Overall Height
- 58"
- Overall Width
- 52.5"
- Overall Length
- 97.5" / 118" tow pole in/out
- Tires
- 175/70R13 pneumatic
- Spiral Blade Option
- Standard
- Highway Towable
- Yes
- Included
- Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
Best-fit applications
The S16SH Series is best matched to mixing mortar, stucco, grout, and other dense masonry materials where the job requires AC-powered power source, Honda 13 HP gas or Baldor 7.5 HP electric power, and 16 cu ft drum capacity.
- Site utility or fuel: AC-powered
- Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
- Handling reference: 1355 lb max
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
| Weight | 1350.001 lbs |
|---|---|
| Brand | Crown Construction Equipment |
| Product Type | Mortar/Plaster Mixer |
