12 Cu Ft Mortar/Plaster Mixer Honda Gas Engine | Hydraulic Drive/Dump | Highway Towable

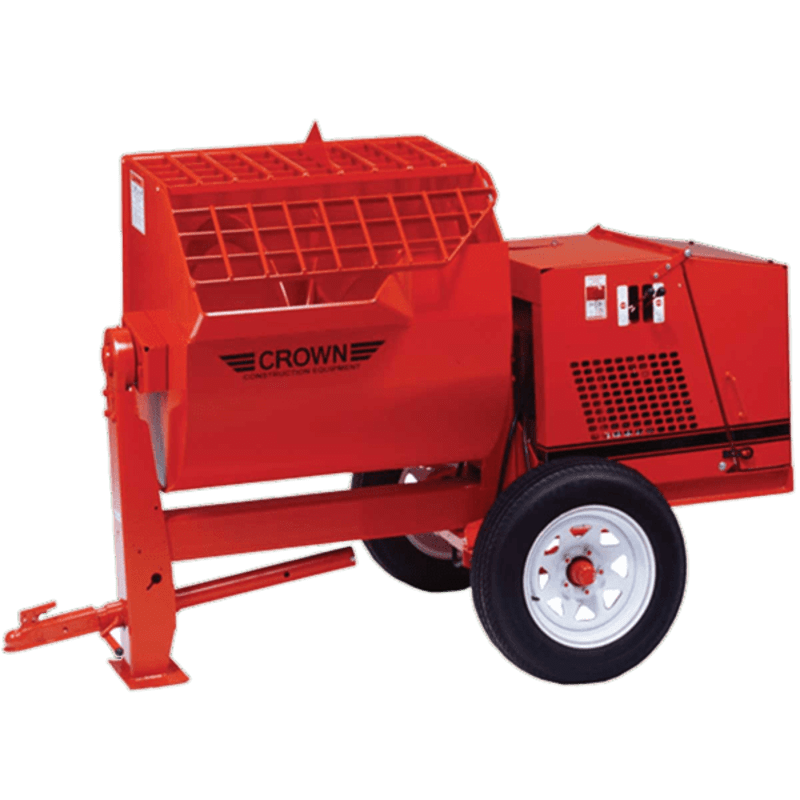

Crown Equipment 12SH Series Mortar/Plaster Mixer is a mortar/plaster mixer designed for mixing mortar, stucco, grout, and other dense masonry materials. The 12SH Series configuration pairs Gasoline power source, Honda 13 HP gas or Baldor 5 HP electric power, and 12 cu ft drum capacity.

Key differentiators

• 12 ft³ batch/output detail helps crews plan mix cycles
• Honda GX390 / Honda gas engine power package matched to the SKU configuration
• Steel drum construction selected for jobsite wear and cleanup
• Hydraulic drive/dump drive system for consistent material turnover
• Built for mortar, plaster, stucco, grout, and masonry workflows
• Paddle mixing format is suited to repeated contractor batches

Specifications

Drum Capacity

12 cu ft

Drum Material

Steel drum

Horse Power

13 HP

Power Source

Gasoline

Weight

1300 lb max

Product Type

Mortar/Plaster Mixer

Product Subtype

Highway

Model/Series

12SH Series

Part #

609542

Frame

High Strength

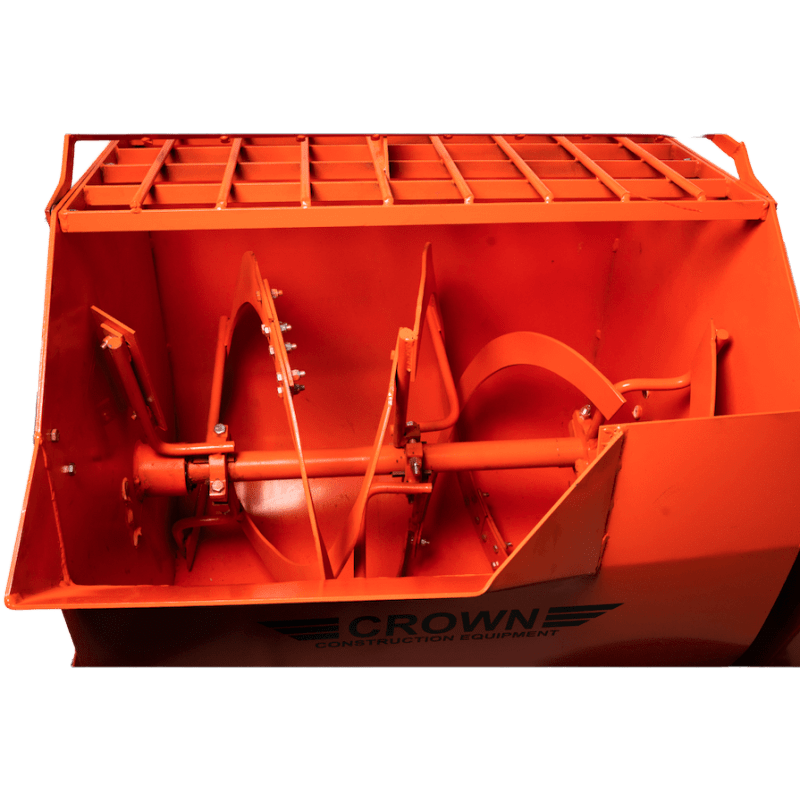

Mixing Blades

Regular Paddles

Engine/Motor

Honda GX390 / Honda gas engine

Gearbox Drive Type

Hydraulic

Drive

Hydraulic drive/dump

Batch Input

3.5 – 4 bags

Batch Output

12 ft³

Charging Height

58"

Batch Materials

Mortar, Plaster, Grout

Axle Type

Rubber Torsion Suspension System

Wheel Size

B78 x 13"

Wheel Type

Pneumatic

Stand Type

High-Strength

Width (in)

52.5"

Operating Length (in)

91.75"

Towing Length (in)

112.25"

Height (in)

57.5"

Warranty

1 year limited

Manufacturer family

12SH/S12SH Hydraulic Mortar Mixer

Batch Capacity Bags

3.5-4 bags

Power

Honda 13 HP gas or Baldor 5 HP electric

Overall Height

57.5"

Overall Width

52.5"

Overall Length

91.75" / 112.25" tow pole in/out

Tires

175/70R13 pneumatic

Spiral Blade Option

Yes

Highway Towable

Yes

Included

Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant

Best-fit applications

The 12SH Series is best matched to mixing mortar, stucco, grout, and other dense masonry materials where the job requires Gasoline power source, Honda 13 HP gas or Baldor 5 HP electric power, and 12 cu ft drum capacity.

• Site utility or fuel: Gasoline
• Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
• Handling reference: 1300 lb max
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
