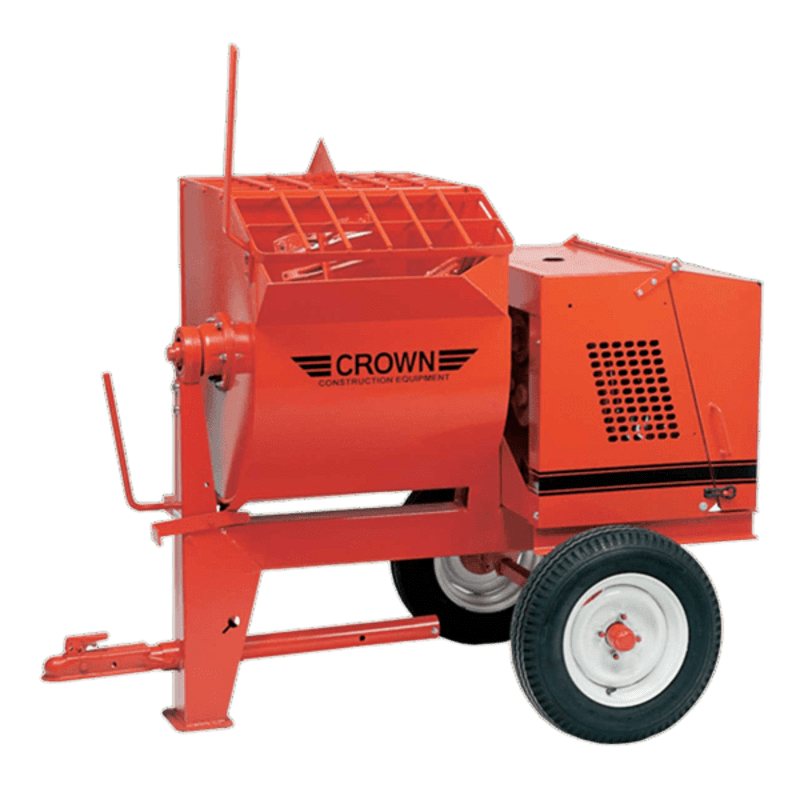

9 Cu Ft Mortar/Plaster Mixer Honda Gas Engine | Highway Towable

Crown Equipment 9S Series Mortar/Plaster Mixer is a mortar/plaster mixer designed for mixing mortar, stucco, grout, and other dense masonry materials. The 9S Series configuration pairs Gasoline power source, Honda 8 HP gas or Baldor 1.5 HP electric power, and 9 ft³ drum capacity.

Key differentiators

• 9 ft³ batch/output detail helps crews plan mix cycles
• Honda gas engine power package matched to the SKU configuration
• Steel drum construction selected for jobsite wear and cleanup
• Pinions & Gear Rings drive system for consistent material turnover
• Built for mortar, plaster, stucco, grout, and masonry workflows
• Paddle mixing format is suited to repeated contractor batches

Specifications

Drum Capacity

9 ft³

Drum Material

Steel drum

Horse Power

8 HP

Power Source

Gasoline

Weight

650 lb max per Crown page

Product Type

Mortar/Plaster Mixer

Product Subtype

Highway

Model/Series

9S Series

Part #

609927

Frame

High Strength

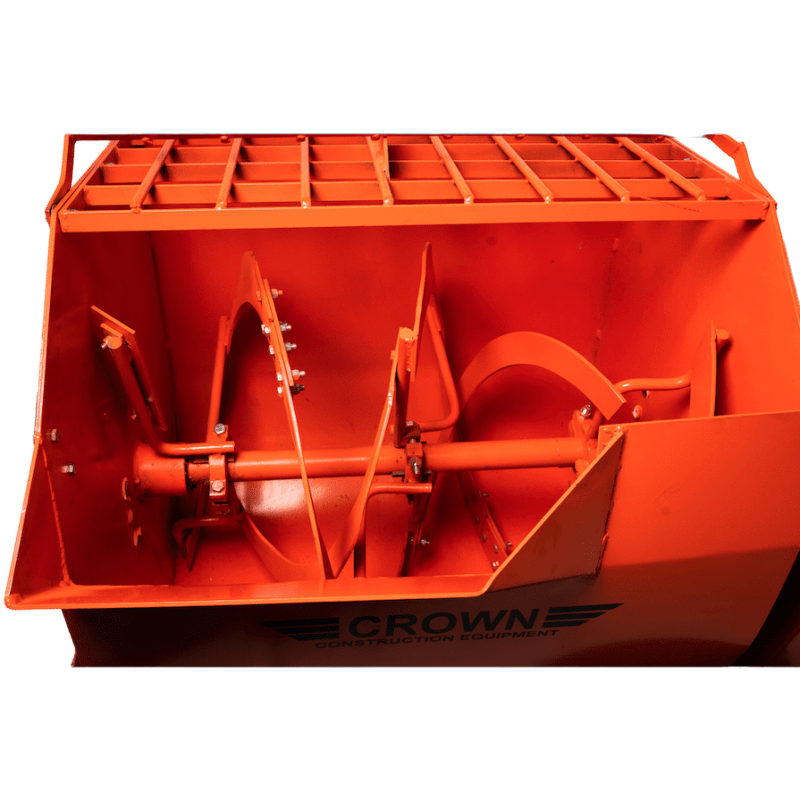

Mixing Blades

Regular Paddles

Engine/Motor

Honda gas engine

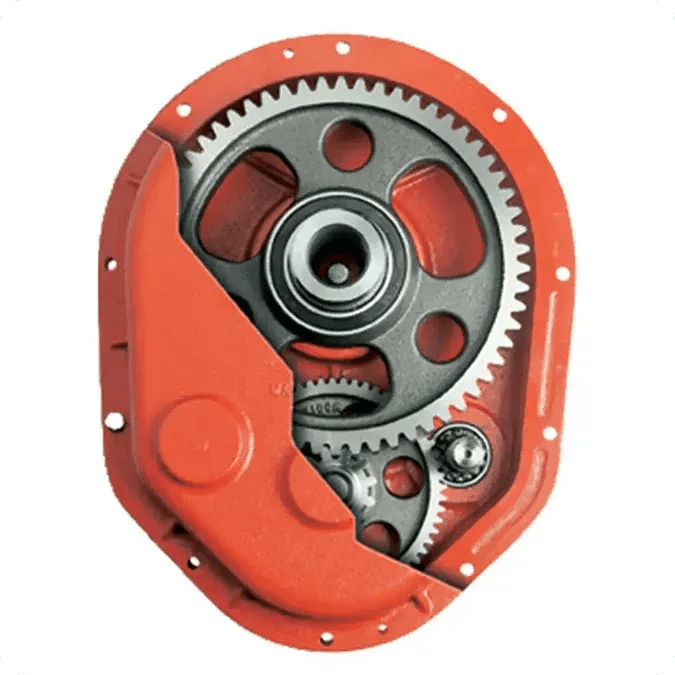

Gearbox Drive Type

Cast Iron

Drive

Pinions & Gear Rings

Batch Input

3 bags

Batch Output

9 ft³

Charging Height

59.75"

Batch Materials

Mortar, Plaster, Grout

Axle Type

Heavy-Duty w/ High-Speed Taper Rolling Bearings

Wheel Size

5.3" x 12"

Wheel Type

Pneumatic

Stand Type

High-Strength

Width (in)

45"

Operating Length (in)

73"

Towing Length (in)

92.75"

Height (in)

57.5"

Warranty

1 year limited

Manufacturer family

9S Mortar Mixer

Batch Capacity Bags

2.5-3 bags

Power

Honda 8 HP gas or Baldor 1.5 HP electric

Overall Height

57.5"

Overall Width

45"

Overall Length

73" / 92.75" tow pole in/out

Tires

5.3 x 12 pneumatic

Spiral Blade Option

Yes

Highway Towable

Yes

Included

Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant

Best-fit applications

The 9S Series is best matched to mixing mortar, stucco, grout, and other dense masonry materials where the job requires Gasoline power source, Honda 8 HP gas or Baldor 1.5 HP electric power, and 9 ft³ drum capacity.

• Site utility or fuel: Gasoline
• Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
• Handling reference: 650 lb max per Crown page
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
