Whip Industries WAS112E Asymmetric/Symmetric Two Post Car Lift ALI Certified

Product Overview

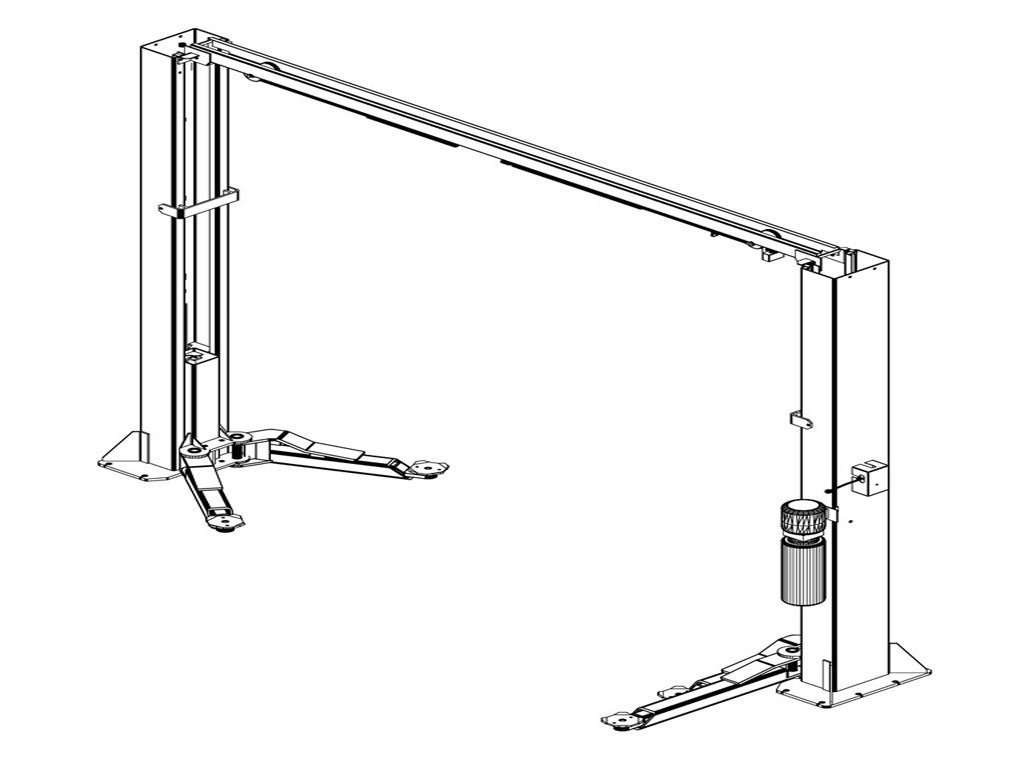

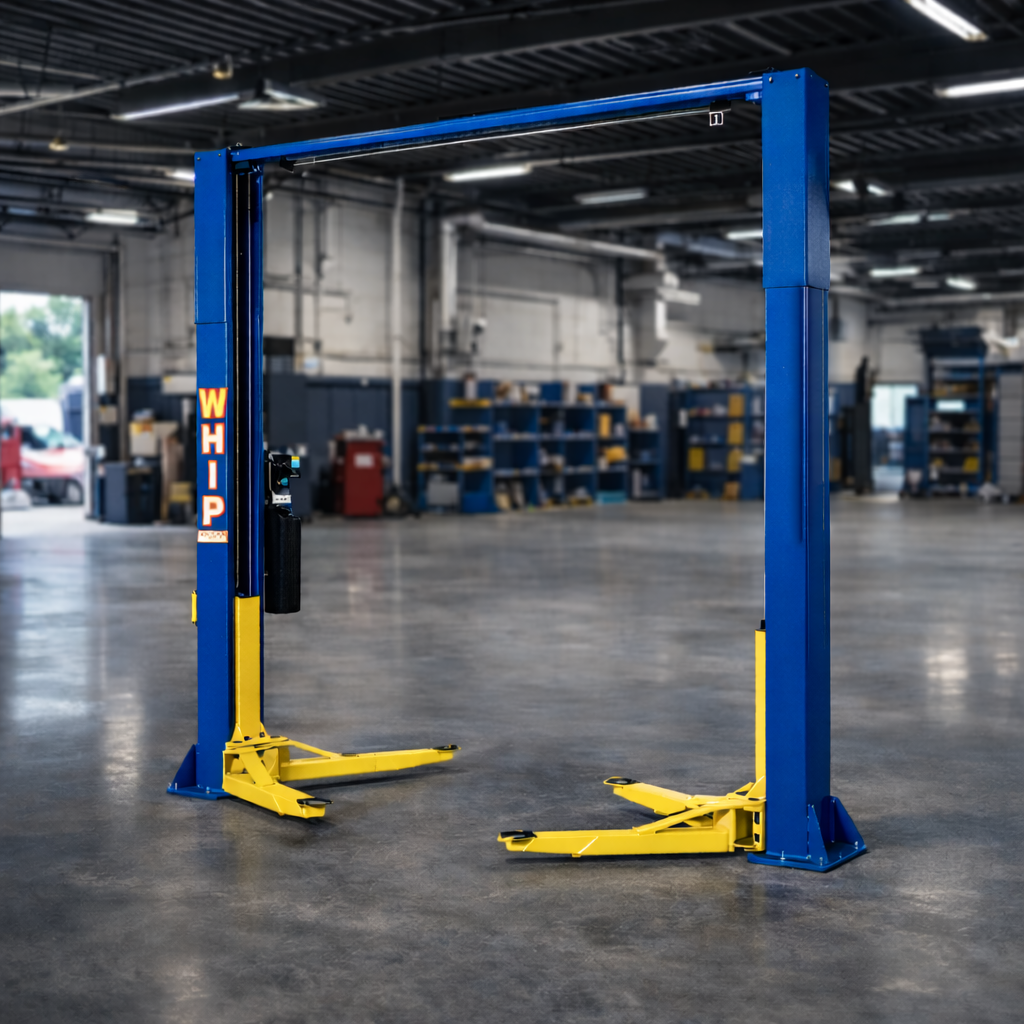

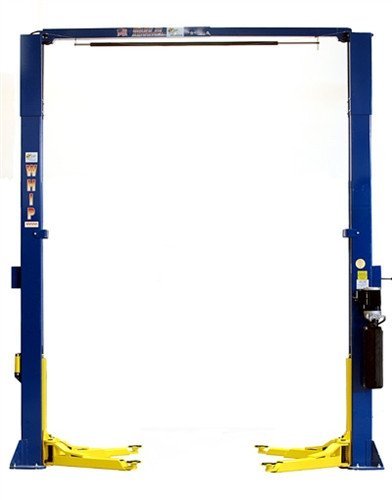

Whip Industries WAS112E Asymmetric/Symmetric Two Post Car Lift ALI Certified

The Whip Industries WAS112E is a professional-grade 11,000 lb. capacity two post car lift engineered for shops demanding versatility, safety, and American manufacturing quality. This ALI Certified lift features an all-symmetric arm configuration that adapts to both symmetric and asymmetric vehicle lifting needs, giving technicians maximum flexibility when servicing a wide range of cars, trucks, and SUVs. With its direct push design, clear floor layout, and 96" drive-thru clearance, the WAS112E optimizes bay space while providing unrestricted access around and beneath the vehicle.

Built to deliver reliable performance day after day, the WAS112E stands 141.50" tall with a 73.75" rise height and features an adjustable cross bridge for enhanced stability. The lift raises vehicles in just 55 seconds, with a single-point lock release system and locking increments every 4 inches starting at 16.50". The unit is powered by a robust 2HP motor running on 208/230V single phase power at 30 amps, ensuring smooth and efficient operation. Whether you're performing routine maintenance, diagnostics, or complex repairs, this lift delivers the safety, speed, and accessibility you need.

Key Highlights

• 11,000 lb. lifting capacity handles a wide range of passenger vehicles, light trucks, and SUVs with confidence

• Asymmetric/Symmetric all-in-one design arms adjust for optimal vehicle positioning and door clearance in any application

• Direct push, clear floor no cables or obstructions between columns for easy bay cleaning and vehicle maneuvering

• 96" drive-thru clearance with 115" width inside columns ample room for long-wheelbase vehicles and comfortable workspace

• Complete adapter set included comes with 2", 4", 6", 8" & 10" height adapters for versatile lifting points

Engineered for Safety & Performance

The WAS112E is ALI Certified, meeting the stringent safety and performance standards set by the Automotive Lift Institute. This certification ensures that every lift has been rigorously tested and validated for structural integrity, load capacity, and operational safety. The lift's adjustable cross bridge and single-point lock release provide added convenience and control, while the 4.75" lifting pad height allows you to get under low-clearance vehicles with ease.

With front arms reaching 48.75" and rear arms extending 62", the lift accommodates various vehicle configurations. The unit requires a 144" ceiling height and must be installed on 4" thick, steel-reinforced concrete rated at 3,000 PSI to ensure long-term stability and safety.

What's Included

Each Whip Industries WAS112E lift comes complete with a full set of 2", 4", 6", 8" & 10" height adapters, giving you maximum flexibility to safely lift vehicles with different frame configurations and ground clearances. This complete adapter package ensures you're ready to service virtually any vehicle that rolls into your shop.

Important Ordering Information:
The WAS112E is built to order. Please note there is a 50% canceling fee for custom orders once production has begun.

Product Features

• 11,000 lb. lifting capacity

• Asymmetric/Symmetric

• Direct push

• Clear floor

Includes

• Set of 2", 4", 6", 8" & 10" Height Adapters

• There is a 50% Canceling Fee Due to these are Built to Order

Product Specifications

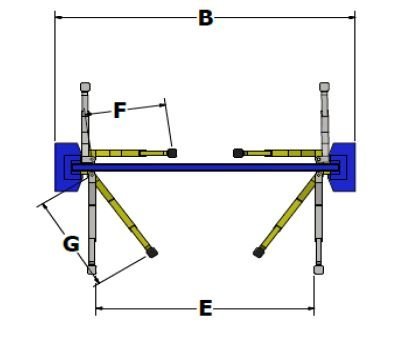

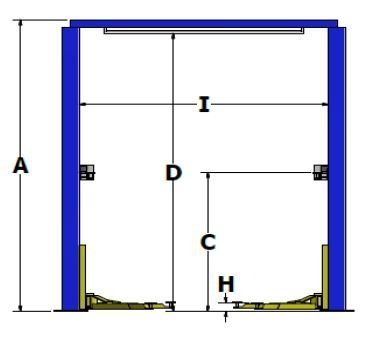

Specifications
WAS112E

Capacity
11,000 lbs.

A Overall Height
141.50"

B Overall Width
138.50"

C Rise Height
73.75"

D Floor to Shut Off Height
135"

E Drive Thru Clearance
96"

Arm Configuration
All-Symmetric

F Front Arm Reach
48.75"

G Rear Arm Reach
62"

H Lifting Pad Height
4.75"

I Width Inside Columns
115"

First Lock Height
16.50"

Locking Increments
4"

Speed of Rise
55 sec.

Ceiling Height Required
144"

Floor Installation Requirement
Concrete, 3,000 PSI, 4" Thick, Steel Reinforced

Motor
2HP

Voltage
208/230v Single Phase

Amps
30

Key Features

• Published product configuration: Whip Industries WAS112E Asymmetric/Symmetric Two Post Car Lift ALI Certified The Whip Industries WAS112E is a professional-grade 11,000 lb. capacity two post car lift engineered for shops demanding versatility, safety, and American manufacturing quality. This ALI Certified lift features an all-symmetric arm
• Exact manufacturer model or part number: Whip-WAS112E
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model Whip-WAS112E, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.

Manuals & Technical Resources

• Manufacturer document 1
• Manufacturer document 2
