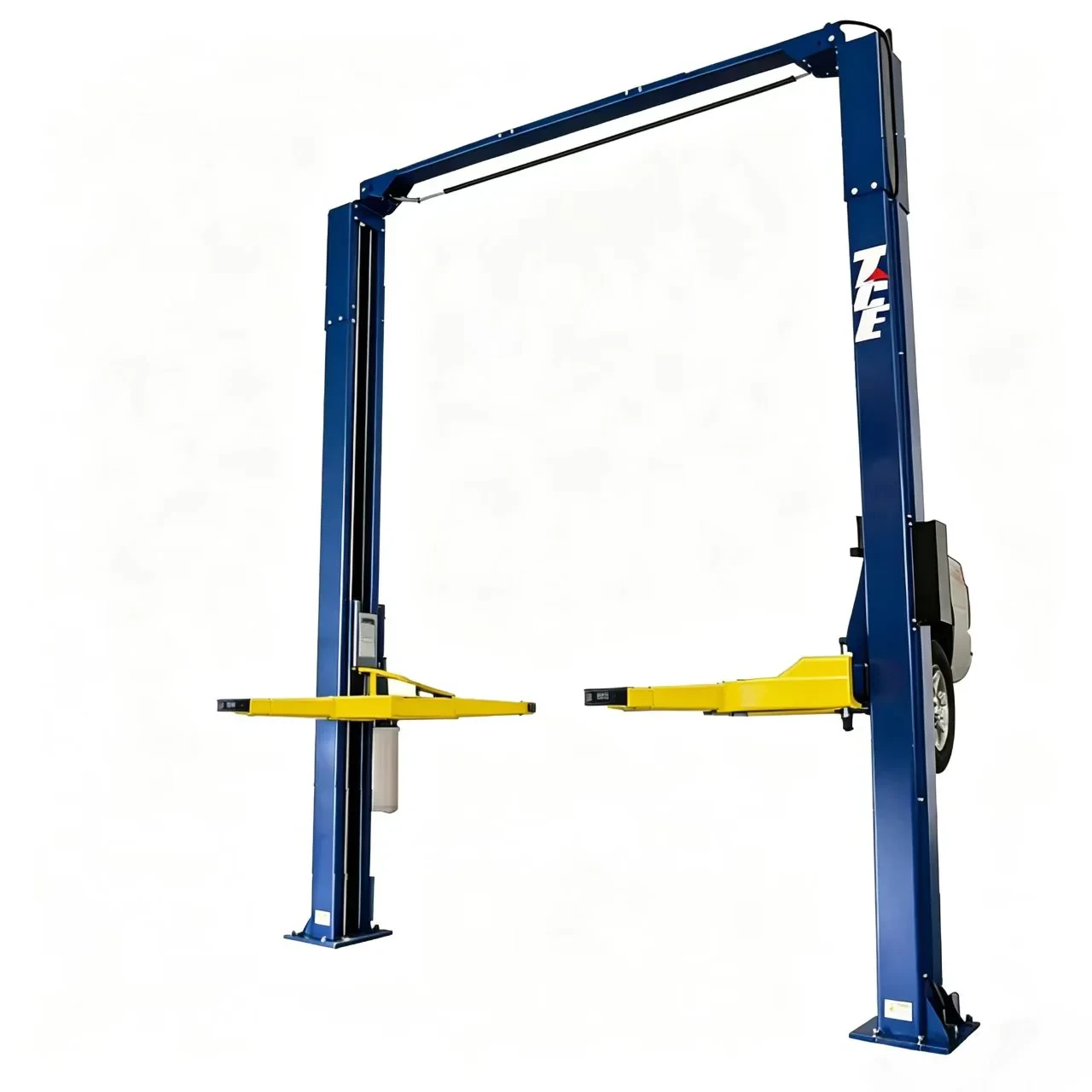

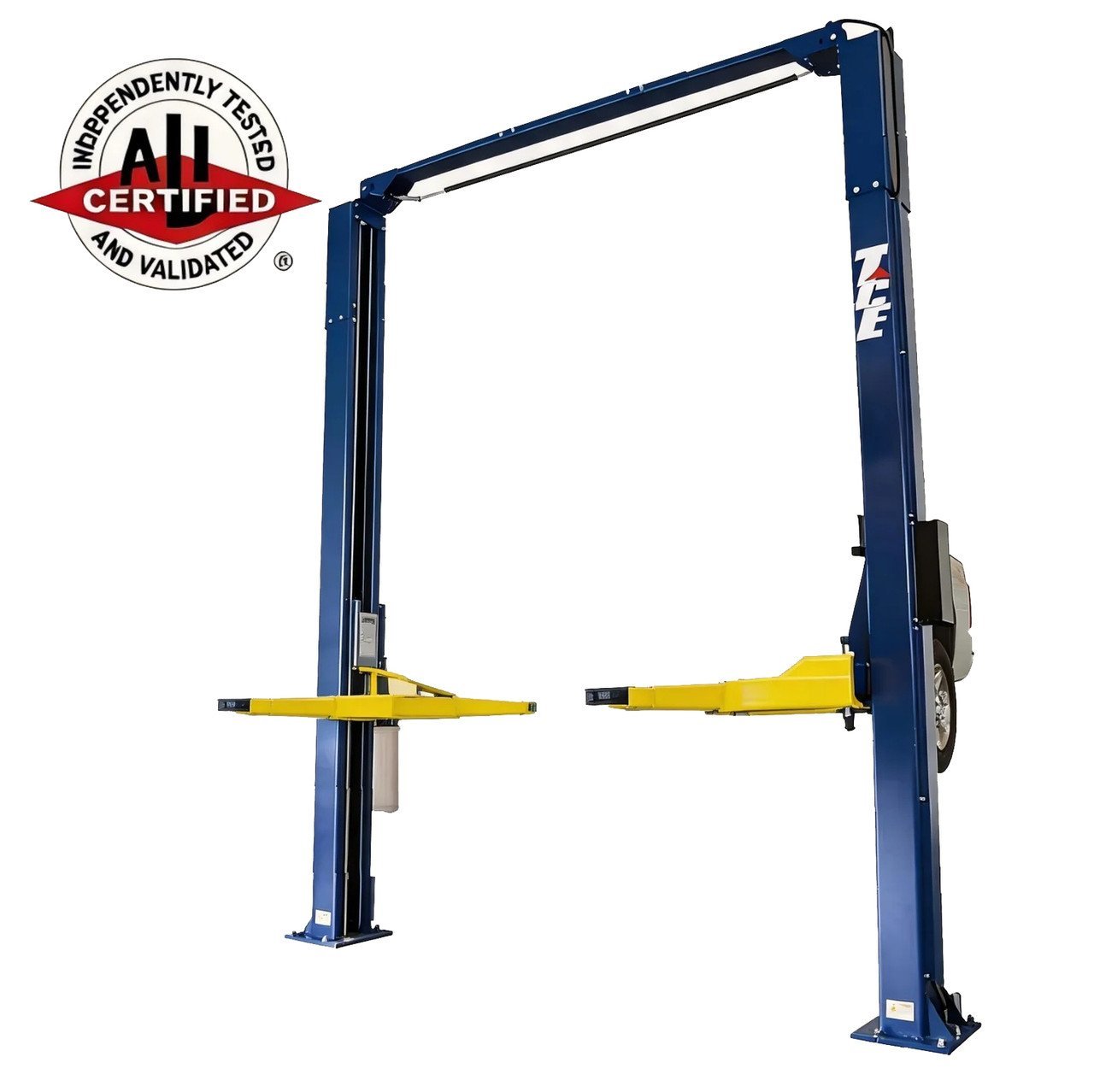

Torin QJY245DX TCE 220V ALI 2 Post Lift 10,000 lb.

Product Overview

Torin QJY245DX TCE 220V ALI 2 Post Lift 10,000 lb.

The TCE Professional Series 10,000 lb. Two-Post Lift is engineered for commercial repair facilities and serious automotive enthusiasts seeking professional-grade performance, reliability, and value. Featuring a true 10,000 lb. lifting capacity and backed by an ALI Gold Label Certification, this lift meets the industry's highest safety and performance standards, making it an ideal choice for professional service environments./

Designed for exceptional versatility, the TCE lift is equipped with triple telescoping arms that support both symmetric and asymmetric lifting configurations. Combined with its ultra-low lift pad height, the lift can safely accommodate a wide range of vehicles, from low-clearance sports cars and sedans to full-size trucks and SUVs, maximizing efficiency and vehicle coverage in any shop.

Designed to accommodate a variety of electrical requirements, the lift supports multiple voltage options and includes adjustable lift pads and adapters for servicing a wide range of vehicles.

California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• ALI Gold Label Certified: Meets the industry's highest safety and performance standards, ensuring compliance with OSHA requirements and commercial insurance regulations.

• Industry-Leading Warranty: Includes a comprehensive 3-year warranty, providing added peace of mind and long-term value.

• Triple Telescoping Arms: Delivers exceptional vehicle coverage and flexibility, with three sets of high-extension truck adapters included for servicing cars, trucks, and commercial fleet vehicles.

• Adjustable Drive-Through Width: Three selectable width settings (88-1/8", 94-1/16", and 100") allow shops to optimize workspace and accommodate a wider range of vehicles.

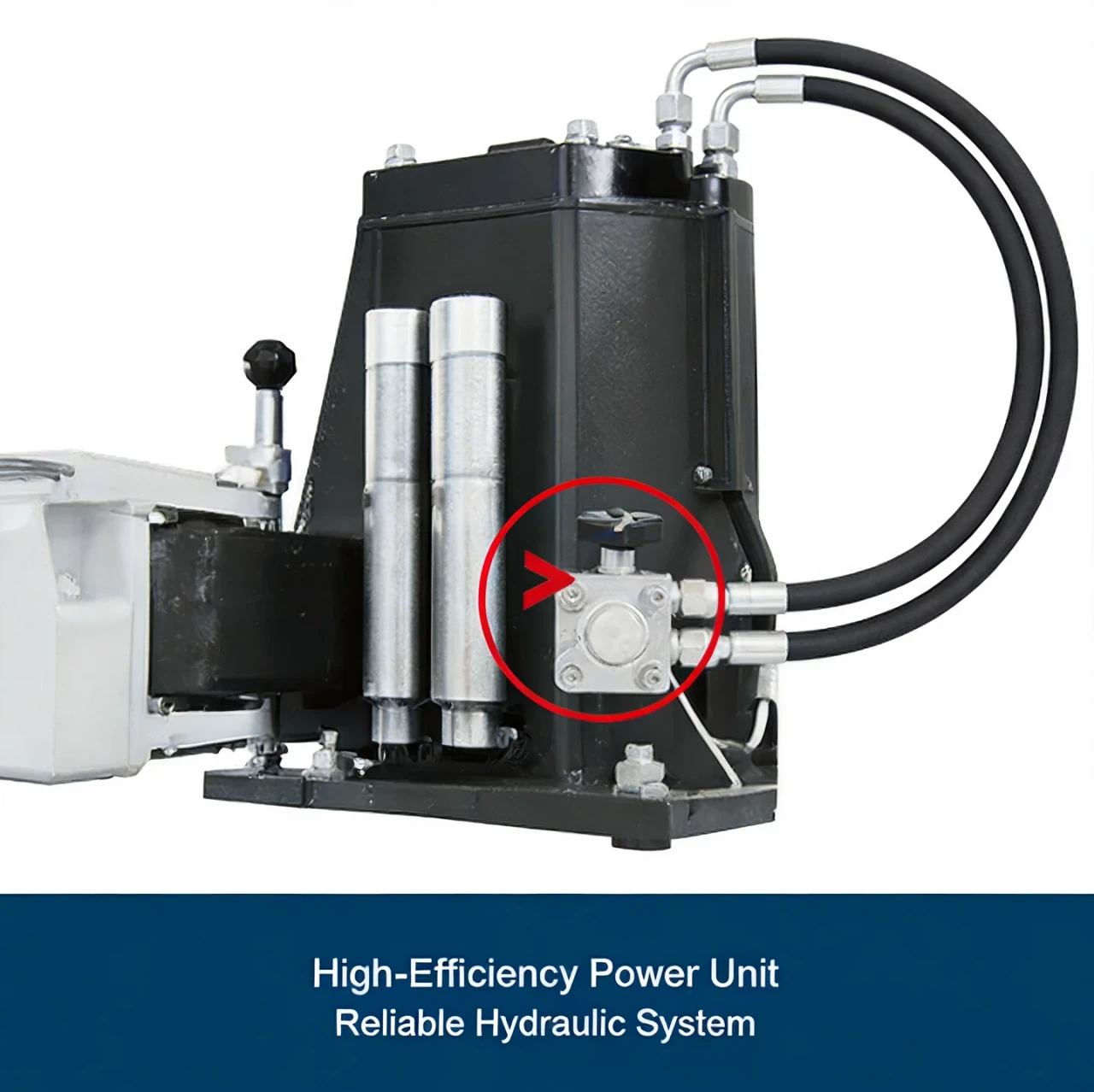

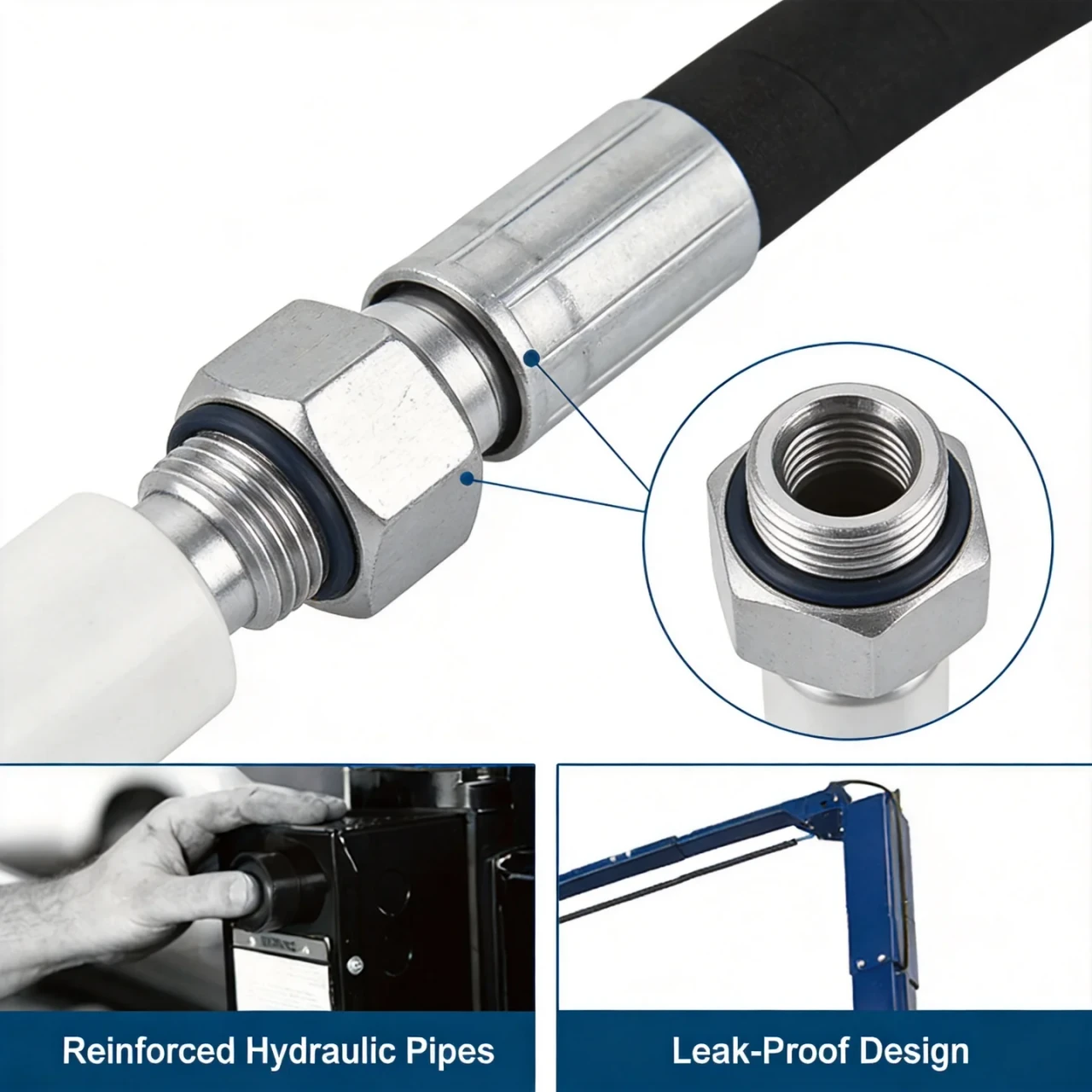

• Heavy-Duty Construction: Features dual direct-drive hydraulic cylinders, an all-robot-welded structure, and a durable powder-coated finish for maximum strength and longevity.

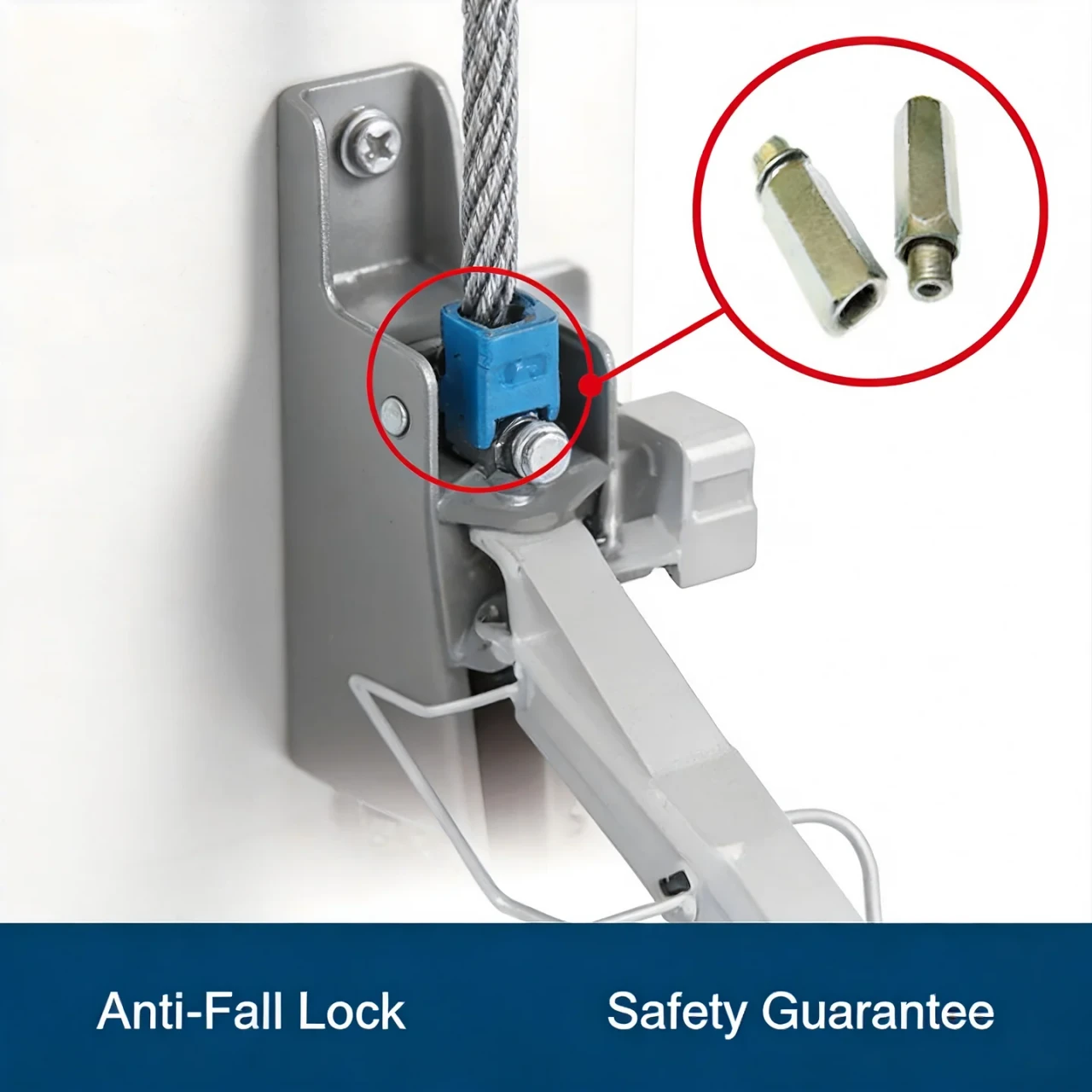

• Enhanced Lifting Control: Equipped with an oversized 57" carriage and a dependable single-point manual lock release system for smooth, secure operation.

• Optional Accessories Available: Compatible with adjustable screw pads, U-frame cradle pads, and 90-degree power unit mounting brackets to further expand lifting capabilities.

Product Specifications

Specifications
QJY245DX

Settings
Narrow
Medium
Wide

Capacity
10,000 lbs. / 4.5 Tons

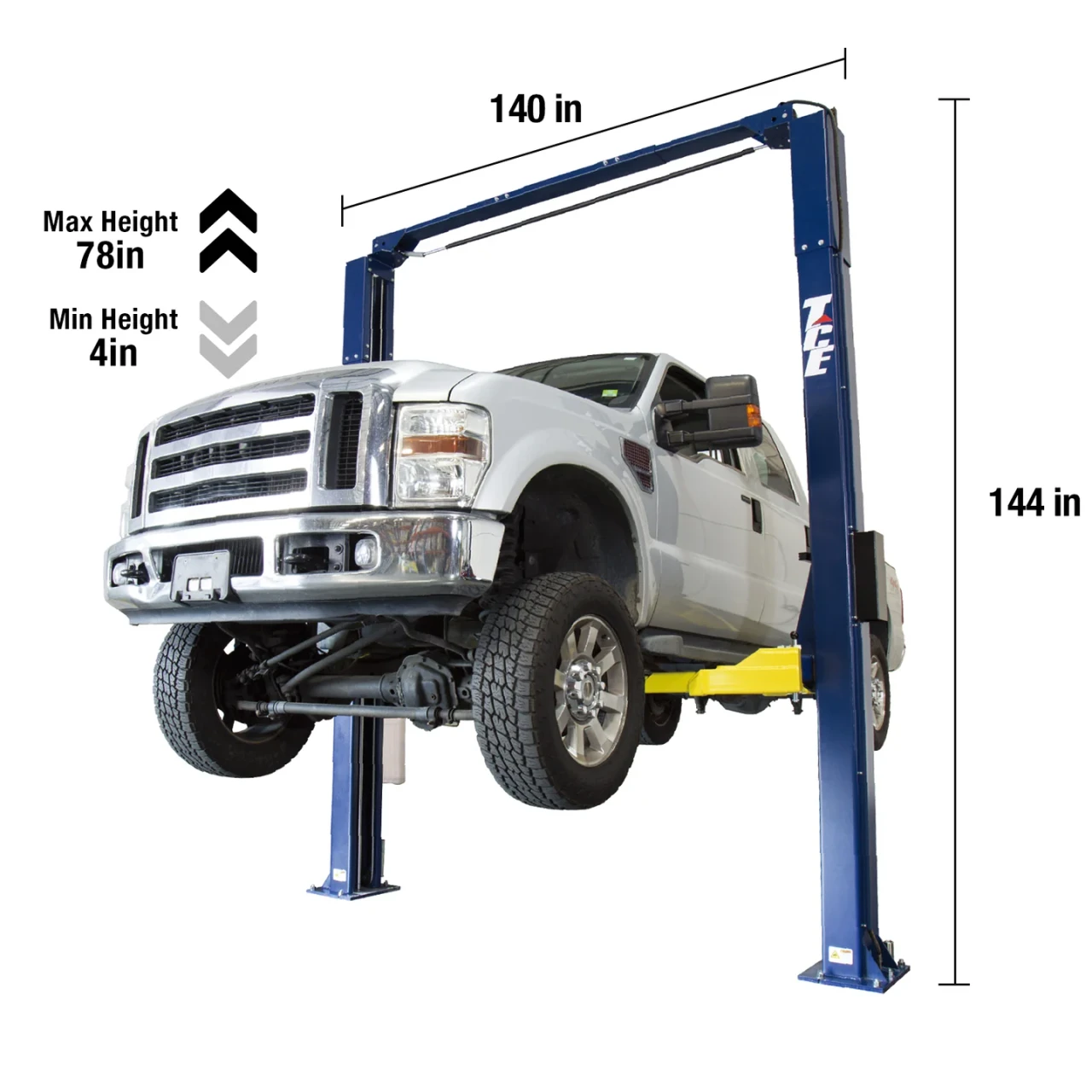

Overall Height
143.7" (11,97ft) / 3650mm

Ceiling Height Requirement
144" (12ft) / 3658mm

Max Lift Height
69"

Max Lift Height w/Adapters
78"

Max Rise from the Ground
72.75"

Min Height of Adjustable Pads from Ground
4"

Max Rise from the Ground
72.75"

Overall Width
140.43" / 3567mm.
146.34" / 3717mm
152.24" / 3867mm

Drive Through Width
88" / 2239 mm.
94.06" / 2389mm
99.96" / 2539mm

Inside Column Width
111.42" / 2830mm.
117.32" / 2980mm
123.23" / 3130mm

Driving Mode
Direct Drive

Front / Rear Arms
3 Stages

Front Arm Reach
19.3" to 41.85" / 492 to 1063mm

Rear Arm Reach
37.3" to 60.20" / 948 to 1529mm

Width Arms Open Symmetric Setting
122.09" / 3101mm

Width Arms Open Asymmetric Setting
82.64" / 2099mm

Width Arms Centered
34.45' / 875mm

Max Load Per Arm
Single Point Release

Lock Release
2500 lbs. / 1136 kg

Rising Time
50s

Certified
ALI Certified

Motor
220VAC /60HZ / 3HP

Shipping Dimensions
118.11" x 17.72" x 34.4"

Shipping Weight
1,437.4 lbs.

Concrete Requirement
6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LBs and below)

Key Features

• Published product configuration: Torin QJY245DX TCE 220V ALI 2 Post Lift 10,000 lb. The TCE Professional Series 10,000 lb. Two-Post Lift is engineered for commercial repair facilities and serious automotive enthusiasts seeking professional-grade performance, reliability, and value. Featuring a true 10,000 lb. lifting capacity and backed by an ALI Gold
• Exact manufacturer model or part number: QJY245DX
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model QJY245DX, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
