Nationwide NW-10KACD Asymmetric & Symmetric Two Post Car Lift 10,000 lbs

Product Overview

Nationwide NW-10KACD Asymmetric & Symmetric Two Post Car Lift 10,000 lbs

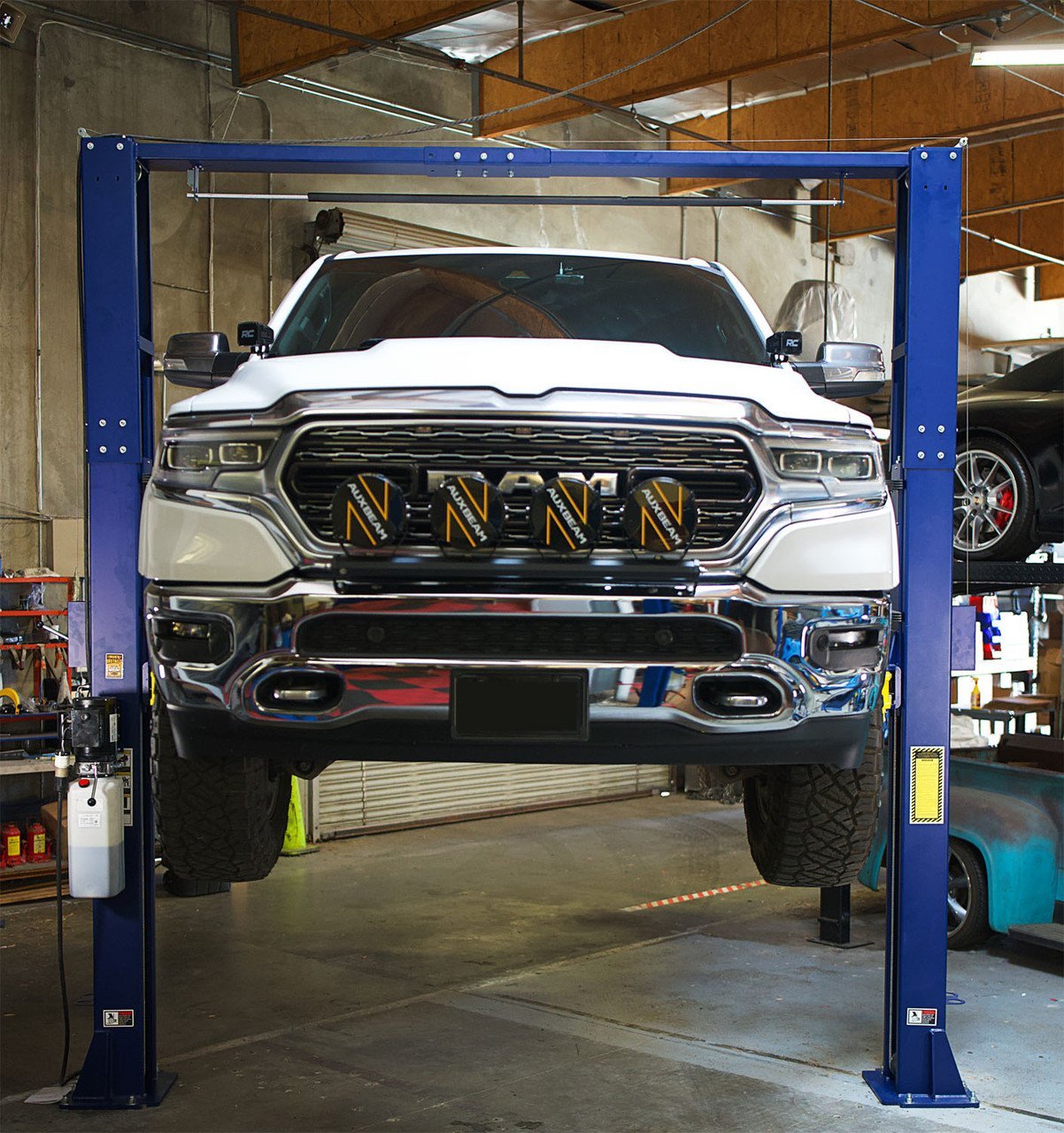

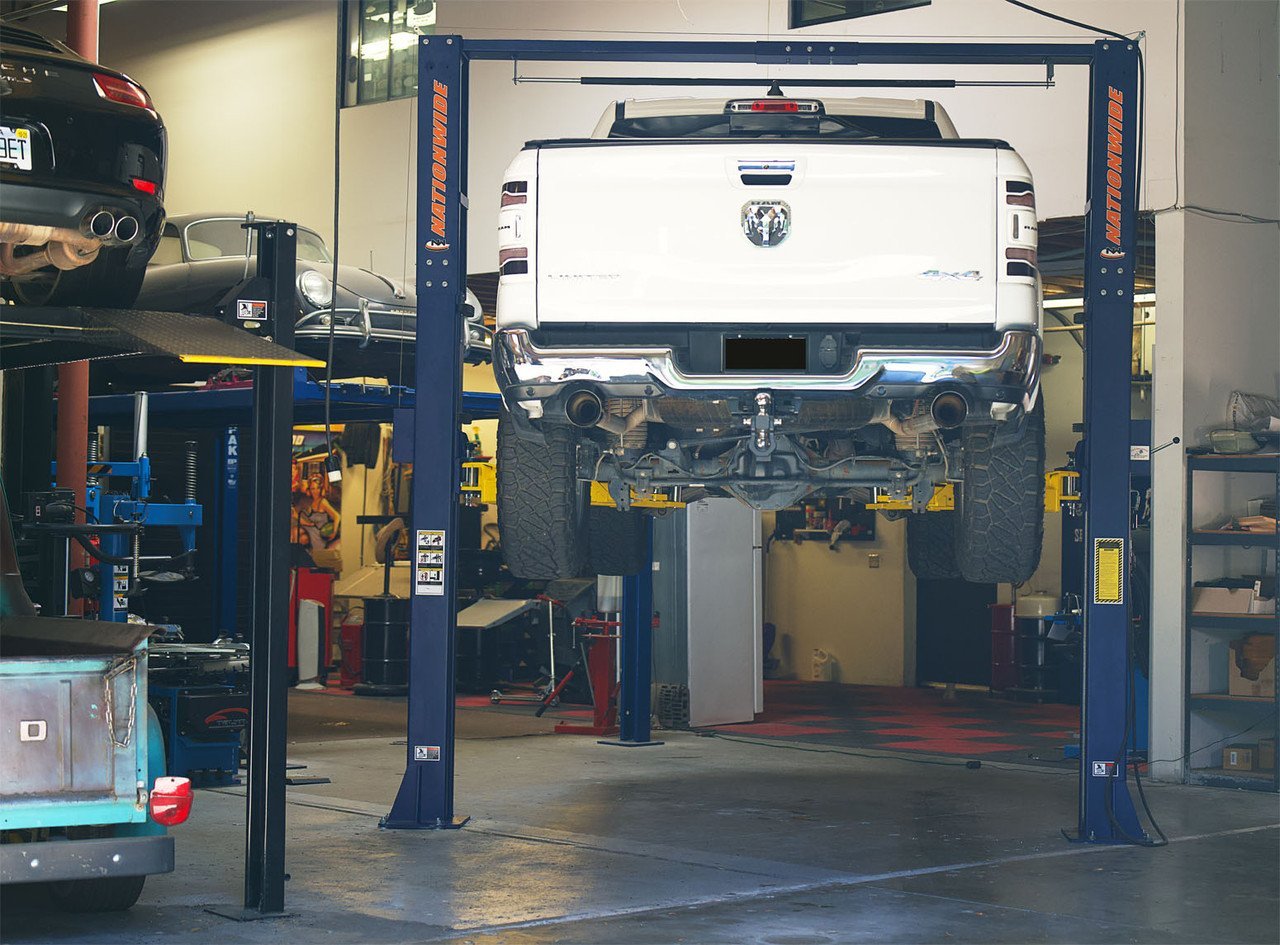

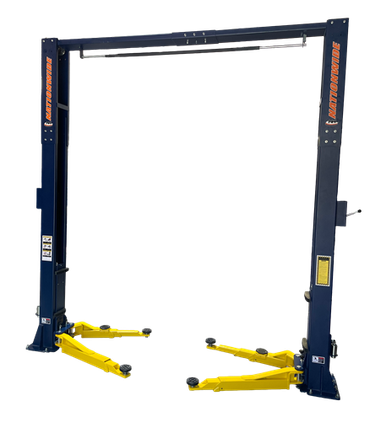

The Nationwide NW-10KACD two-post floor plate lift delivers reliable, high-performance lifting with a 10,000 lb. capacity ideal for cars, SUVs, and light trucks in professional automotive shops. This rugged lift is engineered to meet strict quality standards and deliver lasting durability in busy shop environments. With its dual metric arms offering both asymmetric and symmetric lifting configurations, the NW-10KACD provides exceptional versatility for a wide range of vehicles and service applications.

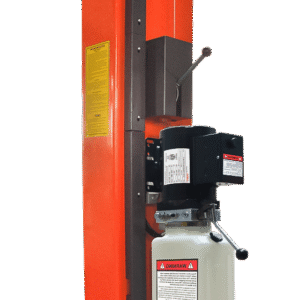

Featuring dual hydraulic chain-drive cylinders and automatic arm restraints, this lift ensures stable, secure operation every time. A dual-point manual safety release gives technicians added control and confidence during vehicle servicing. The lift's innovative three-stage front arms and extendable rear arms accommodate varying wheelbases and vehicle types, while the direct drive cylinder design—where the cylinder attaches directly to the carriage—provides enhanced stability and smooth lifting performance.

Advanced Safety System for Maximum Protection

The safety latch system on the NW-10KACD operates similarly to an extension ladder for reliable, intuitive protection. The safety latch remains in contact with the rack as the lift ascends and automatically drops into place as the lift rises. The safety latch engages the rack in 3-inch (76mm) increments, starting at approximately 16 inches (406mm) from the ground, ensuring multiple secure locking positions throughout the lift's travel range.

The locking latch must be manually disengaged for the lift to descend, giving technicians full control over lowering operations. The latch is released by pulling the release cable, which raises the latch up off the latch rack. Once the raise button is pressed, the latch will automatically re-engage after approximately 3 inches (76mm) of travel, providing continuous protection during lifting operations.

Additional safety features include a padded shut-off bar and heavy-duty rubber door guards that protect both vehicles and shop personnel. These thoughtful design elements reduce the risk of damage during vehicle positioning and enhance overall workplace safety.

Versatile Dual Configuration Design

What sets the NW-10KACD apart is its dual metric arm system that seamlessly operates in both asymmetric and symmetric modes. The innovative three-stage arms on the front provide exceptional reach flexibility, extending from 25.5 inches to 44.25 inches, while the rear arms extend from 39.5 inches to 57.5 inches. This extensive adjustability makes it easy to position lift points precisely where needed for different vehicle designs and weight distributions.

The lift offers an impressive 96-inch drive-through clearance between arms and 115.75 inches between posts, providing ample room for positioning vehicles and working comfortably underneath. With a maximum lifting height of 72 inches (or 77.75 inches with adapters ), technicians gain excellent undercarriage access for comprehensive service and repair work.

The screw-style adjustable pads with stack adapters ( 1.5-inch and 5-inch ) offer precise height adjustment from 4 inches to 10 inches, accommodating various vehicle lift points and frame configurations. The included set of drop-in height adapters further enhances versatility, making this lift suitable for everything from low-profile sports cars to higher-clearance SUVs and light trucks.

Key Performance Highlights

• 10,000 lb. lifting capacity handles cars, SUVs, and light trucks with ease

• Dual asymmetric/symmetric configuration with three-stage front arms for maximum versatility

• Direct drive cylinder system provides superior stability and smooth operation

• Fast 55-second rise time improves shop productivity and efficiency

• Powerful 3 HP motor operating on standard 220V/1-phase power

Built for Professional Shops

The Nationwide NW-10KACD is designed for the demands of professional automotive service facilities. Its robust construction and thoughtful engineering deliver years of reliable performance, while the 55-second rise time keeps your bay productive and efficient. The lift operates on standard 220V/60Hz/1-phase power, making installation straightforward in most shop environments.

With column heights of 145.4 inches to 149.3 inches and a total width of 139.5 inches (outside base plate), the lift fits well in standard ceiling heights while maximizing lifting capability. The floor to overhead switch measures 136.75 inches to 140.75 inches, ensuring safe and convenient operation. Each arm supports a maximum load of 2,500 lbs, providing balanced weight distribution across the lift platform.

Important Installation Requirements

Concrete Requirements: This lift requires a minimum concrete thickness of 4.25 inches (108mm) at 3,000 PSI (207 bar) for safe installation and operation.

Improper installation may result in serious injury or damage. Please verify concrete specifications before installation and consult the installation manual for complete anchoring requirements.

⚠ California Proposition 65 Warning:
This product contains certain metals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit

Product Features

Nationwide 10KACD

• Dual Metric arms Both Asymmetric and Symmetric 3 stage arms in the front

• Padded shut off bar

• Screw style adjustable pads with stack adapters 1 ½" and 5"

• Drive through distance between arms 96"

• Distance between posts 115.75"

• Overall lifting height with stack adapter 77.75"

• Direct drive cylinder (cylinder is attached directly to the carriage) giving the lift greater stability

• Padded door guard

Includes

• Set of Drop-In Height Adapters

WARNING: This product can contains certain metals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to

Product Specifications

Specifications
NW-9KACD
NW-10KACD

Capacity
9,000 lbs.
10,000 lbs.

Max Lifting Height
72"- (77.75" w/Adapters)

Column Height
145.4" / 149.3"

Total Width (outside base plate)
139 1/2"

Drive-Through Clearance
96"

Floor to Overhead Switch
136.75" / 140.75"

Front Arm Reach (Min/Max)
25.5" / 44.25" Three stage arm

Rear Arm Reach (Min/Max)
39.5" / 57.5"

Drop-in Pad Height
4" – 10"

Inside Column Width
115.75"

Motor / Voltage
3 HP / 220V / 1 phase

Rise
55 seconds

Max Load Per Arm
2250 lbs / 2500 lbs

Note: Requires a minimum concrete thickness of 4.25" (108mm) at 3,000 PSI (207 bar). Improper installation may result in serious injury or damage. Please verify concrete specs before installation.

Key Features

• Published product configuration: Nationwide NW-10KACD Asymmetric & Symmetric Two Post Car Lift 10,000 lbs The Nationwide NW-10KACD two-post floor plate lift delivers reliable, high-performance lifting with a 10,000 lb. capacity ideal for cars, SUVs, and light trucks in professional automotive shops. This rugged lift is engineered to meet strict
• Exact manufacturer model or part number: NW-10KACD
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model NW-10KACD, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
