KaTool KT-4M110PA Four Post Alignment Vehicle Lift 11,000lbs

Product Overview

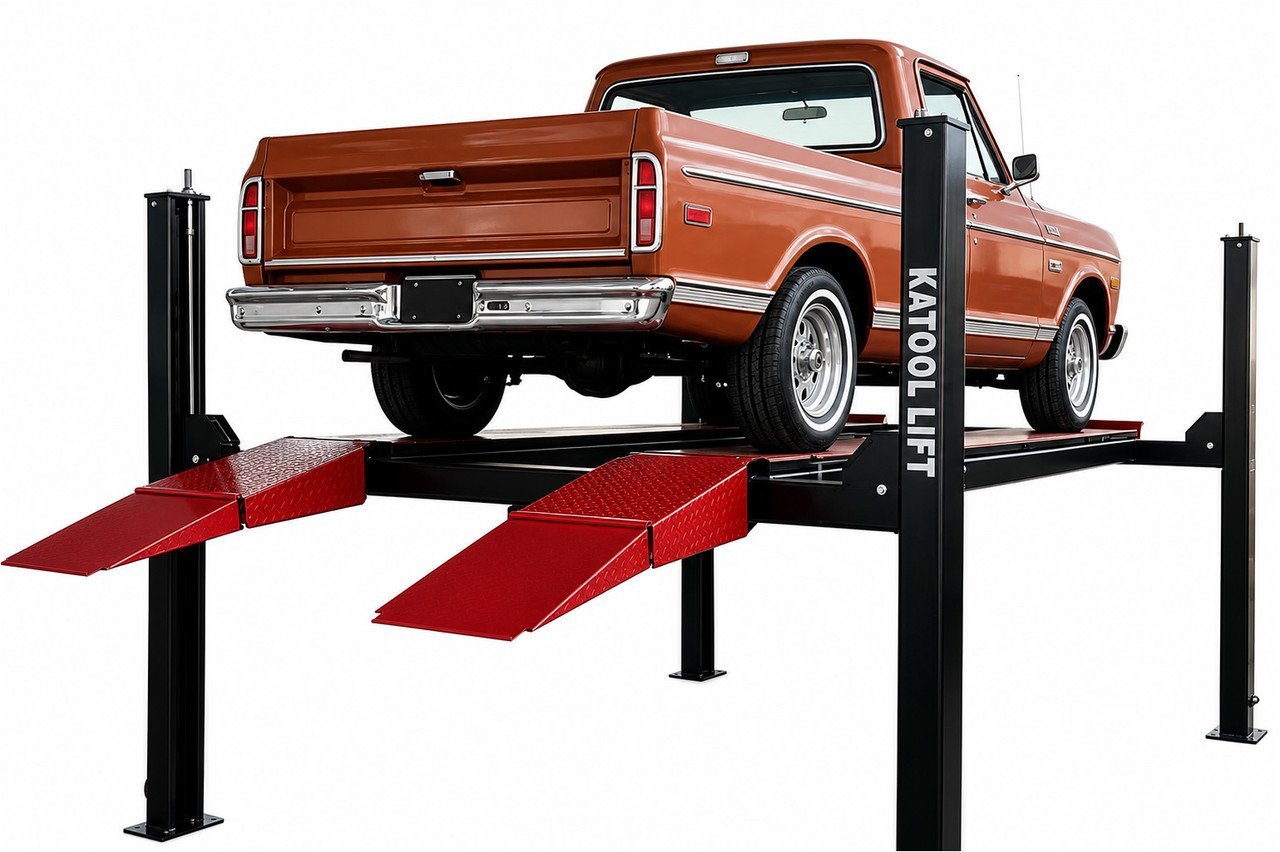

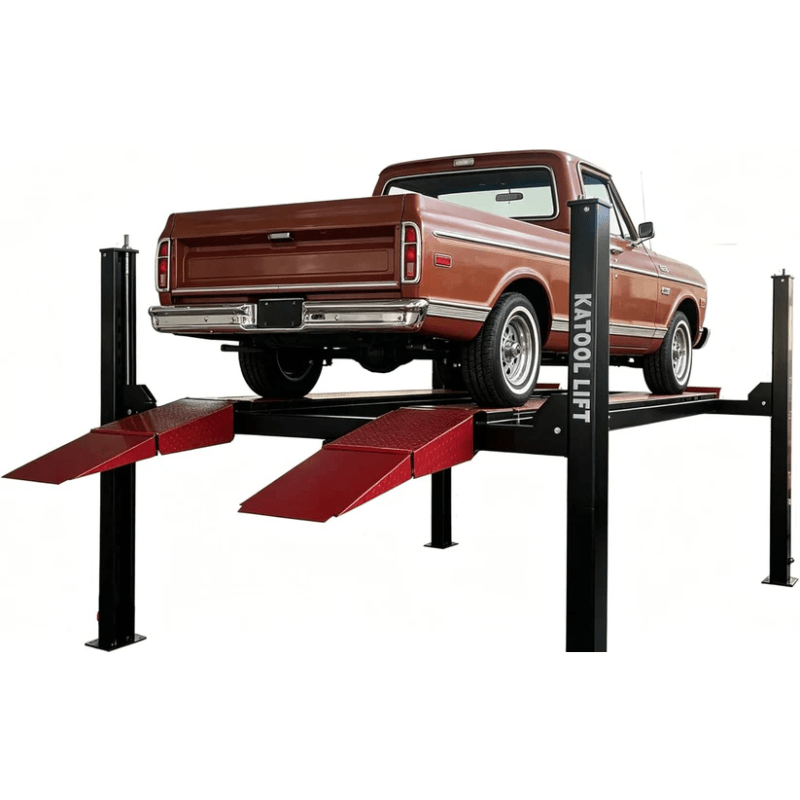

Katool KT-4M110PA Four Post Alignment Vehicle Lift 11,000lbs

The Katool KT-4M110PA is a heavy-duty 11,000 lb capacity four-post alignment lift engineered for professional automotive service, wheel alignments, inspections, maintenance, and repair work. Featuring an impressive 84.5-inch maximum lifting height and a 7,000 lb rolling jack included as standard equipment, it provides the versatility needed to service a wide range of cars, trucks, and SUVs with ease.

Designed for long-term reliability, the KT-4M110PA features reinforced runways for maximum strength and stability, while its dependable 220V hydraulic power system delivers smooth, efficient lifting and lowering. Built to withstand the demands of busy repair shops, this alignment lift combines durability, precision, and performance, making it an excellent choice for professional service centers and serious automotive enthusiasts alike..

Important Installation Requirements

⚠ Critical Concrete Requirements:

Concrete thickness must be at least 3.93 inches (100mm) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

California Prop 65 Warning:
This product contains certain metals/chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to

Product Features

• 11,000 lb Lifting Capacity Heavy-duty four-post alignment lift designed to safely accommodate cars, trucks, SUVs, and other vehicles. Reinforced runways provide exceptional strength, stability, and long-term durability.

• 84.5" Maximum Lifting Height Delivers ample under-vehicle working space for comfortable access during wheel alignments, inspections, maintenance, and repair services.

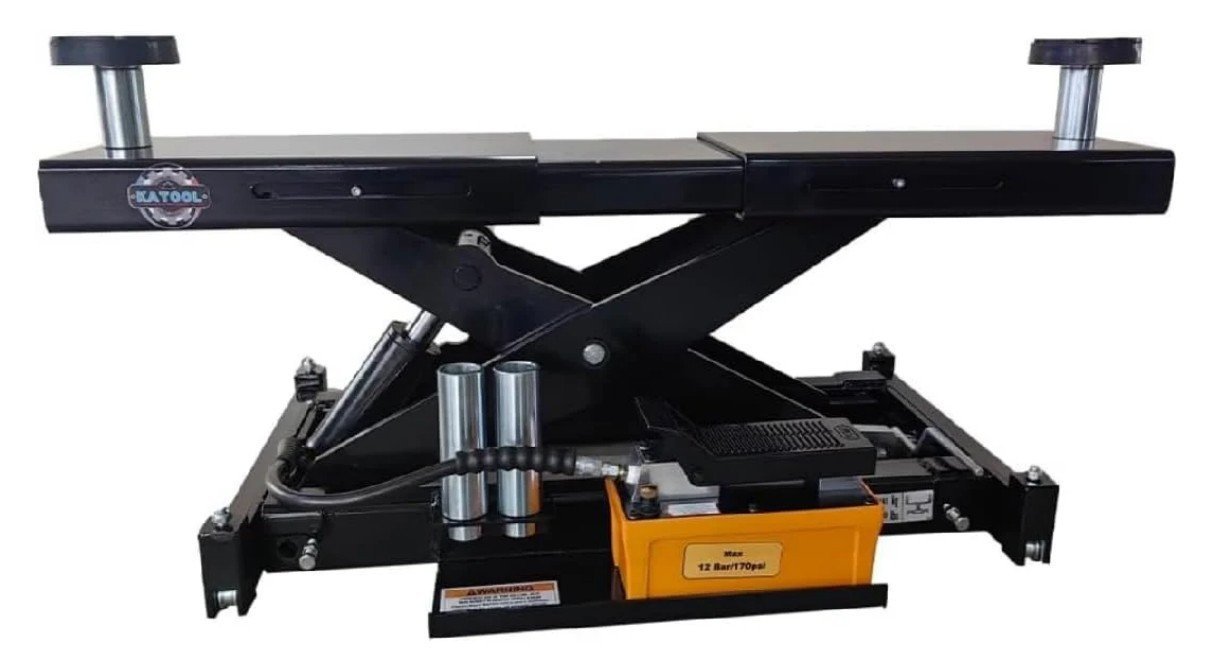

• Includes 7,000 lb Rolling Jack Comes standard with a heavy-duty rolling jack for lifting individual axles, along with three drip trays and one lift tray for added versatility and convenience.

• Fast 50-Second Lifting Speed Raises vehicles to full working height in approximately 50 seconds, helping maximize productivity in busy automotive shops.

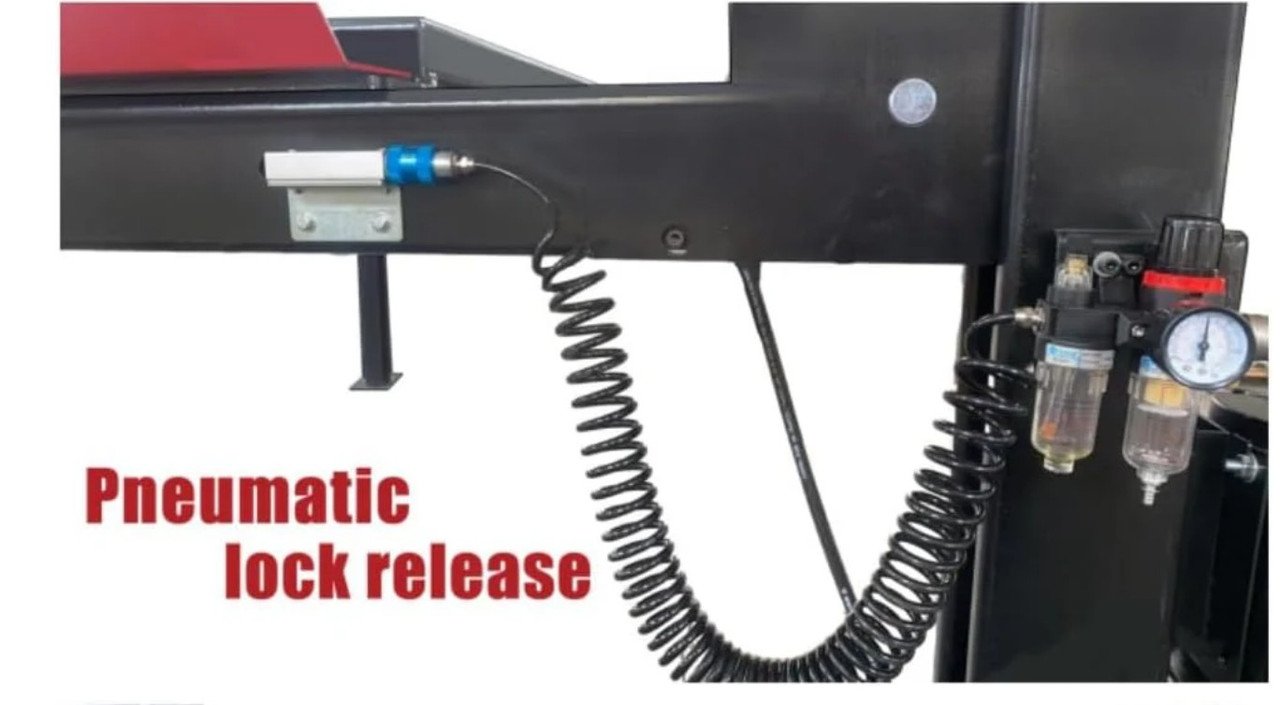

• Pneumatic Safety Lock Release Air-operated lock release system provides smooth, effortless operation while enhancing safety and reducing operator fatigue.

• Professional 220V Operation Powered by a dependable 220V hydraulic system for consistent lifting performance in commercial repair facilities and serious home workshops.

• Aluminum Approach Ramps Included Lightweight, durable aluminum ramps provide easy vehicle loading while resisting corrosion for long-lasting performance.

Includes

• 7,000 lb Capacity Rolling Jack

• Three Heavy-Duty Drip Trays

• Removable Lift Jack Tray

• Lightweight Aluminum Approach Ramps

Product Specifications

Specifications
KT-4M110PA

Lifting Capacity
11,000 lbs.

Max. Lifting Height
84.5"

Height of Posts
94.88" / 2410mm
Overall Width
126" / 3200mm

Overall Length w/Ramps
229.73" / 5835mm

Outside Column
124.8" / 3170mm

Inside Column
112.81" / 2865mm

Min. Runway Height
6.2" / 157mm

Rolling Jack Capacity
7,000 lbs

Lock Release
Pneumatic Unlocking

Lift Time
Approx. 50 Seconds

Power Requirement
220V

Net Weight
2,116 lbs / 960KG

*Concrete thickness must be at least 3.93" (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Key Features

• Published product configuration: Katool KT-4M110PA Four Post Alignment Vehicle Lift 11,000lbs The Katool KT-4M110PA is a heavy-duty 11,000 lb capacity four-post alignment lift engineered for professional automotive service, wheel alignments, inspections, maintenance, and repair work. Featuring an impressive 84.5-inch maximum lifting height and a 7,000
• Exact manufacturer model or part number: KT-4M110PA-V001
• Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model KT-4M110PA-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
