iDeal Lift MSC-13K-B-678 13,200lb. Per Mobile Column Lifting System (Set of 6)

Product Overview

iDeal Lift MSC-13K-B-678 13,200lb. Per Mobile Column Lifting System (Set of 6)

Professional Heavy-Duty Lifting Power for the Most Demanding Service Operations

The iDeal Lift MSC-13K-B-678 mobile column lifting system represents the pinnacle of heavy-duty lifting technology for commercial service facilities. This complete 6-column set delivers a massive 79,200 lb. total lifting capacity, with each column rated at 13,200 pounds, making it the ideal solution for buses, heavy commercial trucks, construction equipment, large fleet vehicles, and specialized heavy machinery.

Engineered with advanced Siemens PLC technology and precision Electro-Optical encoder synchronization, the MSC-13K-B system ensures continuous, perfectly balanced lifting across all columns. This is the iDeal Mobile Column Lift that comes equipped with the latest professional-grade lifting technology pre-installed, providing unparalleled safety, precision, and reliability right out of the box.

Powered by 24VDC battery operation with a robust 3HP power pack per column, this system offers complete wireless mobility and positioning flexibility. Unlike fixed lifts or corded systems, you can position each column exactly where needed across your service bay, with a maximum distance between columns of up to 32 feet 8 inches. The integrated LCD screen with keyboard provides clear, intuitive visuals of lifting height and system settings, while the advanced master controller enables seamless individual or synchronized operation of all columns.

Available in Multiple Configurations:

This system is sold as a set of 6 columns (MSC-13K-B-678) with a total capacity of 79,200 lbs. Also available in 2-column sets (MSC-13K-B-226) with 26,400 lb. capacity, or 4-column sets (MSC-13K-B-452) with 52,800 lb. capacity to match your specific lifting requirements.

Why Choose the MSC-13K-B Mobile Column Lifting System

• Massive 79,200 lb. total system capacity handles the heaviest commercial vehicles, buses, and equipment with complete confidence and stability

• Siemens PLC with Electro-Optical encoder synchronization maintains perfect alignment across all columns during every lift and lower cycle for maximum safety and precision

• True wireless mobility battery-powered design eliminates cords and fixed installation constraints, allowing unlimited positioning flexibility throughout your service bay

• Fast, efficient operation complete lifting cycle in just 75 seconds, lowering in 60 seconds, keeping service times short and productivity high

• Multi-layer safety systems independent mechanical locking on each column plus emergency stop switches provide the highest level of operator and vehicle protection

Advanced Engineering for Professional Performance

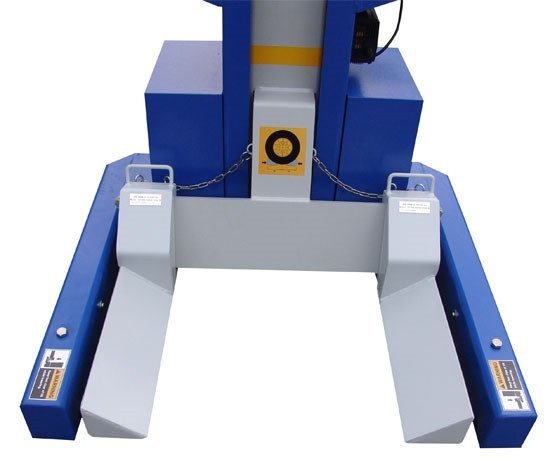

Every aspect of the MSC-13K-B system is designed for professional-grade performance in demanding commercial environments. The adjustable 14-inch lifting forks accommodate the widest range of wheel sizes and positions, ensuring secure contact points on virtually any vehicle type from standard trucks to specialized heavy equipment.

Despite each column weighing 1,210 pounds (total system weight: 7,260 lbs ), the innovative pallet jack-style wheel system allows a single operator to easily maneuver columns into position with minimal physical effort. Once positioned, the heavy-duty hydraulic system combined with oversized carriage bearings delivers smooth, fast, and exceptionally durable lifting performance.

The system operates at a remarkably quiet 70dB(A) noise level, maintaining a professional shop environment even during intensive use. With an overall height of 88.5 inches and width of 44 inches per column, the system fits standard commercial bay clearances while providing outstanding lifting range and rock-solid stability.

Safety is paramount in every design element. Each column features an independent mechanical locking system that engages automatically during lifting, plus a dedicated emergency stop switch that provides instant shutdown capability. These redundant safety systems ensure maximum protection for both operators and valuable equipment under service.

Standard Equipment and Optional Upgrades

Every MSC-13K-B system includes a professional cable reel system as standard equipment. This integrated system keeps synchronization cables organized, protected, and properly managed during column movement and operation, ensuring reliable communication between all columns during paired or synchronized lifting operations.

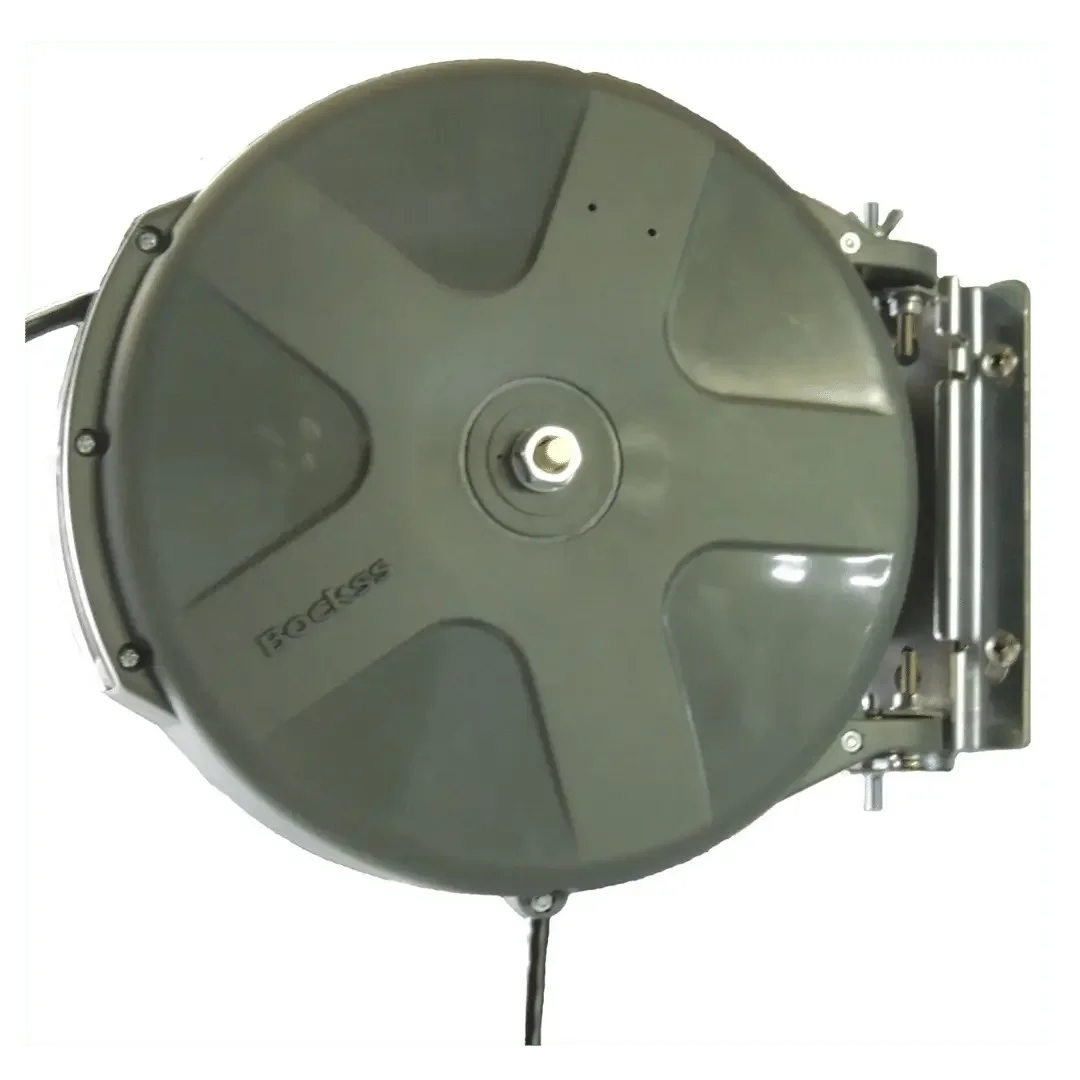

Standard Cable Reel System – Keeps Synchronization Cables Protected and Organized

Upgrade your system with the optional Hand Held Remote Control, providing wireless operation from anywhere in your service bay. This premium accessory gives operators complete freedom of movement and enhanced visibility during lifting operations, enabling precise positioning adjustments and control from the optimal vantage point.

Optional Hand Held Remote – Wireless Control for Maximum Operator Convenience

Optional jack stands are also available for extended undercarriage service work and additional safety redundancy when vehicles need to remain elevated for extended periods.

Battery Power System Requirements

Important Battery Information: This system requires a total of 6 batteries (one 24V battery per column). Batteries are NOT included with the system and must be purchased separately.

Required Battery Specifications: Type 27 or 31 Series Deep Cycle Batteries with 120 AMP/HR rating and 350-500 CCA starting current. Each column requires either two 12V batteries or one 24V battery (24V total per column). Maximum battery dimensions: 14.2" × 7.5" × 11.8" tall. Battery cover size: 14.56" × 8.27" × 13".

Complete System Specifications at a Glance

• Capacity per column: 13,200 lbs

• Total system capacity (6 columns): 79,200 lbs

• Overall height per column: 88.5"

• Overall width per column: 44"

• Fork length: 14"

• Maximum distance between columns: 32'-8"

• Lifting/lowering time: 75/60 seconds

• Power pack: 24VDC / 3HP per column

• Noise level: 70dB(A)

• Net weight per column: 1,210 lbs

• Total system weight: 7,260 lbs

Product Features

• 13,200 lb lifting capacity per column. Total capacity 79,200 lbs

• Sold in Sets of 2 (MSC-13K-B-226), 4 (MSC-13K-B-452) or 6 (MSC-13K-B-678)

• Easy to use master controller for individual or paired synchronized operation

• Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns

• Adjustable lifting forks accommodate the widest range of wheels

• Easily positioned with pallet jack style wheel

• Heavy-duty hydraulic system and large carriage bearings provide durable, fast and easy lifting

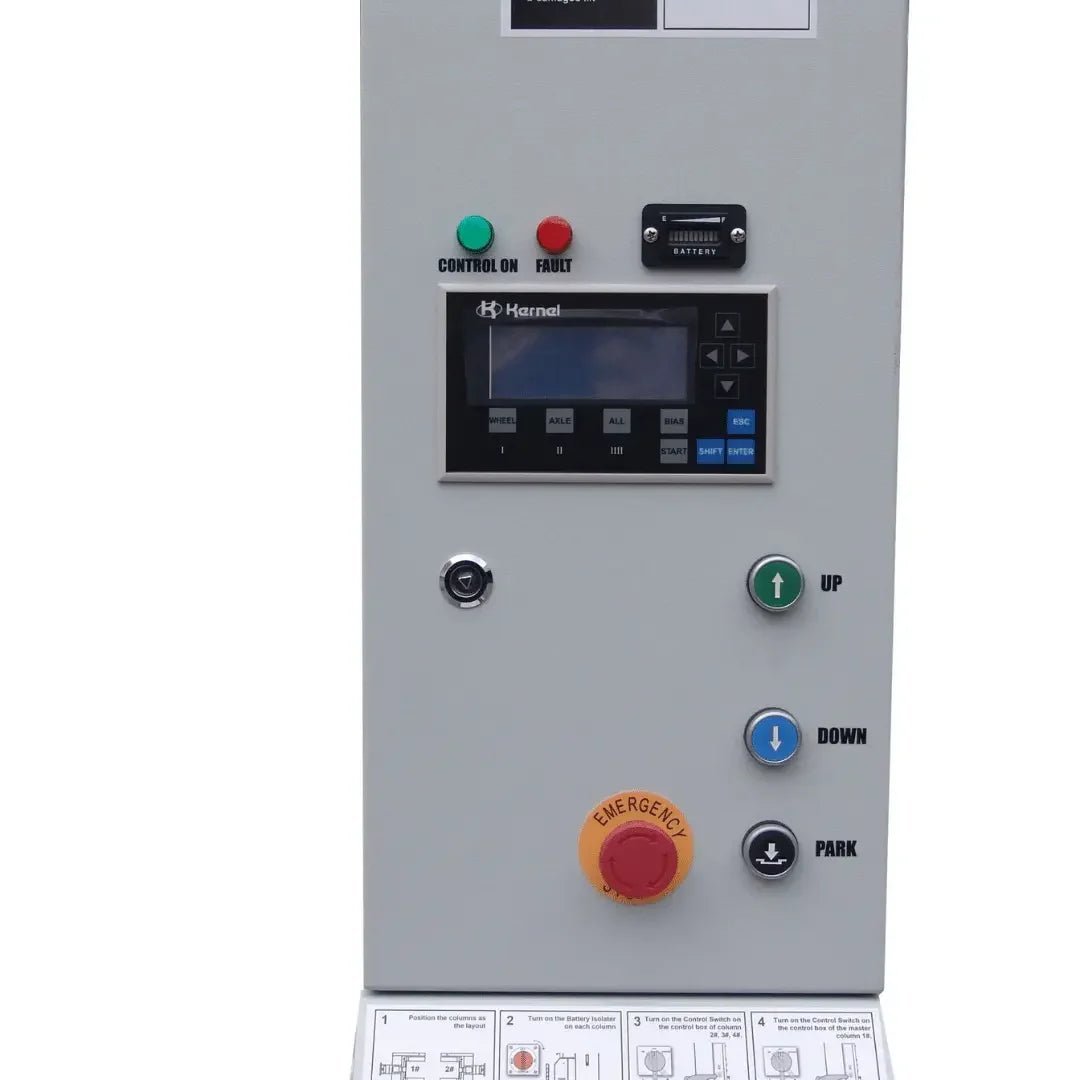

• LCD screen with keyboard offers easy to read visuals of settings and lifting height

• Independent mechanical locking system and emergency switch on each column provide highest safety assurance

• Emergency switch on each column provide highest safety assurance

• Optional jack stands are available

• Requires a Total of 6 24v Battery (1 Per ea Lift) Batteries are NOT Included

Standard Features

Cable Reel

Optional Features

Hand Held Remote

Product Specifications

Specifications
MSC-13K-B-226
MSC-13K-B-446
MSC-13K-B-678

Capacity Per Column
13,200 lbs.

Total Capacity
26,400 lbs.
52,800 lbs.
79,200 lbs.

Overall Height Per Column
88.5"

Overall Width Per Column
44"

Maximum Distance Between Columns
32'-8"

Fork Length
14"

Lifting/Lowering Time
75/60 sec

Power Pack
24VDC/3HP

Noise Level
70dB(A)

Net Weight Per Column
1,210 lbs

Total Net Weight
2,420 lbs.
4,840 lbs.
7,260 lbs.

Battery (Not Included) Specifications
MSC-13K-B & MSC-18K-X

Deep Cycle Batteries
Type 27 or 31 Series

Requirement Voltage Per Column
Qty 2 12V or Qty 1 24V

Rating
120 AMP / HR

Starting Current
350 CCA – 500 CCA

Battery Cover Size
14.56" x 8.27" x 13"

Battery Dimension
14.2" x 7.5" x 11.8" Tall Max

Key Features

• Published product configuration: iDeal Lift MSC-13K-B-678 13,200lb. Per Mobile Column Lifting System (Set of 6) Professional Heavy-Duty Lifting Power for the Most Demanding Service Operations The iDeal Lift MSC-13K-B-678 mobile column lifting system represents the pinnacle of heavy-duty lifting technology for commercial service facilities. This
• Exact manufacturer model or part number: MSC-13K-B-678
• Cataloged for Lifts & Hoists: Car Lifts — Mobile Column Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model MSC-13K-B-678, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
