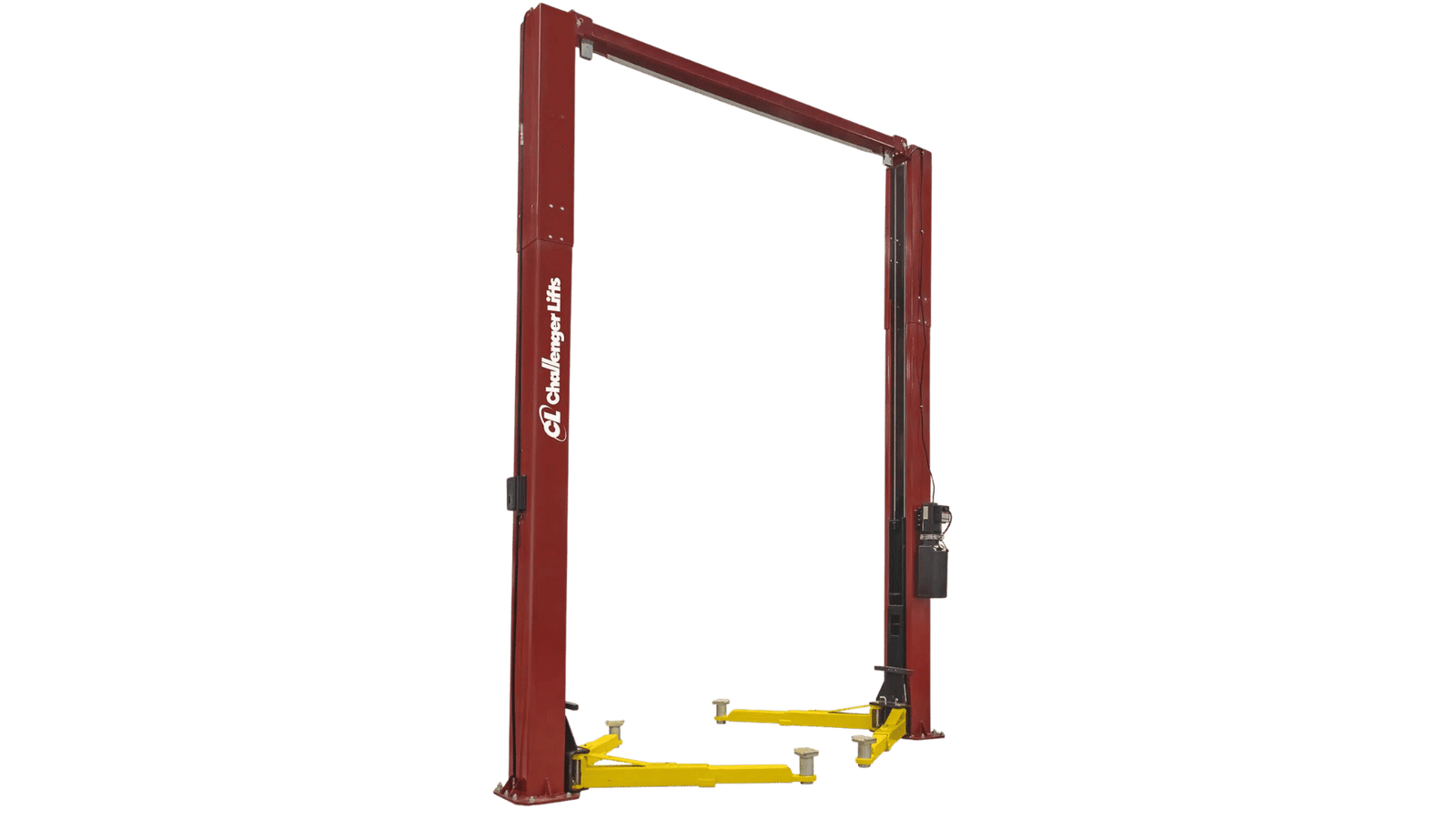

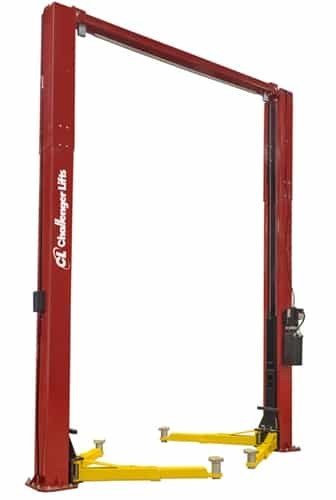

Challenger E15 ALI Heavy-Duty Symmetric 2 Post Lift 15,000

Product Overview

Challenger E15 ALI Heavy-Duty Symmetric 2 Post Lift 15,000

The Challenger E15 represents the perfect balance of power, affordability, and professional-grade engineering. With a robust 15,000 lb. capacity, this ALI-Certified symmetric two-post lift delivers unmatched versatility for shops handling everything from sedans to heavy-duty trucks. Designed for shops that need room to grow, the E15 offers exceptional clearance, adjustable column height to accommodate higher profile vehicles, and ample headroom for efficient day-to-day servicing. Its heavy-duty 2-stage telescoping arms provide outstanding reach and retraction to fit virtually any vehicle's lift points, while the adjustable height design ensures you have the working space you need underneath every vehicle.

Whether you're servicing standard passenger cars or tackling heavy trucks, the Challenger E15 handles it all with ease. The 109.375" drive-thru clearance and 122.25" spacing between columns provide the generous workspace professionals demand, while the fast 75-second rise time keeps your shop productive. Engineered with a 2HP single-phase motor and powered by 208v-230v electrical supply, the E15 is designed to integrate seamlessly into any professional facility.

Why Choose the Challenger E15?

• 15,000 lb. Lift Capacity Handle everything from compact cars to heavy-duty trucks with ease

• ALI-Certified Safety Rigorously tested and validated to meet the highest industry standards for performance and reliability

• Adjustable Column Height Accommodates higher profile vehicles and maximizes working headroom for technicians

• Fast 75-Second Rise Time Get vehicles up quickly to keep your shop running at peak efficiency

• Jacketed Pulley-Less Single-Point Mechanical Lock Release Advanced locking technology once exclusive to Challenger's premium CL Series, now standard on the E15

Premium Engineering & Built-to-Last Durability

The Challenger E15 is engineered for long-term reliability in demanding shop environments. Its heavy-duty 2-stage telescoping arms offer excellent reach and retraction, ensuring fast, secure engagement with vehicle lift points on a wide range of vehicles—from low-profile sports cars to lifted trucks. The padded overhead shut-off system with micro switch prevents accidental damage by automatically stopping the lift if a vehicle is raised too high, giving you peace of mind on every lift.

Built to withstand the rigors of daily use, the E15 features a premium powder coat finish that resists scratches, chips, and corrosion, maintaining its professional appearance year after year. Plated arm restraints and arm pins inhibit rust and ensure smooth, reliable operation even in humid or high-use environments. Rubber door guards protect vehicle doors from accidental contact, reducing the risk of costly damage and keeping your customers happy.

Standard Accessories Included

Stack Adapter Extension Kit (P/N 10315)
The E15 includes a comprehensive Stack Adapter Extension Kit designed to help you reach lift points on vehicles with running boards, side steps, or other obstructions. This drop-in style kit makes it easy to adapt to challenging vehicle configurations. Simply remove the screw pad, drop in the stack adapter extension, and replace the screw pad to securely reach lifting points. The kit includes four 3" stack extensions, two 6" stack extensions, and two organizer racks with hardware. The organizer racks mount directly to the lift columns to keep adapters organized and within easy reach, streamlining your workflow.

Optional Accessories Available

Four Frame Engaging Truck Adapters (P/N 10318)
Ideal for lifting vehicles with frame construction such as pickup trucks, these frame engaging truck adapters provide direct, secure contact to the vehicle's frame without the slipping that can occur when using traditional rubber pads on undercoatings. The cradle design ensures a secure fit to the frame even in tight spaces, giving you confidence when lifting heavier vehicles. This set of four frame engaging adapters is compatible with all Challenger above-ground two-post lifts. Note: 15,000 and 18,000 lb. two-post lifts require the reducer bushing kit (P/N 10317).

Four Reducer Bushings (P/N 10317)
This set of four reducer bushings is required for use with the P/N 10318 Four Frame Engaging Truck Adapters on the E15 and other 15,000 lb. or 18,000 lb. capacity lifts. These precision bushings ensure a perfect fit and reliable performance when lifting heavy-duty trucks.

Product Features

• ALI-Certified

• 15,0000 Lift Capacity

• Heavy-Duty 2-stage telescoping arms provide excellent reach and retraction to accommodate vehicle lifting points

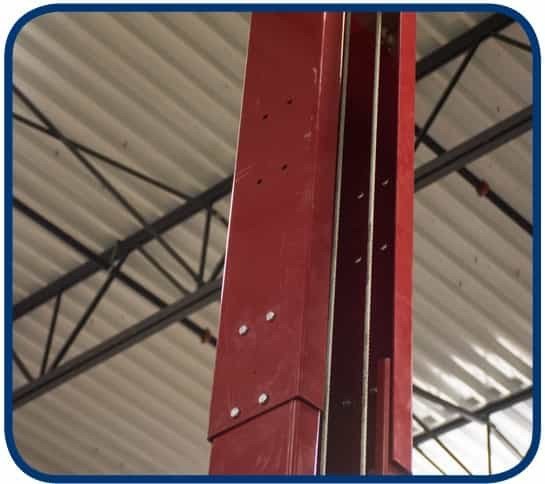

• Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles

• Padded overhead shut off system with micro switch prevents vehicle damage from being raised too high

• Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL Series (E15 only).

• Rubber door guards protect vehicle from door damage

• Premium powder coat finish provides long-lasting durability

• Plated Arm Restraints and Arm Pins inhibit rust and provide long-lasting durability

Product Specifications

Specifications

E12
E12EH2
E15

Lift Capacity

12,000 lbs.

12,000 lbs.

15,000 lbs.

A Rise Height

77.75” (1975mm)

B Overall Height

166”/175”
(4216/4445mm)

190”/199”
(4826/5055mm)

174”/198” (4420/5030mm)

C Overall Width

139.75” (3550mm)

147.125” (3735mm)

D Drive-Thru Clearance

103” (2616mm)

109.375” (2778mm)

E Floor to Overhead Switch

159.5”/168.5” (4051/4280mm)

183.5”/192.5” (4661/4890mm)

166”/190” (4216/4827mm)

F Minimum Arm Reach

35.75” (910mm)

36.5” (927mm)

G Max Arm Reach

54.5” (1386mm)

55” (1395mm)

H Screw Pad Height (Min/Max)

5.25”- 6.75” (133-171mm)

I Inside Columns

115” (2921mm)

122.25” (3105mm)

Ceiling Height Req’d

167”/176” (4242/4470mm)

191”/200” (4852/4890mm)

175”/199” (4445/5055mm)

Speed of Rise

84 Seconds

75 Seconds

Motor

2HP, Single Phase

Voltage

208v – 230v

Air Supply Required

90 – 120 psi

Shipping Weight

2000 lbs. (907 kg)

2310 lbs. (1048 kg)

N/A

Shipping Dimensions

Length

135" (3429 mm)

135" (3429 mm)

N/A

Width

25" (635 mm)

25" (635 mm)

N/A

Height

28" (907 mm)

40" (1016 mm)

N/A

*Lift capacity ratings are based on loads equally distributed on all four arms.
Frame engaging adapters (10314 or 10318) are REQUIRED when lifting vehicles with frame construction.

Key Features

• Published product configuration: Challenger E15 ALI Heavy-Duty Symmetric 2 Post Lift 15,000 The Challenger E15 represents the perfect balance of power, affordability, and professional-grade engineering. With a robust 15,000 lb. capacity, this ALI-Certified symmetric two-post lift delivers unmatched versatility for shops handling everything from sedans
• Exact manufacturer model or part number: E15-V001
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model E15-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.

Manuals & Technical Resources

• Manufacturer document 1
• Manufacturer document 2
