Challenger CLHM-190W ALI HD Wide Mobile Column Lifts (Set of 2)

Product Overview

Challenger Lifts CLHM-190W ALI HD Wide Mobile Column Lifts (Set of 2)

The Challenger CLHM-190W HD Wide Mobile Column Lift system delivers exceptional versatility and power for heavy-duty vehicle service. With 19,000 lbs. capacity per column, this set of two wide columns provides a combined 38,000 lbs. total lifting capacity, making it ideal for servicing large trucks, transit vehicles, and heavy municipality equipment. Featuring wireless operation, an advanced 10" touch screen control console, integrated battery and charging system, and adjustable wide wheel carriages, the CLHM-190W brings professional-grade lifting capability exactly where you need it—indoors or outdoors, on any solid surface. This robust yet easily maneuverable system is ALI/ETL certified and engineered to meet the demanding needs of modern commercial and municipal service operations.

Ultimate Heavy-Duty Mobile Lifting

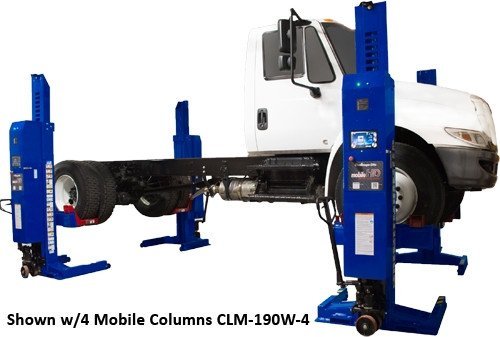

Our heavy-duty mobile lifting system, along with optional sets of accessory support stands, can accommodate multiple lift bays with one lift system. Robust yet easily maneuverable mobile columns can be operated on almost any solid surface, indoors or out. The CLHM-190W is part of the CLHM Series, available in 14K and 19K capacity per column, with configurations from 1, 2, 4, 6, and 8 columns for maximum capacities up to 152,000 lbs. This wide-base model features a 49" width and accommodates wheel diameters from 4" to the maximum determined by tire size, providing exceptional stability and versatility for oversized vehicles.

Hydraulic operated units provide heavy duty lifting capacity from 38,000 lbs. (set of 2) to 152,000 lbs. (set of 8), enabling heavy-duty lifting from small cars to large trucks, transit, and municipality vehicles. Each column operates at a maximum hydraulic system operating pressure of 2,600 psi and delivers a lift speed of 60" per minute even at maximum load. The CLHM-190W provides a maximum lift height of 69" when used with four or more units, and up to 32" in Normal Mode when operating as a two-column set.

Integrated Charging System

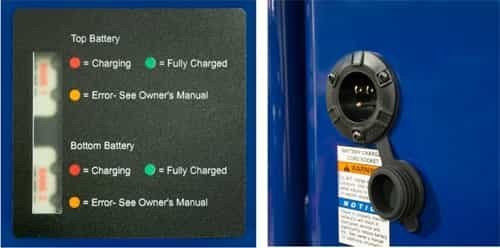

The 110V built-in multi-stage charging system powers the integrated deep cycle battery system, enabling wireless operation without the need for power source hook-ups. Operating at 26 VDC nominal with 4HP peak power, each column delivers reliable performance throughout the workday. The charger requires only 120 VAC @ 60 Hz and draws 1.3 Amps, making it easy to recharge overnight or between jobs. The charging status light provides real-time battery updates to assist with job planning and management, so you always know your power status before starting a lift.

Effective May 2025, all Challenger Lifts CLHM/CLMM model lifts include AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery carries a 2-year free replacement warranty, providing enhanced reliability and longer service life compared to traditional battery technology.

Wireless Operation for a Clutter-Free Workspace

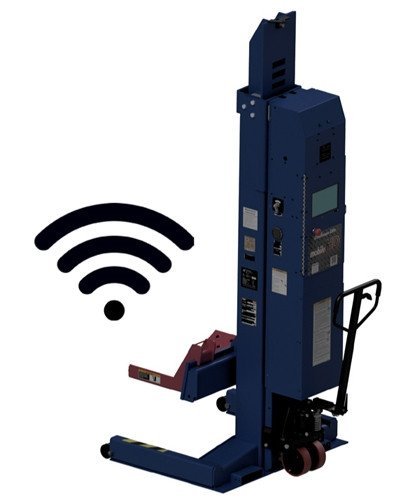

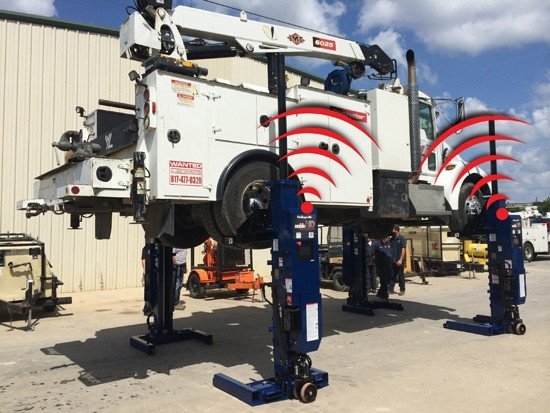

Wireless operation system allows for a clutter-free work area without cables to connect, navigate around, roll over, or replace. The system utilizes 12 radio frequencies with a wide channel range (100 to 120) for each frequency, preventing radio noise from interrupting service. This advanced wireless technology maintains reliable communication between columns and ensures synchronized operation even in busy shop environments with multiple systems operating simultaneously.

Advanced 10" Touch Screen Control Console

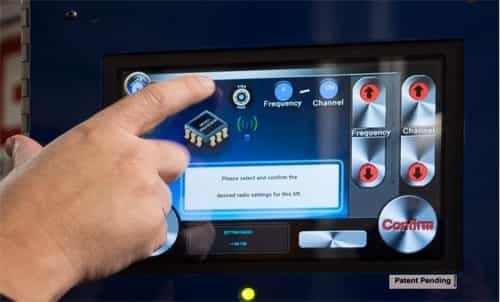

The NEW 10" touch screen control console features an Android-based integrated system that provides easy-to-use control and precise measurements of lifting height and lifting weight per column. The intuitive interface gives you complete visibility into every aspect of your lift operation, ensuring accuracy and safety with every job.

Key Console Features:
• Internal CPU and fully functional web browser
• On-board training videos and manuals accessible anytime
• Real-time weight and height monitoring for each column
• Easy-to-navigate menu system for all lift functions

Maneuverability and Precision

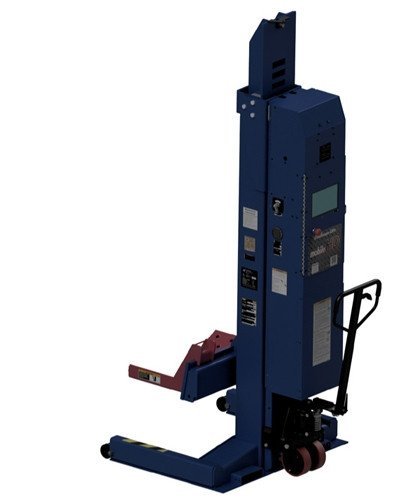

Precise balanced design, heavy-duty tow handle, and spring-loaded wheels make moving and aligning individual lift units simple and easy with little effort. Each CLHM-190W column weighs 1,565 lbs and has a compact footprint of 600 sq. inches, with a turning radius of just 47". Despite their robust construction, these columns are engineered for effortless positioning, allowing a single technician to move and align columns with minimal physical strain.

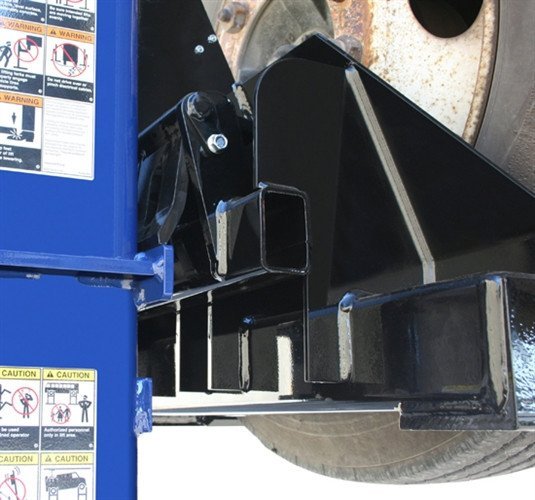

Adjustable wheel carriages fit a range of wheels and accommodate wheel diameters from 4" to maximum determined by tire size, making this wide model ideal for large commercial truck tires and specialty vehicles. The wide 49" width provides enhanced stability under heavy loads while the lift unit maintains a height of 88.5" in lowered position and extends to 157.125" at full rise.

Safety Features and ALI Certification

Safety is paramount in every aspect of the CLHM-190W design. The system meets stringent ALI Gold Label standards and is ALI/ETL Certified, providing peace of mind that your equipment meets the highest industry safety benchmarks.

Advanced Safety Systems:

• Linear position transducers maintain system synchronization and ensure maximum reliability during lifting operations

• Integrated weight gauges help prevent column overloading and verify lock engagement, providing real-time feedback on load distribution

• Wireless system eliminates trip hazards and cable damage risks for a clutter-free work area

• Each column exerts a ground pressure of only 34.3 psi at maximum load, distributing weight safely across the footprint

Key Selling Points

• 19,000 lbs. capacity per column 38,000 lbs. total for set of 2, expandable to 152,000 lbs. with 8 columns

• 49" wide base model accommodates oversized wheels from 4" to maximum tire size for heavy commercial vehicles

• Wireless operation with 10" Android touch screen clutter-free workspace, real-time weight/height monitoring, on-board training

• Integrated 110V charging system with AGM batteries 2-year warranty, charging status indicator, 26 VDC operation

• ALI/ETL Certified with advanced safety features linear position transducers, integrated weight gauges, lock engagement verification

Limited Time Rebate Offer

Product Features

• Hydraulic operated unites provide heavy duty lifting capacity from 28,000/38,000 lbs. (set of 2) to 112,000/152,000 lbs. (set of 8) enabling heavy-duty lifting from small cars to large trucks, transit, and municipality vehicles.

• 110 volt built in multi-stage charging system

• Adjustable wheel carriages fits a range of wheels

• Integrated touch screen control console provides easy-to-use and precise operating.

• Precise balanced design, heavy-duty tow handle and spring loaded wheels make moving and aligning individual lift units simple and easy with little effort.

• Operates with 12 volt deep cycle batteries to eliminate the need for power source hook ups and provide 24 volt operation

• Meets stringent ALI Gold Label standards

• Safety Features

• Linear position transducers maintains system synchronization and ensures maximum reliability

• Integrated weight gauges help prevent column overloading and verifies lock engagement

• Wireless system for clutter free work area without cables to connect, navigate around, roll-over or replace

• Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty

Product Specifications

Model

CLHM-140
CLHM-190
CLHM-190W

Lift Capacity Per Column

14,000 lbs.

19,000 lbs.

A Height of Lift Unit

88.5" (2,248 mm)

B Height of Lift Unit at Full Rise

157.125" (3,991 mm)

C Width of Lift Unit

44.25" (1,124 mm)

49" (1,245 mm)

D Length of Lift Unit

53.625" (1,362 mm)

E Maximum Lift Height
(4 or more units)

69" (1,753 mm)

Maximum Lift Height
(2 units – Normal Mode)

32" (813 mm)

F Min-Max Wheel Diameter

5" – 24.5" (127 -622mm)

4" – Max det. by tire size

Max. Hydraulic System Operating Pressure

2,180 psi

2,600 psi

Lift Speed (Max Load)

60" per min. (1524 mm)

Weight of Lift Unit

1,485 lbs (674 kg)

1,500 lbs (685 kg)

1,565 lbs (714 kg)

Footprint of Lift Unit

560" 2 (3,613 sq cm)

600" 2 (3,870 sq cm)

Ground Pressure for Each Lift
(Max. Load)

27.7 psi

36.6 psi

34.3 psi

Turning Radius of Lift Unit

47" (1194 mm)

Operating Peak Power

4HP

Operating Voltage

24 VDC Nominal

25 VDC Nominal

26 VDC Nominal

Charger Voltage Required

120 VAC @ 60 Hz

Charger Amps Required

1.3 Amps

ALI/ETL Certified

Yes

*CLHM Series Wireless/Battery Operated Mobile Columns available in 1, 2, 4, 6 and 8 column configurations with 14,000 lb and 19,000 lb. per column capacity.

1 Multiply number of columns by "Lifting Capacity Per Column" to calculate overall lifting capacity of configuration.

Only Available in Blue

Key Features

• Published product configuration: Challenger Lifts CLHM-190W ALI HD Wide Mobile Column Lifts (Set of 2) The Challenger CLHM-190W HD Wide Mobile Column Lift system delivers exceptional versatility and power for heavy-duty vehicle service. With 19,000 lbs. capacity per column, this set of two wide columns provides a combined 38,000 lbs. total lifting
• Exact manufacturer model or part number: CLHM-190W-2
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• Condition: New

Product Specifications

Before You Order

Confirm that model CLHM-190W-2, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
