Challenger CL20 Series ALI Two Post Vehicle Lift 20,000

Product Overview

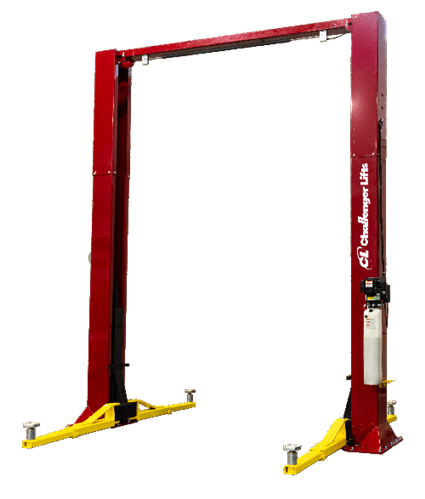

Challenger CL20 Series Heavy-Duty ALI Two Post Vehicle Lift 20,000 lb Capacity

The Challenger CL20 Series represents the pinnacle of heavy-duty two-post lift engineering. Built from the ground up to meet rigorous ALI/ANSI safety standards, this 20,000 lb capacity lift delivers uncompromising strength and versatility for professional shops handling everything from compact cars to tall, heavy trucks. Engineered wider, taller, and stronger than standard two-post lifts, the CL20 is purpose-built to withstand the demands of the toughest fleet maintenance environments while providing superior technician access and vehicle safety.

What sets the CL20 apart is its exceptional flexibility. Available in one of three height variations and one of three width configurations, this lift adapts to your shop's specific ceiling clearance and bay layout requirements. The innovative synchronizer cable system easily adjusts to any of the three lift height options without requiring extra parts or making cable connections inaccessible—a critical feature for long-term serviceability. Whether you're working on full-size pickups, commercial vans, or heavy-duty fleet vehicles, the CL20 provides the robust lifting power and accessibility you need to work efficiently and safely.

Built for Heavy-Duty Performance

The Challenger CL20 doesn't compromise on strength or durability. With a 20,000 lb lifting capacity and 5,000 lb maximum load per arm, this lift handles the heaviest vehicles in modern fleets with confidence. The 2-stage front and rear arms provide an impressive reach range from 38.5" minimum to 62" maximum, allowing you to position lift points precisely on a wide variety of vehicle types and wheelbases.

At the heart of the lift's reliability is an oversized 5-inch diameter steel pulley paired with heavy-duty 3/8" aircraft-grade cable. This robust equalization system reduces stress on the cable and pulley assembly, significantly increasing component life and minimizing maintenance. The 60-inch lifting carriage design further enhances durability by distributing loads more evenly across the lift structure, extending the service life of the entire system.

Powered by a 3HP single-phase motor (208/230V), the CL20 reaches full rise in approximately 62 seconds, optimizing workflow without sacrificing smooth, controlled operation. Optional 3-phase electrical configurations are available at the time of order for shops with 3-phase power infrastructure. The lift requires 90-120 psi air supply for its pneumatic lock release system, ensuring fast and reliable engagement.

Unmatched Installation Flexibility

One of the most impressive features of the Challenger CL20 is its adaptability to nearly any shop environment. The lift is available in three overall height configurations: 162", 168", or 174" for standard height applications, or 186", 192", or 198" for extended height installations (CL20-2 model). This means you can select the perfect height to match your facility's ceiling clearance while maximizing rise height for technician access.

Width flexibility is equally impressive. The CL20 offers three width options: 166.75" standard width, 160.75" narrow (-6"), or 154.75" extra-narrow (-12"). The between-columns measurement adjusts accordingly to 132", 126", or 120", while maintaining generous drive-thru clearance of 116.25", 110.25", or 104.25" respectively. This versatility allows the lift to fit into existing bays without costly modifications or wasted space.

The symmetric lifting configuration provides balanced vehicle positioning and allows easy access to the vehicle's interior from both sides. The adjustable width design means you can fine-tune arm positioning for optimal support on different vehicle types, from narrow sports cars to wide commercial trucks.

Safety and Convenience Features

Safety is paramount in every aspect of the CL20's design. The single-point air-actuated lock release allows technicians to disengage both columns simultaneously with one simple action, ensuring synchronized lowering and reducing the risk of operator error. The lift meets all ALI (Automotive Lift Institute) and ANSI certification requirements, giving you peace of mind that your equipment meets the industry's strictest safety standards.

Dual integrated rubber door guards protect vehicle doors from accidental contact with lift columns during loading and unloading. Heavy-duty rubber screw pads accommodate a wide range of OEM-recommended vehicle lifting points, ensuring secure contact without damaging pinch welds or frame rails. The lift includes 4" and 8" stack adapters that allow you to reach higher lift points on trucks and SUVs, with maximum rise heights (with adapters) reaching up to 84.6".

Screw pad height is adjustable from 6.2" minimum to 7.6" maximum, providing flexibility for different vehicle ground clearances. The lift also includes organizer racks with hardware to keep adapters and accessories neatly stored and within easy reach.

Watch the Challenger CL20 Series lift in operation and see its features firsthand

Key Advantages at a Glance

• 20,000 lb lifting capacity with 5,000 lb max load per arm—ready for heavy trucks and commercial vehicles

• Three height options and three width configurations for unmatched installation flexibility in any bay

• Single-point air-actuated lock release ensures safe, synchronized column operation

• Oversized 5" steel pulley and 3/8" cable reduce stress and extend component life

• 60" lifting carriage design distributes loads evenly for long-term durability

Standard Equipment Included

Every Challenger CL20 comes complete with everything you need to start lifting right away:

• B12162S-12 heavy-duty screw pads

• 4" and 8" stack adapters for extended reach

• Organizer racks with mounting hardware for accessory storage

• Dual integrated rubber door guards

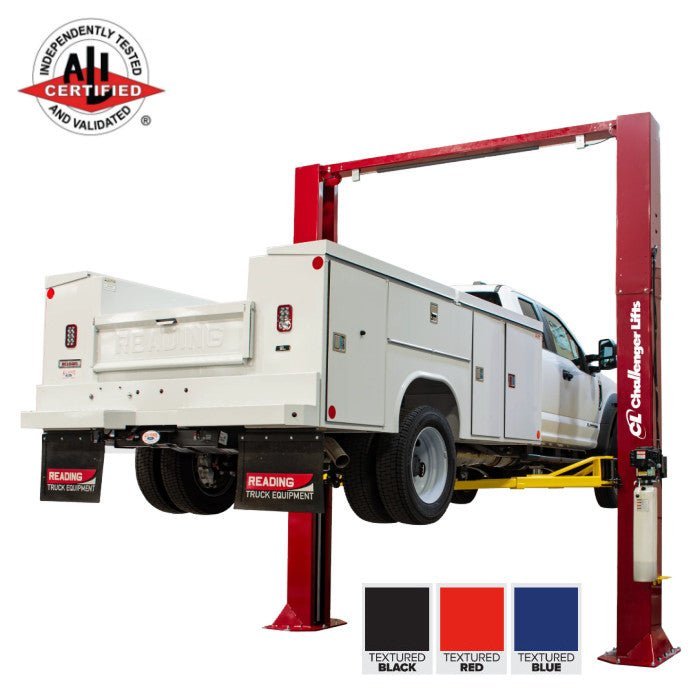

Standard lift colors are Red, Blue, and Black. Specify your preferred color at the time of order.

Product Features

• Engineered to be wider, taller, and stronger. Ready to tackle the heaviest vehicles in any fleet.

• Installation is available in 1 of 3 height and width variations, making this one of Challenger's most versatile lifts.

• Single-point air actuated lock release allows the technician to disengage both columns simultaneously.

• Oversized 5” diameter steel pulley and heavy-duty 3/8” cable reduces stress on equalization system and increases cable life.

• 60” lifting carriage design increases lift life.

• Adjustable width and symmetrical design allow easy access to the vehicle’s interior.

• Dual integrated rubber door guards to prevent door damage.

• Heavy-Duty rubber screw pads accommodate a wide range of recommended vehicle lifting points

Includes

• B12162S-12 Screw pads

• 4" & 8" Stack adapters

• Organizer racks with hardware

Product Specifications

Model Number

CL16-0-3S
CL16-2-3S
CL20-0
CL20-2

Description

16K Standard

16K Extended Height

20K Standard

20K Extended Height

Lift Capacity*

16,000 lbs.

20,000 lbs.

Lifting Configuration

Symmetric

Lifting Configuration

Symmetric

Arms

3-Stage Front/Rear

2-Stage Front/Rear

Max Load Per Arm 1

4,000 lbs.

5,000 lbs.

A Overall Height Options

162” / 168” / 174”

186” / 192” / 198”

162” / 168” / 174”

186” / 192” / 198”

B Floor to Overhead Switch

155” / 161” / 167”

179” / 185” / 191”

155” / 161” / 167”

179” / 185” / 191”

C Rise Height / Max. w/Adapters

Min. 75.5” / Max. 81.5”

Min. 76.6” / Max. 84.6”

D Screw Pad Height

Min. 4.75” / Max. 6.5”

Min. 6.2” / Max. 7.6”

Stack Adapter Height

3” & 6”

4” & 8”

E Overall Width Options (Standard / -6” / -12”)

166.75” / 160.75” / 154.75”

F Between Columns

132” / 126” / 120”

To Nearest Obstruction (Standard / -6” / -12”)

7'6” / 7'3” / 7'

Drive-Thru Clearance

116.25” / 110.25” / 104.25”

Arm Reach

Min. 36.625” / Max. 75”

Min. 38.5” / Max. 62”

Motor / Voltage 2

3HP, 1Ph, 60Hz, 208/230v

Air Supply Required

90-120 psi

Time to Rise 3

62 Seconds

Min Ceiling Height Required

13' 8” / 16' 2” / 16' 8”

15' 8” / 14' 2” / 14' 8”

13' 8” / 16' 2” / 16' 8”

15' 8” / 14' 2” / 14' 8”

• 1 Lift capacity ratings are based on loads equally distributed on all four arms

• 2 Optional 3 phase electrical also available. Specify at time of order.

• 3 Lifting and lowering speeds may vary depending on the weight of the vehicle

Standard lift colors are Red, Blue & Black.

Key Features

• Published product configuration: Challenger CL20 Series Heavy-Duty ALI Two Post Vehicle Lift 20,000 lb Capacity The Challenger CL20 Series represents the pinnacle of heavy-duty two-post lift engineering. Built from the ground up to meet rigorous ALI/ANSI safety standards, this 20,000 lb capacity lift delivers uncompromising strength and versatility
• Exact manufacturer model or part number: CL20-V001
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• 5 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model CL20-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
