Challenger AR4115XAX Ex-Length Closed Front 15,000 lbs 4 Post Alignment Rack Package

Product Overview

Challenger AR4115XAX Ex-Length Closed Front 4 Post Alignment Rack Package 15,000 lbs

Supersedes AR4015XAX

Designed with productivity and safety in mind, the Challenger AR4115XAX represents a new generation of 15,000 lb. capacity 4-post alignment lifts. This extended-length, closed-front model combines superior ergonomics with cutting-edge alignment technology to deliver professional-grade precision for a wide variety of vehicles.

Expand your service capabilities and customer base with a lift engineered to handle everything from compact passenger cars to medium-duty trucks and mid-sized vans. Whether you're performing routine wheel alignments or complex suspension work, the AR4115XAX delivers the versatility, reliability, and performance your shop demands.

Next-Generation Design for Modern Alignment Shops

The 4115 Series introduces a host of enhanced features that set a new benchmark for four-post alignment lifts. Featuring all-new, wider 22" runways, this lift provides greater vehicle stability and easier tire access during alignment procedures. The closed-front design optimizes ergonomics by allowing technicians easy access to adjustment points without obstruction, while the improved 4-wheel alignment wheelbase extends your alignment capabilities to service both long and short wheelbase vehicles with ease.

The louvered approach ramps prevent wheel-spin and outperform traditional diamond tread or abrasive strips, ensuring smooth and safe vehicle loading. The enclosed front column and crossbeam design not only keeps your shop looking clean and professional but also contributes to a longer operational life thanks to the UHMW internally encapsulated slide block technology. With 17 locking positions and an improved lock design, you'll enjoy precise height control and enhanced safety on every lift.

Fully compatible with the industry's latest imaging alignment systems, the AR4115XAX is ready to integrate seamlessly with your existing or future alignment equipment, making it a future-proof investment for your business.

Complete Alignment Rack Package Included

The AR4115XAX Alignment Rack Package is a turnkey solution that comes fully equipped with everything you need to start performing precision alignments right out of the box. This comprehensive package includes:

• Two (2) 7,500 lb. Rolling Jacks (RJ7.5) for air/hydraulic operation with (4) 3" stack adapters included

• Flush Mount Stainless Steel Turning Radius Gauges for accurate front wheel alignment measurements

• Internal Airline Kit (40230X) for dual rolling jack operation on extended-length models

• Rear Recessed Free Floating Slip Plates offering a wider range of 4-wheel alignment capabilities

• Multi-Position Work-Steps for safe technician access at any lift height

• Automatic Wheel Stops for added vehicle security

The recessed stainless steel turning radius gauges provide accurate readings when measuring caster, camber, and toe-out on turns, ensuring professional-grade alignment results every time. The rear recessed free floating slip plates allow for precise movement during alignment adjustments, accommodating a wider variety of suspension configurations.

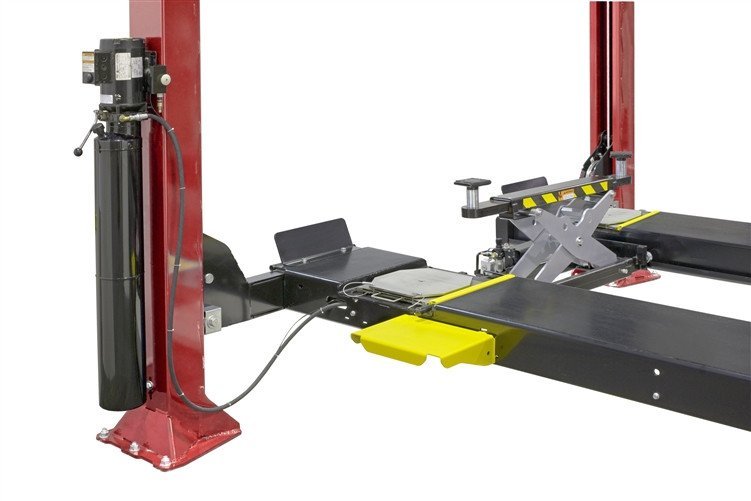

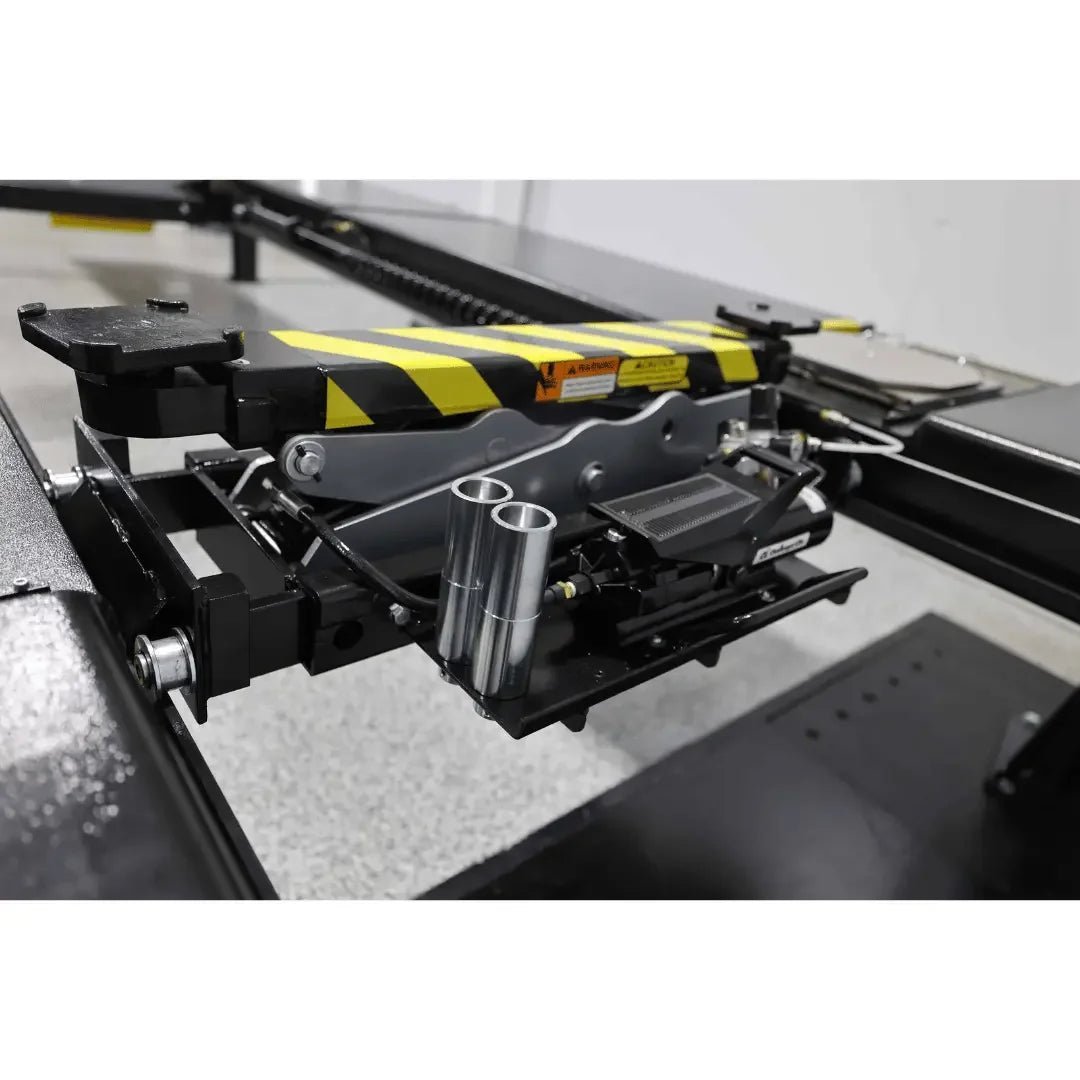

RJ7.5 Rolling Jack – Professional Underbody Access

Broaden your service revenue with easy underbody access to brakes, suspension components, and wheels using the included RJ7.5 7,500 lb. capacity rolling jacks. Designed specifically for use with the 4115 Series four-post lifts, these air/hydraulic rolling jacks feature adjustable width for precise positioning under a variety of vehicle frames, low drive-over clearance for easy positioning, and stackable height extensions with a convenient built-in storage rack.

Each jack includes a factory-installed and protected filter lubricator and regulator, ensuring smooth operation and long service life. The four 3" stack adapters allow you to safely lift vehicles at multiple contact points, making brake service, wheel bearing replacement, and suspension work fast and efficient.

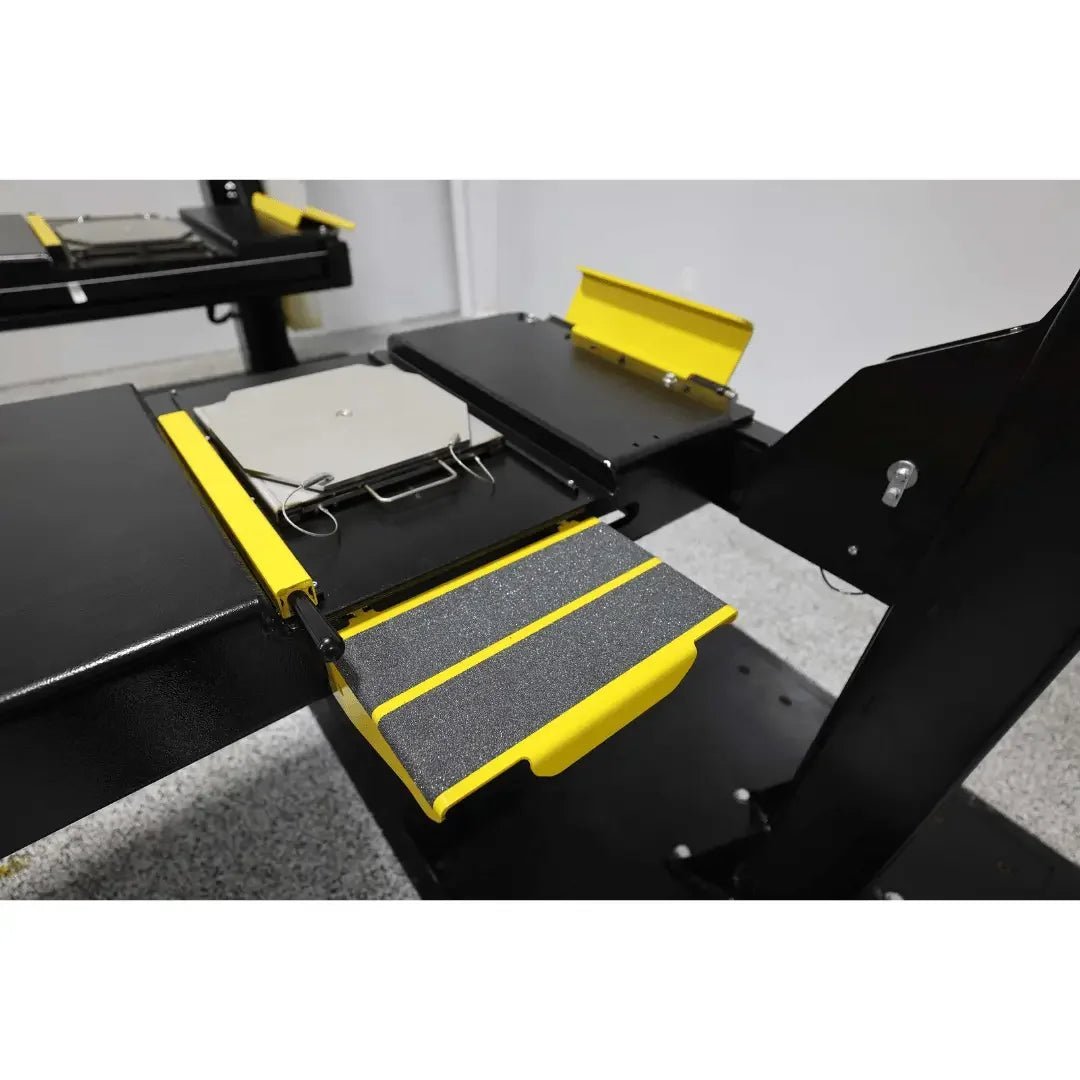

Flush Mount Stainless Steel Turning Radius Gauges

Precision alignment starts with accurate measurements. The included flush mount stainless steel turning radius gauges are recessed into the runways, providing reliable and easy-to-read angle measurements during front wheel alignment procedures. These gauges measure how many degrees the front wheels are turned left or right, critical data when measuring caster, camber, and toe-out on turns.

Built from durable stainless steel, these gauges are engineered to withstand the rigors of daily shop use while maintaining accuracy over the long term. The flush mount design keeps them protected and prevents interference with tire positioning, ensuring consistent, repeatable results.

Internal Airline Kit for Dual Rolling Jack Operation

The 40230X Internal Airline Kit included with this extended-length model provides convenient air supply for dual rolling jack operation directly from the lift structure. This integrated airline system eliminates the need for cumbersome external air hoses running across your shop floor, keeping your work area clean, organized, and free of tripping hazards.

Designed specifically for the 4115 Series extended-length lifts, the internal airline kit ensures both rolling jacks receive consistent 90-120 psi air pressure for smooth, reliable operation every time.

Why Choose the AR4115XAX?

• 15,000 lb. lifting capacity handles a wide range of vehicles from compact cars to medium-duty trucks and vans

• Extended-length, closed-front design 275.5" overall length accommodates long-wheelbase vehicles up to 210.5" maximum wheelbase

• 22" wide runways with louvered approach ramps – improved stability and wheel-spin prevention

• 78" rise height with 17 locking positions optimal working height for technicians

• Compatible with modern imaging alignment systems future-proof technology integration

• Complete alignment package included two rolling jacks, turning radius gauges, slip plates, and more

• UHMW internally encapsulated slide block extended operational life and smooth performance

• 2HP motor, 208v-230v, 60Hz, 1Ph (three-phase optional) – powerful and efficient lifting in just 85 seconds

• ALI Certified for safety and quality assurance

Watch the AR4115 Series in Action

Product Features

• Available in Black Color Only

• All-new and wider 22" runways.

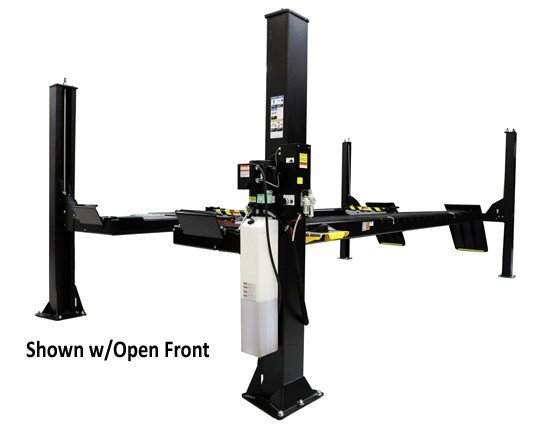

• Open and closed front design for better ergonomics, allowing easy access to adjustment points on both standard or long length runway racks.

• Improved 4-wheel alignment wheelbase for extended alignment capabilities allowing you to service both long and short wheelbase vehicles.

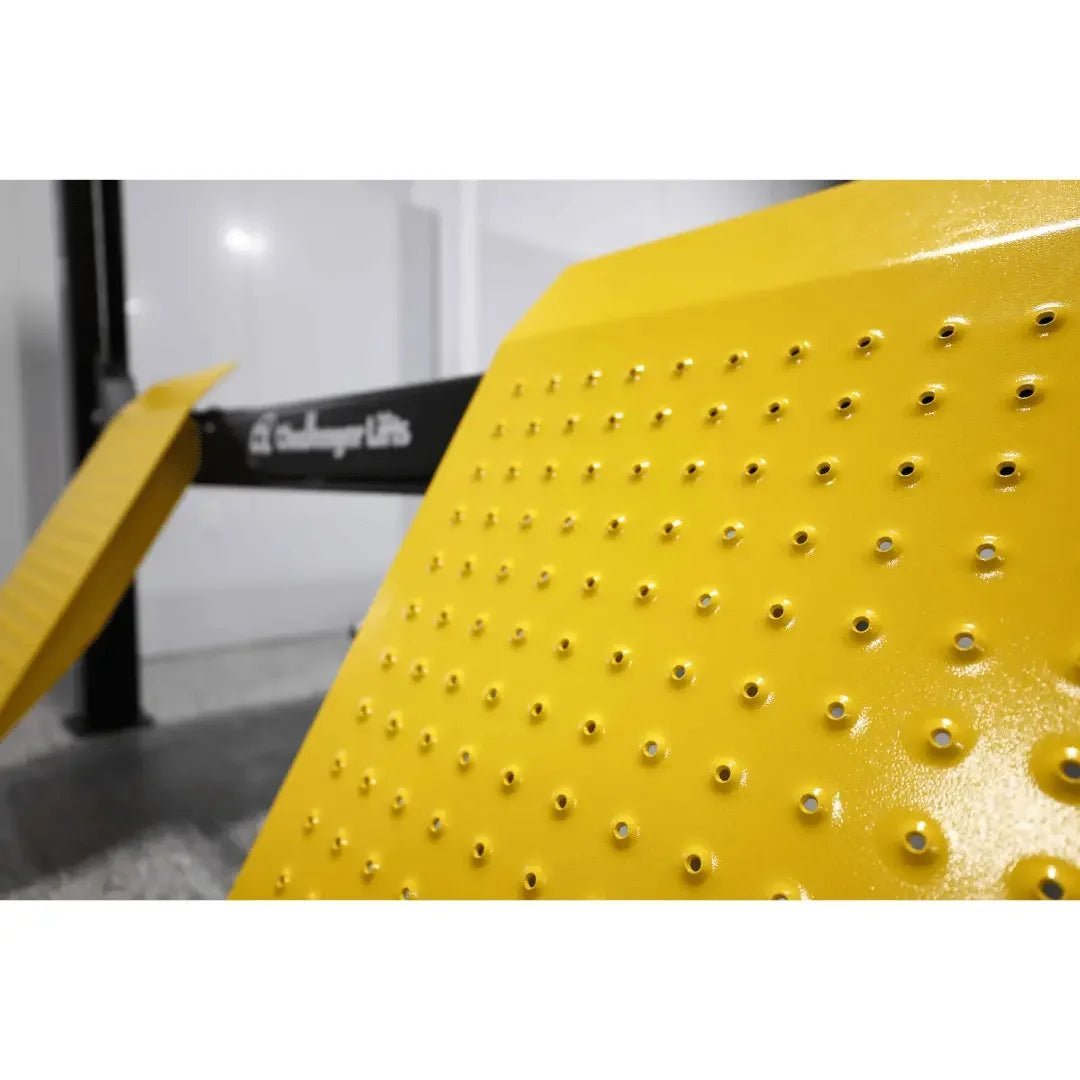

• Louvered approach ramps prevent wheel-spin and are more effective than diamond tread or abrasive strips.

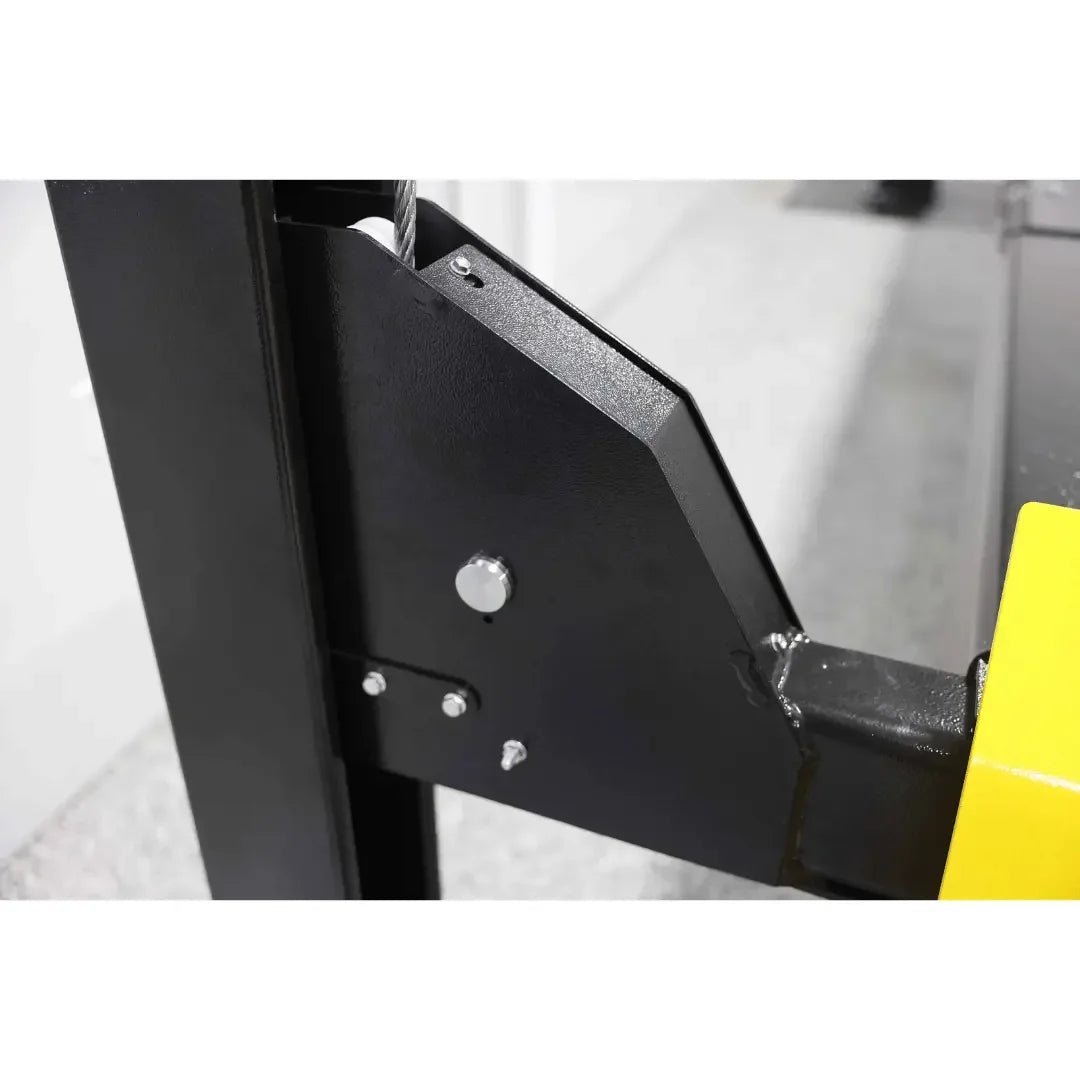

• Keep your shop looking stylish & clean with our new and improved all enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.

• Compatible with the industry’s latest imaging alignment systems.

• 17 locking positions with improved lock design.

Alignment Rack Package Includes
2) 9,000lb Rolling Jack, Flush Mount SS Turning Radius Gauges, Internal Airline Kit, Rear Slip Plates, Multi-Position Work-Steps & Automatic Wheel Stops

• Recessed stainless steel turning radius gauges provide accurate readings

• Rear recessed free floating slip plates offer a wider range of 4 wheel alignment capabilities

RJ7.5 7,500lb Rolling Jack
7,500 lb. capacity Rolling Jack for 4115series four post automotive lifts features air/hydraulic operation and includes (4) 3" stack adapters. Broaden your service revenue with easy access to brakes and wheels from underneath four post lifts. 7,500 lb. capacity rolling jacks features adjustable width, low vehicle drive-over clearance, stackable height extensions with built-in storage rack and factory installed and protected filter lubricator and regular.

Flush Mount Stainless Steel Turning Radius Gauges
Stainless Steel turning radius gauges for 4P12series, 44018AR and 4115series four post car and truck lifts. Turning radius gauges are used for front wheel alignments to measure how many degrees the front wheels are turned left or right. They are commonly used when measuring caster, camber and toe-out on turns for alignment capable automotive lifts. General service four post automotive lifts can be turned into alignment capable four post lifts with a bolt on alignment kit (Part #40200-3DSS) which includes stainless steel turning radius gauges.

40230E Internal Airline Kit
Internal air line kit for dual rolling jack operation on 15,000 lb. capacity four post automotive lifts. Internal airline kit, #40230E provides air for dual rolling jack on the 4115series standard length four post lifts. #40230X provides air for dual rolling jack operation on the 4115series extended length four post lifts.

Product Specifications

Model

AR4115EAO

AR4115XAO

AR4115EAX

AR4115XAX

Open or Closed Front

Open

Open

Closed

Closed

Lift Capacity

15,000 lbs.

A Overall Length

250.75"

277"

247.625"

275.5"

B Overall Width

142"

C Inside of Columns

Front: 120.75” / Rear: 125.5

125.5"

D Between Columns

195"

222.5"

196"

223.375"

E Height of Columns

Front: 99.25” / Rear: 98"

98"

F Height of Runways

7"

G Width of Runways

22.375”

H Width Between Runways

40.625”

I Maximum Wheelbase 1

183"

210.5"

183"

210.5"

J Rise Height

78"

Max. 2 Wheel Alignment

167.75”

195.25”

167.75”

195.25”

Max. 4 Wheel Alignment

68" – 158"

Air Supply Required

90 -120 psi

Motor/Voltage 2

2HP, 208v-230v, 60Hz, 1Ph

Speed of Rise

85 seconds

Min. Recomm. Bay Size

14' x 24'

14' x 26'

14' x 24'

14' x 26'

1 Maximum wheelbase is based on a tire diameter of 30"

2 Optional Three Phase Electrical Power Available. Please Specify at time of order.

Available in Black Color Only
