Challenger 44030 Heavy-Duty 4-Post Hydraulic Lift 30,000 lb – New Black Color

Product Overview

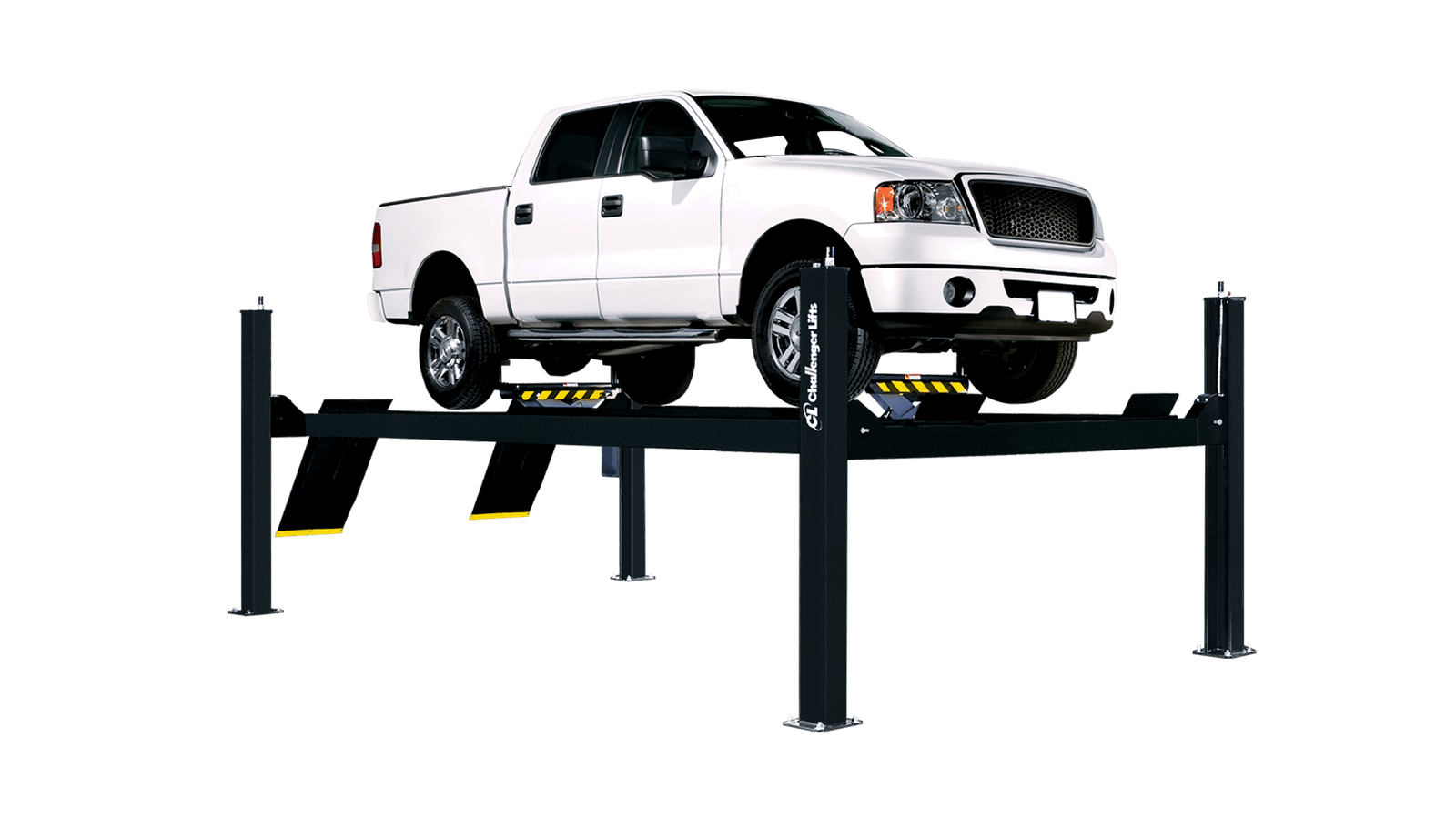

Challenger 44030 Heavy-Duty 4-Post Hydraulic Lift 30,000 lb – New Black Color

When your shop demands serious lifting power for heavy-duty trucks, buses, and commercial vehicles, the Challenger 44030 4-Post Hydraulic Lift delivers 30,000 lbs of capacity with uncompromising reliability. Now available in a sleek new black color, this professional-grade truck lift combines robust engineering with versatile configuration options to handle wheelbases up to 350 inches in the standard and extended models. Whether you're performing routine maintenance, alignments, or heavy-duty repairs, the 44030 series provides the stability, safety, and productivity your operation requires.

30,000 Pounds of Heavy-Duty Truck Lifting Power

The 30,000 lb. capacity heavy-duty four post truck lift features a superior lifting system engineered for maximum reliability and minimal maintenance. At the heart of the system is high tensile strength leaf chain paired with sealed roller bearings, ensuring smooth, dependable lift operation cycle after cycle. Heavy-duty hydraulic cylinders provide optimum lifting performance while requiring minimal upkeep, keeping your shop productive and downtime to a minimum.

Key operational features include a single point air actuated lock release system that allows technicians to disengage all column locks simultaneously, streamlining workflow and improving safety. Diamond plate approach ramps and anti-skid runway surfaces deliver positive vehicle traction during approach and unload, ensuring safe, controlled vehicle handling even with heavy commercial trucks and transit buses.

An All-in-One Hydraulic Truck Lift Solution

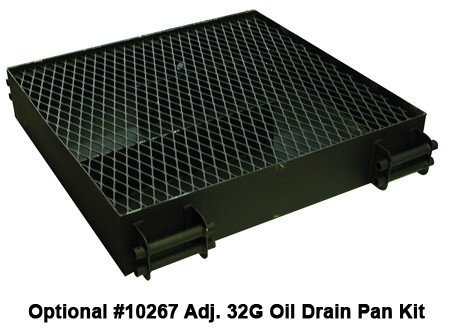

The Challenger 44030 four post truck lift accommodates a wide range of heavy-duty vehicles and can be transformed into a complete productivity solution with optional accessories. Add ramp kits, oil drain pans, heavy-duty turning radius gauges, and rolling jacks for brake and wheel work to create a fully integrated service station tailored to your shop's needs.

Available in standard length (44030), extended length (44030E), and extra extended length (44030X) configurations, these hydraulic lifts handle wheelbases ranging from 230 inches up to 350 inches. Alignment rack models are also available ( 44030AR, 44030EAR, 44030XAR ) for shops performing precision two-wheel alignment services on commercial vehicles.

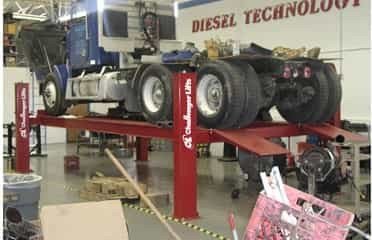

The lift's adjustable runways accommodate a variety of commercial transit buses and other large vehicles, offering flexibility for diverse fleet service operations. The built-in runway rail system provides additional versatility, allowing you to add convenience options like rolling jacks and sliding oil drain pans to customize your workstation.

Key Features & Highlights

• 30,000 lb. lifting capacity ideal for heavy-duty trucks, buses, and commercial vehicles

• High tensile strength leaf chain with sealed roller bearings smooth, reliable lift operation with long service life

• Single point air actuated lock release disengage all column locks simultaneously for faster, safer operation

• 68-inch rise height with multi-position internal lock ladder flexible working heights for technician comfort

• 3HP motor, 208v-230v 105-second speed of rise for efficient productivity

Engineered for Safety and Durability

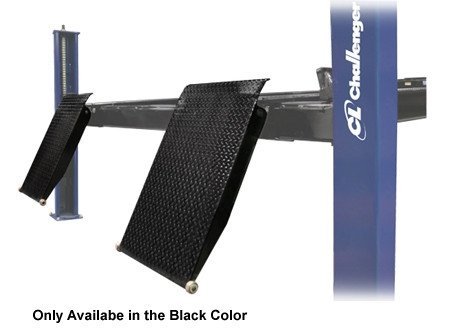

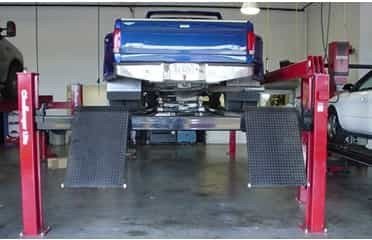

Diamond Plate Ramps
Diamond plate approach ramps provide superior drive-on tread traction and are engineered with heavy-duty steel rolling wheels for high-volume durability. The anti-skid surface ensures positive vehicle traction during approach and unload, giving operators confidence when positioning heavy commercial vehicles.

Internal Lock Ladder
The multi-position internal lock ladder offers a variety of comfortable work heights, allowing technicians to position vehicles at the optimal height for undercarriage access, brake work, and inspections. The robust locking mechanism ensures secure hold at every height.

Heavy-Duty Chain
The heavy-duty, high tensile strength leaf chain with sealed roller bearings provides smooth, reliable lift operation. Combined with the single point air actuated lock release system, technicians can quickly and safely disengage all column locks at once, streamlining service operations and enhancing shop productivity.

Product Features

• Heavy duty, high tensile strength leaf chain with sealed roller bearings for smooth reliable lift operation

• Heavy duty cylinder for optimal performance and minimal maintenance

• Single point air actuated lock release system allows technician to disengage all column locks simultaneously

• Diamond plate anti-skid runways and ramps provide positive vehicle traction and long lasting durability

• Adjustable runways accommodate a variety of commercial transit buses and other large vehicles (rolling jack application requires fixed runways)

• Built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pan

Product Specifications

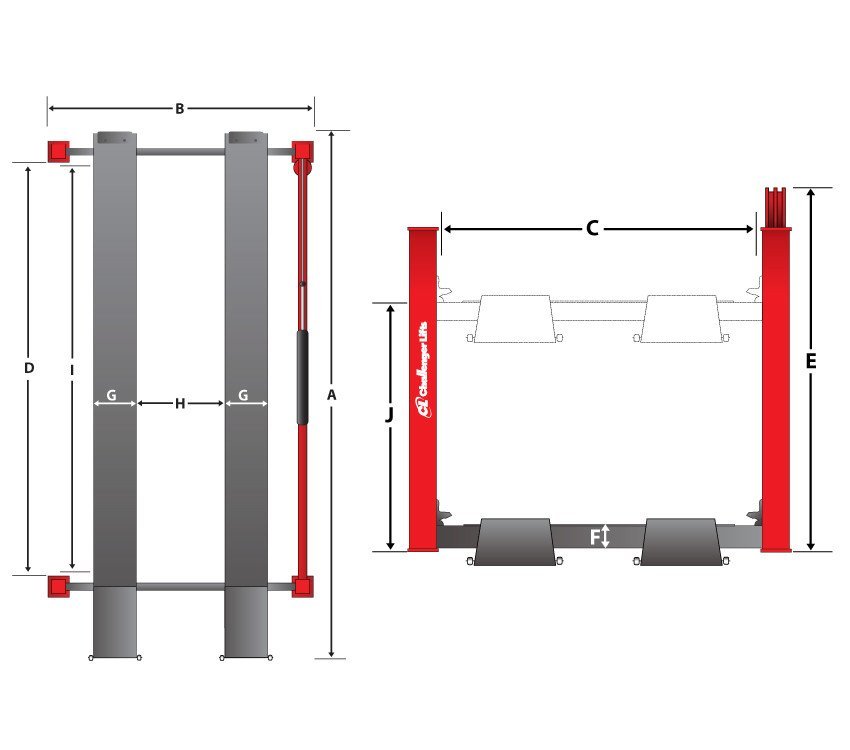

To compare the specifications for the different 44030 truck lifts, take a look at the chart below. Identify the length, width, wheelbase, speed of rise and more for six of Challenger's heavy duty lifts. Questions? Get in touch with us today.

Model Number

44030
44030AR
44030E
44030EAR
44030X
44030XAR

Lift Capacity

30,000 lbs.

A Overall Length

24' 7-1/2"

29' 7-1/2"

34' 7-1/2"

B Overall Width

12’ 5½”

C Inside Columns

132-1/2"

D Between Columns

233-3/4"

293-3/4"

353-3/4"

E Overall Height

92"

F Height of Runways

9"

G Width of Runways

24"

H Width Between Runways

54" – 75"

I Maximum Wheelbase

230"

290"

350"

J Rise Height

68"

Max. 2 Wheel Align

N/A

206"

N/A

266"

N/A

326"

Motor

3HP

Voltage

208v – 230v

Speed of Rise

105 seconds

Amps

30

Shipping Weight

5250 lbs
(2381 kg)

5450 lbs
(2472 kg)

5750 lbs
(2608 kg)

5950 lbs
(2699 kg)

6250 lbs
(2835 kg)

6450 lbs
(2926 kg)

*Optional Three Phase Electrical Power Available. Please Specify at time of order.

Available in Black Only

Key Features

• Published product configuration: Challenger 44030 Heavy-Duty 4-Post Hydraulic Lift 30,000 lb – New Black Color When your shop demands serious lifting power for heavy-duty trucks, buses, and commercial vehicles, the Challenger 44030 4-Post Hydraulic Lift delivers 30,000 lbs of capacity with uncompromising reliability. Now available in a sleek new black
• Exact manufacturer model or part number: 44030-V001
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 44030-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
