BendPak MDS-6EXT Open-Center Mid-Rise Scissors Lift / Extended Platform 6,000 lb

Product Overview

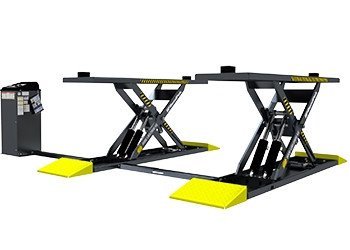

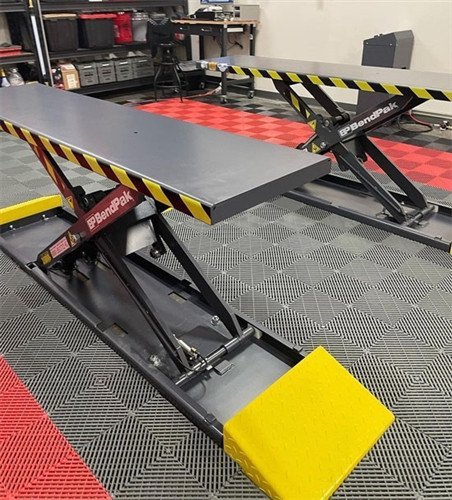

BendPak MDS-6EXT Open-Center Mid-Rise Scissors Lift / Extended Platform 6,000 lb

The BendPak MDS-6EXT represents the next generation of mid-rise scissor lift technology, purpose-built to handle the unique demands of modern vehicles—especially long-wheelbase electric vehicles and today's diverse automotive landscape. With its extended 78.7-inch platform length, 6,000-lb. lifting capacity, and innovative pneumatic-assisted lifting system, the MDS-6EXT delivers unmatched versatility, safety, and performance for professional shops and enthusiasts alike. Whether you're servicing low-clearance sports cars, extended-wheelbase EVs, or standard passenger vehicles, this open-center design provides unrestricted undercarriage access for quick-lube, brake service, suspension work, and general maintenance tasks that demand speed and precision.

Extended-Length Design for Modern Vehicles

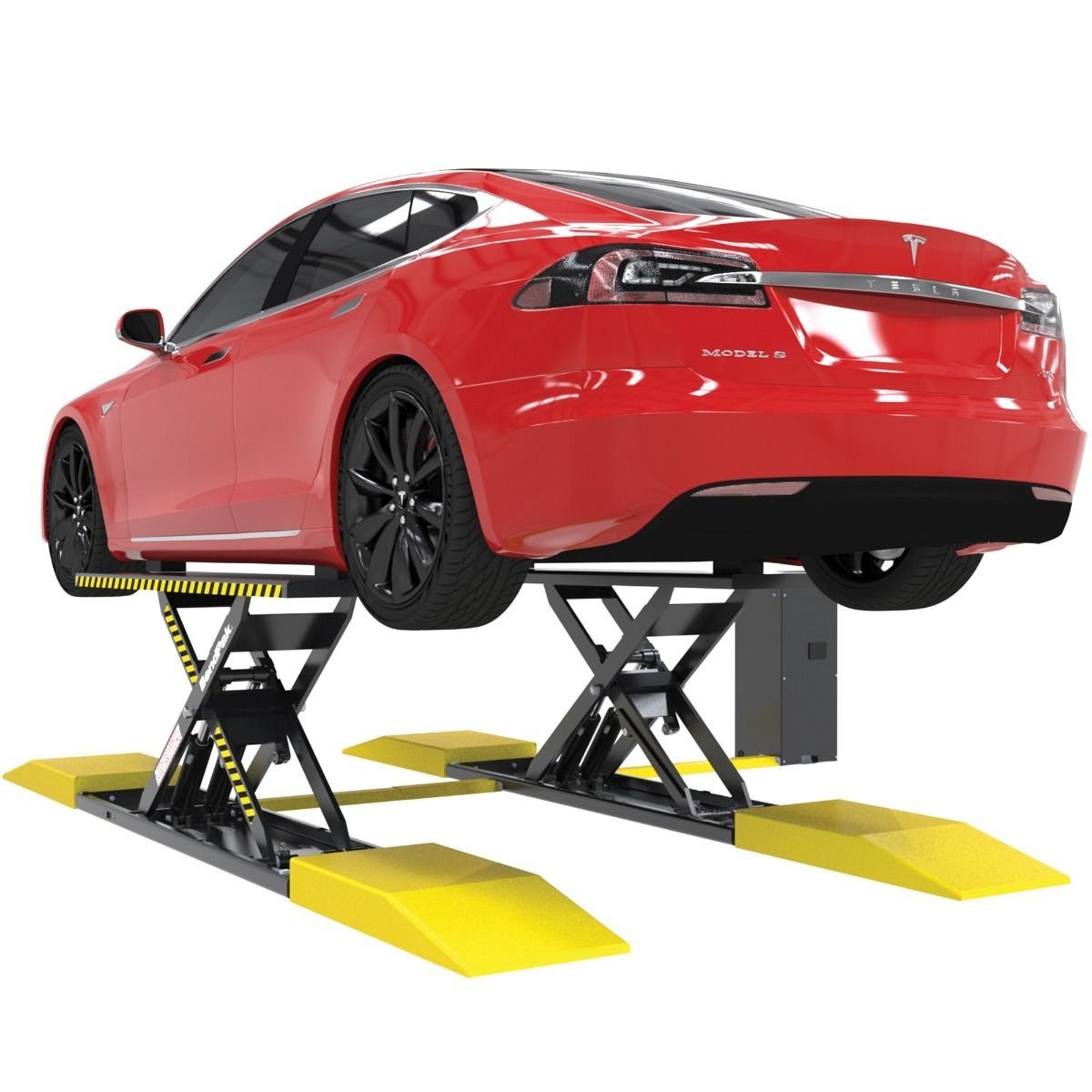

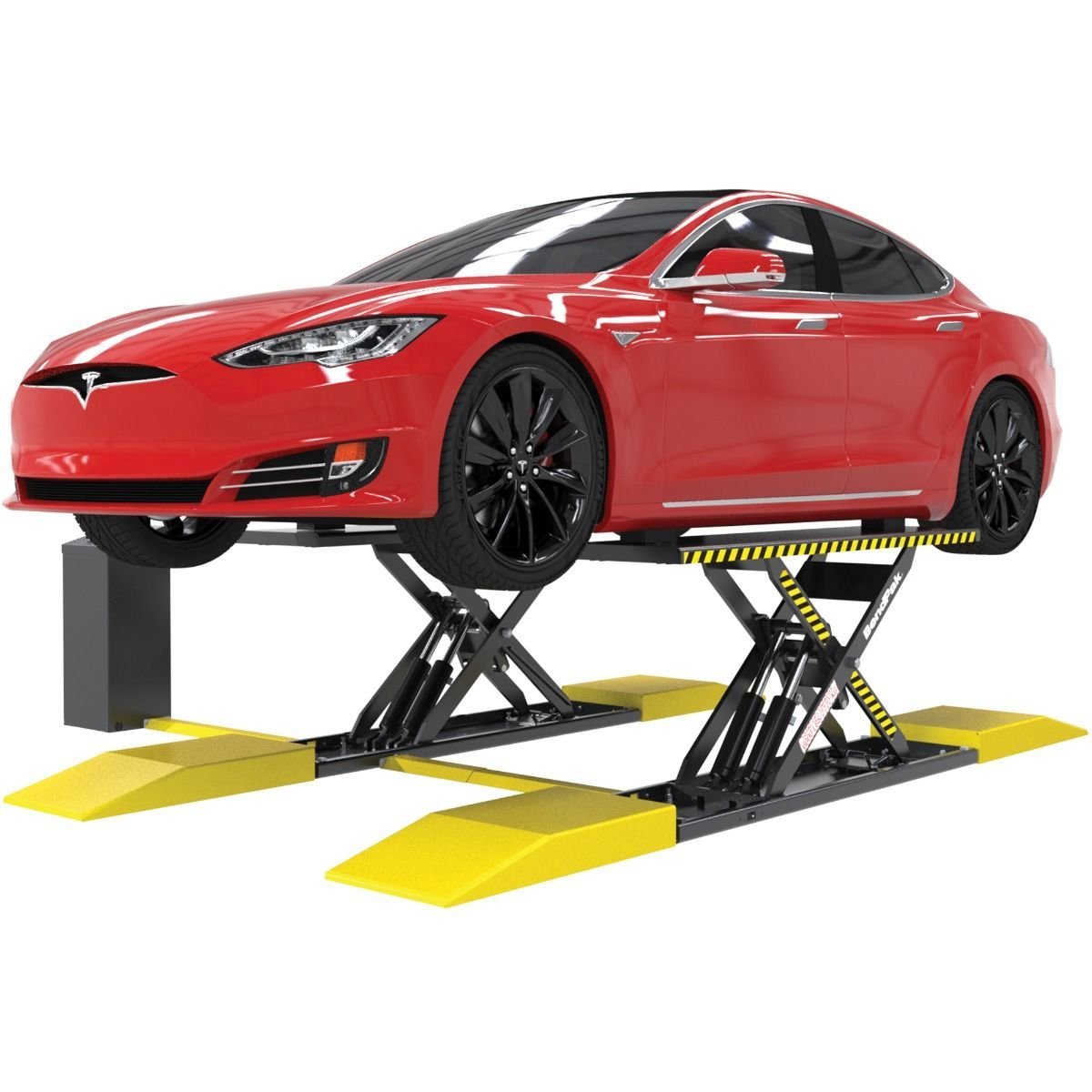

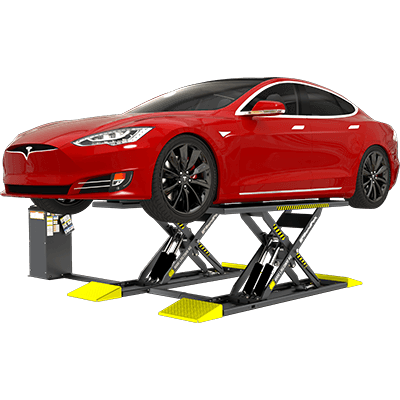

The automotive world has evolved, and so have lifting requirements. The MDS-6EXT was engineered specifically with long-wheelbase vehicles in mind—including popular electric cars whose lifting points differ dramatically from traditional combustion-engine vehicles. The extended platform length of 78.7 inches reaches the extreme edges of the vehicle underbody, ensuring you can safely and securely lift vehicles that would challenge standard mid-rise lifts.

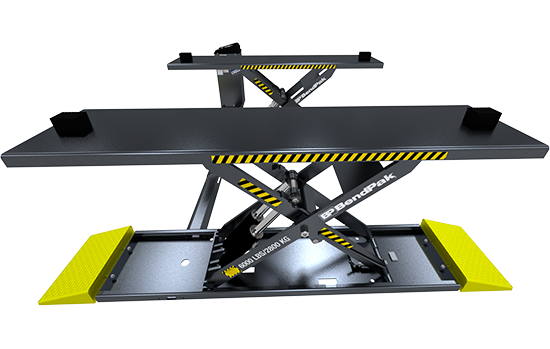

This surface-mount design maintains the proven open-center configuration found in BendPak's highly regarded standard models, giving you unobstructed access to the entire undercarriage. No center beam or crossbar stands in your way—just clear, convenient access to oil pans, transmission, exhaust systems, and more. Perfect for quick-lube operations, tire shops, brake specialists, and full-service repair facilities, the MDS-6EXT adapts to your workflow with ease.

Removable Ramps for Low-Stance Vehicles

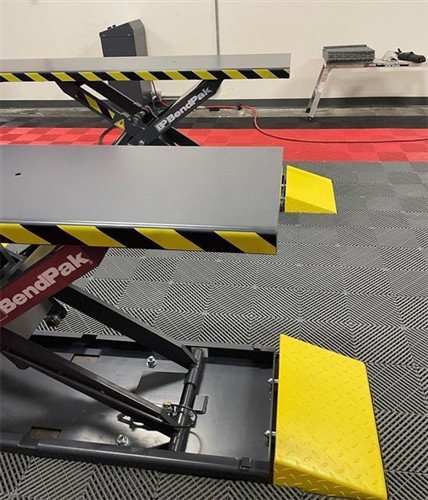

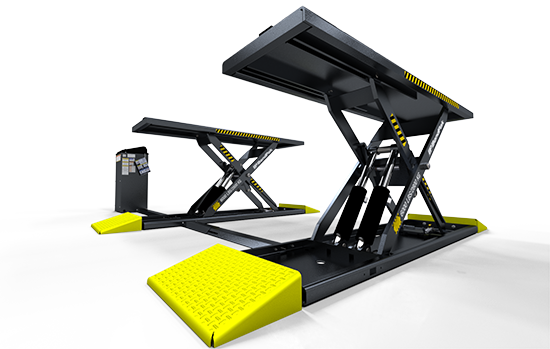

Versatility is at the heart of the MDS-6EXT, and the included removable approach ramps are a testament to that. These extended ramps clip on and off at your leisure, instantly transforming your mid-rise lift into an approach lift suitable for low-stance vehicles with minimal ground clearance. The long, gradual slope ensures smooth entry for performance cars, custom suspensions, and vehicles with larger tire profiles—no scraping, no stress, just a smooth glide onto the lift platforms.

When you don't need the ramps, simply remove them. This flexibility means the MDS-6EXT adapts to your shop's needs day by day, vehicle by vehicle. Whether you're servicing slammed street builds or factory-height sedans, this lift has you covered.

Pneumatic Kicker System – Power When You Need It Most

One of the most innovative features of the MDS-6EXT is its pneumatic kicker system a brilliant engineering solution to a classic scissor lift challenge. Scissor lifts offer incredible convenience with their low-profile design (this model lowers to just 5.25 inches off the ground), but that compact geometry creates a mechanical disadvantage during the initial lift phase when the most force is required.

BendPak's answer? Air-powered "rocket boosters" that assist the hydraulics during the first 6 inches of lift. These pneumatic cylinders provide the extra boost needed to overcome the mechanical disadvantage, ensuring smooth, effortless lifting even when handling the full 6,000-lb. capacity. Once the lift gains momentum, the four hydraulic cylinders take over seamlessly, raising the vehicle to full height in approximately 35 seconds.

Best of all, the pneumatic kicker system requires virtually zero maintenance. It's a set-it-and-forget-it innovation that makes every lift cycle faster and easier, year after year.

Four Hydraulic Cylinders with Built-In Flow Divider

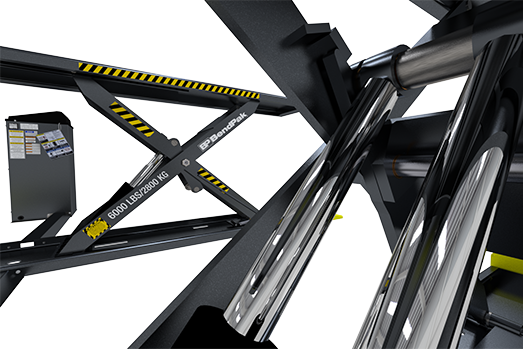

Precision and balance are critical when lifting heavy vehicles. The MDS-6EXT employs four hydraulic cylinders working in perfect unison to ensure even, level lifting every time. A built-in flow divider guarantees that each hydraulic hose receives equal pressure, eliminating the risk of uneven rises or platform imbalance.

After the initial pneumatic-assisted boost, the hydraulic system takes full control and delivers up to 36.75 inches of lifting height (or 38.25 inches with optional blocks ). The smooth, synchronized operation ensures the vehicle remains stable and secure throughout the entire lifting and lowering process, protecting both your equipment and the vehicles you service.

Solid-Steel Safety Lock Bars for Ultimate Protection

Safety is never an afterthought with BendPak, and the MDS-6EXT takes it seriously with solid-steel safety lock bars that engage automatically and continuously as the lift rises. These mechanical locks secure the lift at multiple locking positions, allowing you to choose the ideal working height for any task—whether it's 21.5 inches for brake service, 32 inches for exhaust work, or the full 36.75-inch rise for maximum undercarriage access.

Once the locks engage, they take all pressure off the hydraulic system, eliminating any risk of failure due to fluid leaks or hydraulic issues. Your vehicle is held securely by mechanical force, not hydraulics alone—providing rock-solid peace of mind during even the most demanding service procedures.

Stainless-Steel Pneumatic Lock Releases

Lowering the lift is just as important as raising it, and BendPak has engineered the MDS-6EXT with convenience and safety in mind. Instead of traditional spring-release mechanisms, this lift features stainless-steel pneumatic lock releases that disengage the safety locks instantly with the push of a button. This air-powered system requires almost zero maintenance and offers the same reliability and safety as spring devices—without the hassle.

The pneumatic release system works in conjunction with the flow divider to ensure the platforms descend evenly and remain perfectly level throughout the lowering process. Safe, smooth, and efficient every single time. Installation requires a 50 PSI, 10 CFM air source.

Low-Maintenance Zerk Grease Fittings

High-wear pivot points are equipped with self-lubricating Zerk grease fittings to minimize friction and extend the life of your lift. These fittings are strategically placed at the critical hinge points and require only occasional maintenance—so infrequent, you'll likely forget they're there. Over time, you'll simply enjoy the smooth, quiet operation that comes from a lift designed to run flawlessly year after year.

Durable Rubber Contact Blocks and Truck Adapter Set Included

The MDS-6EXT comes complete with a full set of cushioned rubber contact blocks engineered to withstand heavy use and abuse over years of service. Each block features a treaded surface that grips securely to the manufacturer-recommended lift points on the vehicle's underbody, preventing slippage and ensuring a stable, safe lift every time.

Additionally, BendPak includes a truck adapter set to accommodate a wider range of vehicles, including light trucks and SUVs with different frame configurations. This versatility makes the MDS-6EXT an ideal choice for shops that service a diverse fleet of vehicles.

Adjustable Width and Low-Profile Design

The adjustable width between platforms (40 to 46 inches) allows you to dial in the perfect spacing for any vehicle wheelbase, maximizing stability and contact area. The lift's low-profile design with a lowered height of just 5.25 inches means it can be used in facilities with limited overhead clearance or integrated seamlessly into busy shop floors without dominating the space.

Despite its compact footprint, the MDS-6EXT delivers an impressive overall length of 104.3 inches, providing ample platform space for extended-wheelbase vehicles while maintaining maneuverability and shop floor efficiency.

Key Selling Points

• Extended 78.7-inch platforms designed for long-wheelbase vehicles and modern EVs

• 6,000-lb. lifting capacity handles a wide range of passenger cars, sports cars, and light trucks

• Pneumatic kicker system provides effortless initial lift with zero maintenance requirements

• Solid-steel automatic safety locks with multiple locking positions and pneumatic release

• Open-center design offers unrestricted undercarriage access for quick-lube and maintenance tasks

• Removable approach ramps accommodate low-stance and larger-tire vehicles with ease

• Four hydraulic cylinders with built-in flow divider ensure even, level lifts every time

• Low 5.25-inch profile maximizes shop space and accessibility

• Includes rubber blocks and truck adapter set for maximum vehicle compatibility

Detailed Installation and Maintenance Instructions

Every BendPak MDS-6EXT ships with comprehensive installation and maintenance documentation, including safety decal placement guides and training placards to ensure your team is properly trained on safe lift operation. Following proper maintenance protocols not only extends the lifespan of your lift but is also critical to maintaining a safe working environment for your technicians.

Important Compatibility Note

NOTE: The lift platform and contact blocks allow lifting of most unibody and frame contact undercarriages at recommended manufacturer pick-up points on most vehicles. Be sure to compare your vehicle specifications, including ground clearance and overall height, with the specifications shown before you purchase.

Product Features

• 6,000-lb. lifting capacity

• Open-center design

• Adjustable arm assemblies

• Solid-steel safety lock bars

• Multiple lock positions

• Hinge-point with Zerk grease fittings

• Low-profile design

• Rubber blocks included

• Removable ramps

• Truck adapter set included

Product Specifications

Specifications
MDS-6EXT

Style

Surface Mount

Capacity

Lifting Capacity
6,000 lbs. / 2,722 kg

Rise

Lifting Height
36.75" (934 mm)

Lifting Height w/Blocks
38.25" (972 mm)

Outside Dimensions

Lift Platform Dimensions
19" x 78.7" (484 mm x 2,000 mm)

Width Between Platforms
40" – 46" (1,018 mm – 1,168 mm)

Overall Width
Adjustable

Overall Length
104.3" (2,650 mm)

Lowered Height
5.25" (133 mm)

Locking Heights

Fully Lowered
5.25" (133 mm)

1st Lock Position
21.5" (546 mm)

2nd Lock Position
32" (813 mm)

Full Rise
36.75" (934 mm)

Power Unit

Motor
208-230 VAC / 60 Hz / 1 Ph

Lifting time
35 sec

Shipping

Shipping Weight
1,748-lbs. (793 kg)

Shipping Dimensions
80" x 67" x 20" (2,032 mm x 1,701 mm x 508 mm)

Key Features

• Published product configuration: BendPak MDS-6EXT Open-Center Mid-Rise Scissors Lift / Extended Platform 6,000 lb The BendPak MDS-6EXT represents the next generation of mid-rise scissor lift technology, purpose-built to handle the unique demands of modern vehicles—especially long-wheelbase electric vehicles and today's diverse automotive landscape
• Exact manufacturer model or part number: 5175192-V001
• Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
• 4 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 5175192-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
