BendPak HDS-40 Heavy-Duty ALI 4 Post Tuck Lift 40,000 lb. – New Gray

Product Overview

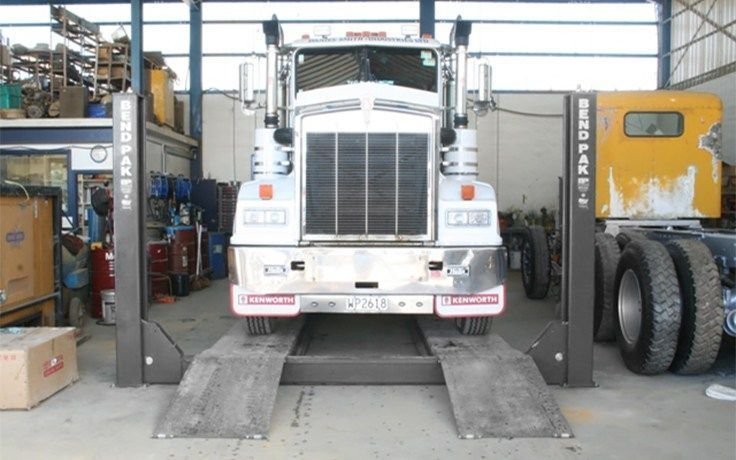

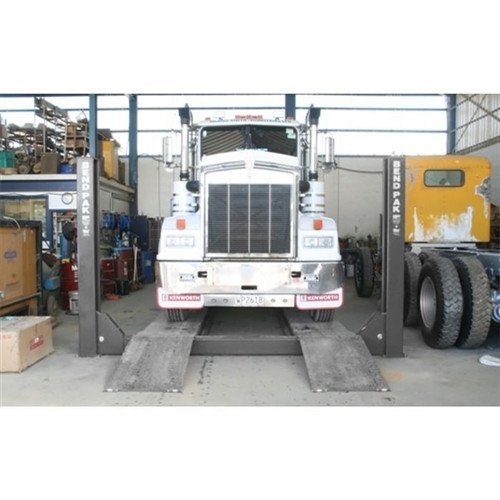

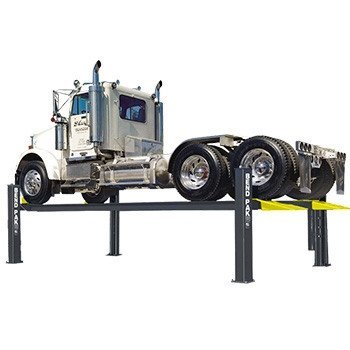

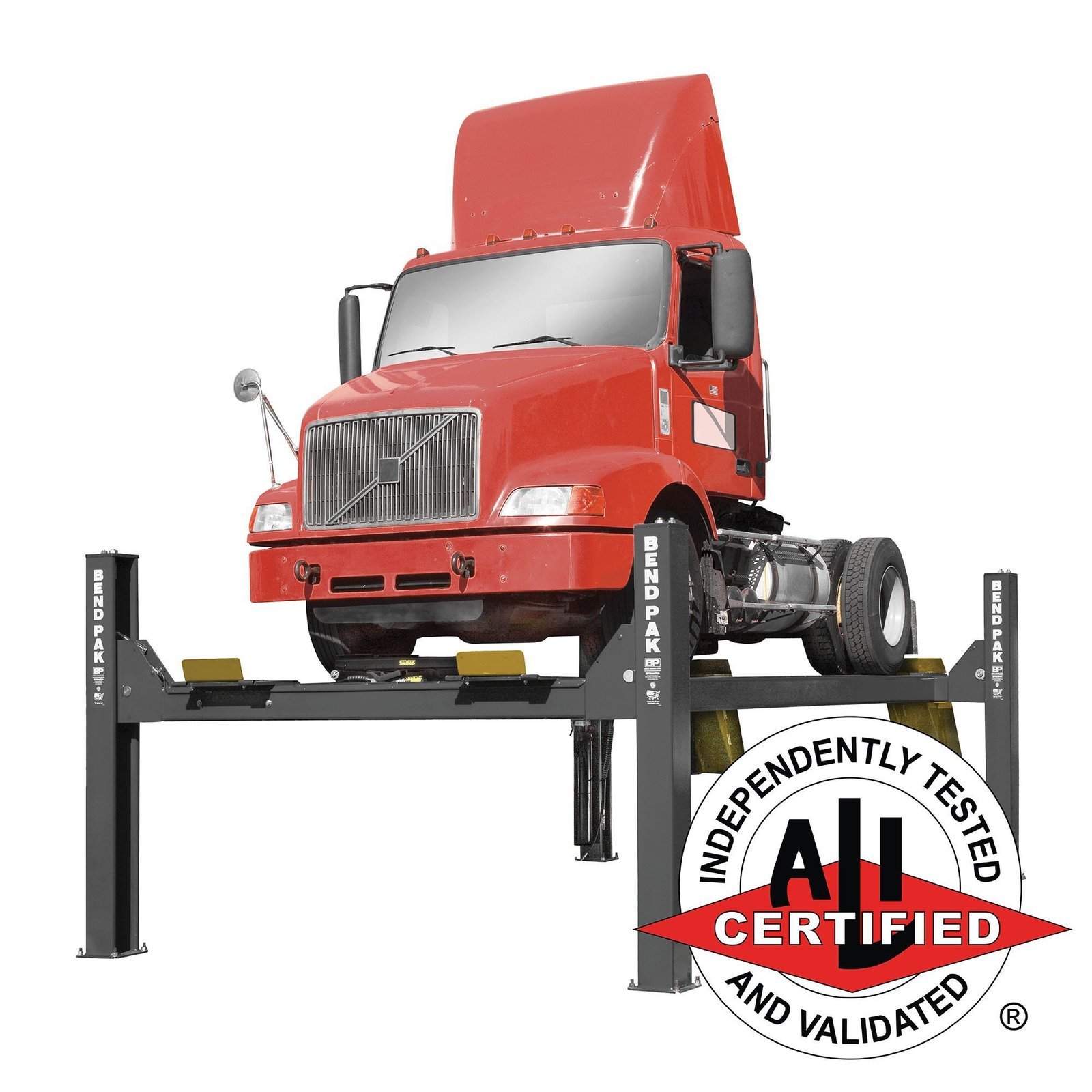

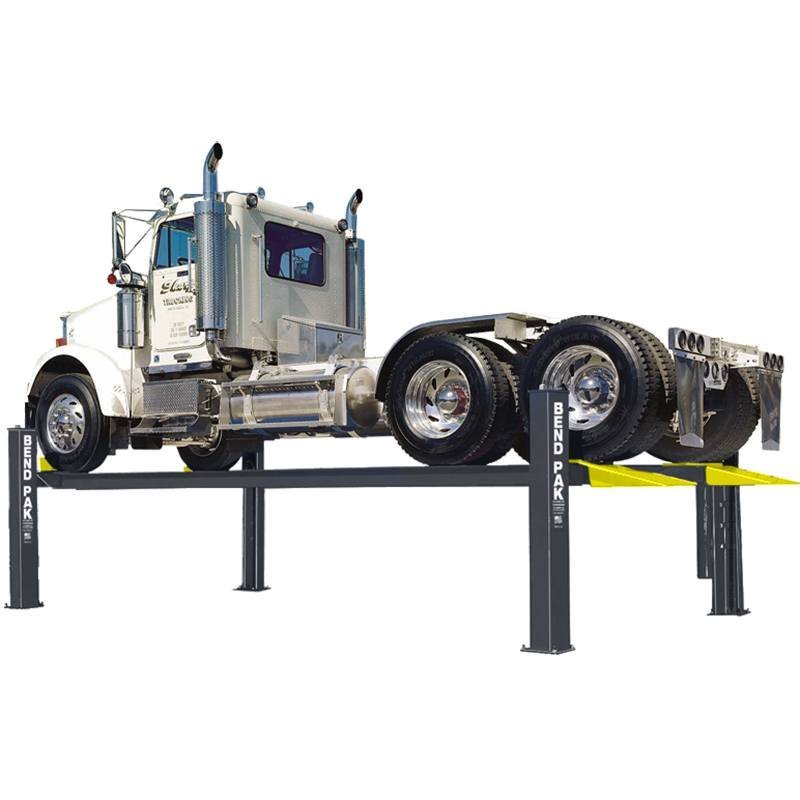

BendPak HDS-40 40,000-lb. Capacity Standard Four-Post Truck Lift

An HDS-40 four-post lift lets you wrench on absolutely massive vehicles. Nothing in BendPak’s lineup has this much brute force to accompany the same features found on our other heavy-duty lifts. That means the ergonomic controls, massive sheaves, over-engineered lift components and aircraft-quality cables are all here to guarantee the ultimate lifting experience.

Extended runways
Car lifts with longer runways are less prone to causing accidental vehicle damage. For our largest four-post lift, we make sure the most massive 40K trucks and commercial vehicles can safely make their way onto the ramps for service.

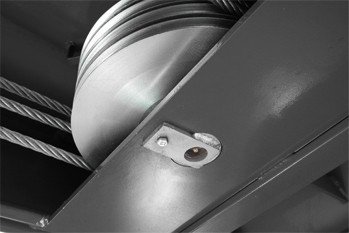

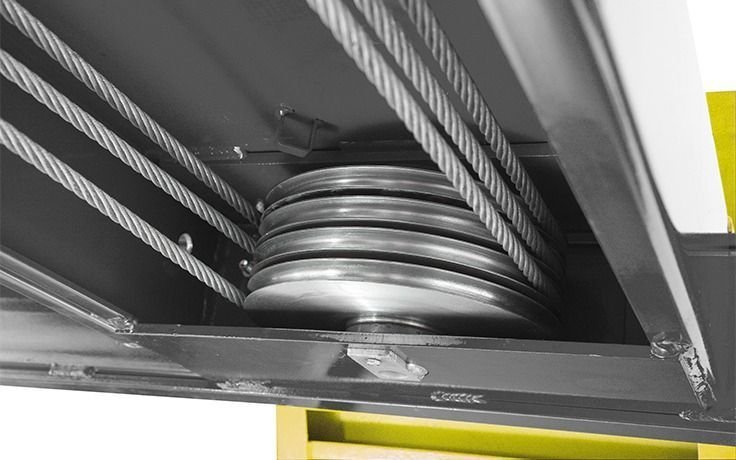

Dual-hub cable sheaves
Truck lift sheaves are made 12” in diameter with 4” diameter sheave axles and are necessarily over-engineered for safer lifting. They’re low-maintenance and low-cost for the entire lifespan of your lift. All four sheaves rotate in perfect synchronization to achieve a smooth, even lift, 100% of the time.

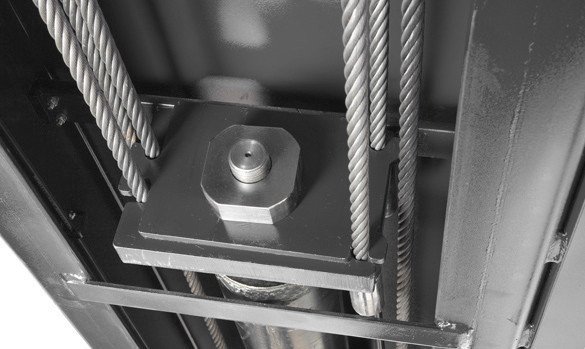

Heavy-duty aircraft cable
BendPak’s heavy-duty, 3/4” diameter, 6 x 25 galvanized lifting cables are expertly engineered to withstand the weights of fully loaded full-size flatbeds and city buses. The cables are completely resistant to rust and chemical reactions, as well as environmental factors such as heat, humidity, air particulate, etc. And since this is a BendPak cable we’re talking about, it requires very little maintenance over time.

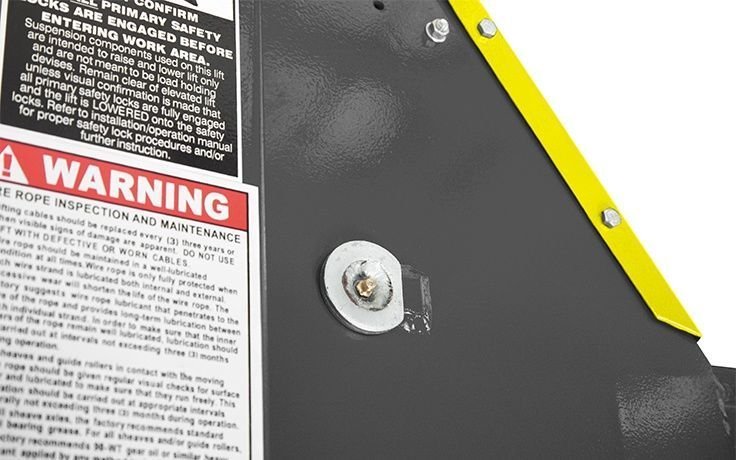

Built-in lubrication
To keep your cables sliding gently through the sheaves, self-lubricating grease nipples are fitted through the sheave and sheave axle for many years of optimum performance. We keep the grease where it belongs: along the sheave, not on your floor.

Flow restrictor
A flow restrictor is built in to the hydraulic cylinder, providing a safe descent in the rare (and very unlikely) event of a catastrophic hose rupture. Even in the worst-case scenario, your truck lift will gently descend and safely touch down on the ground. Chances are you’ll never have to see this feature at work, but we engineered it just in case.

Large base plates
Truck lift base plates are made a little wider than the bases of our lighter-duty models: 12 x 12 plate dimensions are sturdy and can be easily bolted into suitable concrete flooring for years of extreme security. No wobbles, no worries.

Spring-loaded safety locks
As the lift ascends, adjustable safety locks audibly click into place at multiple levels. This lets you choose your preferred service lifting point and accommodate for uneven floors. 13 lock positions make for an incredibly safe and versatile four-post lift.

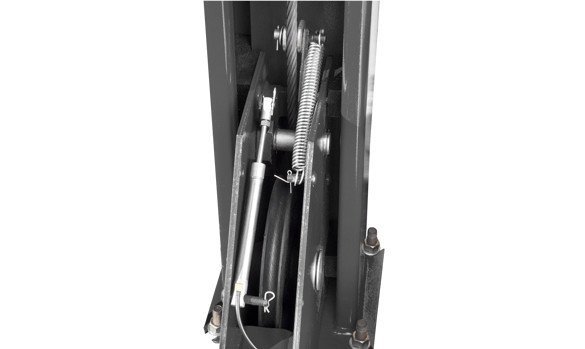

Push-button pneumatic lock release
A one-push pneumatic release simultaneously disengages all four locks for a rapid descent that never loses its balance. Stainless steel and aluminum pneumatic cylinders are aircraft-quality, tested and overloaded right here in our own California facilities to ensure optimum functionality and soundness of design. Our quality control experts always listen for a smooth hiss that accompanies the release and descent of every healthy lift we manufacture.

Secondary lock system
A cable-slack detection device acts as a secondary lock in case of a mechanical failure on the lift. Mechanical failures on any BendPak four-post lift are uncommon but more likely to occur than hydraulic failures, given the nature and operation of moving parts. Other lift companies do not incorporate slack-cable detection and thereby put your lift at risk; if one of your posts experiences cable slack, imagine the catastrophe that would follow if it continued to descend unevenly. We don’t like to think about it, so we eliminated the concern: in case of any cable slack, a BendPak lift shuts down completely, keeping you, your lift and your vehicle safe until the problem can be resolved.

Integrated design
All components on this four-post lift are internally routed within the structure: cables, sheaves, axles, etc. Even the hydraulic cylinder is hidden underneath the lift. This ensures a cleaner product that’s well-suited for side-by-side stacking—no cumbersome components to knock into each other when multiple units are installed. It also makes for a better-looking lift. Not to mention, cables and sheaves perform better when they aren’t exposed to dirt, grime and other shop conditions that might affect performance.

Adjustable height locking positions
13 locking positions mean you have more versatility with where you position the ramps. Most other companies only provide 10 positions on their four-post lift models. It might sound minor, but we knows inches make a big difference when it comes to operator comfort.

Electric-hydraulic power system

A lift is only as good as the hydraulic power unit that keeps it running. With ergonomic one-push button control, a stabilizing pressure relief valve and a host of other critical design features (i.e. protective weatherproof casing), every hydraulic power pack we manufacture ensures a clean run, even during busy hours of heavy use.

Flexible protective conduit
To keep all cables safe from wear, and to prevent accidental shocks, protective tubing wraps around all BendPak four-post lift cables and airlines. The layered conduit is non-conducive to electricity and durable enough to withstand heavy use in busy commercial shops.

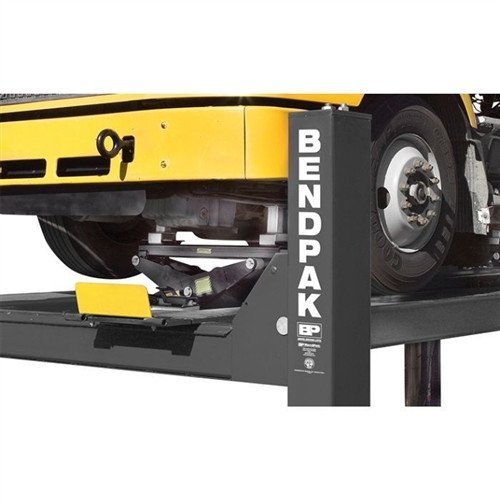

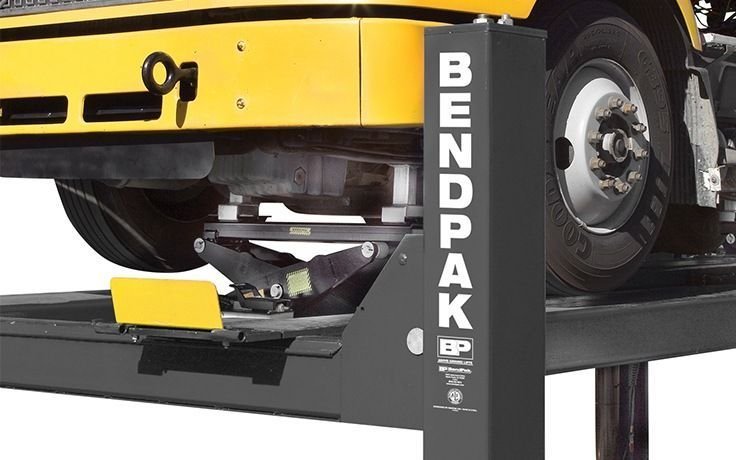

Optional Rolling bridge jacks
Wheel service on full-size trucks and commercial vehicles can be tricky without the right equipment. BendPak offers a variety of rolling bridge jacks to support virtually every vehicle type. Hydraulic pumps come standard with each bridge jack, along with SUV/truck adapters you’re going to need in order to reach deeper undercarriages. Never skimp on quality when it comes to heavy-duty lifting (or any lifting, for that matter). Talk to a BendPak service representative to make sure your investment is well-equipped to handle everything your customers might throw your way.

Choose extended length
40,000 lbs. take a lot of muscle to lift, and many vehicles of this caliber are longer than our standard-length series of four-post lifts can accommodate. If you want to be prepared for the longest and heaviest, you need the biggest and baddest. At a whopping 323”, the HDS-40X is the heaviest-duty extended-length car lift we make. Slap a bus on it and get to work, no sweat.

Product Features

• 40,000-lb. lifting capacity

• Supersized 12" diameter cable sheaves

• Stainless steal lifting cables

• Grease nipples

• Single hydraulic under-runway cylinder

• Integrated flow restrictor

• Durable powder coat

• Spring-loaded safety locks

• Second lock system on constant guard

• Fully enclosed lifting cables

• Multiple adjustable height locking positions

• Maintenance-free electric hydraulic power system

• Conveniently positioned operator controls

• 12" x 12" base plates

• Non-skid runways

• Optional rolling jacks

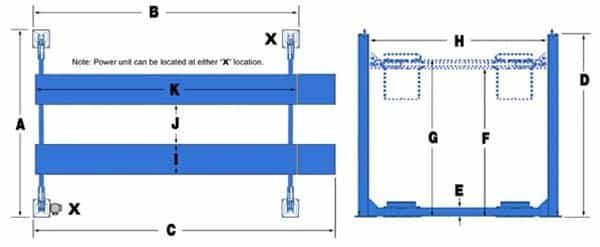

Product Specifications

Model

HDS-40
HDS-10X

Style

Standard
Extended

Capacity

Lifting Capacity: (*)

40,000 lbs. (18,144 kg)

*Max Capacity / Front Axle

20,000 lbs. (9,072 kg)

*Max Capacity / Rear Axle

20,000 lbs. (9,072 kg)

Rise

A Min. Runway Height

8.5" (216 mm)

B Max. Rise

60" (1,524 mm)

C Max. Lifting Height

68.5" (1,740 mm)

Time to Full Rise

75 seconds

Outside Dimensions

D Overall Width

153.5" (3,899 mm)

E Outside Length

257" (6,528 mm)
317" (8,052 mm)

F Overall Length

313.75" (7,969 mm)
373.5" (9,487 mm)

G Height of Columns

91.25" (2,318 mm)
93" (2,362 mm)

Inside Dimensions

H Width Between Columns

133.5" (3,391 mm)
134" (3,404 mm)

I Drive-Thru Clearance

109" (2,769 mm)

Runways

J Runway Width

28" (711 mm)

K Length of Runways

244.5" (6,210 mm)
304.5" (7,734 mm)

L Width Between Runways

41" (1,041 mm)

M Runway Centerline

69" (1,753 mm)

N Outside Edge of Runways

97" (2,464 mm)

Minimum Wheelbase

Rated Capacity

185" (4,699 mm))
230" (5,842 mm)

75% Capacity

160" (4,064 mm)
195" (4,953 mm)

50% Capacity

135" (3,429 mm)
165" (4,191 mm)

25% Capacity

110" (2,794 mm)
130" (3,302 mm)

Locking

Locking Positions

9

Lock Spacing

Every 6" (152 mm)

Power Unit

Motor

220 VAC / 60 Hz / 1Ph

Noise

45 dB

Shipping

Weight

6,748-lbs. (3,060 kg)
7,563-lbs. (3,430 kg)

Dimensions

265" x 31" x 36"
(6,731 mm x 787 mm x 914 mm)
324" x 31" x 36"
(8,229 mm x 787 mm x 914 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Key Features

• Published product configuration: BendPak HDS-40 40,000-lb. Capacity Standard Four-Post Truck Lift An HDS-40 four-post lift lets you wrench on absolutely massive vehicles. Nothing in BendPak’s lineup has this much brute force to accompany the same features found on our other heavy-duty lifts. That means the ergonomic controls, massive sheaves
• Exact manufacturer model or part number: 5175176
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• 4 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 5175176, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
