BendPak HD-9SW Double-Wide Car Storage Parking Lift 9,000 lb. – New Gray

Product Overview

BendPak HD-9SW Double-Wide Car Storage Parking Lift 9,000 lb. 4 Post Parking Lift

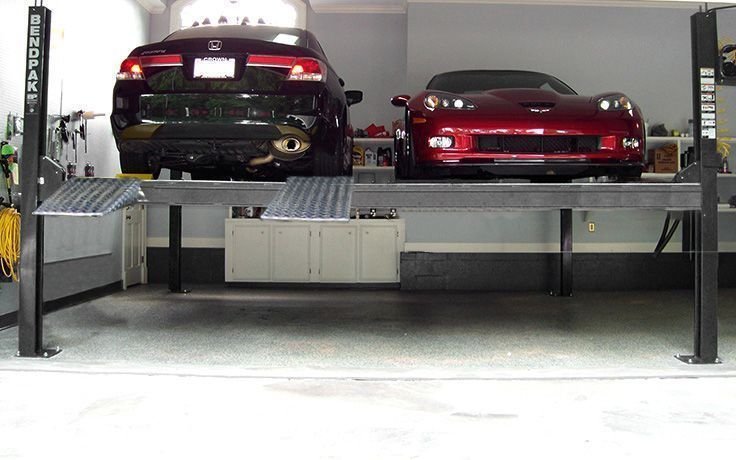

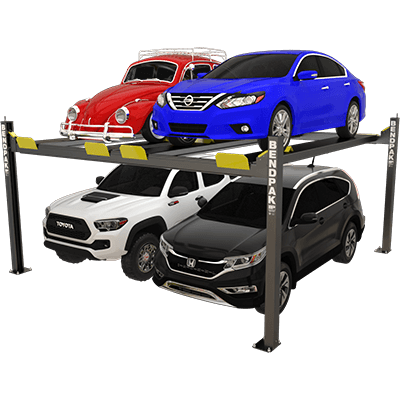

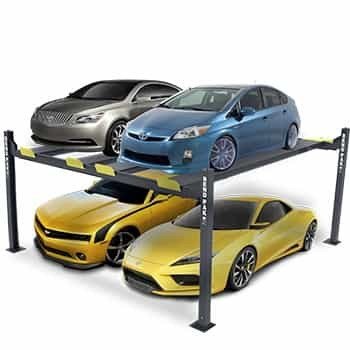

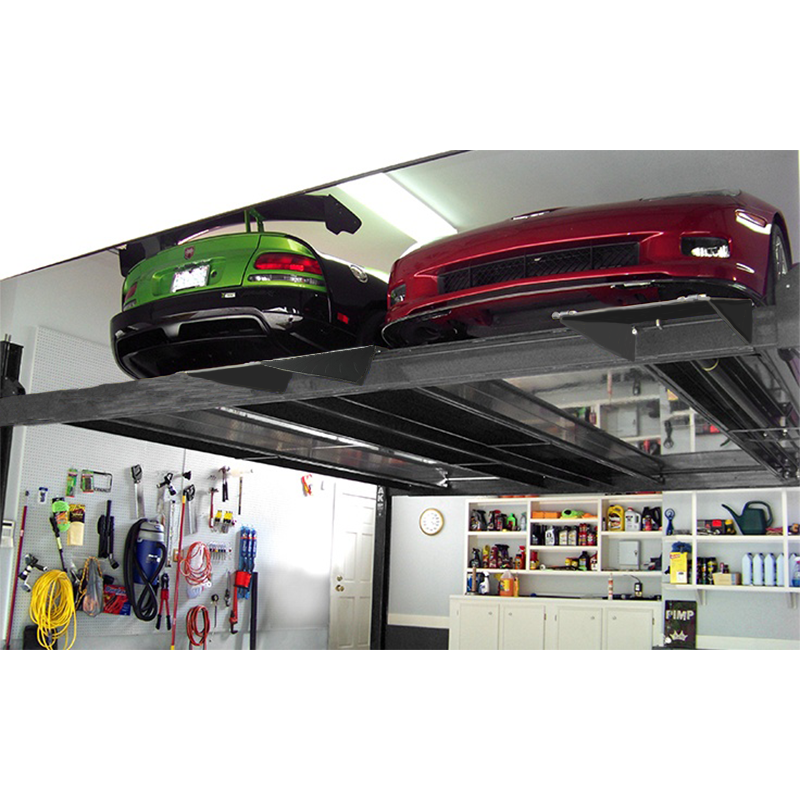

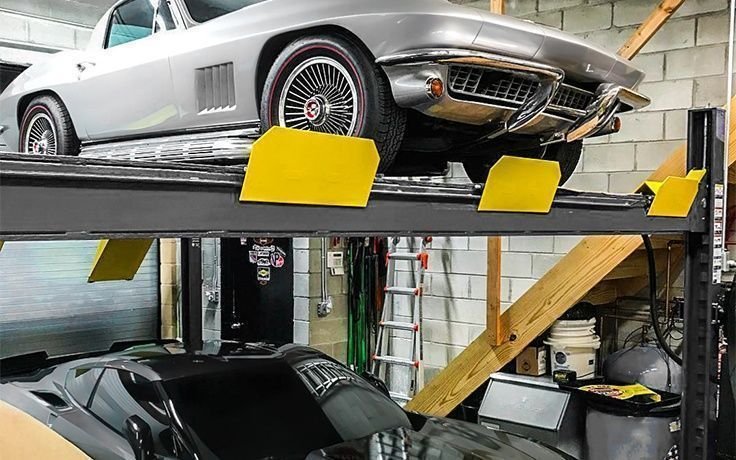

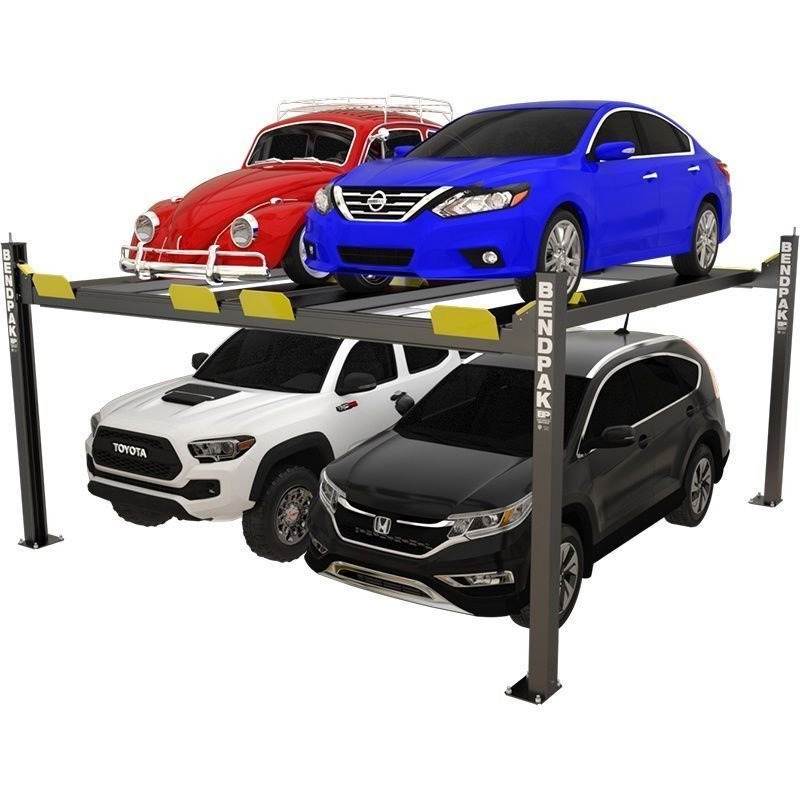

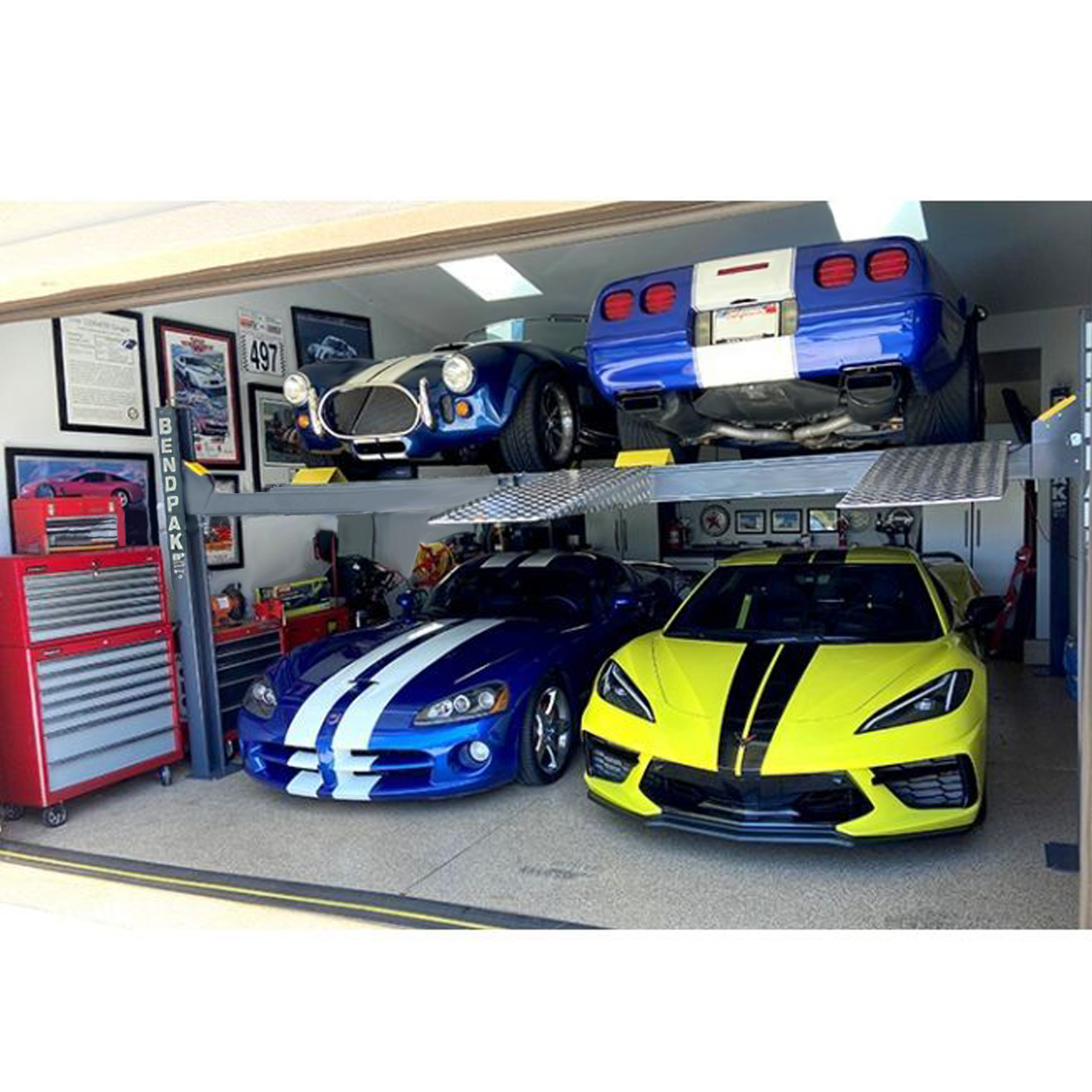

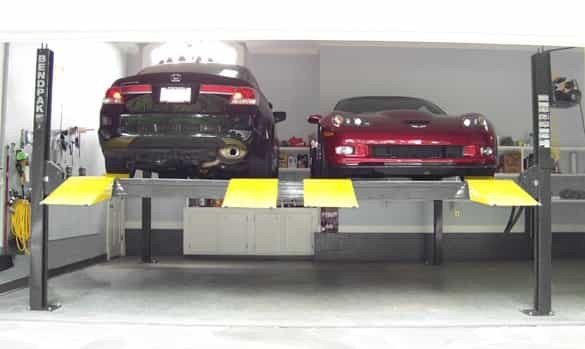

The BendPak HD-9SW Double-Wide Car Storage Lift redefines what's possible in your garage or shop. With an expansive 192" post-to-post clearance and a robust 9,000-lb. capacity, this four-post parking lift allows you to stack up to four vehicles in a space that once held only two. No more sacrificing indoor protection for your daily drivers. Stop leaving them exposed in the driveway while your weekend toys stay tucked safely inside. The HD-9SW changes everything—park multiple vehicles securely indoors and enjoy the peace of mind you deserve.

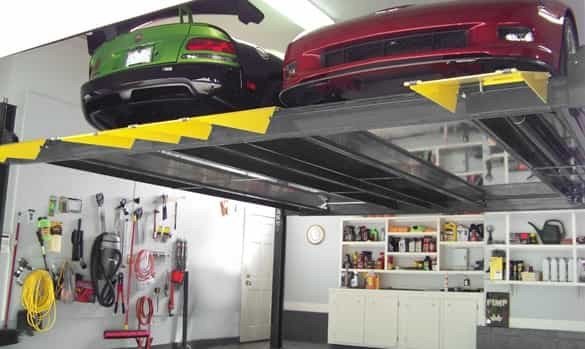

But this isn't just a parking lift. The HD-9SW features open-center runways, making it a versatile maintenance lift as well. Work on two vehicles simultaneously if you choose. Whether you need extra parking capacity at home or want to expand service capabilities in your commercial shop, the BendPak HD-9SW delivers the lifestyle flexibility and operational efficiency you've been looking for. This double-wide stacker is engineered to handle your heaviest trucks, SUVs, and classic cars with confidence and ease.

Unmatched Capacity and Clearance

The HD-9SW offers an incredible 192" width between columns, perfect for accommodating two vehicles side-by-side. The 164.5" runway length and 70" maximum rise provide ample space and lifting height for a wide variety of vehicles. Whether you're parking compact cars or full-size trucks, the runways adjust for different tread widths, ensuring a secure and stable fit every time. The lift achieves full rise in just 55 seconds, making loading and unloading efficient and hassle-free.

With a 4,500-lb. maximum capacity per axle, the HD-9SW is engineered to safely handle heavy-duty vehicles. The 7" minimum runway height accommodates low-stance cars, while removable approach ramps and optional drive-thru ramps add even more versatility. This lift is designed to adapt to your exact needs, whether you're stacking sports cars, SUVs, or anything in between.

Engineered for Safety and Reliability

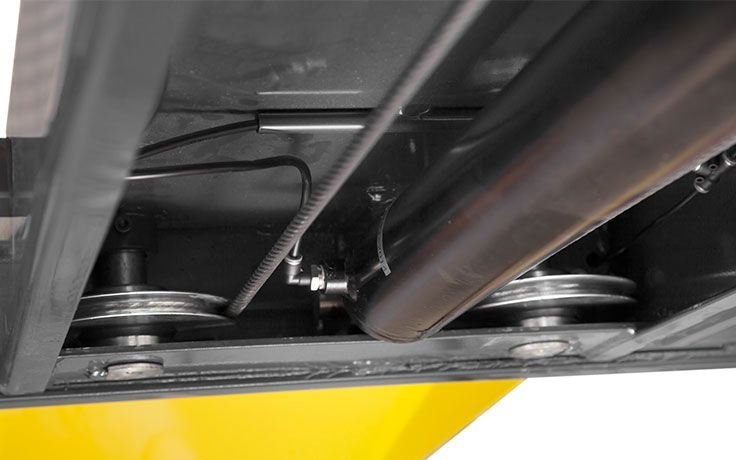

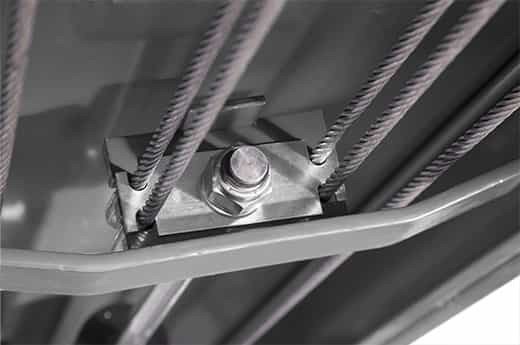

Dual-hub cable sheaves: BendPak doesn't take shortcuts when it comes to safety. The HD-9SW is equipped with dual-hub sheaves that reduce friction on the cables and extend their service life. With heavy-duty 3/8" aircraft cable each with a tensile strength of 14,400 lbs. the total cable capacity is 640% higher than the lift's certified 9,000-lb. rating. Imagine the confidence you'll feel parking your most valuable vehicles knowing they're supported by cables originally designed for large aircraft.

Multi-level automatic safety locks: Safety locks engage automatically at 14 locking positions spaced every 4 inches as the lift rises. This gives you maximum flexibility when parking vehicles of different heights in limited ceiling spaces. All four locks engage simultaneously, ensuring the lift remains perfectly level at all times. The locks are spring-activated and do not rely on electrical or hydraulic power, providing fail-safe mechanical security you can trust.

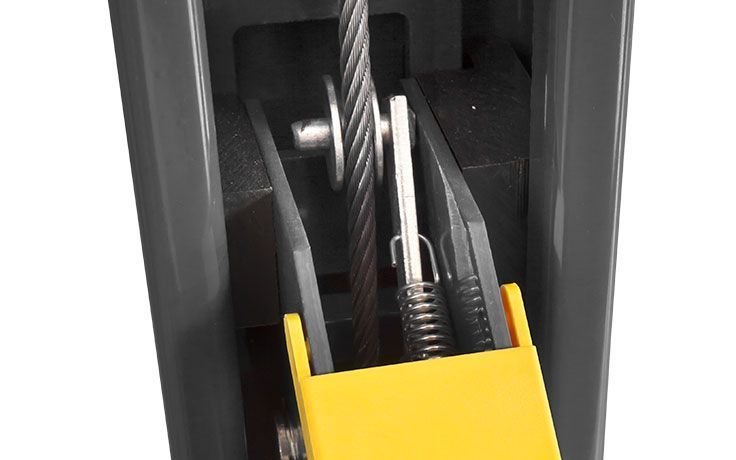

Independent slack-cable detection: A secondary slack-cable detection system continuously monitors cable tension. If slack is detected on any cable, the lift immediately shuts down to prevent uneven operation. This advanced safety feature protects your vehicles and your investment by catching potential issues before they escalate.

Electric-Hydraulic Power System

The HD-9SW features BendPak's renowned electric/hydraulic power system with a 220 VAC / 60 Hz / 1Ph motor. The single hydraulic cylinder mounted underneath the runway delivers smooth, consistent lifting power. The system requires no maintenance, operates with minimal noise ( 45 dB ), and ensures the runways lift and lower in perfect unison every time. The power unit will not operate unless all safety locks engage and release simultaneously, adding another layer of operational safety.

The customizable power unit location allows you to position the motor where it best fits your space and workflow. Whether you're installing the lift at home or in a busy commercial garage, the HD-9SW adapts to your environment seamlessly.

Built Tough with Premium Components

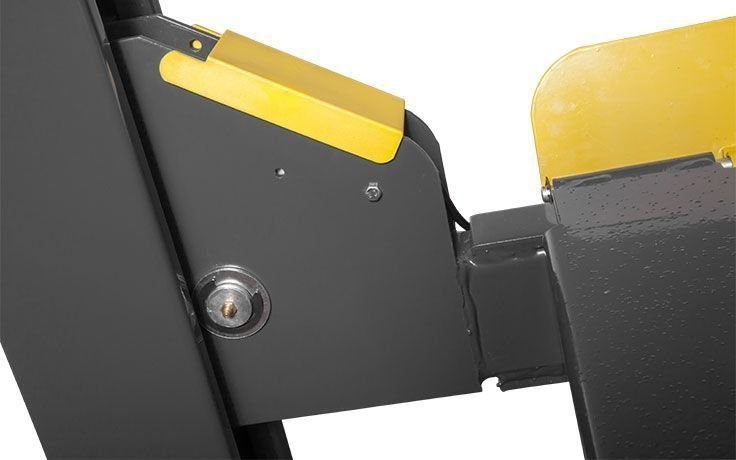

Rugged construction: The HD-9SW is built to last, featuring rugged 1.25" roller axles, oversized self-lubricating cable rollers, and oversized sheave diameters that minimize cable fatigue. Internal anti-sway slider blocks in each column eliminate wobble and keep the lift rock-solid even under maximum load. All moving parts, including cables, safety locks, and sheaves, are fully enclosed within the lift structure, protecting them from environmental hazards, weather, and debris.

Stability and ease of installation: Large 10" x 12" base plates provide exceptional stability and distribute weight evenly across your floor. These base plates are so stable that some users choose not to bolt them down, though anchoring is always recommended for maximum safety. The lift's integrated design keeps the installation clean and compact, with minimal floor space requirements considering the lift's massive parking capacity.

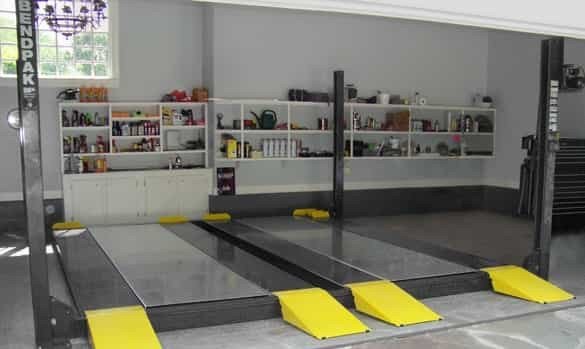

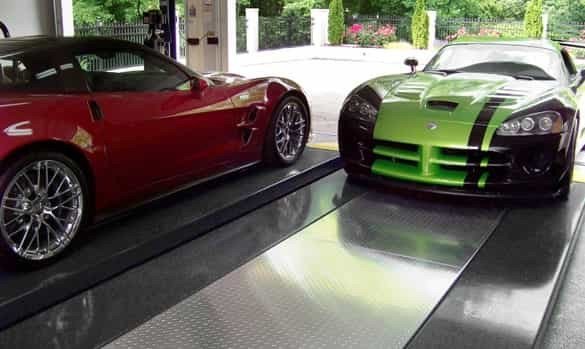

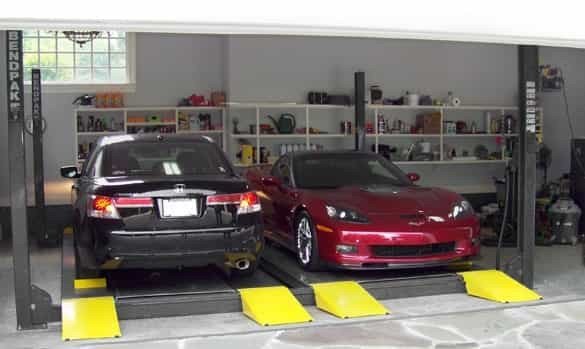

Non-skid runways: The 19" wide runways feature a non-skid surface, providing excellent traction when driving vehicles on and off the lift. The low-profile 7" runway height makes it easy to load even the lowest ground-clearance vehicles, while the included 48" extended aluminum approach ramps (part #5174670) ensure a smooth, safe transition onto the lift.

Optional Accessories and Upgrades

The BendPak HD-9SW is designed to be customized to fit your exact needs. Optional accessories include:

• Optional drive-thru ramps for seamless vehicle movement across the entire lift platform

• Optional drip trays to protect lower vehicles from fluid leaks or spills

• Optional solid deck to dramatically increase usable storage capacity above and below the lift

• Optional 4,500-lb. air/hydraulic rolling jacks for service and maintenance work

The runways include a rail kit for attaching optional accessories, giving you the flexibility to transform your parking lift into a full-service maintenance station whenever you need it.

Need More Height and Length?

For customers with higher ceilings and longer vehicles, BendPak offers the HD-9SWX, an extended-length version of this lift. The HD-9SWX features an 82" maximum rise (12 inches higher than the HD-9SW) and 188" runway length (two feet longer). It's ideal for large trucks, extended-cab SUVs, and long-wheelbase vehicles. If you have the ceiling height and need the extra runway space, the HD-9SWX delivers the same legendary BendPak quality with even more versatility.

Key Highlights

• 9,000-lb. lifting capacity safely handles trucks, SUVs, and multiple vehicles side-by-side

• 192" post-to-post clearance perfect for parking two vehicles on each level

• Open-center runways allow dual-purpose use as a parking lift and maintenance lift

• 14 locking positions every 4 inches provide flexible parking heights for any garage ceiling

• Heavy-duty 3/8" aircraft cable with tensile strength 640% above the lift's rated capacity

• Electric/hydraulic power system with quiet 45 dB operation and zero-maintenance design

• Push-button pneumatic safety release for effortless, controlled lowering

• Includes one pair of 48" extended aluminum approach ramps for low ground-clearance vehicles

Important Notes

Air supply required: An air supply with a minimum of 30 psi / 3 CFM is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.

Included with purchase: The BendPak HD-9SW comes standard with one kit (pair) of 48" extended aluminum approach ramps (part #5174670), ensuring easy loading of low-clearance vehicles right out of the box.

Product Features

• Standard rise

• Shorter runway for smaller spaces

• Runways accommodate wide or narrow vehicles

• Runways include rail kit for optional accessories

• Electric / hydraulic power system

• Single hydraulic cylinder mounted underneath runway

• Fully enclosed lifting cables, safety locks and sheaves

• Internal anti-sway slider blocks in each column

• Oversized self-lubricating cable rollers

• Oversized sheave diameter reduces cable fatigue

• High-speed lifting

• Features heavy-duty 3/8" aircraft cable

• Rugged 1.25" roller axles

• Multi-position safety locks in each column

• Adjustable lock ladders

• Runways feature non-skid surface

• Push-button pneumatic safety release

• Independent backup slack-cable safety latches

• Inside runways adjust for different tread widths

• Customizable power unit location

• Removable approach ramps for additional drive-under clearance

• Optional drive-thru ramps available

• Optional drip trays available

• Optional solid deck available to increase storage capacity

• Optional 4,500-lb. air / hydraulic rolling jacks available

Includes

• 1 Pair – #5174670 48" Extended Aluminum Ramps

Product Specifications

Model

HD-9SW
HD-9SW-E
HD-9SWX

Style

Super Wide
Extra Wide
Super Wide/Extended Length

Capacity

Lifting Capacity: (*)

9,000 lbs. (4,082 kg)

*Max Capacity / Front Axle

4,500 lbs. (2,041 kg)

*Max Capacity / Rear Axle

4,500 lbs. (2,041 kg)

Rise

A Min. Runway Height

7" (178 mm)

B Max. Rise

70" (1,778 mm)
82" (2,083 mm)

C Max. Lifting Height

77.5" (1,969 mm)
89" (2,261 mm)

Time to Full Rise

55 seconds
65 seconds

Outside Dimensions

D Overall Width

202" (5,131 mm)
248" (6,300 mm)
202" (5,131 mm)

E Outside Length

174" (4,420 mm)
198" (5,029 mm)

F Overall Length

200.5" (5,095 mm)
224.5" (5,705 mm)

G Height of Columns

90" (2,286 mm)
102" (2,591 mm)

Inside Dimensions

H Width Between Columns

192" (4,877 mm)
238" (6,046 mm)
192" (4,877 mm)

I Drive-Thru Clearance

178" (4,521 mm)
N/A
178" (4,521 mm)

Runways

J Runway Width

19" (483 mm)

K Length of Runways

164.5" (4,178 mm)
188" (4,775 mm)

L Width Between Runways

37" or 42" (940 or 1,067 mm)

M Runway Centerline

56" or 61" (1,422 or 1,549 mm)

N Outside Edge of Runways

75" or 80" (1,905 or 2,032 mm)

Minimum Wheelbase

Rated Capacity

115" (2,921 mm)
135" (3,429 mm)

75% Capacity

100" (2,540 mm)
115" (2,921 mm)

50% Capacity

85" (2,159 mm)
95" (2,413 mm)

25% Capacity

70" (1,778 mm)
80" (2,032 mm)

Locking

Locking Positions

14
16

Lock Spacing

Every 4" (102 mm)

Power Unit

Motor

220 VAC / 60 Hz / 1Ph

Noise

45 dB

Shipping

Weight

2,752-lbs. (1,248.3 kg)
N/A
2,987-lbs. (1354.9 kg)

Dimensions

219" x 21" x 42"
(5,563 mm x 533 mm x 1,067 mm)
N/A
206" x 22" x 40"
(5,232 mm x 559 mm x 1,016 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
