Auto Lift AL2-9K-SCX 9,000 lb. Symmetric 2 Post Car Lifts

Product Overview

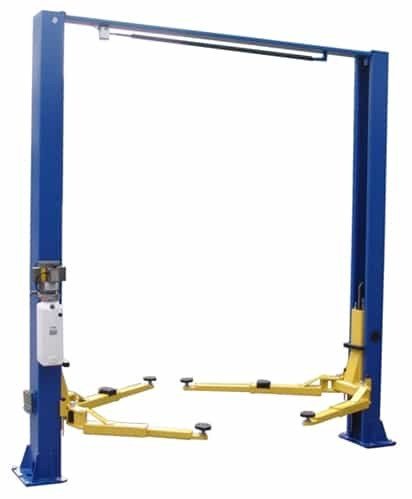

Auto Lift AL2-9K-SCX 9,000 lb. Symmetric 2 Post Car Lift

The Auto Lift AL2-9K-SCX represents a new generation of two-post automotive lifts, combining 9,000 lb capacity with thoughtful engineering refinements that deliver exceptional value for professional shops and home garages alike. This symmetric clear floor lift is part of Auto Lift's redesigned 9K "X" Series, which introduces a host of improvements that elevate performance, safety, and ease of use without compromising affordability.

Engineered with single-piece column construction and featuring a chain drive system, the AL2-9K-SCX delivers smooth, reliable operation with a lifting speed of just 50 seconds to its full 72-inch max lift height. The symmetric design provides equal front and rear arm reach ( 31" to 45" on both front and rear arms ), making it ideal for a wide range of vehicles from compact cars to light trucks. With a 104-inch drive-thru clearance and 113.6-inch width between columns, you'll have plenty of room to work comfortably around lifted vehicles.

Redesigned for Superior Performance and Safety

The 9K-SCX has been completely reimagined to now include features that were once considered premium upgrades. Every aspect of this clear floor lift has been refined to create one of the best two-post lift values in the industry today.

The new single-piece column construction eliminates weak points and provides enhanced structural integrity throughout the lift cycle. Constructed from 5mm-thick column steel with 5mm carriage thickness and robust 6mm-thick arms, this lift is built to handle demanding shop environments day after day. The 3/8" diameter cables and dual-point lock release system provide redundant safety, giving you confidence with every lift.

A standout safety upgrade is the new padded overhead shut-off bar with integrated kill switch. This provides an immediate emergency stop option that's always within reach, adding an extra layer of protection for operators. Combined with rubber door guards that protect vehicle doors from contact with the metal frame, the AL2-9K-SCX prioritizes both operator and vehicle safety.

Smart Design Features That Make a Difference

Key Advantages of the AL2-9K-SCX:

• Reduced Overall Width: Front-side power unit mounting reduces the total footprint to just 138 inches overall width, maximizing your shop floor space

• Internal Hose Routing: Integrated hose guards and internal routing protect hydraulic lines from damage and create a cleaner, safer workspace

• Low Profile Drop-In Swivel Pads: Adjustable 1-1/2" height range with a minimum pad height of just 4 inches accommodates low-clearance vehicles

• Free Stackable Height Adapters: Includes 4 each of 1-3/8" and 4" drop-in height adapters for lifting trucks and taller vehicles

• Durable Finish: Professional powder coat finish resists chips, scratches, and shop chemicals for years of reliable service

Each arm is rated to handle up to 2,250 lbs, and the lift operates on standard 220V, 20 AMP, single-phase power, making installation straightforward in most shop environments. The clear floor design eliminates tripping hazards and makes positioning vehicles easier, while the durable construction keeps the shipping weight at a manageable 1,370 lbs.

Engineered Features and Included Components

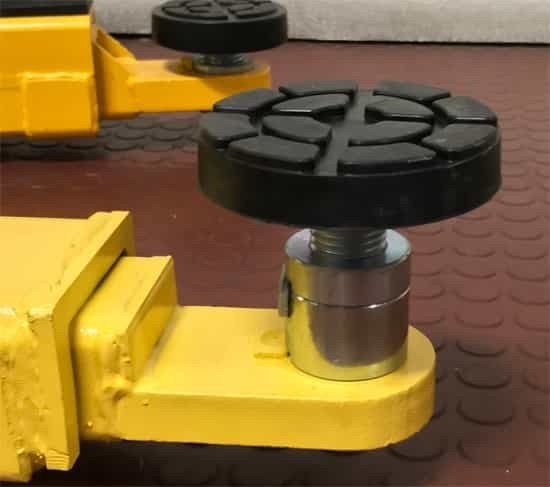

Low Profile Swivel Pads
The innovative drop-in swivel pad design allows for quick, tool-free adjustment with 1-1/2" of vertical height adjustment. These pads provide a secure contact point for vehicle frames and pinch welds while accommodating varying vehicle geometries. The low-profile design ensures compatibility with sports cars, lowered vehicles, and other low-clearance applications.

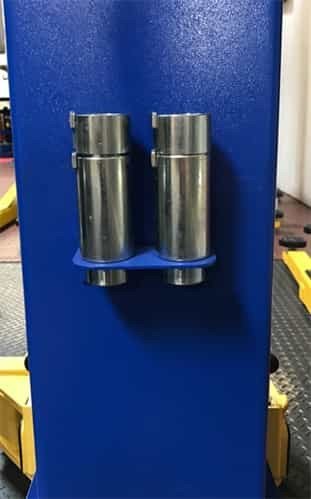

Stackable Height Adapters
Every AL2-9K-SCX includes a complete set of stackable drop-in height adapters: four 1-3/8" adapters and four 4" adapters. These can be used individually or stacked to create the perfect lifting height for trucks, SUVs, and vehicles with higher ground clearance. The drop-in design makes switching between configurations fast and effortless.

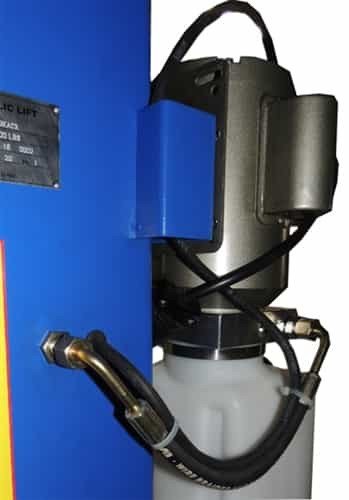

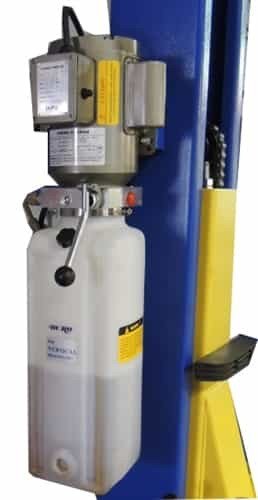

Front-Side Power Unit Mounting
By relocating the power unit to the front side of the column, Auto Lift has reduced the overall width of the AL2-9K-SCX without sacrificing performance. This space-saving design improvement allows the lift to fit in tighter bays while maintaining full 104-inch drive-thru clearance for easy vehicle positioning.

Internal Hose Routing with Integrated Guards
Hydraulic hoses are routed internally through the columns and protected by integrated hose guards, shielding them from accidental damage, shop traffic, and environmental hazards. This design choice not only extends component life but also creates a cleaner, more professional appearance and safer work environment.

Rubber Door Guards
Protective rubber door guards line the inner surfaces of the columns, preventing vehicle doors from making contact with the metal frame during entry and exit. This thoughtful detail protects your customers' vehicles from scratches and dings while improving your shop's professional reputation.

Optional Accessories

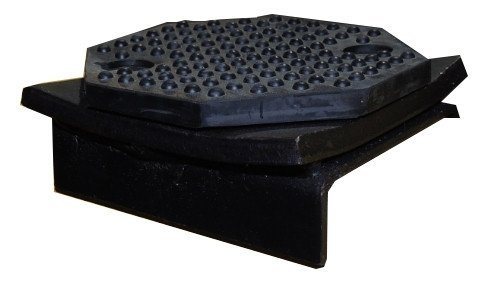

Optional Spin-Up Cradle Adapters
Expand the versatility of your AL2-9K-SCX with the TP9KX-SPNCA optional set of four spin-up cradle adapters. These adapters provide alternative lifting points for vehicles with unique frame configurations or those requiring additional support surfaces during service.

Product Features

• 9,000 lb lifting capacity

• High Quality Construction

• Chain Drive

• Dual Point Lock Release

• Saddle Pad Adapters included (1 pair

• Powder coat finish

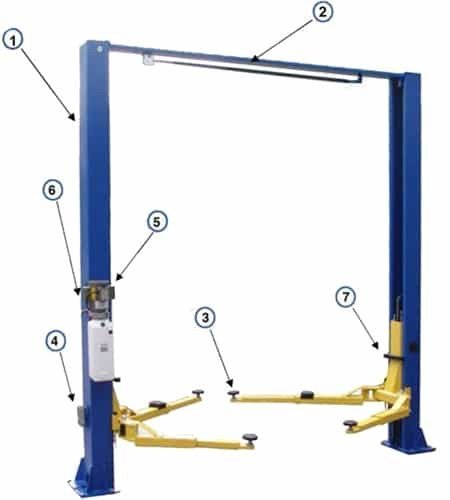

New Features

• 1) Single Piece Column construction (TP9KACX – TP9KSCX)

• 2) Padded ‘Shut-Off’ Bar w/ Kill Switch (TP9KACX – TP9KSCX)

• 3) Low Profile ‘drop-in’ Swivel Pads w/1-1/2” adjustable height

• 4) 4ea Stackable 1-3/8” & 4” ‘drop-in’ Height Adapters

• 5) Reduced overall Width w/ front-side Power Unit mounting

• 6) Internal Hose Routing w/ integrated Hose Guards

• 7) Rubber Door Guards

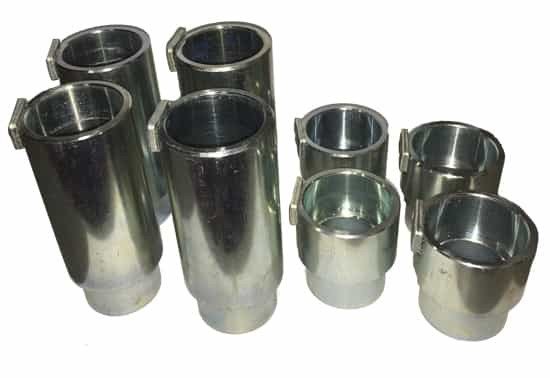

Free Drop-In Stackable Height Adapters
Set of 4 each: 1-3/8" & 4"

Product Specifications

Specifications
AL2-9K-SCX

Capacity
9,000 lbs.

Overall Height
142.9"

Width Overall w/Power Unit
138"

Max Lift Height
72"

Width Between Columns
113.6"

Min Pad Height
4"

Drive thru Clearance
104"

Lifting speed
50 sec

Asymmetric / Symmetric
Symmetric

Clear Floor / Floor Plate
Clear Floor

Front Arm Reach – min/max
31" – 45"

Rear Arm Reach – min/max
31" – 45"

Max Load Per Arm
2,250 lbs.

Cable Diameter
3/8"

Column Size
7.25" x 10.87"

Column Steel Thickness
5mm

Carriage Steel Thickness
5mm

Arm Steel Thickness
6mm

Power
220V – 20 AMP – 1 PH

Ship Weight
1,370 lbs.

Key Features

• Published product configuration: Auto Lift AL2-9K-SCX 9,000 lb. Symmetric 2 Post Car Lift The Auto Lift AL2-9K-SCX represents a new generation of two-post automotive lifts, combining 9,000 lb capacity with thoughtful engineering refinements that deliver exceptional value for professional shops and home garages alike. This symmetric clear floor lift is
• Exact manufacturer model or part number: AL2-9K-SCX-V001
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model AL2-9K-SCX-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
