Atlas® ST-7000 Super Tall 4 Post Lift 7,000 lbs

Overview

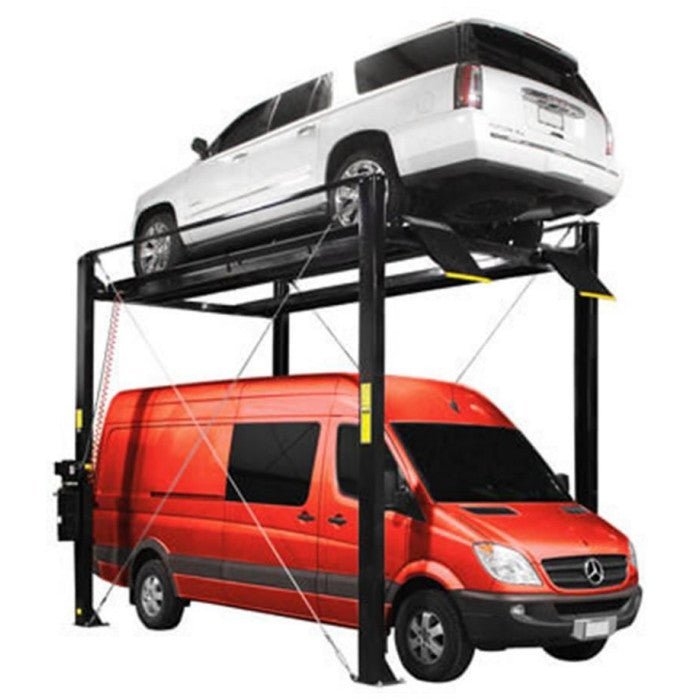

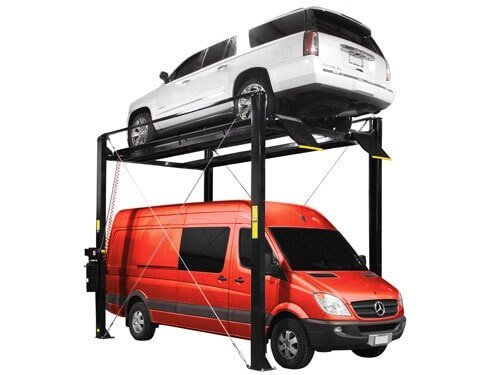

The Atlas® ST-7000 Super Tall 4 Post Lift is engineered specifically for automotive enthusiasts and professionals with tall garage or shop ceilings who need to maximize their vertical storage space. With an extraordinary lifting height reaching over 12 feet (142 inches clearance under the runways), this lift enables you to park standard-height vehicles on top while storing taller trucks, SUVs, or vans safely underneath—doubling your garage capacity without compromising accessibility.

Built to handle vehicles weighing up to 7,000 lbs, the ST-7000 features the same heavy-duty commercial-grade runways found on the Atlas® GP-9000, complete with welded jack tracks to accommodate professional rolling center jacks from Greg Smith Equipment. Whether you're a collector storing multiple vehicles, a professional shop maximizing workspace, or simply looking to reclaim valuable floor space, the ST-7000 delivers unmatched vertical reach with proven Atlas® reliability.

This super tall four post storage lift is equipped with a sophisticated Lock Ladder Design that provides 21 locking positions with adjustable positioning during installation—giving you nearly infinite runway height configurations to accommodate any vehicle combination. The advanced Single Point Pneumatic Lock Release system ensures secure, two-handed operation for maximum safety, while the Emergency Slack Cable Secondary Lock System remains on standby 24/7, automatically engaging if cables become compromised or too slack.

Key Features & Benefits

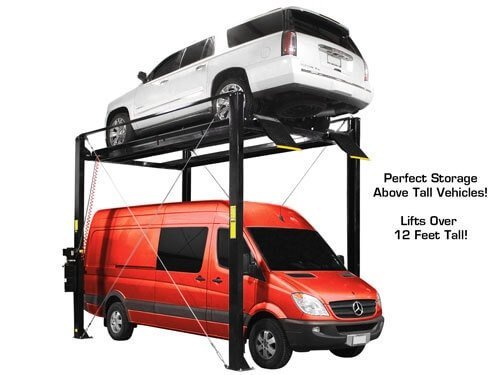

• Super Tall Lifting Capability: Lifts vehicles over 12 feet high with 142" clearance under the runways perfect for storing tall SUVs, trucks, or vans below while parking standard vehicles on top

• Commercial-Grade Reinforced Runways: Heavy-duty construction identical to the Atlas® GP-9000 with welded jack tracks for professional rolling center jacks, ensuring durability and versatility

• Adjustable Lock Ladder System: Offers 21 locking positions with micro-adjustable height settings during installation, allowing you to fine-tune runway heights for any vehicle combination

• Advanced Dual Safety Lock System: Features both a single point pneumatic lock release with two-hand operation and an emergency secondary locking mechanism that automatically engages if cables become slack

• Premium Atlas® Powder Coat Finish: Professional, durable finish resists corrosion and maintains appearance for years in demanding shop environments

Perfect For:
Car collectors with tall ceilings • Professional shops maximizing workspace • Enthusiasts storing trucks and cars together • Facilities with 13'6" ceiling height or greater

Design & Construction Details

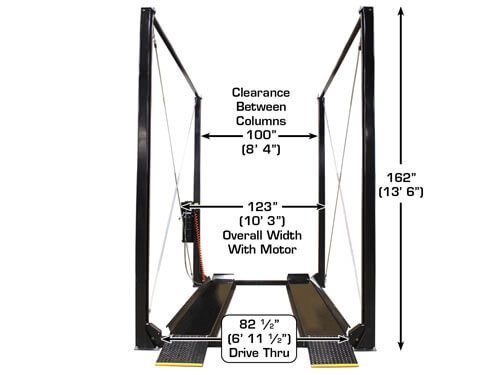

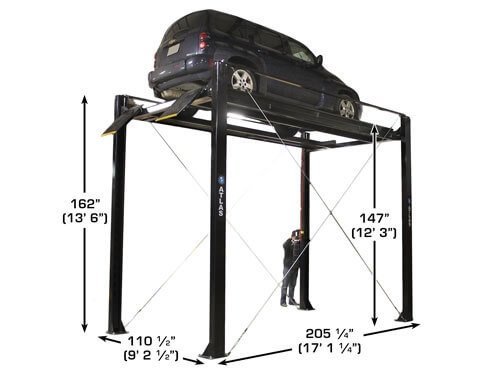

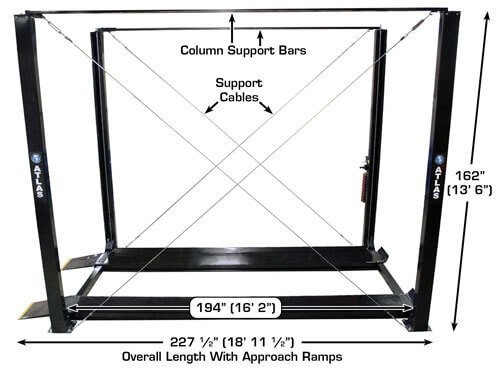

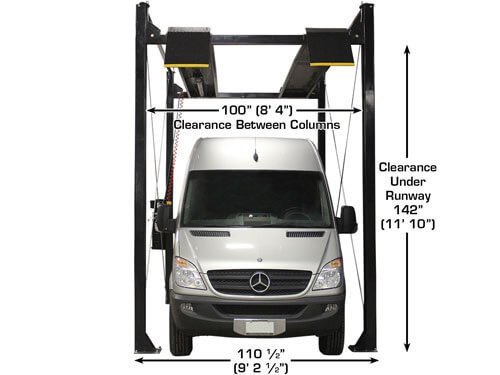

The ST-7000 is built with the same engineering excellence that has made Atlas® Automotive Equipment an industry leader. The lift's columns stand 162 inches (13'6") tall, allowing the runways to reach a maximum height of 147 inches to the top of the runway. This provides an impressive 142 inches of clearance under the runways enough space to comfortably park full-size trucks, large SUVs, or commercial vans underneath the lifted vehicle.

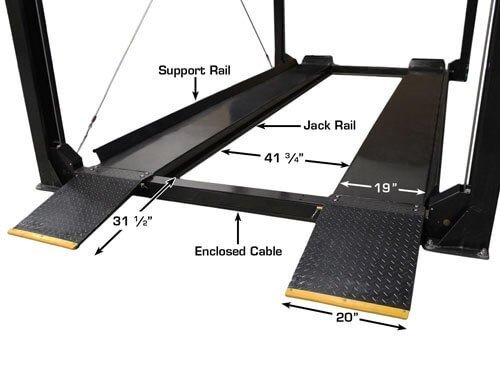

The reinforced runways measure 194 inches (16'2") in length with a 21-inch width (20-inch driving surface) and substantial 4 3/4-inch thickness for maximum strength and stability. The lift accommodates vehicles with wheelbases up to 182 inches (15'2") and provides a drive-through width of 82 ½ inches (outside tire to outside tire), which is adjustable by 7 ½ inches to fit various vehicle track widths.

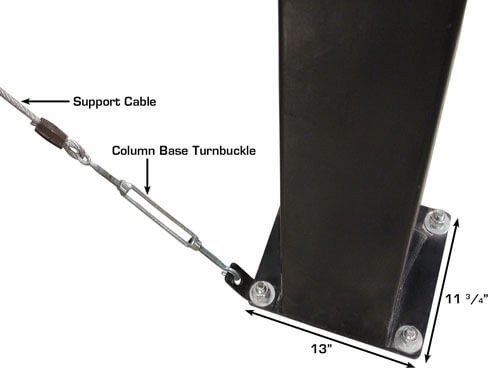

Installation requires permanent mounting to the floor with anchor bolts (included). The lift is powered by a 220V / 1 phase motor requiring a 30 amp breaker and uses 6 gallons of AW32/AW46 hydraulic oil (not included). Compressed air is required for the pneumatic lock release system (air supply not included). The overall width with motor installed is 123 inches (10'3"), while the width without motor is 110 ½ inches (9'2 ½").

Intelligent Lock Ladder System

The Lock Ladder Design is a standout feature of the ST-7000, providing exceptional flexibility in runway positioning. With 21 standard locking positions ranging from 23 inches to 142 ½ inches of clearance under the runway (±2"), you have precise control over lift height. The lock ladder is adjustable inside the column during installation, enabling you to "micro-manage" the exact runway height needed to accommodate any vehicle combination in your collection.

Locking positions are strategically spaced approximately every 6 inches throughout the lifting range, giving you the flexibility to optimize space for specific vehicle pairings—whether you're storing a low-profile sports car over a lifted pickup truck or stacking two SUVs of different heights.

Superior Safety Systems

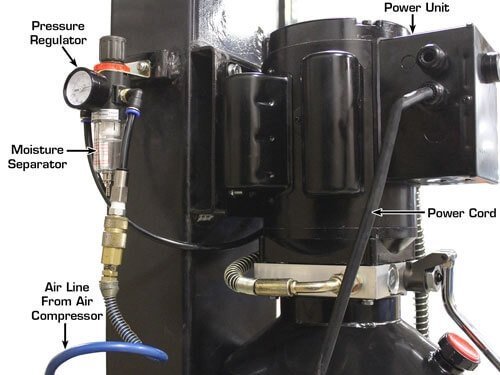

Safety is paramount in the Atlas® ST-7000 design. The Single Point Pneumatic Lock Release system provides intuitive, secure operation. Located conveniently next to the power unit, a single point release toggle automatically unlocks all four spring-loaded pneumatic locks. The system requires a deliberate two-hand operation: both the lock toggle and the power unit dump valve must be activated simultaneously to release the locks and lower the lift.

If you release the lock toggle while still pressing the dump valve button, the lift will continue to descend and all locks will automatically re-engage at the next lower lock point—providing multiple layers of safety during operation. This intelligent design prevents accidental drops and ensures controlled, predictable lowering.

The Double Lock Safety System serves as a critical backup. This emergency secondary locking mechanism is designed to remain vigilant at all times. If a lifting cable becomes slack for any reason—whether from mechanical failure, wear, or unforeseen circumstances—the secondary locking mechanism automatically engages, preventing the lift from descending unexpectedly. This redundant safety feature provides peace of mind when storing valuable vehicles at extreme heights.

Installation Requirements:
Must be bolted to the ground with anchor bolts (included). Requires 220V / 1 phase / 30 amp electrical service and compressed air for pneumatic lock release. 6 gallons of AW32/AW46 hydraulic oil required (not included). Minimum ceiling height: 13'6".

What's Included

Your Atlas® ST-7000 lift comes complete with everything needed for installation:

• Complete lift assembly with all structural components

• Anchor bolts for secure floor mounting

• Approach ramps ( 31 inches long ) for easy vehicle loading

• Comprehensive installation manual with detailed instructions

• Atlas® Powder Coat Finish for long-lasting corrosion resistance

Note: Hydraulic oil (6 gallons AW32/AW46) and compressed air supply are not included and must be purchased separately.

California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 7,000 lb. Capacity

• Atlas® Powder Coat Finish

• Lifts over 12 feet high!

• Perfect for storing above tall vehicles

• Lock Ladder Design – Provides an infinite number of runway locking positions. The lock ladder is adjustable inside the column so that our customers can "micro-manage" the correct runway height to accommodate any vehicle.

• Must be bolted to ground

• Reinforced runways

• Single Point Pneumatic Lock Release – A single point release toggle (located next to the power unit) automatically unlocks all four spring loaded pneumatic locks. The single point release and the power unit dump valve must be activated at the same time (a two hand operation). If the lock toggle is released and the dump valve button is still being pressed, the lift will continue to descend and all locks will automatically re-engage at the next lower lock point.

• Double Lock Safety System – Designed to ensure that if a lifting cable becomes slack (for any reason), the secondary locking mechanism automatically engages.

• Emergency secondary locking system

Includes

• Anchor Bolts

Product Specifications

Specifications
ST-7000

Capacity
7,000 lbs

Lifting Height To Top of Runway
147" (12' 3")

Clearance Under Runways
142" (11' 10")

Height of Columns
162" (13' 6")

Overall Width w/ Motor
123" (10' 3")

Overall Width w/o Motor
110 ½" (9' 2 ½")

Overall Length w/Approach Ramps
227 ½" (18' 11 ½")

Overall Length w/o Approach Ramps
N/A

Approach Ramps Length
31" (2' 7")

Runway Width
21" (w/ Rails) or 20" (Driving Surface)

Runway Length
194" (16' 2")

Runway Thickness
4 3/4"

Width Between Runways
45" (3' 9)

Width Between Runway Rails
41 ¾" (3' 5 ¾")

Outside Runway to Outside Runway
83" (6' 11")

Clearance Between Columns
100" (8' 4")

Length Between Columns
185" (15' 5")

Maximum Wheel Base
182" (15' 2")

Drive Thru (Outside of tire to outside of tire)
82 ½" (6' 10 ½")

Motor
220V / 1 phase / 30 amp Breaker is Required

Oil Requirement
6 Gallons AW32/AW46 (NOT Included)

Shipping Weight
2,866 lbs

Locking Positions
Under Runway (+/ 2")

23" (1' 11")

29" (2' 5")

35" (2' 11")

41" (3' 5")

47" (3' 11")

52" (4' 4")

58" (4' 10")

64" (5' 4")

70" (5' 10")

76" (6' 4")

82" (6' 10")

88" (7' 4")

94" (7' 10")

100" (8' 4")

106" (8' 10")

112" (9' 4")

118" (9' 10")

124" (10' 4")

130" (10' 10")

136" (11' 4")

142" (11' 10")

Key Features

• Published product configuration: Atlas® ST-7000 Super Tall 4 Post Lift 7,000 lbs Overview The Atlas® ST-7000 Super Tall 4 Post Lift is engineered specifically for automotive enthusiasts and professionals with tall garage or shop ceilings who need to maximize their vertical storage space. With an extraordinary lifting height reaching over 12 feet (142
• Exact manufacturer model or part number: XH-PRO7000ST
• Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model XH-PRO7000ST, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
