Atlas® PV15PX Adj Height Symmetric 2 Post Lift 15,000 lbs

Product Overview

Atlas® PV15PX Adj Height Symmetric 2 Post Lift 15,000 lbs

Supersedes ATTD-PV15PX

Professional-Grade Performance at an Exceptional Value

The Atlas® PV15PX represents over a decade of proven engineering excellence in the 15,000 lb capacity two post lift category. Thousands of these lifts have been installed in professional shops, commercial garages, and serious home enthusiast bays across the country. Customers consistently describe the PV series with phrases like "bullet-proof," built like a brick outhouse, and tougher than nails—a testament to the exceptional durability and reliability that Atlas® builds into every unit.

This is a commercial-grade lift engineered for demanding, daily use. It combines professional performance with value-conscious pricing, delivering the heavy-duty construction and features you need without compromise. The PV15PX is designed to handle both long wheelbase trucks and passenger cars with ease, making it one of the most versatile lifts in its class.

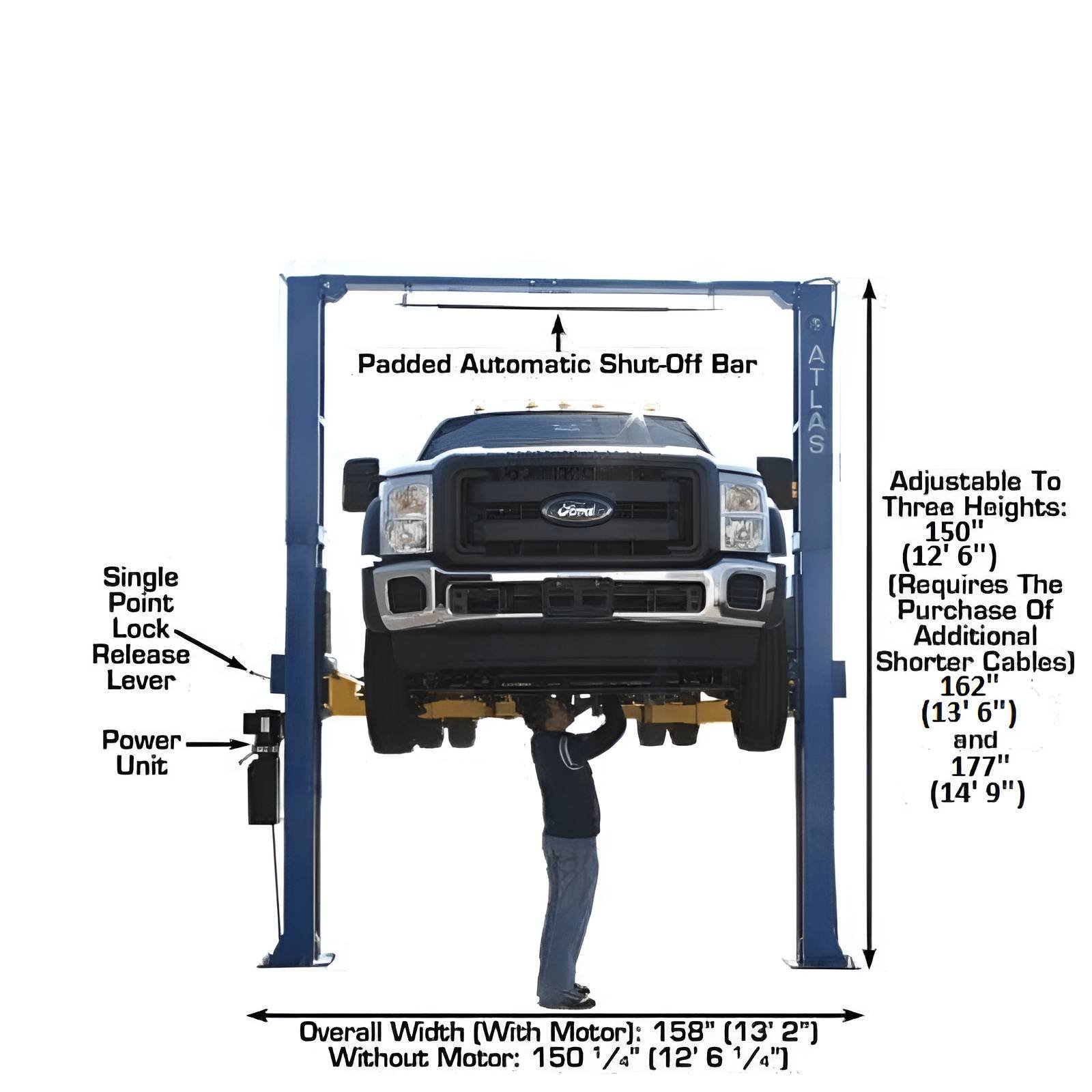

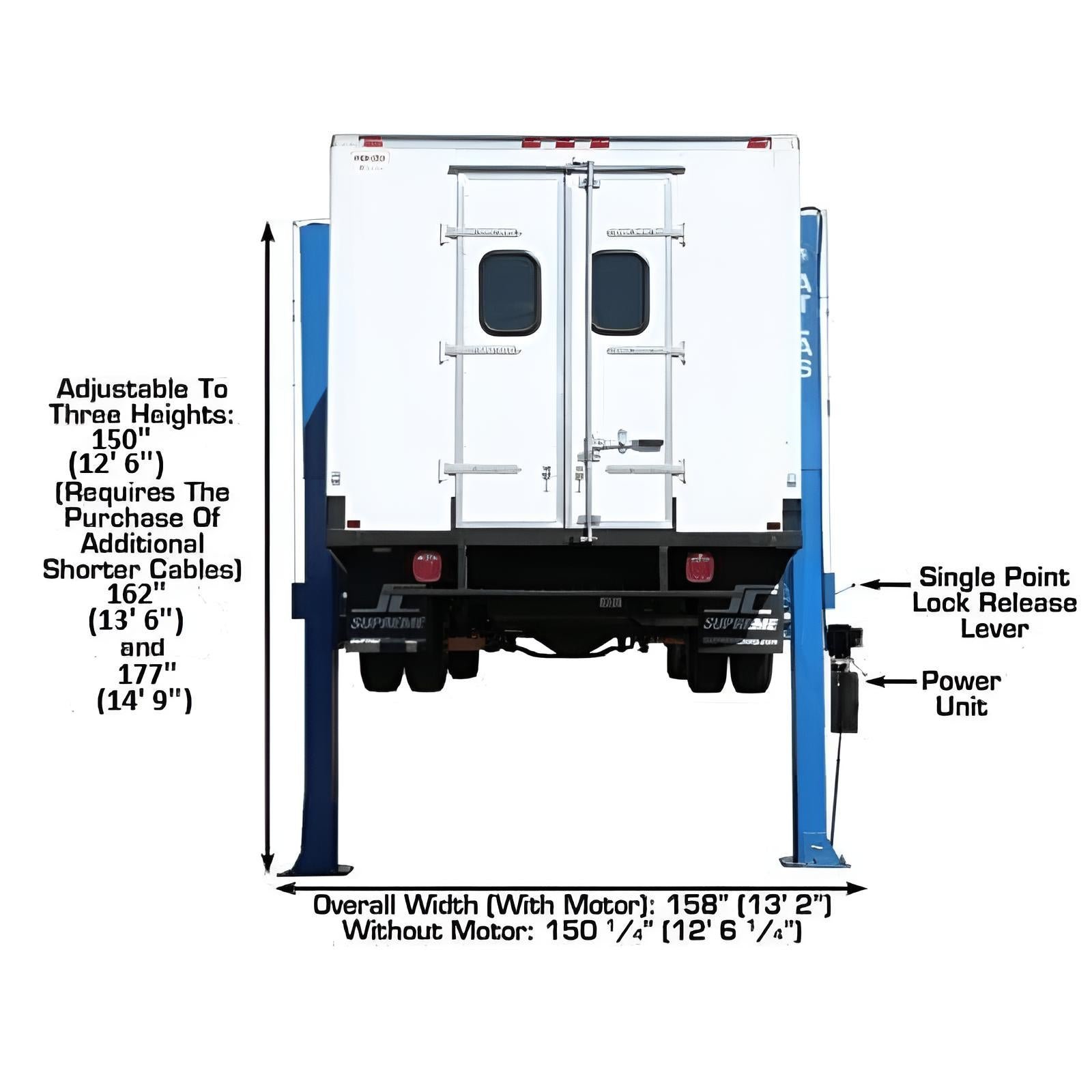

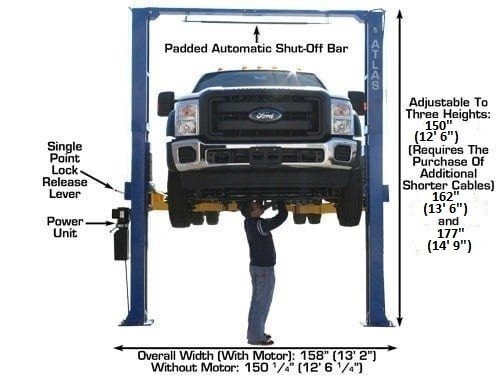

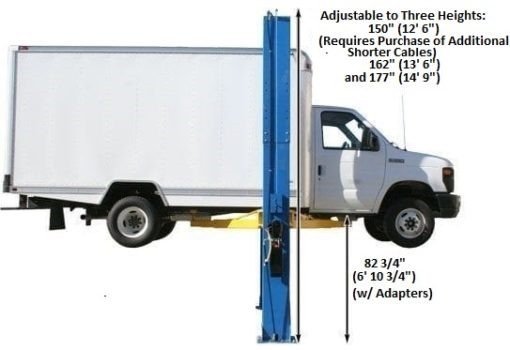

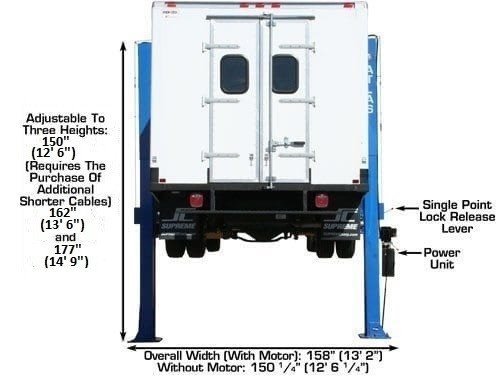

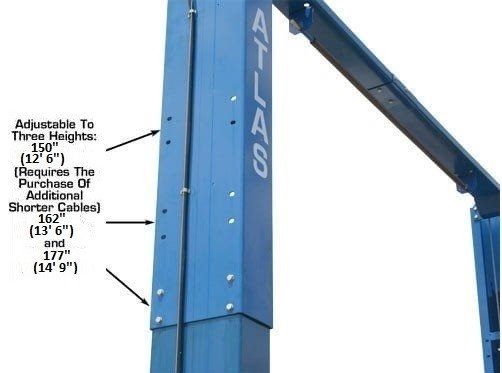

What sets the PV15PX apart is its adjustable overall height configuration—choose between 165" (13' 9") or 177" (14' 9") to match your ceiling clearance. For shops with lower ceilings, a special 150" (12' 6") low-height configuration is available with the purchase of additional shorter cables, making professional lifting capacity accessible in more bay environments.

Engineered for Wide Vehicles and Long Wheelbases

The PV15PX is purpose-built to accommodate the widest vehicles and longest truck chassis. With an impressive inside column measurement of 122 7/8" (10' 2 7/8") and a drive-thru clearance of 109" (9' 1"), this lift provides the working room needed for modern full-size trucks, dually pickups, commercial vans, and wide-body vehicles. The overall floor width of 150 3/4" ensures stability and clearance even with oversized tires or aftermarket accessories.

The symmetric arm configuration features extended reach and adjustable positioning, allowing you to precisely locate lift points on vehicles with complex frame configurations, lifted suspensions, or aftermarket running boards. Combined with the free 12-piece truck adapter set included with every lift, you have the flexibility to safely lift everything from low-profile sports cars to heavy-duty work trucks.

Lift height is equally impressive: achieve a maximum lift height of 81" with adapters or 72 1/2" without adapters, with a minimum arm height of just 7 1/4". This range gives you the clearance needed for undercarriage work, transmission service, exhaust repairs, and suspension overhauls on virtually any vehicle in your bay.

Safety and Convenience Features

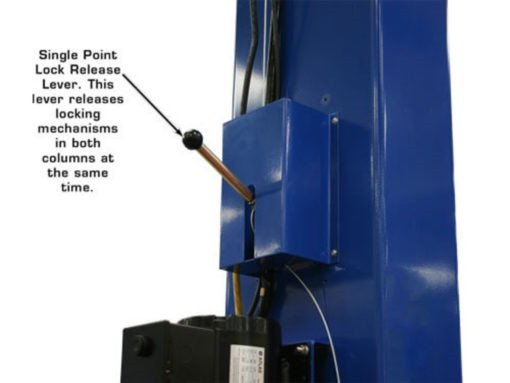

Safety is paramount in any professional lift, and the PV15PX delivers with a comprehensive suite of operator-friendly features. The automatic arm restraints engage as the lift rises, preventing the arms from swinging or rotating unexpectedly during operation. A single point lock release system allows the operator to disengage all lift locks from one convenient location, speeding up workflow and reducing the risk of uneven unlocking.

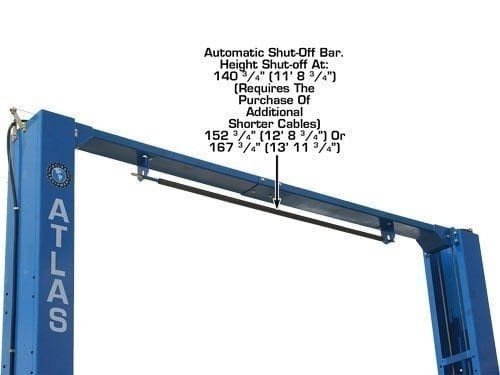

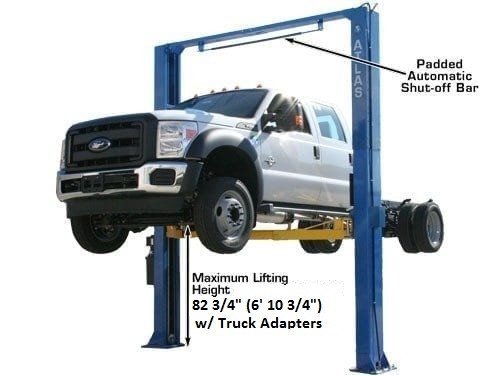

The lift is equipped with door guards on carriages to protect both the vehicle and the lift components during positioning. A "padded" shut-off bar provides cushioned contact protection, and the direct-drive cylinders deliver smooth, reliable lifting power with minimal maintenance requirements.

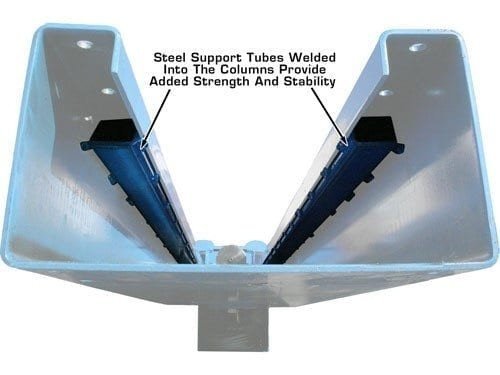

Built to last, the lift features heavy-duty 7 1/2" x 14 1/2" columns constructed from 6mm thick steel with a durable powder coat finish that resists corrosion, chipping, and wear. The robust 17 1/2" x 20 1/2" base provides exceptional stability. Installation requires a minimum of 6" of concrete with 3000 psi, and all mounting hardware is included.

Key Highlights

• 15,000 lb capacity handles heavy-duty trucks, commercial vehicles, and passenger cars

• Adjustable height: 165", 177", or 150" (with optional cables) – adapts to your shop's ceiling clearance

• Extra wide: 122 7/8" inside columns, 109" drive-thru accommodates the widest vehicles and longest wheelbases

• Symmetric arms with free 12-piece truck adapter set versatile lifting for cars, trucks, and vans

• Commercial-grade construction with direct-drive cylinders, automatic arm restraints, and single point lock release built for professional daily use

What's Included

Every Atlas® PV15PX lift comes complete with:

• 12-piece truck adapter set (four each of 1.25", 2.5", and 5" heights)

• All necessary mounting hardware

• Automatic arm restraints

• Single point lock release

• Direct-drive cylinders

• Door guards on carriages

• "Padded" shut-off bar

• Powder coat finish on all major components

Electrical requirement: 220V single phase, 30 amp breaker required. Oil requirement: 3-5 gallons AW32/AW46 hydraulic oil. Shipping weight: 2,490 lbs.

Proven Atlas® Quality

The Atlas® PV series has been manufactured and refined for over a decade, with thousands of units in service across North America. This isn't a new, untested design—it's a battle-tested workhorse that delivers day in and day out. Whether you're running a busy commercial shop, an independent repair facility, or a serious home garage, the PV15PX provides the capacity, clearance, and durability to handle your toughest jobs.

Atlas® Automotive Equipment stands behind every lift with professional engineering, rigorous quality control, and a commitment to delivering professional-grade equipment at a fair price. The PV15PX is the lift you buy once and use for decades.

Product Features

• 15,000 LB. Capacity

• Extra Tall & Extra Wide

• Commercial Grade

• Adjustable height 165" (13' 9") or 177″ (14′ 9″)

• Special low height 150" (12' 6") (Requires purchase of ATPKP-217112 extra cables. See Options)

• Symmetric arms

• Automatic Arm Restraints

• "Padded" Shut-Off Bar

• Door Guards on Carriages

• Single Point Lock Release

• Direct-Drive Cylinders

• Powder Coat Finish

• Free 12 Piece Truck Adapter Set

• Mounting Hardware Included

Includes

• 12 Piece Truck Adapter Set

Product Specifications

Specifications
PV15PX

Capacity
15,000 lbs

Lifting Time
N/A

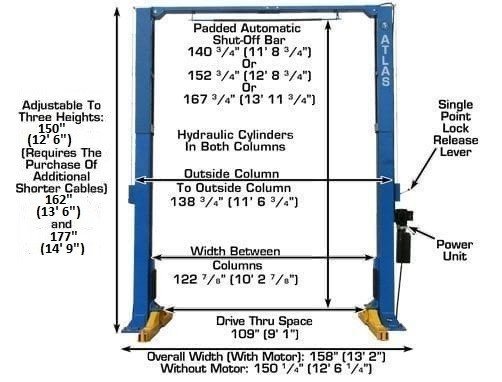

Overall Height
165" (13’ 9") or 177" (14’ 9")

Special Low Height
150" (12’ 6")* (Requires Purchase of Extra Cables)

Overall Floor Width
150 3/4" (12’ 6 3/4")

Outside Column to Outside Column
138 3/4" (11’ 6 3/4")

Maximum Lift Height w/Adapters
81"

Maximum Lift Height w/o Adapters
72 1/2"

Minimum Arm Height
7 1/4"

Inside Column
122 7/8" (10’ 2 7/8")

Drive Thru
109" (9’ 1")

Column Size
7 1/2" x 14 1/2"

Column Thickness of Steel
6mm

Base Of Lift
17 1/2" x 20 1/2"

Adapter Heights
4 Each 1.25", 2.5", 5"

Arm Hole/Adapter Peg Size
1.5"

Motor/Electrical Requirement
220V (1) phase / 30 amp breaker is required.

Oil Requirement
3-5 Gallons AW32/AW46

Shipping Weight
2,490 lbs

Requires a minimum of 6" of concrete with 3000 psi.

*Requires the purchase of additional ATPKP-217112 shorter cables.
