Atlas® PV12PX-3 Adj Height Ex-Wide/Ex-Tall 2 Post Lift 12,000 lbs w/3-Stage Arms

Product Overview

Atlas® PV12PX-3 Adjustable Height Ex-Wide/Ex-Tall Symmetric 2 Post Lift 12,000 lbs w/3-Stage Arms

Supersedes ATTD-PV12PX

The Atlas® PV Series delivers exceptional value for shops and technicians seeking a heavy-duty, professional-grade two-post lift without the premium price tag. Manufactured and proven in the field for over a decade, the PV Series has earned a reputation for outstanding durability and reliability, with thousands of units in service across North America. Built with rugged construction and dependable performance in mind, these lifts are often described by customers as "bulletproof," making them a trusted choice for demanding automotive service environments..

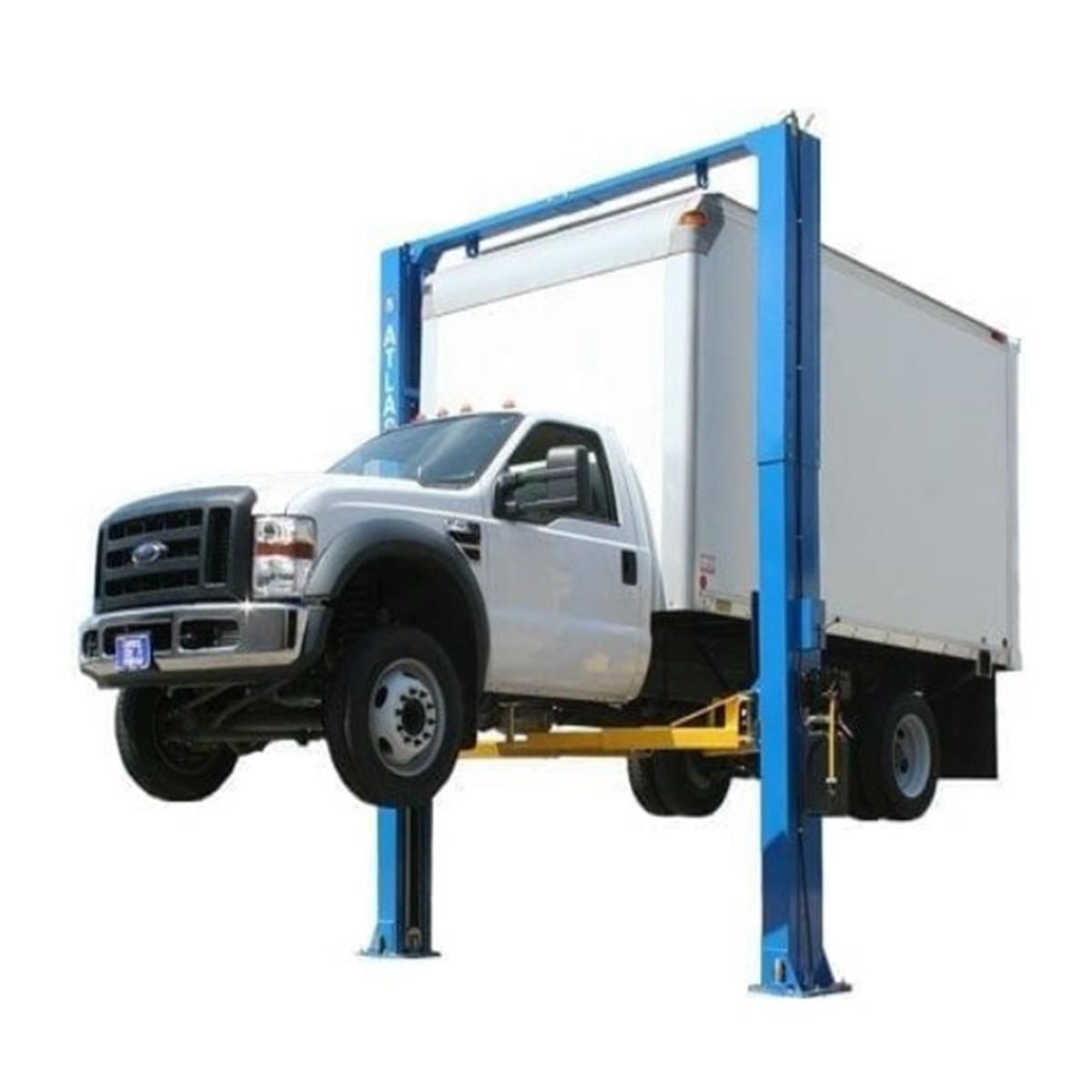

The Atlas® PV12PX is a heavy-duty commercial-grade two-post lift engineered to service everything from passenger vehicles to long wheelbase trucks and vans. With 123" between the columns and an impressive 109" drive-through clearance, it easily accommodates wide vehicles, oversized mirrors, and larger commercial applications. The lift features a low pad height for sports cars and passenger vehicles, while the included peg-style truck adapters provide safe lifting for trucks equipped with running boards and other accessories.

Designed with extra lifting height for increased versatility, the PV12PX offers ample overhead clearance for vans, box trucks, and other tall vehicles. For facilities with ceiling restrictions, the Atlas® ATEXH-PV12PX can be configured in three column height settings, with the lowest height of 150" (12' 6") available when equipped with optional extra-short cables.

Extra-Wide, Extra-Tall Design for Maximum Versatility

The distance between the symmetric columns is an impressive 123¼ inches, with a drive-through space of over 109½ inches. This extra distance between the columns will allow the widest of vehicles or vehicles with wide rearview mirrors to be lifted or driven through with ease. Whether you're working on dually pickups, commercial vans, or vehicles with aftermarket running boards, the PV12PX accommodates them all.

The Atlas® PV12PX is now equipped with super-adjustable 3-stage lifting arms, providing exceptional versatility and expanded vehicle coverage. Each arm features three telescoping sections, allowing technicians to easily position the lift under both short and long wheelbase vehicles with greater precision. This enhanced arm design accommodates a wider range of lifting points, improves vehicle balance during lifting, and simplifies positioning in tight workspaces. The result is faster vehicle setup, increased safety, and improved productivity for busy automotive service facilities.

Adjustable Height Configuration for Any Shop

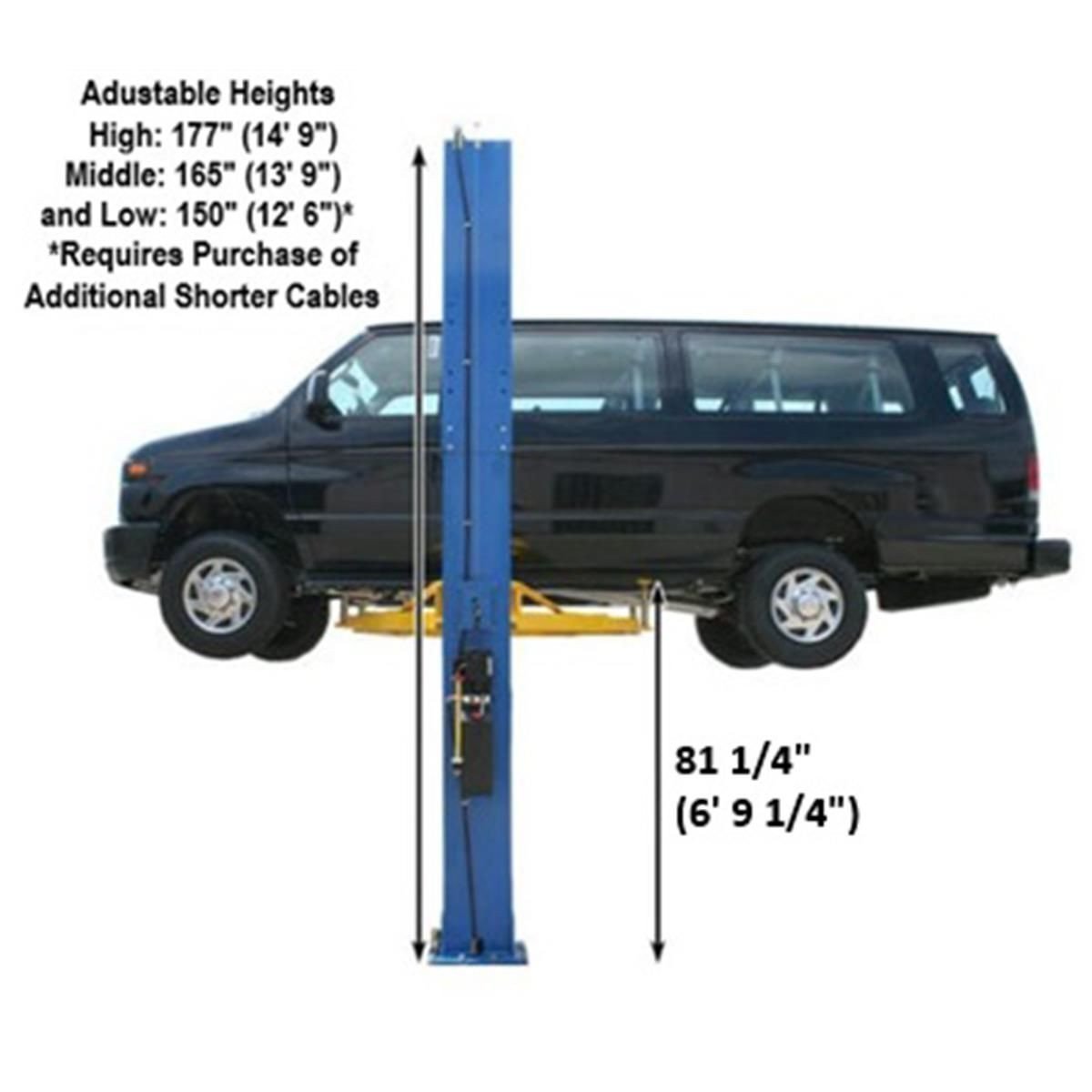

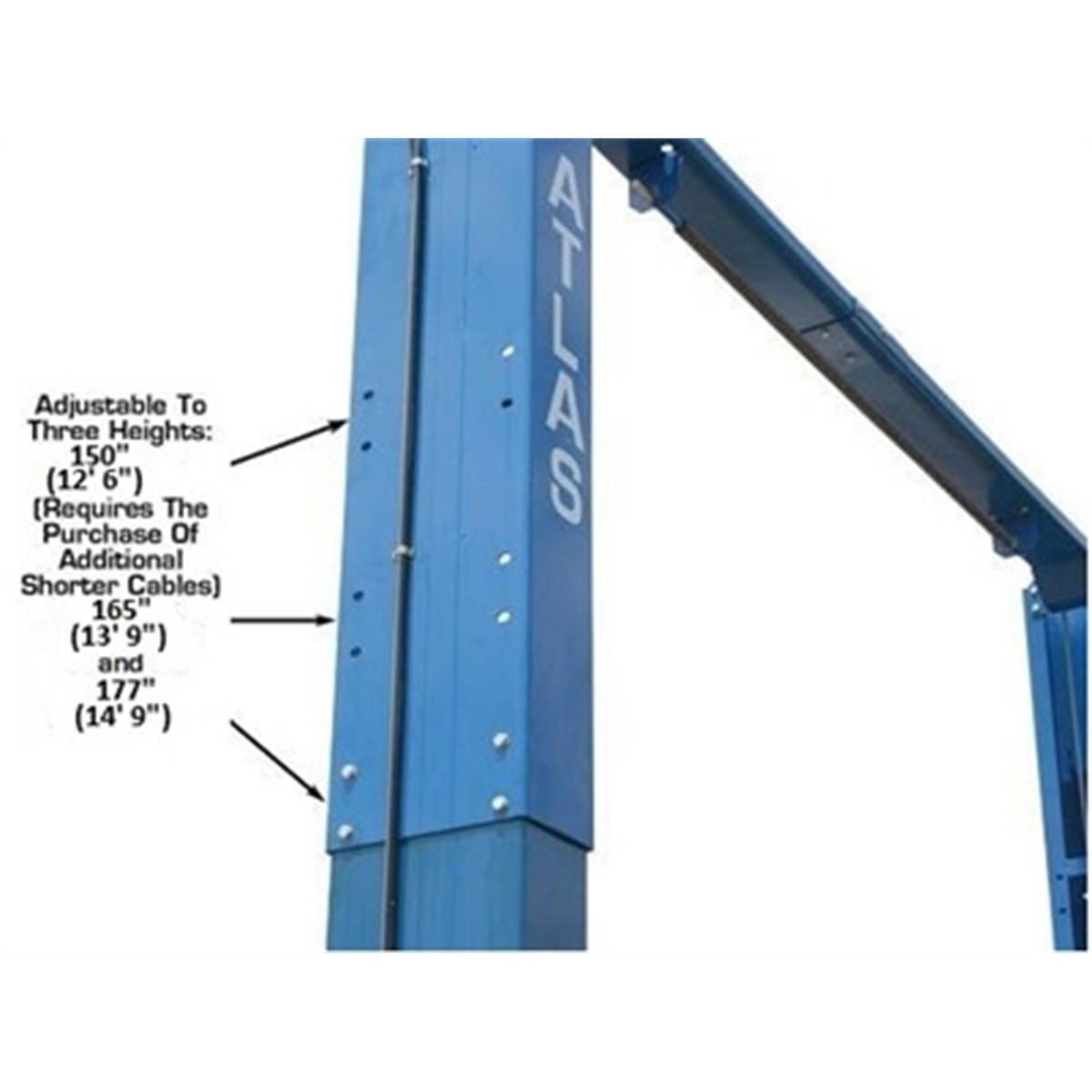

The Atlas® XH-PV12PX features three adjustable height settings to fit your specific shop ceiling requirements:

• Low Setting: 150 inches (12' 6") overall height (requires purchase of additional shorter cables, sold separately)

• Middle Setting: 165 inches (13' 9") overall height – standard configuration

• High Setting: 177 inches (14' 9") overall height – maximum clearance for tall vehicles

This unique adjustable height capability means you can configure the PV12PX to fit your existing shop space, rather than being forced to modify your building or compromise on lift performance. The height to shut-off bar adjusts accordingly: 141 inches (11' 9") on the low setting, 156 inches (13') on the middle setting, and 168 inches (14') on the high setting.

Maximum lift height without adapters is 72¼ inches, and with adapters installed, the lift reaches an impressive 79¼ inches, providing exceptional working clearance underneath even the largest vehicles.

Key Features & Highlights

• Automatic Arm Restraints Enhanced safety during vehicle positioning

• "Padded" Shut-Off Bar Prevents damage and provides a cushioned stop

• Door Guards on Carriages Protects vehicle doors during lifting operations

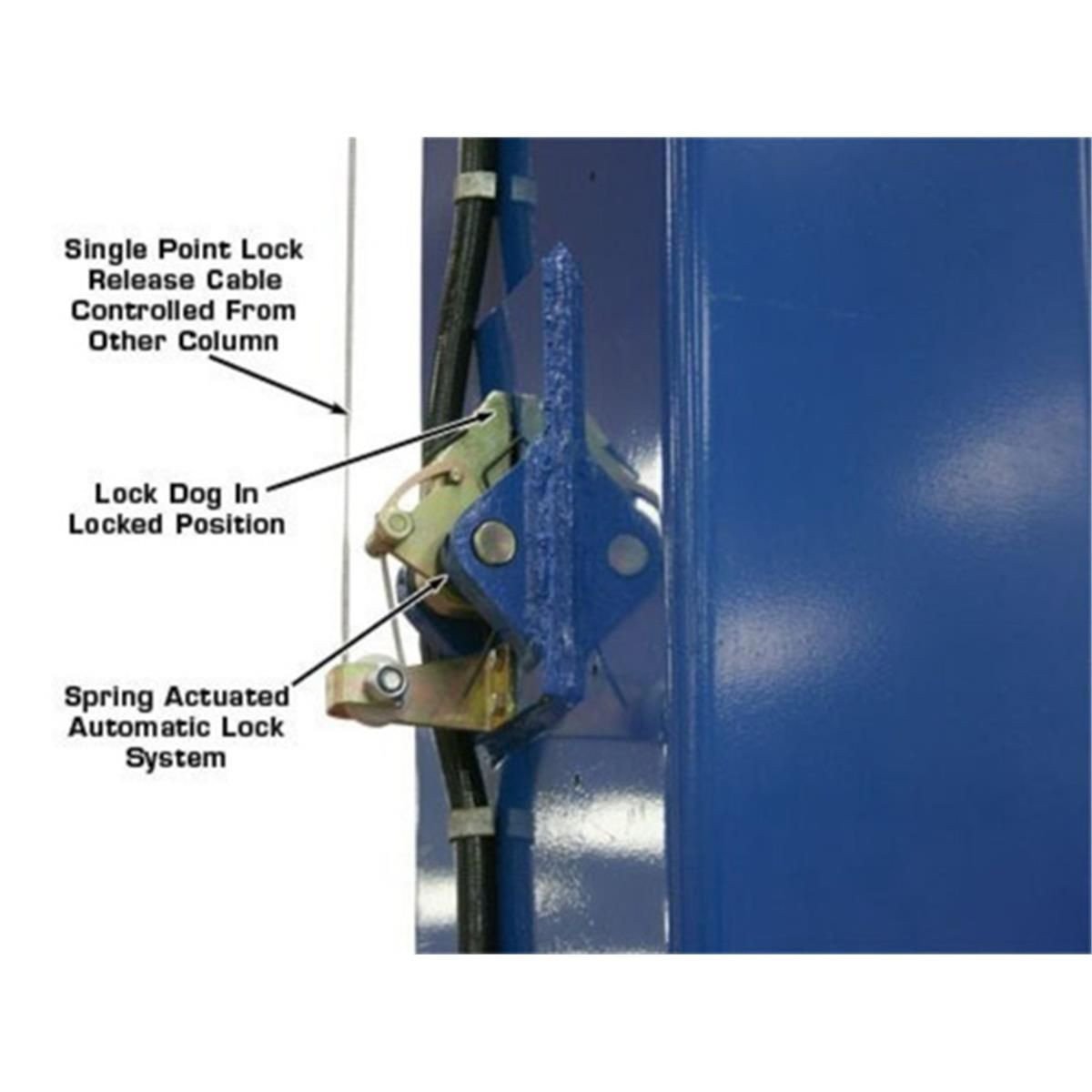

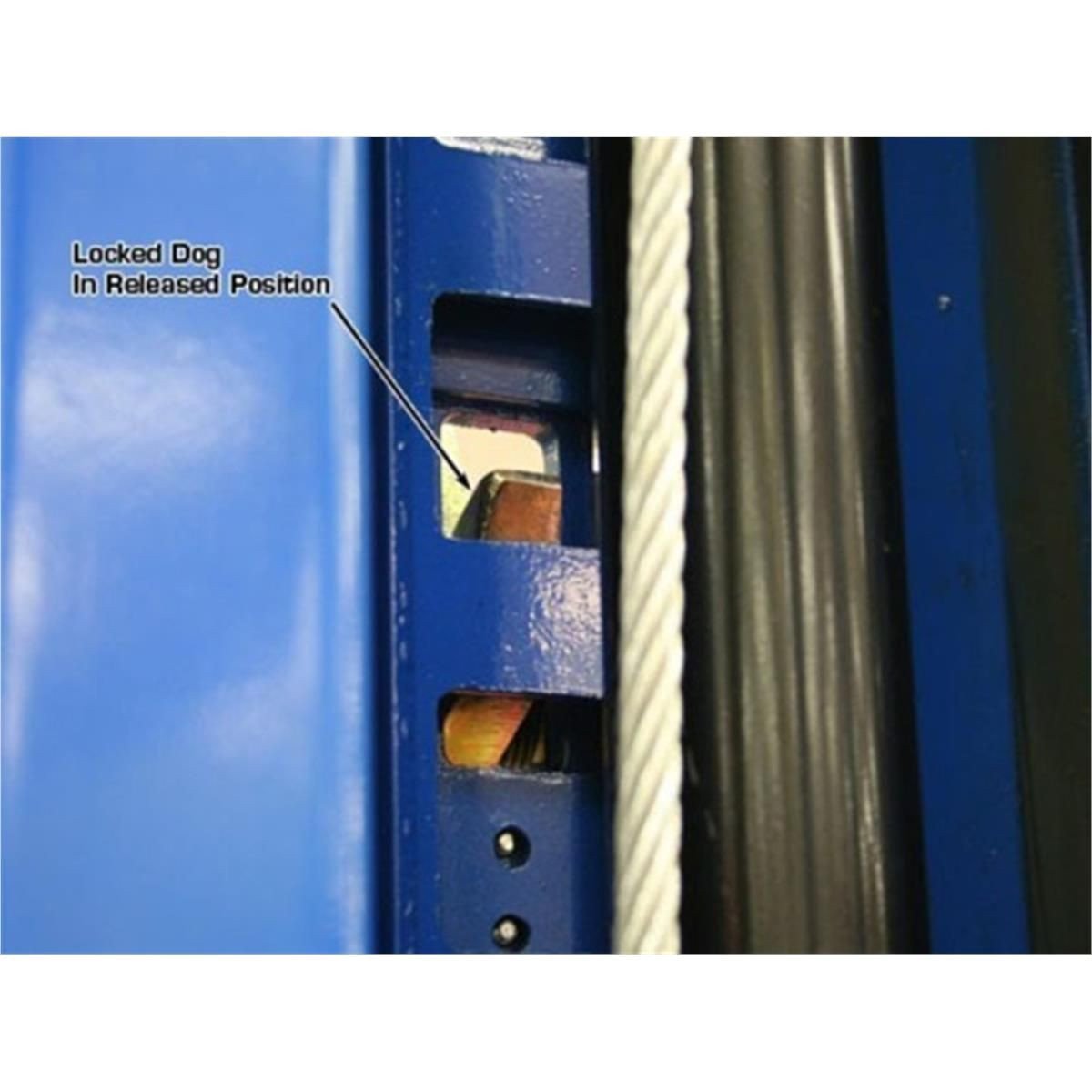

• Single Point Lock Release Convenient one-handed safety lock disengagement

• Dual Direct-Drive Cylinders Reliable, synchronized lifting power

• Durable Powder Coat Finish Long-lasting corrosion resistance and professional appearance

• Free 12-Piece Truck Adapter Set Included Adds versatility for trucks, vans, and SUVs

• All Mounting Hardware Included Everything you need for installation in the box

Free Truck Adapter Set Included:
Every PV12PX ships with a complete 12-piece truck adapter set featuring adapters in three sizes: 1¼", 2½", and 5". This professional adapter set provides secure lifting points for trucks, vans, and SUVs with various frame configurations.

Robust Construction & Reliable Operation

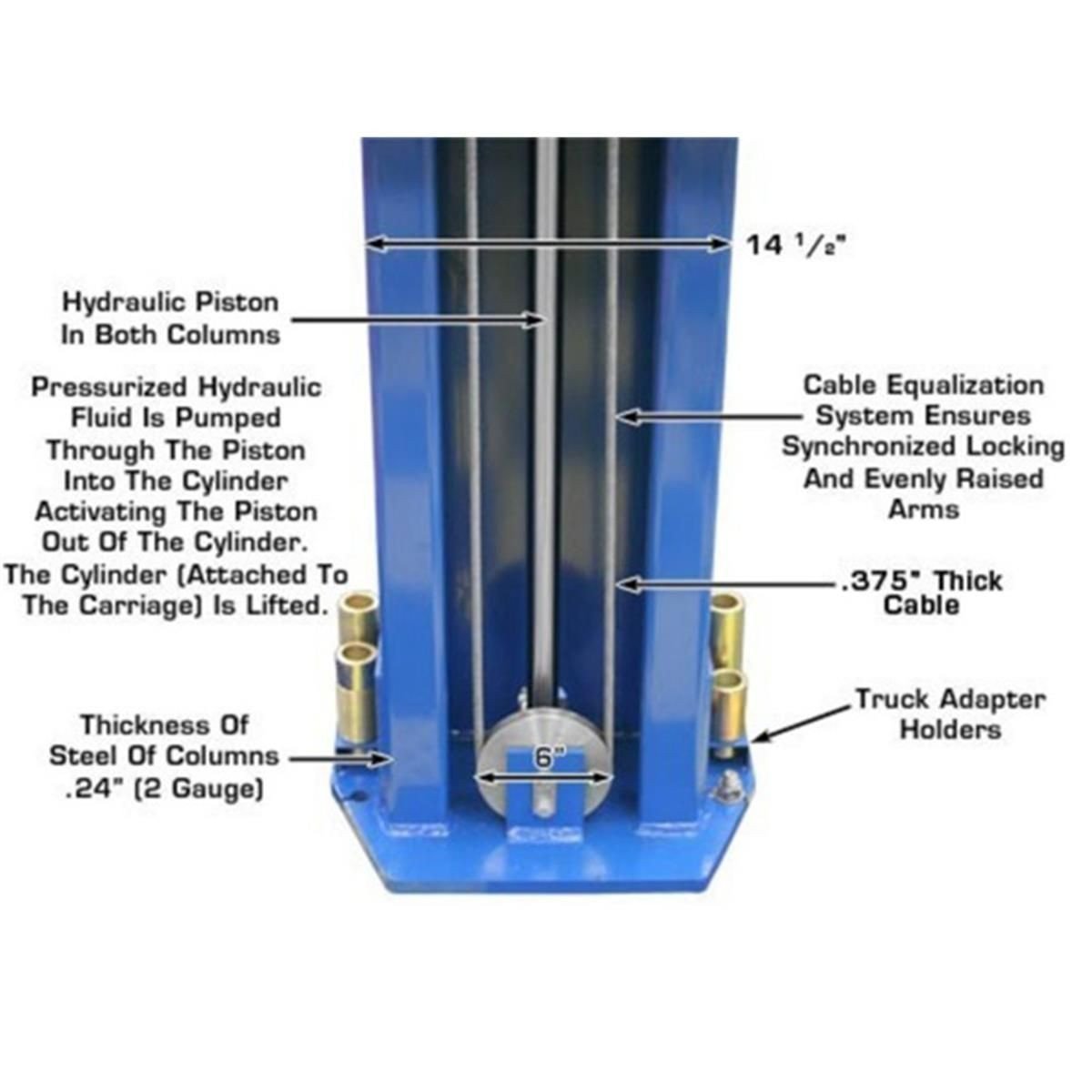

Built for daily commercial use, the PV12PX features heavy-duty steel construction with a durable powder coat finish that resists corrosion and maintains a professional appearance for years. The lift is powered by dual direct-drive cylinders that deliver smooth, synchronized lifting operation without the complexity of cables or pulleys that require frequent adjustment.

The round lift pads are 5½ inches across with a 1¼ inch shank, designed to securely cradle the vehicle's lift points. The included adapter set provides 1¼", 2½", and 5" extensions, giving you the flexibility to lift vehicles with recessed or elevated frame rails.

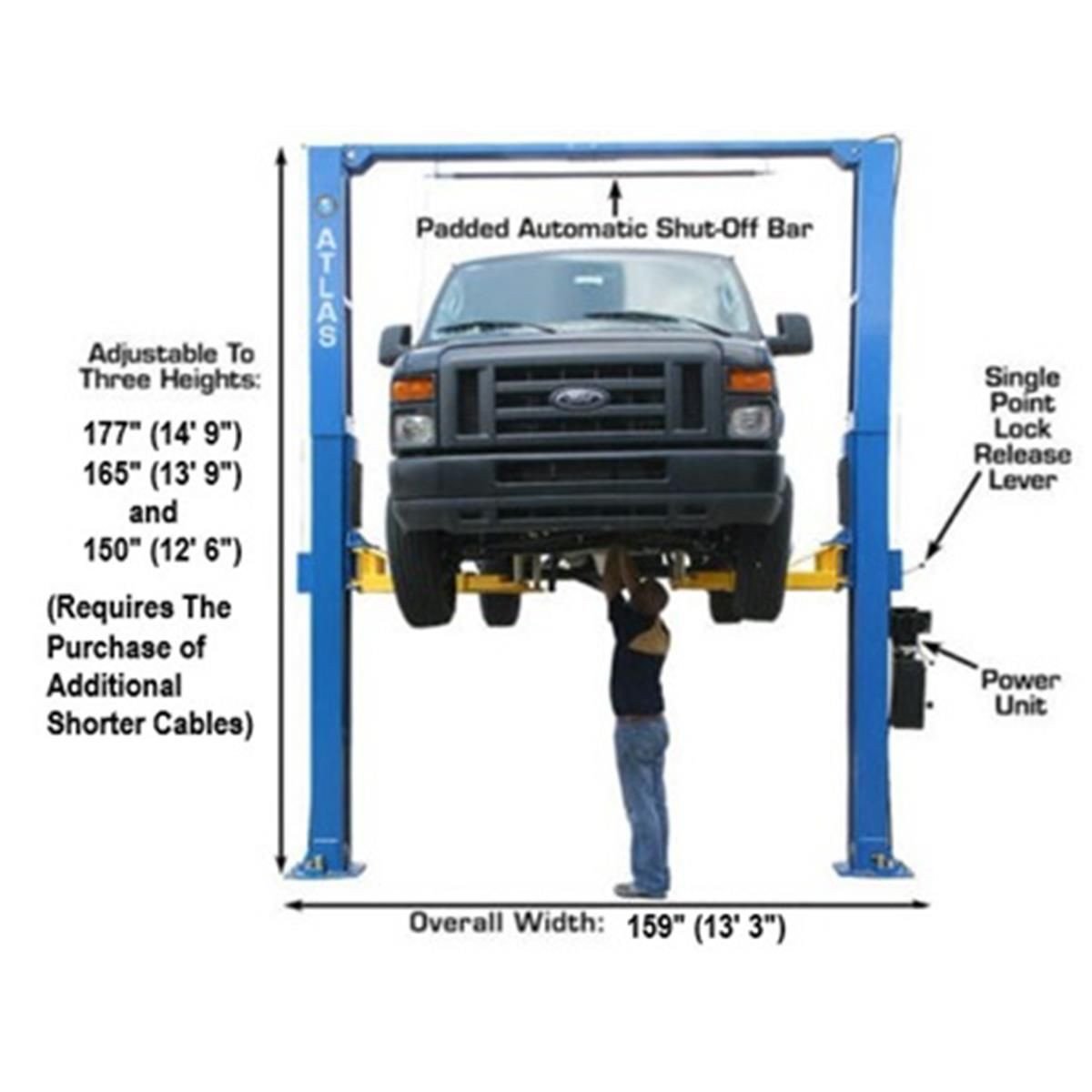

Overall width is 150¾ inches without the motor and 159 inches with the motor installed. The distance from outside column to outside column is 138½ inches, providing a stable, wide footprint for maximum lift stability.

Electrical & Installation Requirements

The Atlas® PV12PX operates on 220V single-phase power, with a 30 amp breaker recommended for safe, reliable operation. The hydraulic system requires 3-5 gallons of AW32 or AW46 hydraulic oil for proper operation.

Installation requires a minimum of 6 inches of concrete with a 3500 psi rating. All necessary mounting hardware is included with the lift. With a shipping weight of 2,160 lbs, the lift arrives securely packaged and ready for professional installation.

Important Installation Note:
The low height configuration (150" / 12' 6") requires the purchase of additional ATPKP-217112 shorter cables, which are sold separately. The lift ships standard with cables for the middle (165") and high (177") height configurations.

Why Choose the Atlas® PV12PX?

Unmatched Versatility: The combination of extra-wide column spacing, extra-tall height, adjustable configuration options, and low minimum pad height makes the PV12PX one of the most versatile two-post lifts available. From low sports cars to tall box trucks, this lift handles them all.

Commercial Durability: Built to the same exacting standards as lifts found in professional dealerships and heavy-duty truck shops, the PV12PX delivers reliable, day-in, day-out performance. The dual direct-drive cylinder design eliminates common wear points found in cable-equalized systems.

Complete Package: With the included 12-piece truck adapter set, all mounting hardware, and comprehensive installation manual, the PV12PX arrives ready for installation. You won't need to purchase additional accessories to start lifting a wide variety of vehicles.

Backed by Atlas®: As part of the legendary Atlas® PV series, this lift benefits from over a decade of continuous refinement and improvement. The PV series has earned a reputation as one of the toughest, most reliable lift lines in the industry, with thousands of satisfied customers nationwide.

California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 12,000 lb. capacity

• Extra Tall & Extra Wide

• Commercial Grade

• Adjustable height 150" (12' 6") or 165" (13' 9") or 177" (14' 9")

• Special low height 150" (12' 6") (Requires purchase of extra cables)

• 3-Stage Symmetric Arms

• Automatic Arm Restraints

• "Padded" Shut-Off Bar

• Door Guards on Carriages

• Single Point Lock Release

• Direct-Drive Cylinders

• Powder Coat Finish

• Free 12 Piece Truck Adapter Set

• Mounting Hardware Included

• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)

• Shipping Weight: 2,160 LBS.

Includes

• Adapter: 4 Each 1.25", 2.5", 5"

Supersedes ATTD-PV12PX

Product Specifications

Specifications
PV12PX-3

Low

Middle

High

Capacity
12,000 lbs

Lifting Time
N/A

Overall Height
150"(12' 6") *
165" (13' 9")
177" (14' 9")

Height To Shut Off Bar
141" (11' 9") *
156" (13')
168" (14')

Overall Width w/o Motor
150 3/4"

Overall Width w/ Motor
159"

Outside Column To Outside Column
138 1/2"

Maximum Lift Height w/o Adapters
72 1/4"

Maximum Lift Height w/Adapters
79 1/4"

Minimum Arm Height (Assuming Level Floor)
4 1/2"

Arm Collapsed
37 1/2"

Arm Fully Extended
57"

Width Between Columns
123 1/4"

Drive Thru
109 1/2"

Round Lift Pad
5 1/2" Across / 1 1/4" Shank

Adapter Sizes (4 ea.)
1 1/4" / 2 1/2" / 5"

Motor/Electrical Requirement
220V (1) phase / 30 amp breaker recommended

Oil Requirement
3-5 Gallons AW32/AW46

Shipping Weight
2,160 lbs.

Requires a minimum of 6" of concrete with 3500 psi rating

• Low Height Requires the purchase of additional ATPKP-217112 shorter cables.
