Atlas® LR-06P Portable Low Rise Scissor Lift 6,000 lbs

Product Overview

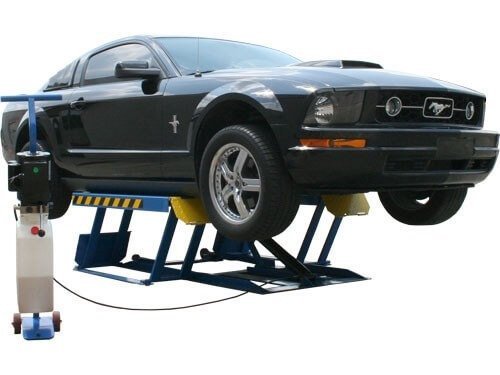

Atlas® LR-06P Portable Low Rise Scissor Lift 6,000 lbs

Supersedes ATPK-LR06

The Perfect Solution for Fast, Professional Wheel Service

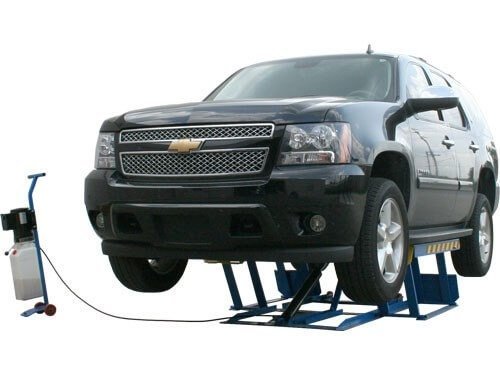

The Atlas® LR-06P portable 6,000 lb. low rise lift is the perfect addition to any garage that needs a quick, sure fire method to raise a car to perform wheel service. Whether you're running a professional shop or maintaining your own fleet, this portable scissor lift delivers the versatility and convenience you need to work efficiently and safely.

Engineered for durability and ease of use, the LR-06P features a rubber top lifting surface and comes complete with four high density rubber blocks that help protect the lifting points of most vehicles. The 110V power unit means you can operate this lift anywhere you have standard household power—no need for complicated electrical installations or dedicated circuits.

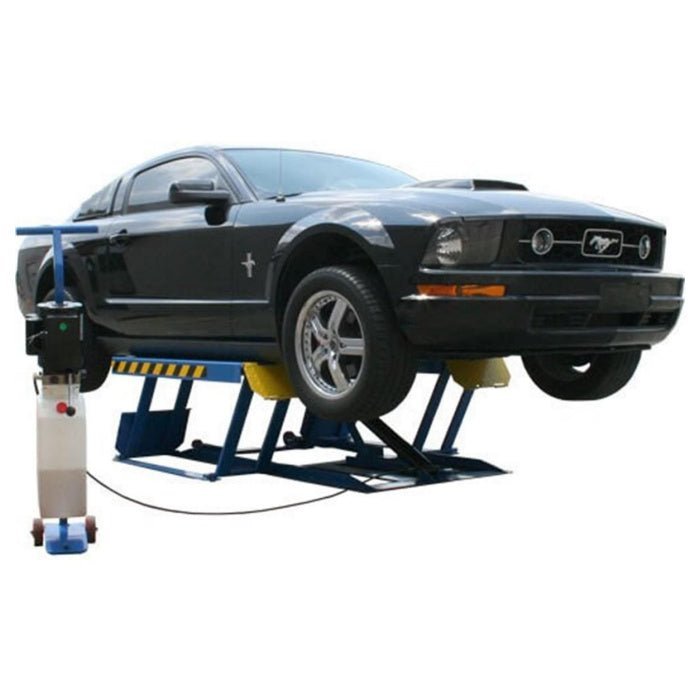

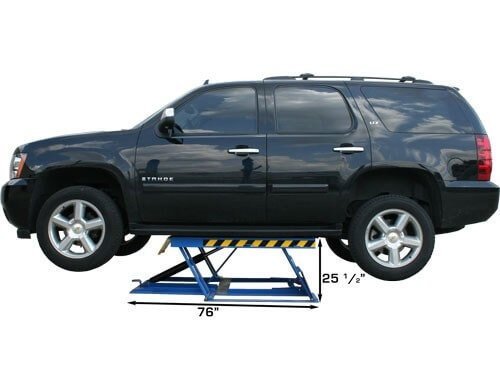

With a minimum height of just 4 inches, this low profile design accommodates most low frame vehicles, including sports cars and lowered vehicles that can't access traditional lifts. Raise vehicles up to 25 ½ inches with the included blocks (24 inches without), giving you comfortable working height for tire rotations, brake jobs, suspension work, and undercarriage inspections.

Simple Operation, Professional Results

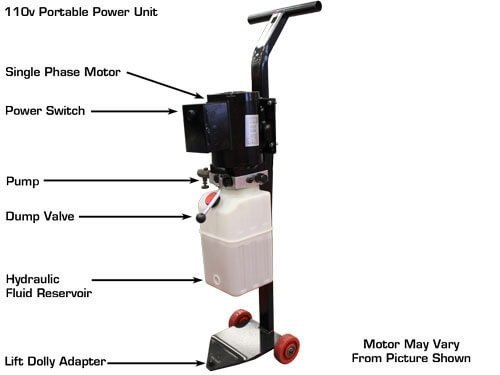

Operating the Atlas® LR-06P couldn't be easier. Simply drive the car over the lift and position the rubber blocks (if needed) under the correct lifting points of the vehicle. Press the button on the unit and lift the vehicle to the desired work height. When you're ready to lower, depress the "dump valve lever" on the power unit and the lift lowers slightly to the next lower mechanical lock position.

Multiple lock positions and a unique self-actuating lock bar allow the operator to perform wheel service at a comfortable working height. The lift features three locking positions (without rubber blocks) at heights of 12 ¼", 18 ½", and 22 ¼" giving you flexibility to work at the height that's best for each specific job.

Built Tough, Moves Easy

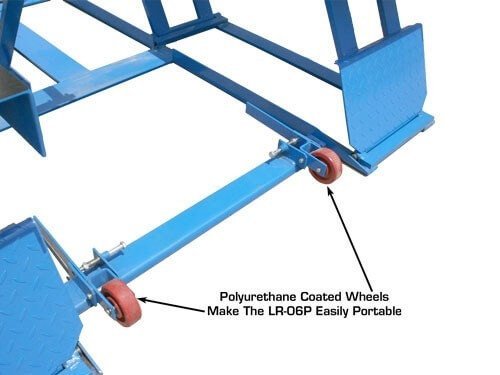

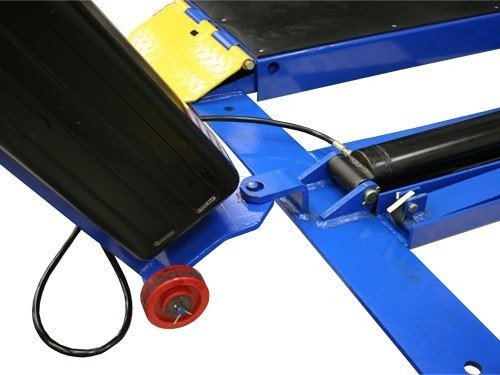

This durable lift is built on a heavy steel frame that provides rock solid support for the lifting base. Despite its robust 965 lb. construction, the LR-06P can be easily moved inside the garage or to an outside concrete apron in front of a bay. The standard wheel kit and the power unit stand work together to allow the operator to roll the Atlas® LR-06P portable low-rise lift across any concrete surface with ease.

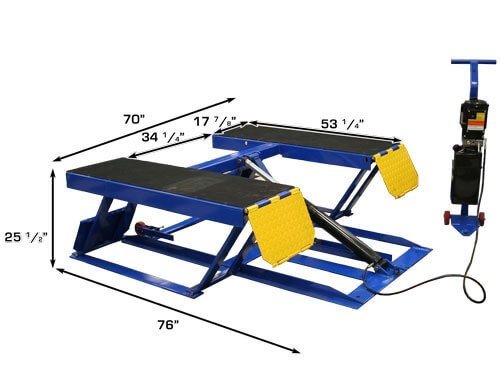

With an overall width of 70 inches and overall length of 76 inches, the lift fits comfortably in most bays while providing a generous 53 ¼" overall pad length to accommodate a wide range of wheelbases. The compact footprint and portability mean you can store it when not in use or reposition it to maximize your workspace.

Key Highlights

• 6,000 lb. capacity handles most passenger vehicles, light trucks, and SUVs with confidence

• Ultra-low 4" lowered height accommodates low-profile sports cars and lowered vehicles

• Portable design with wheel kit move the lift wherever you need it, inside or outside the shop

• 110V standard power no special electrical requirements, plug into any standard outlet

• Includes 4 high-density rubber blocks protect vehicle lift points and increase maximum height to 25 ½"

• Three mechanical lock positions work at the most comfortable height for each job

Included Accessories

Every Atlas® LR-06P comes complete with four heavy-duty rubber blocks designed to safely interface with your vehicle's lifting points. These high-density blocks add an extra 1 ½ inches of lift height while protecting undercarriage components from damage.

Four high-density rubber blocks included with every LR-06P

Technical Details

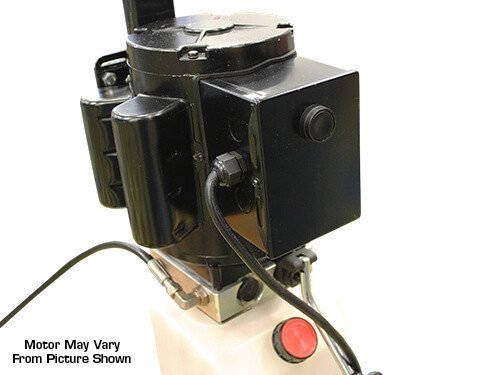

The LR-06P is powered by a 1.5HP 110V 1Phase 60Hz motor and requires 1.5 gallons of AW32/AW46 hydraulic oil. The robust construction and quality hydraulic components ensure smooth, reliable operation for years of service.

Product Features

• Portable

• Minimum Height: 4"

• Maximum Height (With Blocks): 25 ½"

• Three locking positions at heights of: (w/o rubber blocks) 12 ¼”, 18 ½”, and 22 ¼”

• 110V Power Unit

Includes

• 4 Rubber Blocks

Product Specifications

Specifications
LR-06

Capacity
6,000 lbs

Maximum Lifting Height w/Blocks
25 ½"

Maximum Lifting Height w/o Blocks
24"

Locking Position Heights w/o Blocks
12 ¼", 18 ½", & 22 ¼"

Overall Pad Length
53 ¼"

Overall Width
70"

Overall Length
76"

Lowered Height
4"

Motor/Electrical Requirement
1.5HP 110V 1Phase 60Hz

Oil Requirement
1.5 Gallons AW32/AW46

Weight
965 LB.

Key Features

• Published product configuration: Atlas® LR-06P Portable Low Rise Scissor Lift 6,000 lbs Supersedes ATPK-LR06 The Perfect Solution for Fast, Professional Wheel Service The Atlas® LR-06P portable 6,000 lb. low rise lift is the perfect addition to any garage that needs a quick, sure fire method to raise a car to perform wheel service. Whether you're
• Exact manufacturer model or part number: ATTD-LR06
• Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model ATTD-LR06, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
