Atlas® Garage Pro 8000 Ext-L Ex-Tall Ex-Long Service/Parking 4 Post Lift 8,000 lbs

Product Overview

Atlas® Garage Pro 8000 Ext-L Ex-Tall Ex-Long Service/Parking 4 Post Lift 8,000 lbs

Important Installation Step:

(Do this immediately after installation)

Maximum Lifting Power for the Longest Vehicles

The Atlas® Garage Pro 8000 EXT-L is the ultimate solution for lifting and storing extended-wheelbase vehicles. Engineered specifically for longer pickup trucks, extended vans, and oversized vehicles, this 8,000 lb capacity four-post lift combines extra-long runways with increased height and width to handle what standard lifts simply can't accommodate.

This model is 20 inches longer (wheelbase) and 3 inches wider than the Atlas® Garage Pro 8000 EXT, making it ideal for extended-cab and crew-cab trucks that exceed standard dimensions. Compared to the original Garage Pro 8000, the EXT-L provides an impressive 20 additional inches of wheelbase length, 3 inches more width, and 14 inches of extra height. With a maximum wheelbase capacity of 173 inches (14' 5") and runway length of 185 inches (15' 5"), this lift accommodates almost all longer-wheelbase pickup trucks on the market.

The 84-inch (7-foot) lifting height and 78½-inch maximum clearance under the runways provide generous working room underneath your vehicle, whether you're performing routine maintenance, restoration work, or simply need safe, secure storage. With 11 convenient locking positions spaced approximately 6 inches apart, you can position your vehicle at the perfect height for any task.

Please note: While the EXT-L handles extended-wheelbase trucks with ease, dual rear wheel (dually) trucks cannot be accommodated due to the width of dual rear wheels between the column lock assemblies. If you need a portable lift for a dually, consider the Atlas® Garage Pro 9000 instead.

True Portability Meets Professional-Grade Performance

Unlike permanent, floor-anchored lifts, the Atlas® Garage Pro 8000 EXT-L includes a caster kit with durable polyurethane wheels as standard equipment. This innovative design allows you to reposition the lift in your garage or shop whenever needed—perfect for multi-use spaces or workshops where flexibility matters.

The caster kit installs and removes in minutes without any tools required, so you can switch between portable and stationary configurations effortlessly. When mobility isn't needed, simply remove the casters and let the lift rest directly on the floor for added stability. Anchor bolts are optional and sold separately if you prefer a permanent installation.

Operating on standard 110V power with a 30-amp breaker, the EXT-L is designed for home garage and restoration shop environments. It's engineered for enthusiasts, collectors, and hobbyists—not for high-volume commercial repair facilities that cycle lifts multiple times daily. If you're restoring a classic, maintaining your fleet, or need smart vehicle storage, this lift delivers reliable performance for years to come.

Why Choose the Atlas® Garage Pro 8000 EXT-L?

• Extra-Long Wheelbase Capacity: 173-inch maximum wheelbase and 185-inch runway length accommodate extended-cab and crew-cab pickup trucks that won't fit on standard lifts.

• Extended Height for Easier Access: 84-inch lift height and 78½-inch under-runway clearance provide comfortable standing and working room for maintenance and inspections.

• Wider Design for Modern Trucks: 116½-inch overall width and 84-inch drive-through clearance (outside tire to outside tire) handle today's wider vehicles with confidence.

• Portable When You Need It: Included caster kit with polyurethane wheels installs tool-free, letting you reposition the lift easily—ideal for garages that serve multiple purposes.

• Premium Safety and Durability: Double lock safety system, lock ladder design, and single point lock release ensure safe, secure operation every time. Atlas® powder coat finish protects against corrosion and wear.

Fully Equipped and Ready to Work

The Atlas® Garage Pro 8000 EXT-L arrives packed with professional-grade accessories that enhance both convenience and safety:

• Diamond Plated Runways Superior traction and durability, engineered to last

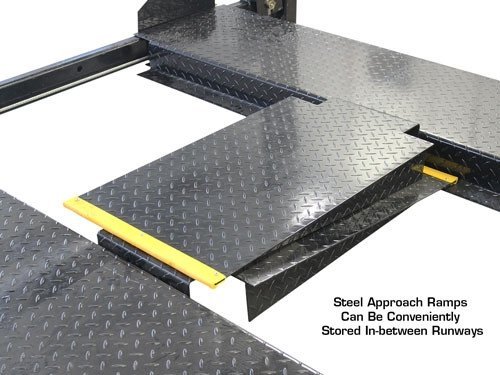

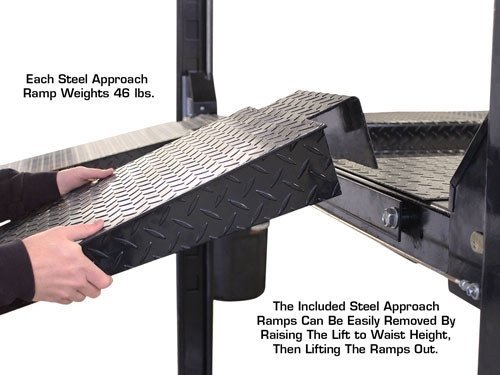

• Steel Approach Ramps Smooth, safe vehicle loading included

• Steel Jack Tray Convenient storage for floor jacks and tools

• Four Plastic Drip Trays Catch fluids and keep your workspace clean

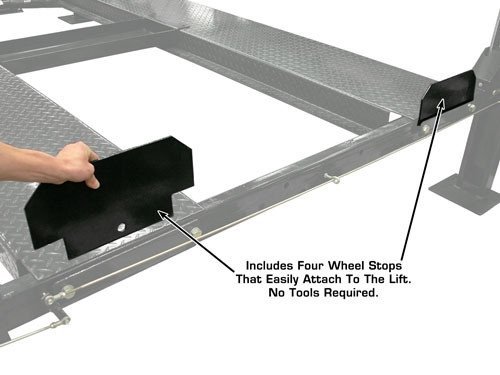

• Four Wheel Stops Secure vehicle positioning on the runways

• Two Rubber Wheel Chocks Added safety during loading and service

• Caster Kit with Polyurethane Wheels Tool-free portability when you need it

Please note: This lift requires 3-5 gallons of AW32/AW46 hydraulic oil (not included). Anchor bolts are optional and sold separately if you prefer a permanent, bolted installation.

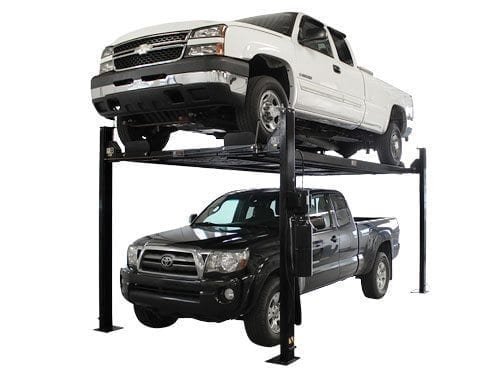

Perfect for Service or Long-Term Storage

Whether you're a weekend warrior wrenching on your truck, a restoration enthusiast preserving a classic, or simply need to maximize garage space by stacking vehicles, the Atlas® Garage Pro 8000 EXT-L is built to perform. The 11 locking positions allow you to set your vehicle at the ideal height for any job—from undercarriage detailing to fluid changes, brake work to exhaust repairs.

For storage applications, this lift safely parks a second vehicle overhead, freeing up valuable floor space below. With a robust 1,900 lb lift weight and 8,000 lb capacity, the EXT-L is engineered for stability, reliability, and peace of mind.

California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 8,000 lb. Capacity

• Atlas® Powder Coat Finish

• Diamond Plated Runways

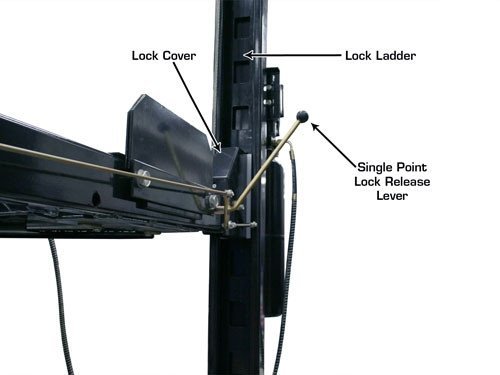

• Single Point Lock Release

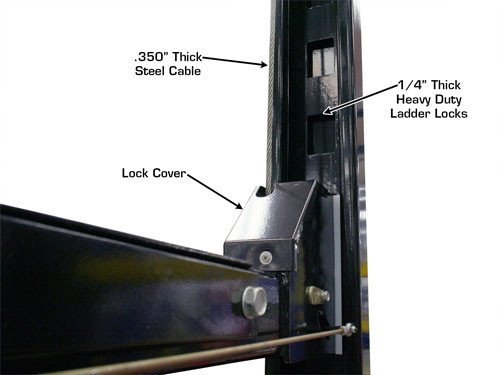

• Lock Ladder Design

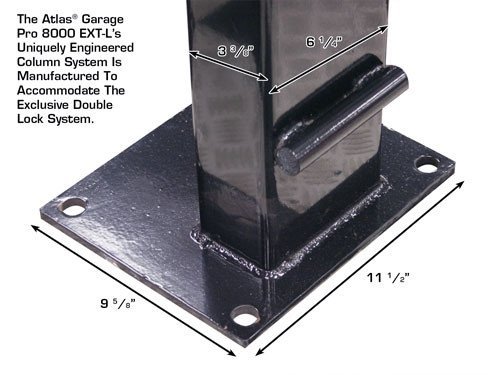

• Double Lock Safety System

• Caster Kit With Polyurethane Wheels Included

• Anchor Bolts Optional (Sold Separately)

• Steel Approach Ramps Included

• Steel Jack Tray Included

• Four Plastic Drip Trays Included

• Four Wheel Stops Included

• Two Rubber Wheel Chocks Included

• Perfect For Storing Or Working On Vehicles

Includes

• 1 Jack Tray

• 4 Plastic Drip Trays

• Two Rubber Wheel Chocks

• Steel Approach Ramps

• 1 Caster Kit With Polyurethane Wheels

Product Specifications

Specifications
PRO 8000 EXT-L

Capacity
8,000 lbs

Lifting Height
84" (7')

Max Clearance Under Runways
78 1/2" (6' 6 1/2")

Height of Columns
98 1/2" (8' 2 1/2")

Overall Width w/ Motor
116 ½" (9' 8 ½")

Overall Width w/o Motor
108" (9')

Overall Length w/Approach Ramps
222" (18' 6")

Overall Length w/o Approach Ramps
N/A

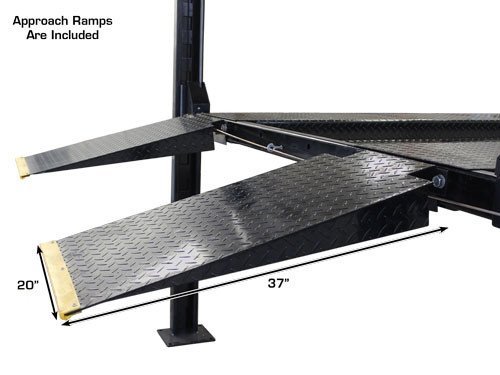

Approach Ramps
37" (3' 1")

Runway Width
22" (w/ Rails) or 18 3/4" (Driving Surface)

Runway Length
185" (15' 5")

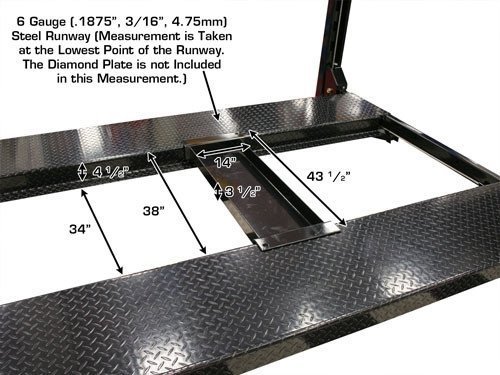

Runway Thickness
4 ½"

Width Between Runways
38" (3' 2")

Width Between Runway Rails
34" (2' 10")

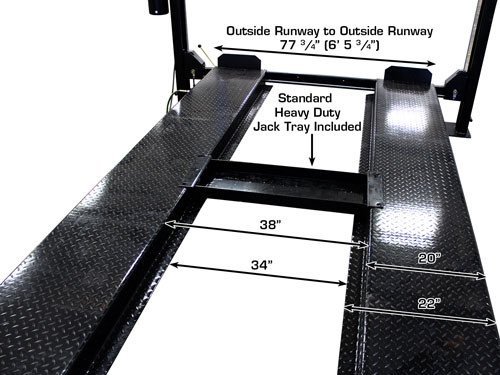

Outside Runway to Outside Runway
77 3/4" (6' 5 3/4")

Clearance Between Columns
98" (8' 2")

Length Between Columns
176 1/2" (14' 8 1/2")

Maximum Wheel Base
173" (14' 5")

Drive Thru
(Outside of tire to outside of tire)
84" (7')

Motor
110V / 30 amp breaker is required.

Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)

Weight
1,900 lbs
