Atlas® Apex 9 ALI Certified 4 Post Hobbyist Parking Lift 9,000 lbs

Product Overview

Atlas® Apex 9 ALI Certified 4 Post Hobbyist Parking Lift 9,000 lbs

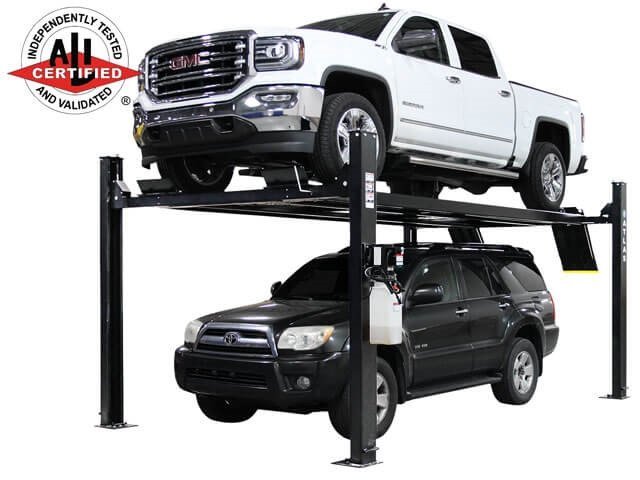

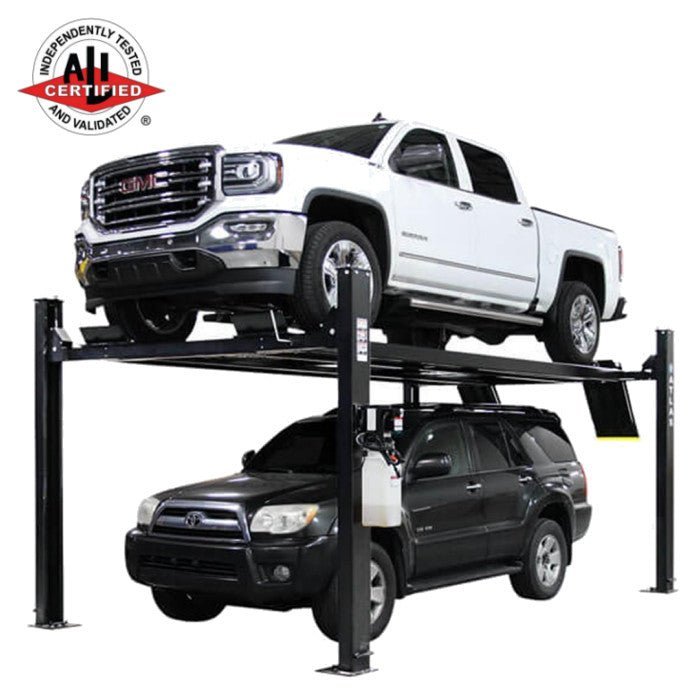

The Atlas® Apex 9 is a professional-grade ALI Certified four-post parking lift engineered for serious hobbyists, collectors, and restoration shops who demand commercial-quality construction without the industrial workload. With a robust 9,000 lb. capacity, this lift delivers the perfect combination of heavy-duty performance and home-garage convenience—allowing you to maximize your space by storing or servicing a wide range of vehicles with confidence and safety.

Designed with a free-standing, portable design, the Apex 9 doesn't require permanent installation, giving you unmatched flexibility in your shop layout. The included caster kit with polyurethane wheels allows you to reposition the lift as needed, while the option to bolt down on a minimum 4" concrete slab provides added stability for those who prefer a fixed setup. Whether you're a passionate car enthusiast working on weekend restorations or a small shop handling specialty projects, this lift is built to support your workflow without the wear and tear of high-volume commercial environments.

Why Choose the Apex 9?

The Atlas® Apex 9 stands out as one of the most versatile and well-equipped four-post lifts in its class. Here's what makes it the go-to choice for discerning enthusiasts:

• ALI Certified for Safety: Meets the rigorous standards of the Automotive Lift Institute, ensuring reliable, tested performance and peace of mind.

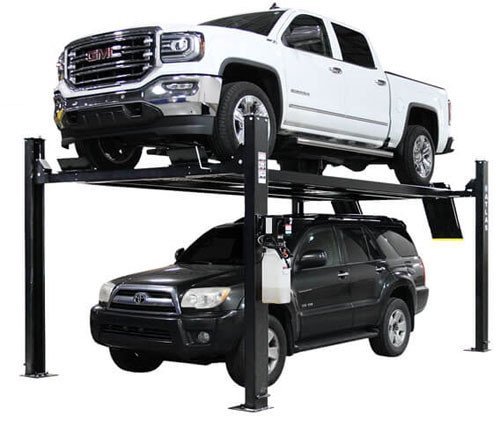

• Extra Tall, Wide, and Long Design: With a lifting height to the top of the runway of 86 inches and clearance under runways of 81¼ inches, you get ample room to work beneath a raised vehicle or park a second car underneath for maximum space efficiency.

• Durable Powder Coat Finish: Protects against corrosion and shop wear, maintaining a professional appearance for years to come.

• Diamond Plated Runways: Provide superior traction and a rugged, slip-resistant surface for safe vehicle positioning.

• Comprehensive Included Accessories: Comes complete with steel approach ramps, a steel jack tray, four plastic drip trays, two wheel chocks, and a caster kit with polyurethane wheels everything you need to get started right out of the box.

Safety and Convenience Built In

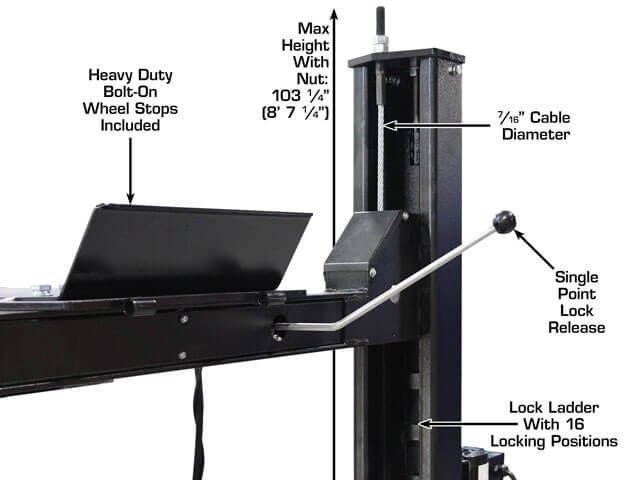

Safety is at the heart of every Atlas® lift design. The Apex 9 features a double lock safety system with a lock ladder design and single point lock release, giving you confident, secure positioning at any height. The lock release bar is conveniently positioned for easy operation, allowing you to raise and lower your vehicle smoothly and safely every time.

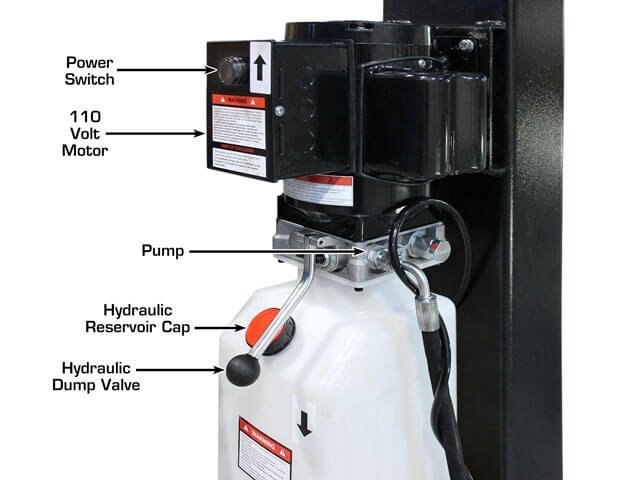

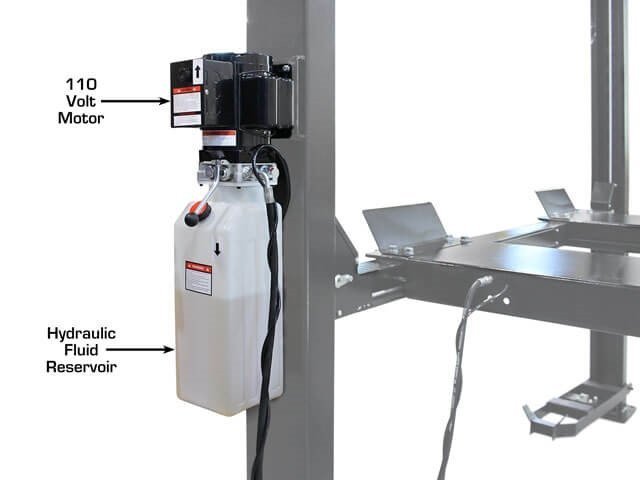

The lift is powered by a 110-volt motor (requires a 30-amp breaker ), making it compatible with most home electrical systems—no expensive three-phase power or complicated wiring needed. The hydraulic system requires 2.6 gallons of AW32/AW46 hydraulic oil (not included), ensuring smooth, reliable operation lift after lift.

Dimensions and Capacity at a Glance

The Apex 9 is engineered to accommodate a wide variety of vehicles, from classic muscle cars to modern trucks and SUVs:

• Capacity: 9,000 lbs

• Maximum Wheelbase: 184 inches (15' 4")

• Drive-Thru Width: 98⅝ inches (8' 2⅝") outside tire to outside tire

• Overall Length with Approach Ramps: 227½ inches (18' 11½")

• Overall Width with Motor: 133⅞ inches (11' 1⅞")

• Height of Columns: 99 inches (8' 3")

With a weight of 2,975 lbs, the lift is substantial enough to provide stability, yet still portable with the included caster system. The clearance between columns is a generous 108⅛ inches, and the length between columns spans 184¼ inches, giving you plenty of room to maneuver and work around your vehicle.

What's Included

The Apex 9 comes ready to install with a complete set of professional-grade accessories:

• 1 Steel Jack Tray for secure tool and jack storage while working

• 4 Plastic Drip Trays to catch fluids and keep your workspace clean

• Steel Approach Ramps for smooth, easy vehicle entry and exit

• 2 Wheel Chocks to secure your vehicle during loading and positioning

• 1 Caster Kit with Polyurethane Wheels for effortless lift repositioning and portability

Note: Anchor bolts are optional and sold separately for those who wish to permanently secure the lift to the floor.

California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• ALI Certified

• 9,000 lb. Capacity

• Free Standing/Portable Design

• Heavy Duty

• Extra Tall, Extra Wide & Extra Long

• Powder Coat Finish

• Diamond Plated Runways

• Single Point Lock Release

• Lock Ladder Design

• Double Lock Safety System

• Steel Approach Ramps Included

• Steel Jack Tray Included

• Four Plastic Drip Trays Included

• Two Wheel Chocks Included

• Caster Kit with Polyurethane wheels Included

• Anchor Bolts Optional (Sold Separately)

• Perfect For Storing Or Working On Vehicles

Includes

• 1 Jack Tray

• 4 Plastic Drip Trays

• Approach Ramps

• Wheel Stops

• 1 Caster Kit With Polyurethane Wheels

Product Specifications

Specifications
APEX 9

Capacity
9,000 lbs

Lifting Height To Top of Runway
86" (7' 2")

Clearance Under Runways
81 1/4" (6' 9 1/4")

Height of Columns
99" (8' 3")

Overall Width w/ Motor
133 7/8" (11' 1 7/8")

Overall Width w/o Motor & Casters
121 7/8" (10' 1 7/8")

Overall Length w/Approach Ramps
227 1/2" (18' 11 1/2")

Overall Length w/o Approach Ramps
204" (17') (Including Lock Release Bar)

Approach Ramps
31 1/2"

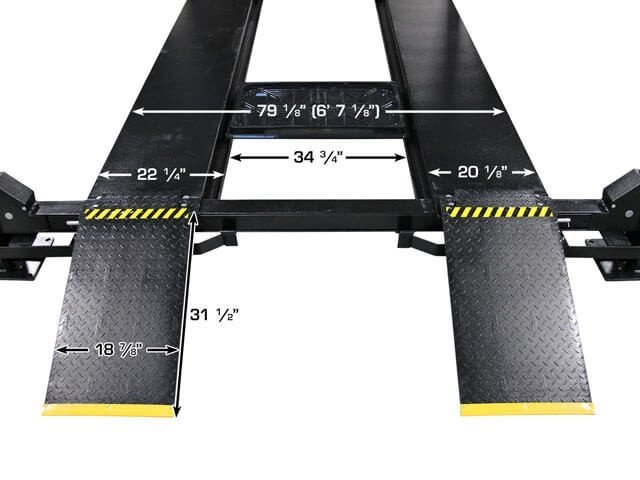

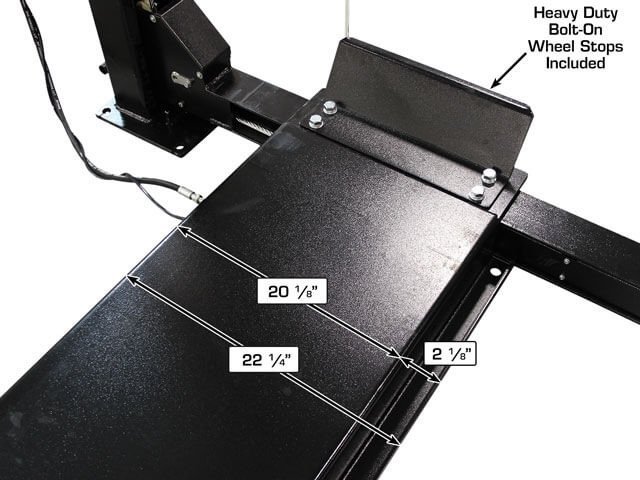

Runway Width
20 1/8"

Runway Rail Width
2"

Runway Length
196 1/2" (16' 4 1/2")

Runway Thickness
4 3/4"

Width Between Runways
38 7/8" (3' 2 7/8")

Width Between Runway Rails
34 3/4" (2' 10 3/4")

Outside Runway to Outside Runway
79" (6' 7")

Clearance Between Columns
108 1/8" (9' 1/8")

Length Between Columns
184 1/4" (15' 4 1/4")

Maximum Wheel Base
184" (15' 4")

Drive Thru (Outside of tire to outside of tire)
98 5/8" (8' 2 5/8")

Motor
110 Volt / 30 amp breaker is Requried.

Oil Requirement
2.6 Gallons AW32/AW46 (NOT Included)

Weight
2,975 lbs

If bolting down (Not Required) minimum 4" concrete slab

Key Features

• Published product configuration: Atlas® Apex 9 ALI Certified 4 Post Hobbyist Parking Lift 9,000 lbs The Atlas® Apex 9 is a professional-grade ALI Certified four-post parking lift engineered for serious hobbyists, collectors, and restoration shops who demand commercial-quality construction without the industrial workload. With a robust 9,000 lb
• Exact manufacturer model or part number: APEX9
• Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model APEX9, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
