Atlas® 6PL Low Rise Scissor Lift 6,000 lbs

Product Overview

Atlas® 6PL Low Rise Scissor Lift 6,000 lbs

Professional-Grade Low Rise Lift for Quick Service Work

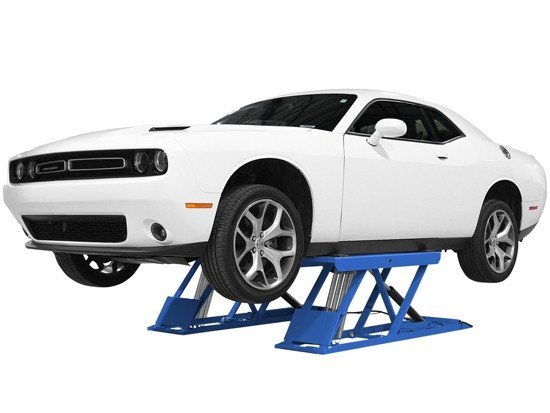

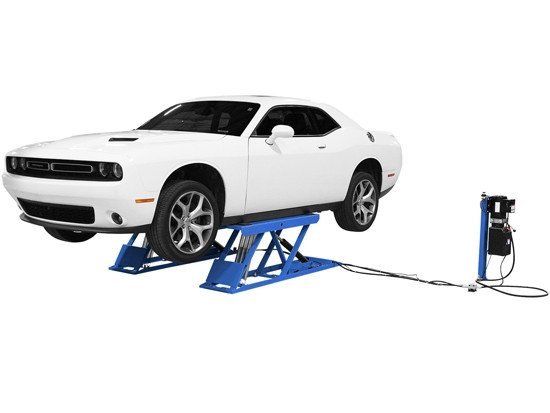

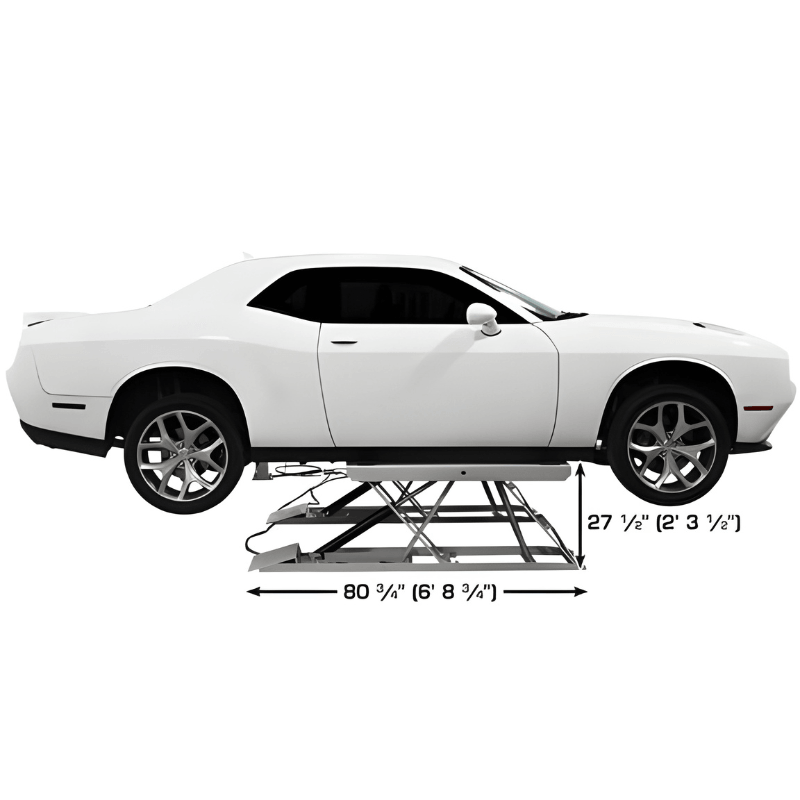

The Atlas® 6PL Low Rise Scissor Lift delivers 6,000 lbs of lifting capacity in a compact, low-profile design perfectly suited for tire shops, quick service centers, and busy automotive facilities. With a 4½" minimum height and 26" maximum lift height, the 6PL provides the ideal working range for tire rotations, brake service, suspension work, and routine maintenance tasks that don't require full undercarriage access.

Built with commercial-grade quality, this 110-volt electric-hydraulic scissor lift features an open center design that provides easier access to the underside of vehicles while maintaining stability and safety. The air-operated single point lock release ensures precise control and operator convenience, while the drive-over ramps make vehicle positioning quick and effortless.

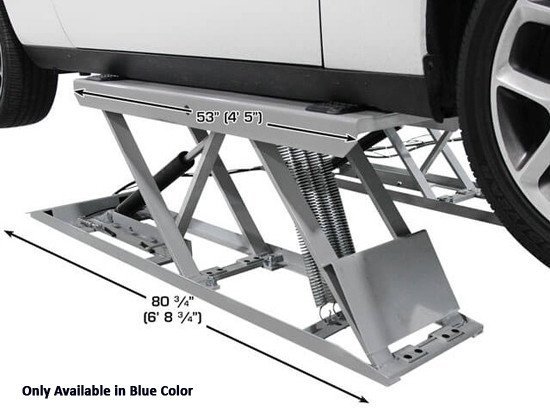

Each Atlas 6PL includes a complete set of four non-slip rubber pads and heavy-duty rubber lifting blocks to protect vehicle lifting points and provide secure contact surfaces. With 53" x 18" platforms and a variable 36½" spacing between runways, this lift accommodates a wide range of passenger vehicles and light trucks. All mounting hardware is included for straightforward installation.

Simple Operation for Maximum Productivity

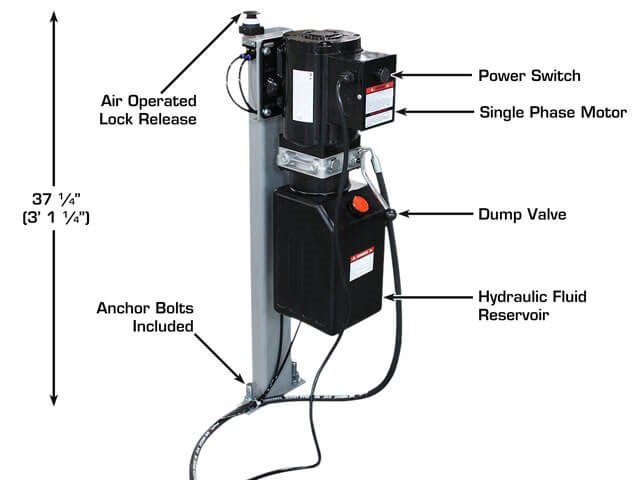

Operating the Atlas 6PL is straightforward and efficient. Simply drive the vehicle over the lift platforms and position the included rubber lifting blocks under the manufacturer-recommended lifting points. Press the button on the power unit to raise the vehicle to your desired working height. When you're ready to lower, depress the dump valve lever on the power unit and the lift descends smoothly to the next lower mechanical lock position.

The lift operates on standard 110V/60Hz/1Ph power ( 30 amp breaker required ) and requires 85-120 psi air supply for the lock release system. The hydraulic system uses 1.5-2 gallons of AW32/AW46 oil, and the entire unit ships at 850 lbs, making installation manageable for most facilities.

Key Features & Advantages

• 6,000 lbs capacity handles most passenger vehicles and light trucks with ease

• Open center design provides improved access to the vehicle undercarriage for inspections and quick service

• Ultra-low 4½" profile easy drive-on access with included ramps, minimal shop floor intrusion

• Commercial-grade construction built to withstand the demands of busy professional environments

• Air-operated single point lock release fast, convenient height adjustments for efficient workflow

• Variable platform spacing platforms can be installed closer together if desired to fit your specific needs

• Complete accessory package includes four non-slip rubber pads and heavy-duty rubber lifting blocks

Ideal Applications

The Atlas 6PL Low Rise Scissor Lift excels in quick-service environments where speed and efficiency matter most. It's particularly well-suited for:

• Tire shops and service centers fast tire rotations, replacements, and balancing work

• Brake service convenient access height for brake pad and rotor replacement

• Quick lube facilities oil changes, filter service, and fluid checks

• Suspension and alignment prep initial lift for inspection and component access

• General maintenance routine inspections and undercarriage service work

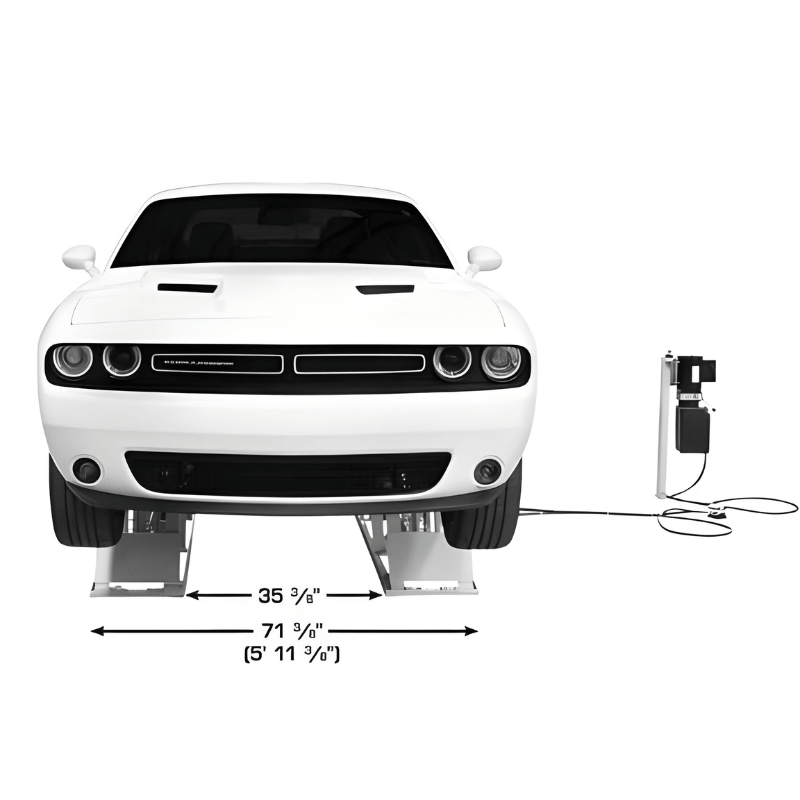

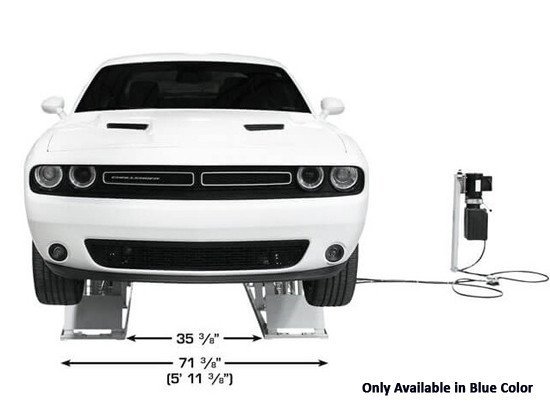

The 71" overall width and 53" x 18" platform dimensions provide a stable, wide footprint that accommodates vehicles of various sizes while maintaining a compact shop footprint.

Product Features

• Open Center Design

• Commercial Grade Quality

• 4 Non-Slip Rubber Pads

• Drive Over Ramps

• Great for Tire and Brake Work

• Heavy Duty Rubber Lifting Blocks Included

• Mounting Hardware Included

• Air-Operated Single Point Lock Release (External Air Supply Required)

• 110volt Electric Operation

Includes

• Set of 4 Non-Slip Rubber Pads

Product Specifications

Specifications
6PL

Capacity
6,000 lbs

Max Lift Height
26"

Min Lift Height
4 ½"

Overall Width
71" (Platforms can be installed closer together if desired)

Lowered Height
4 ½"

Platform Dimensions
53" x 18"

Between Runways
36 ½" (Variable)

Air Requirement
85-120 psi

Motor/Electrical Requirement
110V/60Hz/1Ph
A 30 amp breaker is required.

Oil Requirement
1.5-2 Gallons AW32/AW46

Shipping Weight
850 lbs

Key Features

• Published product configuration: Atlas® 6PL Low Rise Scissor Lift 6,000 lbs Professional-Grade Low Rise Lift for Quick Service Work The Atlas® 6PL Low Rise Scissor Lift delivers 6,000 lbs of lifting capacity in a compact, low-profile design perfectly suited for tire shops, quick service centers, and busy automotive facilities. With a 4½" minimum
• Exact manufacturer model or part number: ATTD-6PL
• Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model ATTD-6PL, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
