Atlas® 6MR Portable Mid Rise Scissor Lifts 6,000 lbs

Product Overview

Atlas® Automotive Equipment 6MR Portable Mid Rise Scissor Lift 6,000 lbs

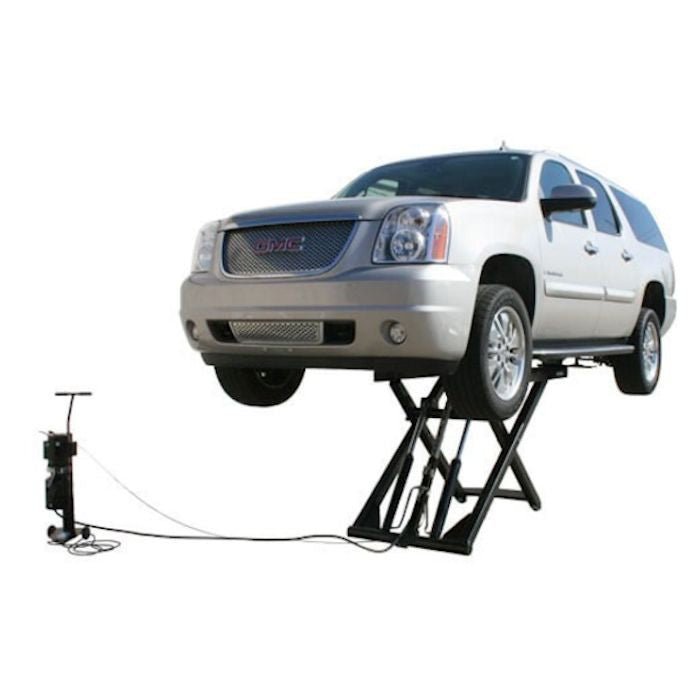

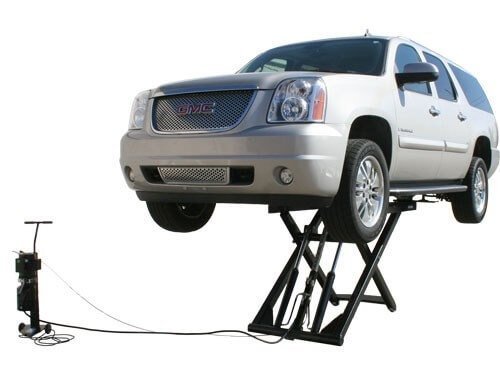

The Atlas® 6MR Portable Mid Rise Scissor Lift delivers professional-grade lifting performance for body shops, wheel service specialists, and auto repair facilities that demand extra height and maximum versatility. With a full 6,000 lb. capacity and a towering 53 1/2" maximum lift height, this free-standing portable lift provides comfortable, ergonomic access to the underside of vehicles for everything from tire service to suspension work, exhaust repairs, and detailed inspections.

Unlike traditional two-post lifts, the Atlas® 6MR is completely portable and requires no permanent installation. The integrated motor stand features wheels that allow you to easily reposition the lift throughout your shop or roll it between indoor bays and outdoor work areas. The 110V power unit mounts on a movable cart that can be remotely positioned around the lift for maximum shop efficiency and flexibility.

Professional Performance with Dual Power Cylinders

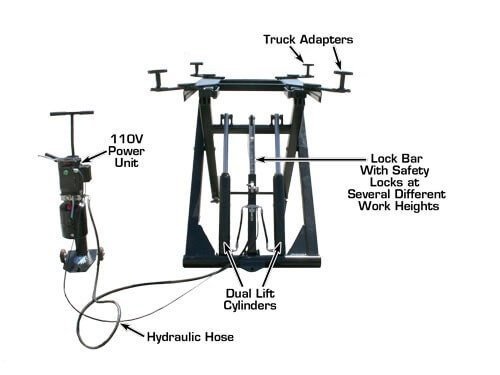

The Atlas® TD6MR is engineered with two hydraulic power cylinders for smooth, consistent lifting performance across the entire weight range. The dual cylinder design ensures balanced lifting and provides the muscle needed to raise 6,000 lbs to full height quickly and safely.

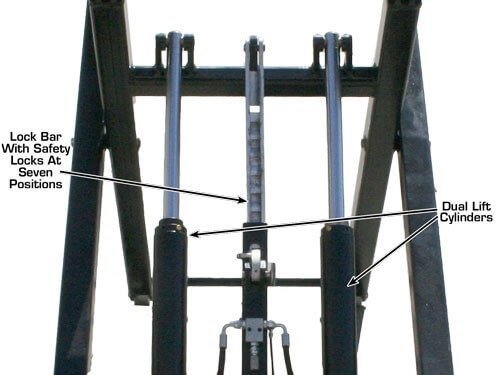

Safety is paramount. The solid safety lock bar features 7 individual locking positions that automatically engage at any work height, securing your vehicle throughout the service process. A convenient single point lock release allows for fast, easy height adjustments without fumbling with multiple controls. This lift has been thoroughly tested to meet industry standards, giving you confidence in every raise and lower cycle.

Unique Platform Design for Maximum Access

The unique platform design of the 6MR provides access to areas on the underside of vehicles that are often difficult or impossible to reach with other portable mid-rise lifts. The adjustable arms move to an infinite number of positions, allowing you to accommodate unique lifting points found on cars, trucks, and specialty vehicles. Whether you're working on a low-profile sports car or a heavy-duty pickup, the TD6MR adapts to your needs.

This is a complete mid-rise lift package that includes everything you need to start lifting: one set (4) of truck adapters for pickups and larger vehicles, plus another set of sliding car adapters for sedans, coupes, and crossovers. The included adapters feature 5 3/4" large and 1 1/2" small sizes to match the vehicle you're servicing.

Rock-Solid Stability with a Large Footprint

The large footprint of the Atlas® Pro TD6MR creates a steady, secure platform for the raised vehicle. Measuring 82" in length (6' 10") and 39" wide (3' 3"), this lift provides exceptional stability even at maximum height. When lowered (with arms attached but not adapters), the lift measures just 5 3/4" in height, allowing it to fit under most vehicles with ease.

The Atlas® TD6MR remains rock solid at all 7 safety lock positions, giving you the confidence to work beneath the vehicle without worry. The powder-coated finish resists corrosion and provides long-lasting durability in demanding shop environments.

Important: Scissor Lift Capacity and Horizontal Cylinders
Why won't my scissor lift raise its rated capacity? Scissor lifts with horizontal cylinders may experience reduced capacity at certain lift heights. For a detailed explanation of how horizontal cylinder geometry affects lifting performance,.

Key Highlights

• 6,000 lb. capacity full commercial-grade lifting power for cars, trucks, and SUVs

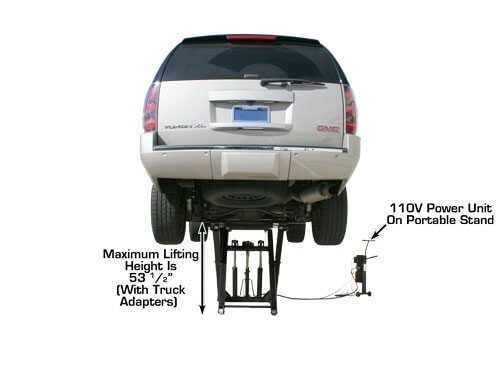

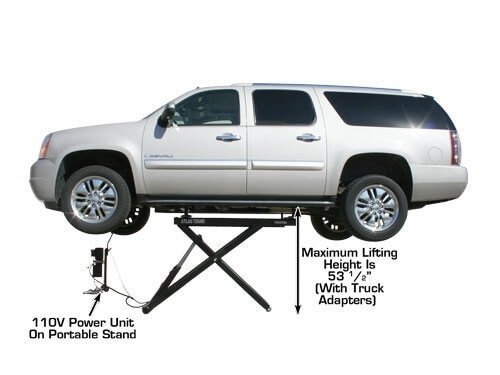

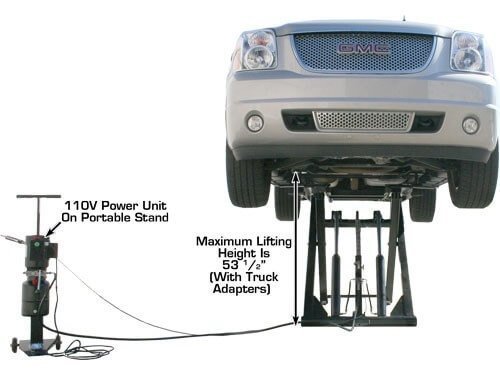

• 53 1/2" maximum lift height over 4 feet of clearance for comfortable, ergonomic undercar access

• Portable and free-standing no permanent installation required; easily moves throughout your shop or to outdoor work areas

• Dual hydraulic cylinders with 7 locking positions smooth lifting with automatic safety locks at any work height

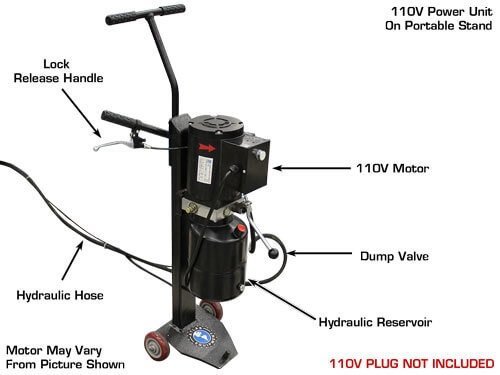

• 110V power unit on a separate movable motor stand position the motor remotely for maximum shop efficiency (plug not included)

• Includes truck adapters and sliding car adapters ready to lift a wide range of vehicle types right out of the box

• Commercial grade powder-coated construction built for demanding professional shop environments

Designed for Professionals, Built to Last

The Atlas® 6MR is a commercial-grade lift designed for professional shops that need power, portability, and reliability. Whether you're running a busy body shop, a tire and wheel service center, or a general repair facility, this lift delivers the performance you need to maximize productivity and minimize technician fatigue.

The lift's ability to be easily moved on smooth surfaces makes it ideal for shops that need flexible workspace configurations. Roll it outside for large jobs, then bring it back inside when you're done. Park it in a corner when not in use, or keep it front and center in your most active bay. The TD6MR adapts to your workflow.

What You Need to Get Started

The Atlas® 6MR requires 110V electrical power (plug not included – you'll need to wire an appropriate plug for your shop). The hydraulic system requires 1.5 gallons of AW32 or AW46 hydraulic oil (not included). Once you add oil and connect power, the lift is ready to work.

With a shipping weight of 1,050 lbs, this is a substantial piece of equipment built to last for years of daily professional use. The Atlas® TD6MR is one of the most popular mid-rise lifts sold, trusted by thousands of shops for its reliability, safety, and versatility.

Order your Atlas® 6MR Portable Mid Rise Scissor Lift today and experience the difference that professional-grade equipment makes in your shop's efficiency and service quality.

Product Features

• Powder coated

• 110V Motor (PLUG NOT INCLUDED)

• Single point lock release

• Commercial grade

• Full 6,000 LB. capacity

• Portable, easy to move

• Two hydraulic cylinders

• Safety locks at any work height

• 7 locking positions

• Truck adapters included

• Free Standing

• Separate motor stand included

Product Specifications

Specifications
TD6MR

Capacity
6,000 lbs

Maximum Height-Raised
53 1/2" (4' 5 1/2")

Height-Lowered w/Arms but not Adapters
5 3/4"

Width
39" (3' 3")

Length
82" (6' 10")

Truck Adapter
5 3/4" Large / 1 1/2" Small

Motor/Electrical Requirement
110V (Plug Not Included)

Oil Requirement
1.5 Gallons AW32/AW46 (Not Included)

Shipping Weight
1050 lbs.

Key Features

• Published product configuration: Atlas® Automotive Equipment 6MR Portable Mid Rise Scissor Lift 6,000 lbs The Atlas® 6MR Portable Mid Rise Scissor Lift delivers professional-grade lifting performance for body shops, wheel service specialists, and auto repair facilities that demand extra height and maximum versatility. With a full 6,000 lb. capacity
• Exact manufacturer model or part number: ATTD-6MR-P
• Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model ATTD-6MR-P, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
