AMGO® Hydraulics 4097X Triple Parking Lift 7000 & 9,000lbs

Product Overview

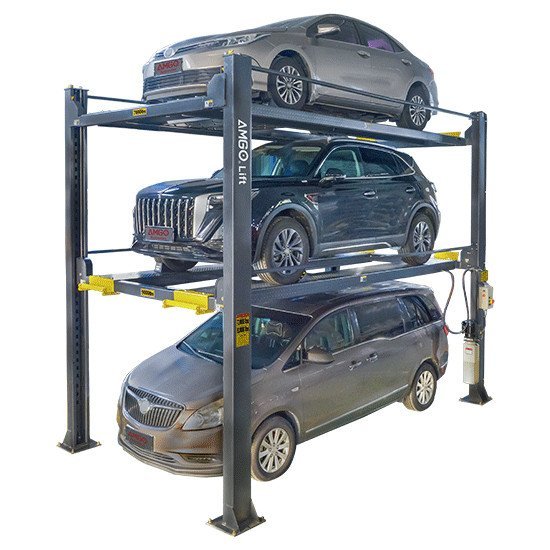

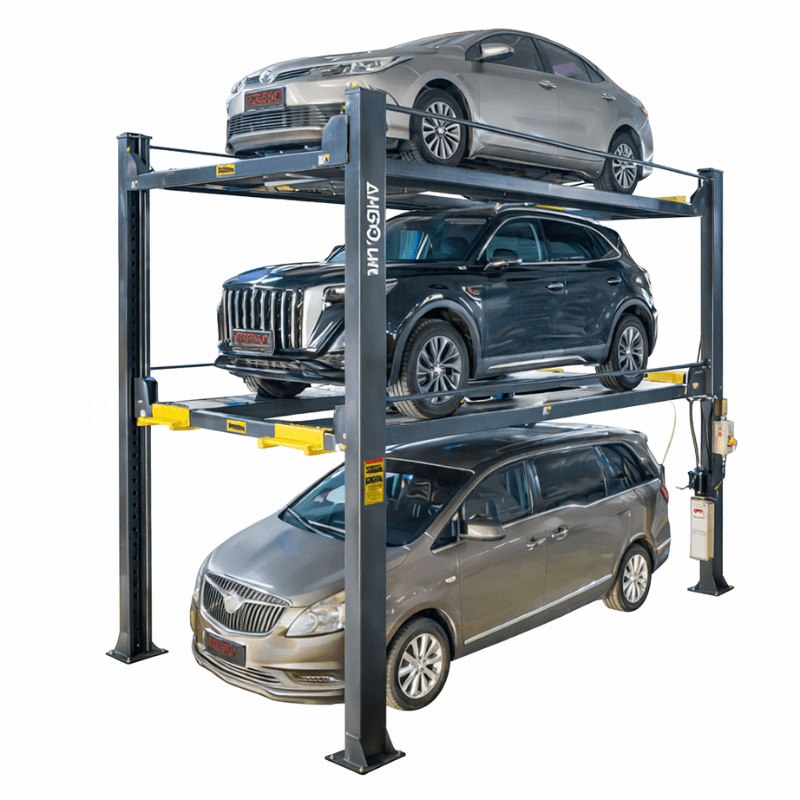

AMGO® Hydraulics 4097X Triple Parking Lift 7000 & 9,000lbs

Take your garage to the next level with the AMGO 4097X built to maximize space without the bulk of traditional lifts. Its sleek embedded-platform design gives you more room while still delivering the strength you need for reliable vehicle storage. With multi-functional ramps, a double-lock safety system, and simple fingertip controls, it’s designed for effortless everyday use. Whether you’re upgrading your home garage or adding capacity to your shop, the 4097X makes parking more efficient, safer, and easier than ever.

California Residents:

WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

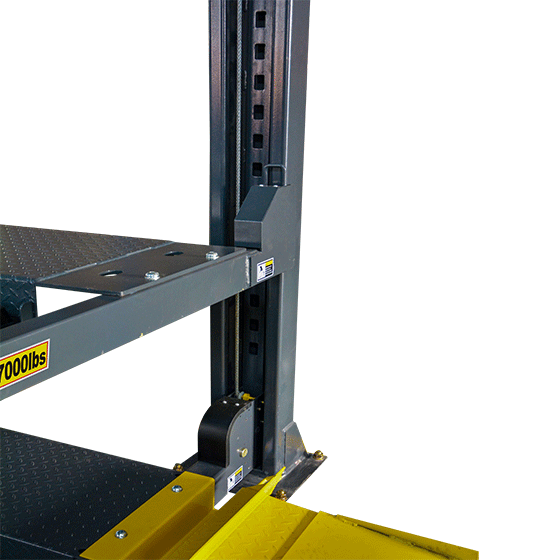

• The patented design of 4097X features double safety locks for both lower and upper platforms

• Capacity: 7,000lbs for upper platforms, 9,000lbs for lower platforms

• Embedded platform design allows one set of drive-in ramps to serve both lower and upper platforms, minimum height just 7 1/16"

• Safety control devices protect the vehicle from collision during lifting of the lower platforms, and prevent the upper platforms separating from the lower platforms when carrying the upper platforms down

• Effortless fingertip push lock release operation

• 220V/60HZ Single Phase power unit, ETL Certified

• Proprietary drive-in ramps function as both tire stop and drive-on ramp, with quick assembly and disassembly.

Optional Accessories Available – See Below in Add Ons

• # 40806 Set of 4 Drip Trays

• # 40812 Storage Wave Panels Kit

Product Specifications

Specifications
4097X

Lifting Capacity
7,000 lbs Upper / 9,000 lbs Lower

A Overall Length w/o Ramp
N/A

A Overall Length w/Ramp
247 9/16"

B Outside Edge of Crossbeams
197 13/16" Upper / 204 1/16" Lower

C Overall Width
113 15/16"

D Width Between Columns
96"

E Drive Thru Clearance
82 1/16"

F Overall Height
170 1/16"

G Minimum Height
7 1/16"

H Max Lifting Height
158 3/8"

H Max. Lock Height to Top of Runway
155 3/8"

I Max Height Underneath Runway
152 15/16"

I Max Lock Height Underneath Runway
150"

J Width Between Runways
37" Upper / 38 3/16" Lower

K Overall Width of Single Parking Unit
78 3/4" Upper / 75 9/16" Lower

Lifting Time
104s

Motor
2 HP, 220V / 60HZ Single Phase

Gross Weight
4,246 lbs

Key Features

• Published product configuration: AMGO® Hydraulics 4097X Triple Parking Lift 7000 & 9,000lbs Take your garage to the next level with the AMGO 4097X built to maximize space without the bulk of traditional lifts. Its sleek embedded-platform design gives you more room while still delivering the strength you need for reliable vehicle storage. With
• Exact manufacturer model or part number: 4097X
• Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model 4097X, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
