AMGO® Hydraulics 409-HP Parking & Service 4 Post Lift 9,000 lbs

Product Overview

AMGO® Hydraulics 409-HP Parking & Service 4 Post Lift 9,000 lbs

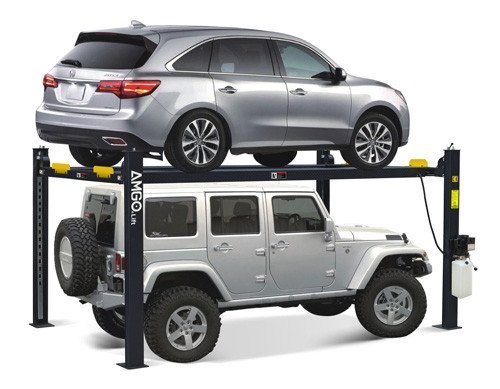

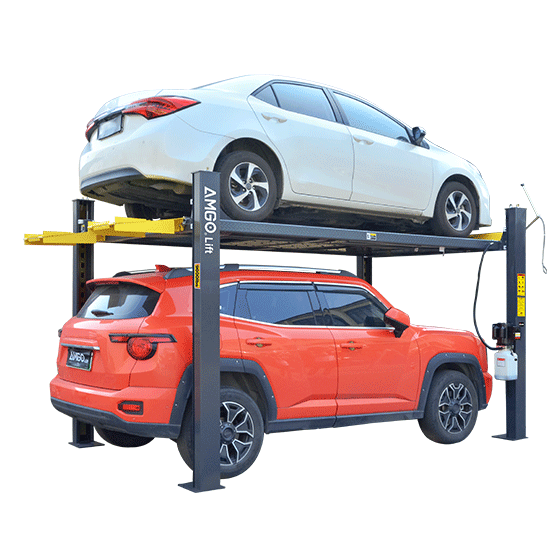

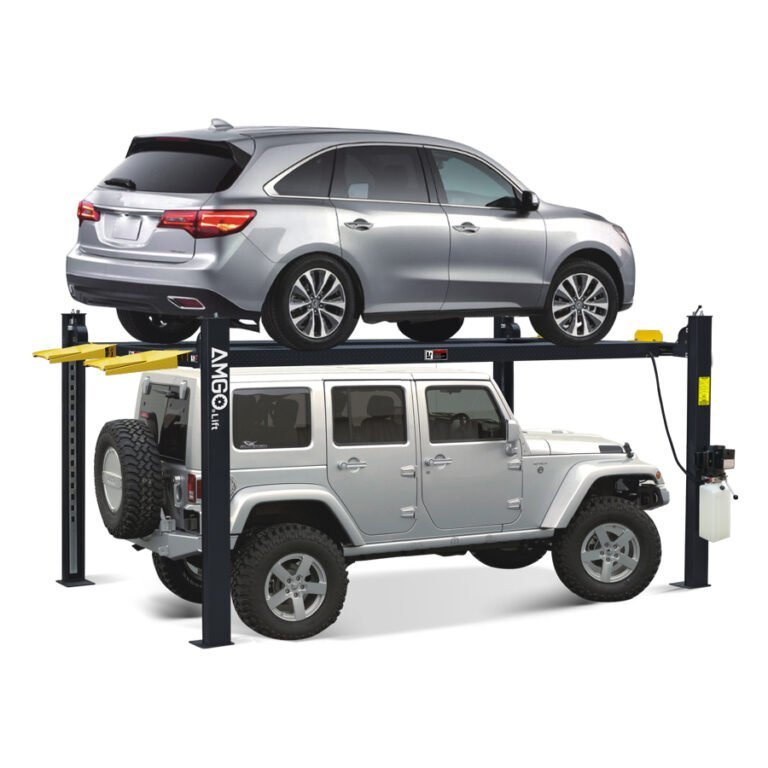

The AMGO® Hydraulics 409-HP is a heavy-duty 9,000 lbs capacity 4-post lift engineered for professionals who demand superior performance, extended lifting height, and versatile design. With an impressive 85 1/2″ maximum lifting height and an overall height of 96 5/8″, the 409-HP provides substantially more vertical clearance than standard models, making it ideal for servicing larger vehicles, trucks, and a wide variety of passenger cars. Built longer, wider, and heavier than the 409-P, this lift delivers commercial-grade strength combined with AMGO's exclusive safety innovations and flexible installation options.

Whether you're running a professional service shop, outfitting a dealership maintenance bay, or equipping a serious enthusiast garage, the 409-HP offers the capacity, clearance, and reliability you need. Powered by a 1.0HP 110V/60Hz single-phase motor (with an optional 2.0HP 220V upgrade ), this lift raises vehicles smoothly in just 143 seconds, minimizing downtime and maximizing productivity. The 238 1/8" overall length with ramp and 109 5/16″ overall width accommodate long-wheelbase and wide-body vehicles with ease, while the robust double-S shaped columns provide exceptional structural integrity.

Exclusive Hidden Safety Lock System

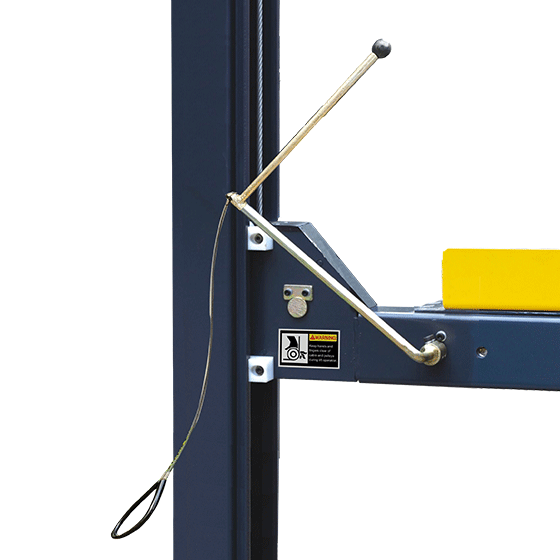

AMGO's exclusive hidden safety locks set the 409-HP apart from the competition. The manual single-point safety lock release device is a game-changer for productivity and convenience, allowing operators to disengage all four columns at once from a single control point. No more walking around the lift to unlock each column individually—just release from one location and lower the vehicle smoothly and safely.

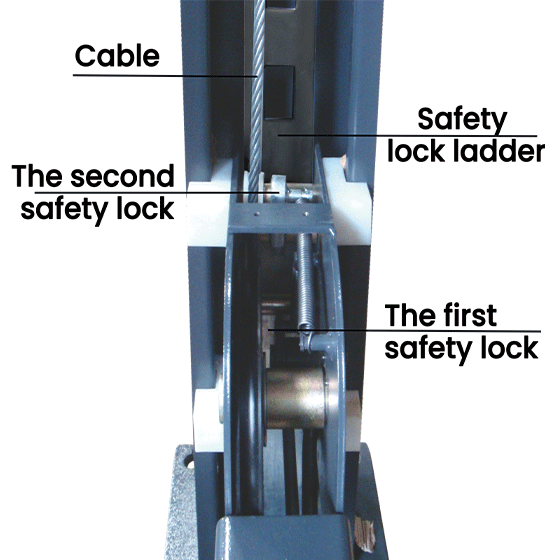

This hidden lock design not only streamlines operation but also enhances the aesthetic of your shop. The locks are tucked out of sight, providing a cleaner, more professional appearance while delivering commercial-grade safety performance. Combined with commercial double safety locks, the 409-HP offers multiple layers of redundant protection, ensuring that your vehicle stays secure at any height.

Heavy-Duty Structural Engineering

The 409-HP features double-S shaped columns specifically engineered to increase structural strength and resist twisting under load. This advanced column geometry distributes weight more evenly and enhances the overall stability of the lift, even when working with heavy trucks or unevenly balanced vehicles.

The skid-proof diamond platform runways provide exceptional traction, keeping tires firmly in place during lifting and lowering cycles. Each 20" wide runway is designed for durability and long-term reliability, with a minimum height of just 6 1/8", allowing low-clearance vehicles to drive on easily. With 99 5/8″ width between columns and 42 3/8" clearance between runways, you'll have plenty of room to work underneath and access critical service points.

Flexible Design and Installation Options

Adaptability is at the heart of the 409-HP design. The power side column can be installed at any corner, giving you complete flexibility to configure the lift to suit your shop layout, electrical access, and workflow. This feature is especially valuable in tight spaces or when working around existing equipment and building constraints.

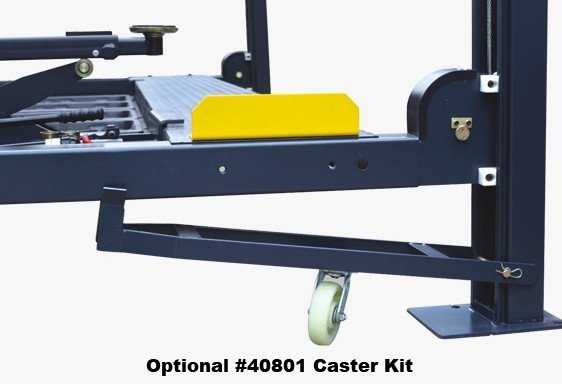

Even more impressive, the 409-HP is designed to be portable. With the addition of the optional Caster Kit (#40801), you can easily reposition the lift within your shop or even move it to a new location entirely. This portability makes the 409-HP an excellent choice for mobile service operations, rental facilities, or shops that need to reconfigure their layout over time.

Key Highlights

• 9,000 lbs lifting capacity handles a wide range of vehicles from passenger cars to light trucks

• 88 1/16″ maximum lifting height provides superior clearance for in-depth service and maintenance

• AMGO exclusive hidden safety locks with manual single-point release unlock all four columns from one convenient location

• Double-S shaped columns engineered for enhanced strength and stability under load

• Flexible installation power side column can be positioned at any corner; optional caster kit available for portability

• Skid-proof diamond platform runways keep tires secure and in place during operation

Expand Your Capabilities with Optional Accessories

Enhance the functionality and versatility of your 409-HP with AMGO's full line of optional accessories:

• #40801 Caster Kit add mobility and reposition your lift with ease

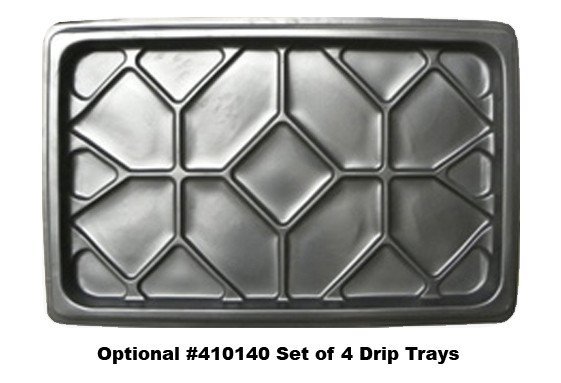

• #40807 Set of 4 Drip Trays catch fluids and keep your shop floor clean

• #40809 Jack Tray convenient storage for floor jacks and tools

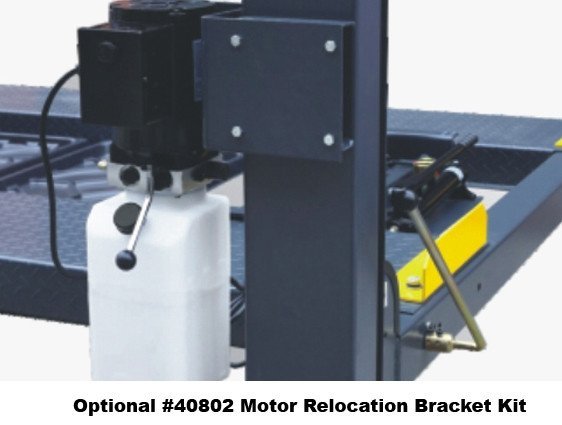

• #40802 Motor Fixing Bracket 90° installation plate for side-mounting the power unit on the column

These accessories allow you to customize your 409-HP to match your specific workflow, protect your investment, and maintain a safe, organized workspace.

Built for Professionals, Trusted by Enthusiasts

The AMGO® Hydraulics 409-HP represents the pinnacle of 4-post lift engineering, combining innovative safety features, robust construction, and flexible design into one powerful package. With its extended lifting height, commercial-grade components, and exclusive hidden lock system, the 409-HP is the ideal choice for service professionals and serious automotive enthusiasts who demand the best.

Backed by AMGO Hydraulics' reputation for quality and reliability, the 409-HP is built to deliver years of dependable service in the most demanding environments. Whether you're performing routine maintenance, major repairs, or long-term vehicle storage, this lift provides the performance, safety, and versatility you need to get the job done right.

California Residents:

WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 9,000 lbs. capacity

• AMGO ETL certified power unit comes as standard

• High quality cylinder is designed and made to a high standard

• AMGO’s patented design concealed safety lock control device, with manual single-point lock release

• Aero standard cables are included as standard

• Double-S shaped columns help increase the columns strength

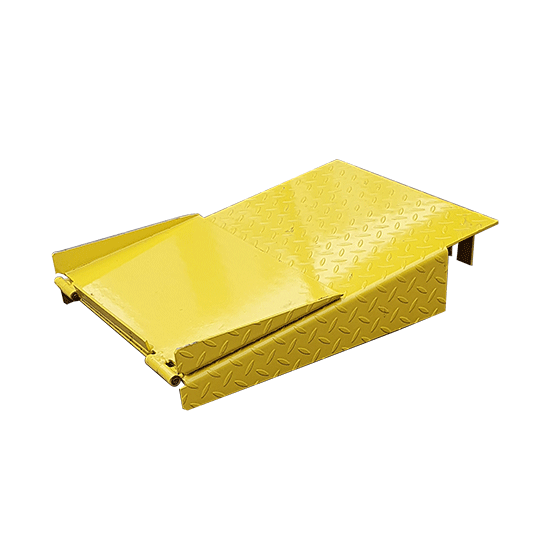

• Non-slip platforms come with foldable drive-in ramps as standard

• Support back to back installation to minimize space occupancy

• Extremely high lifting is suitable to park taller vehicles

• Pull rope comes as standard

• Flexible Design:

• The power side column can be installed at any corner

• Designed to be portable, it can be easily moved by using the optional caster kit

Optional Accessories Available

• # 40801 Caster Kit

• # 40807 Set of 4 Drip Trays

• # 40809 Jack Tray

• # 40802 Motor Fixing Bracket – 90° Installation plate for installing the power unit at the side of Column

Product Specifications

Specifications
409-HP

Lifting Capacity
9,000 lbs

A Overall Length w/Ramp
208 1/16"

A Overall Length w/o Ramp
204 3/4"

B Outside Edge of Crossbeams
197 3/4"

C Overall Width
109 5/16"

D Width Between Columns
99 5/8"

E Max Lifting Height
88 1/16"

E Max Lock Height
85 5/16"

F Overall Height
96 5/8"

G Minimum Height
6 1/8"

H Max. Underneath Height
82 9/16"

H Max. Lock Underneath Runway
79 13/16"

I Drive-Thru Clearance
88 7/16"
J Width Between Runways
42 3/8"

K Outside Edge of Runways
82 3/8"

Lifting Time
143s 110v / 57s Optional 220V

Motor
1.0HP, 110V/60Hz Single Phase – 30 amp Required / Optional 2.0HP 220V/60Hz

Gross Weight
1,956 lbs

Key Features

• Published product configuration: AMGO® Hydraulics 409-HP Parking & Service 4 Post Lift 9,000 lbs The AMGO® Hydraulics 409-HP is a heavy-duty 9,000 lbs capacity 4-post lift engineered for professionals who demand superior performance, extended lifting height, and versatile design. With an impressive 85 1/2″ maximum lifting height and an overall height
• Exact manufacturer model or part number: 409-HP-V001
• Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
• 2 product manual or technical documents linked below
• Condition: New
