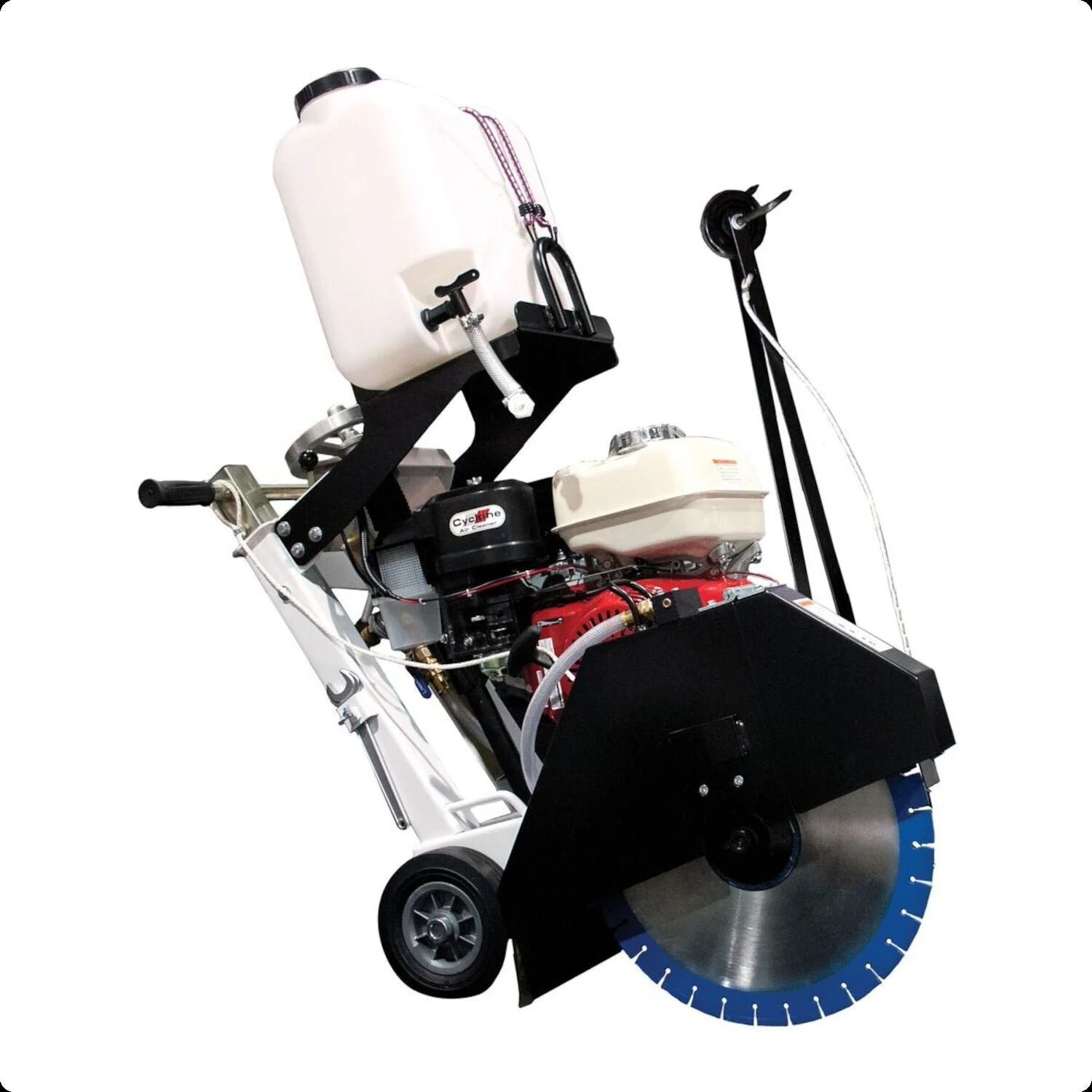

Walk-Behind Saw – Core Cut CC1300XL – Honda – 18″ Blade

Diamond Products CC1308HXL-18 Walk-Behind Concrete Saw is a walk-behind concrete saw designed for straight production cuts in slabs, pavement, roads, and repair sections. The CC1308HXL-18 configuration pairs Gasoline power source, 8.5 HP / 14.1 ft-lb torque class engine power, and 18 in blade capacity.

Key differentiators

• 18 in cutting capacity supports the intended blade or bar setup
• 8.5 HP / 14.1 ft-lb torque class power package for dependable production cutting
• 2,600 rpm shaft or chain speed detail for matching tooling and application
• Walk-behind format helps contractors cut straighter lines with less strain
• Suited to concrete, asphalt, slab repair, trenching, and joint cutting work
• Water-control compatibility supports cleaner wet-cutting workflows

Specifications

Model

CC1308HXL-18

Cut Direction

Down Cut

Blade shaft rpm

2,600 rpm

Part Number

5800579

Catalog Number

75070

Engine

Honda GX270

Engine Power

8.5 HP / 14.1 ft-lb torque class

Power source

Gasoline

Blade capacity

18 in

Max cutting depth

6-5/8 in

Arbor diameter

1 in

Weight

225 lb

Best-fit applications

The CC1308HXL-18 is best matched to straight production cuts in slabs, pavement, roads, and repair sections where the job requires Gasoline power source, 8.5 HP / 14.1 ft-lb torque class engine power, and 18 in blade capacity.

• Site utility or fuel: Gasoline
• Tooling or working setup: 18 in
• Handling reference: 225 lb
