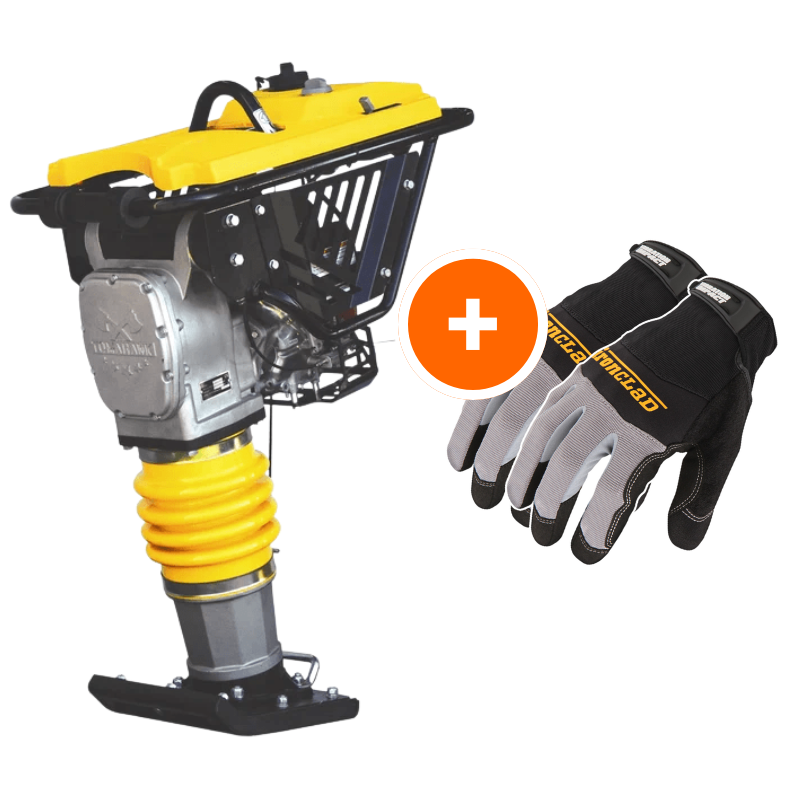

Jumping Jack Tamper

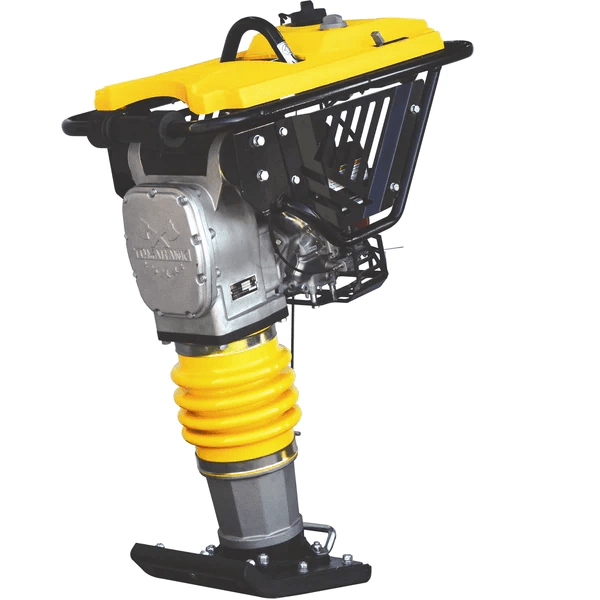

Tomahawk Power TR68H Tamping Rammer is a tamping rammer designed for trench, footing, utility, and cohesive-soil compaction in narrow spaces. The TR68H configuration pairs Gasoline power source, 3,550 lbs/ft compaction force, and Honda GXR120 engine type.

Key differentiators

• 3,550 lbs/ft compaction or impact output for jobsite production planning
• Honda GXR120 power package matched to the listed SKU
• 13 x 11 in plate/roller footprint supports coverage and access planning
• 150 lb machine weight helps crews plan loading and freight

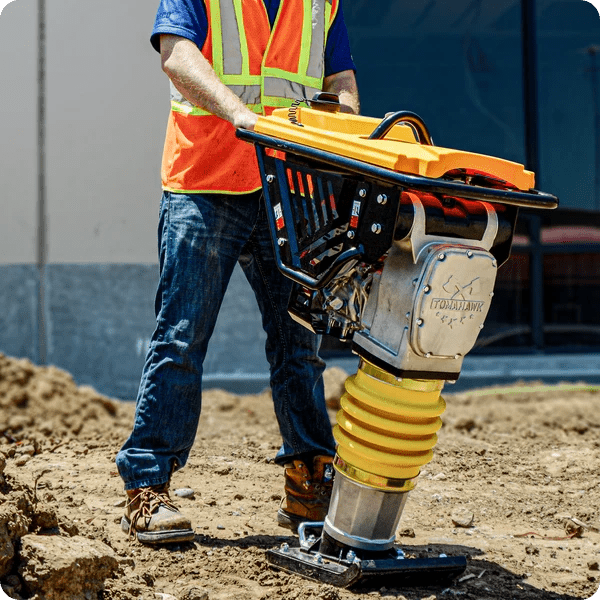

• Built for trenches, foundations, utility cuts, and confined soil compaction
• Narrow shoe format helps compact around pipes, walls, and tight access zones

Specifications

Model

TR68H

Warranty

3 Year

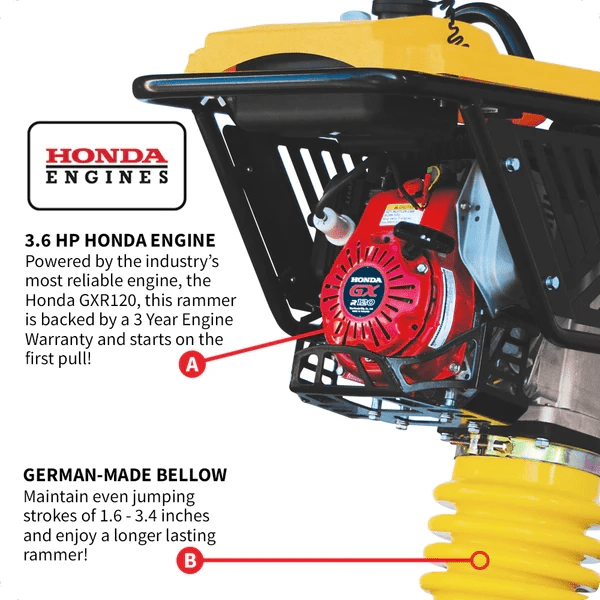

Engine Type

Honda GXR120

Horsepower

3.6 HP

Compaction Force

3,550 lbs/ft

Blows per Minute

650-700

Compaction Depth

Up to 26 in

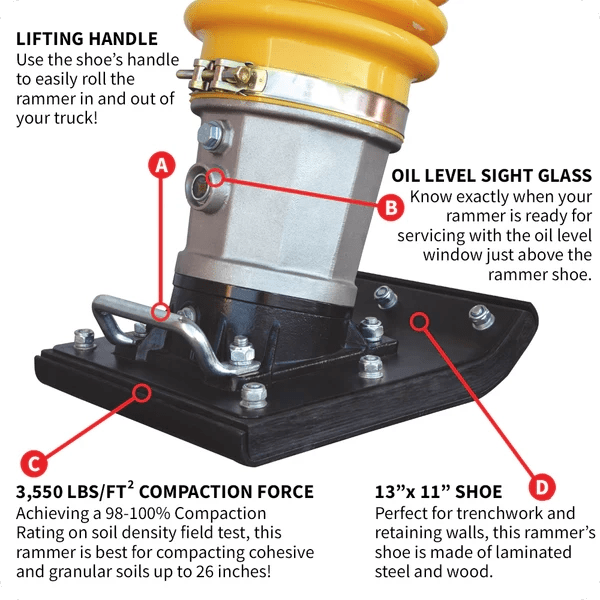

Plate Size

13 x 11 in

Operating Weight (lbs)

150 lb

Package Dimensions (inches)

41 x 14 x 28

Jumping Stroke (inches)

1.6 – 3.4

Fuel Tank Capacity

1 gal

Power Source

Gasoline

Included

Tamping rammer and promotional Ironclad vibration impact gloves

Best-fit applications

The TR68H is best matched to trench, footing, utility, and cohesive-soil compaction in narrow spaces where the job requires Gasoline power source, 3,550 lbs/ft compaction force, and Honda GXR120 engine type.

• Site utility or fuel: Gasoline
• Tooling or working setup: Tamping rammer and promotional Ironclad vibration impact gloves
• Handling reference: 150 lb
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
