Challenger CLMM 5000 Medium Duty Mobile Column ALI Lift – Set of 4

Product Overview

Challenger CLMM 5000 Medium Duty Mobile Column ALI Lift – Set of 4

Need the ALI Lift Inspection Guide?.

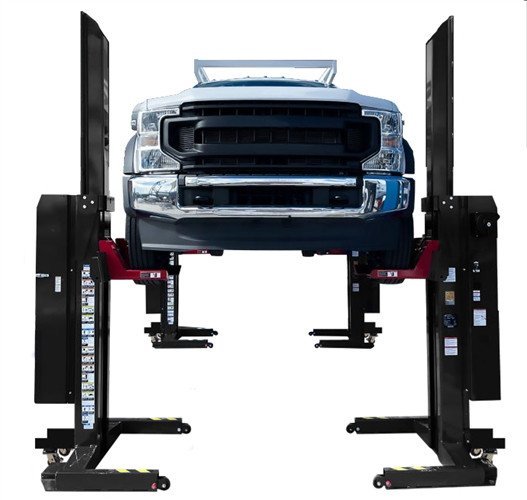

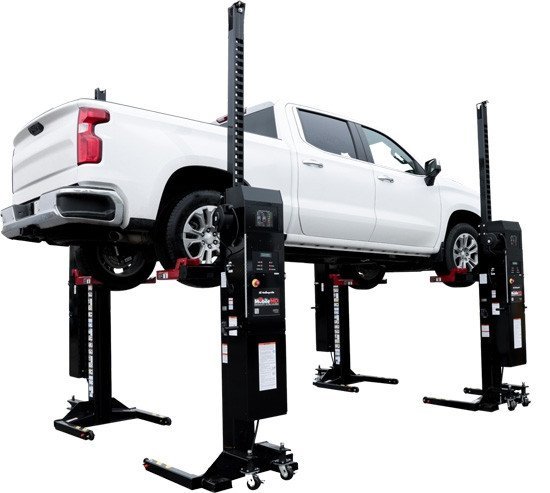

Transform your shop into a mobile lifting powerhouse with the Challenger CLMM 5000 Medium Duty Mobile Column Lift. This professional-grade set of 4 mobile columns delivers an impressive 20,000 lbs. total lifting capacity (5,000 lbs. per column), giving you the freedom to lift virtually any rubber-tired vehicle on any solid surface no pits, no cables, no compressed air required. Whether you're servicing fleet vehicles, electric vehicles, or everyday passenger cars, these ALI-certified mobile columns bring unmatched versatility and portability to your operation.

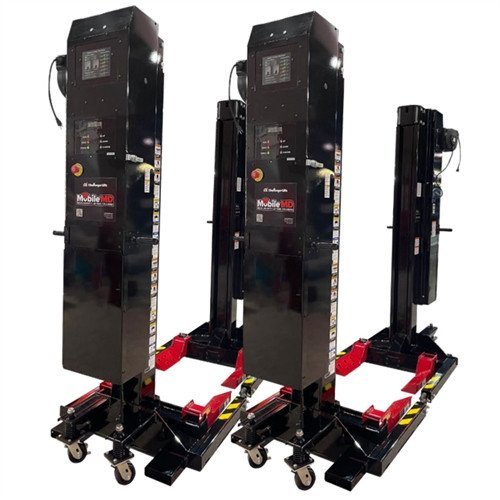

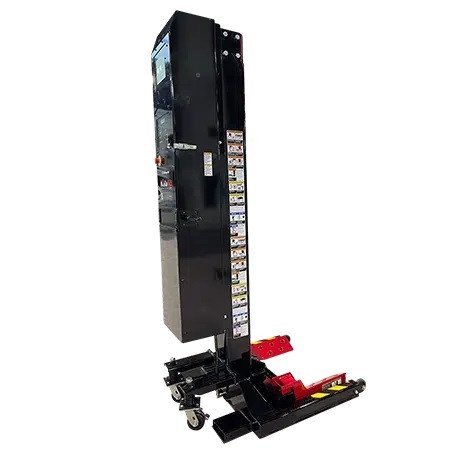

Built for serious shop environments, each CLMM 5000 column features heavy-duty tow handles and spring-loaded caster wheels for smooth, effortless maneuverability across your workspace. The integrated retractable cord reel keeps battery charging organized and tangle-free, while the robust 24 VDC battery-operated hydraulic system ensures reliable, cordless operation lift after lift. With a maximum lift height of 69 inches and a lift speed of 60 inches per minute at full load, you'll achieve professional working height quickly and safely.

Effective May 2025, all Challenger CLMM model lifts will come equipped with upgraded AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt, backed by a 2-year free replacement warranty for enhanced durability and peace of mind. These mobile columns are especially ideal for servicing electric vehicles (EVs), offering the flexibility to position lifting points exactly where needed without fixed bay constraints.

Why Choose the Challenger CLMM 5000?

• True Portability: Lift anywhere on any solid surface—perfect for shops without in-ground lifts or mobile service operations

• 20,000 lbs. Total Capacity: Set of 4 columns handles medium-duty trucks, vans, SUVs, passenger cars, and electric vehicles with ease

• ALI-Certified Safety: Meets rigorous ALI safety standards for reliable, worry-free lifting every time

• Battery-Powered Convenience: No air compressor, no power cables at the lift point—just cordless hydraulic lifting powered by rechargeable 24V batteries with AGM technology and 2-year warranty (May 2025+)

• EV-Ready Design: Ideal for servicing electric vehicles where flexible positioning and undercarriage access are critical

Key Specifications at a Glance

• Total Lift Capacity: 20,000 lbs. (5,000 lbs. per column)

• Maximum Lift Height: 69 inches (with 4 units)

• Lift Speed at Max Load: 60 inches per minute

• Wheel Diameter Range: 6" – 22"

• Operating Voltage: 24 VDC nominal battery system

• Charger Voltage: 120-240 VAC @ 50-60 Hz

• Weight Per Column: 870 lbs.

• Turning Radius: 50.5 inches for easy positioning

• Color: Available in Black only

Product Features

• Set of 4 column mobile lift

• Capable of lifting 20,000 lbs. (set of 4) on any solid surface

• Heavy-duty tow handles and spring-loaded

• Built with a heavy-duty caster wheels for moving unit

• Retractable cord reel for battery charging

• Mobile columns are perfect for servicing Electric Vehicles

• Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty

Product Specifications

Specifications

CLMM-5000-4

Lift Capacity

20,000 lbs. Total (5,000 lbs ea)

Height of Lift Unit

88.5"

Height of Lift Unit at Full Rise

157"

Width of Lift Unit

38.5"

Length of Lift Unit

56.75"

Max Lift Height (4 units)

69"

Min-Max Wheel Diameter

6" – 22"

Turning Radius of Lift Unit

50.5"

Lift Speed (Max Load)

60" per min.

Ground Pressure for Each Lift (Max. Load)

13.04 psi

Max. Hydraulic System Operating Pressure

2,230 psi

Operating Peak Power

4HP

Operating Voltage

24 VDC nominal

Charger Voltage Required

120-240 VAC @ 50-60 Hz

Charger Amps Required

2.8 Amps

Footprint of Lift Unit

450 sq. in.

Weight of Lift Unit

870 lbs. Per Column

Available in Black Only

Key Features

• Published product configuration: Challenger CLMM 5000 Medium Duty Mobile Column ALI Lift – Set of 4 Need the ALI Lift Inspection Guide?. Transform your shop into a mobile lifting powerhouse with the Challenger CLMM 5000 Medium Duty Mobile Column Lift. This professional-grade set of 4 mobile columns delivers an impressive 20,000 lbs. total lifting
• Exact manufacturer model or part number: CLMM-5000-4
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• Condition: New

Product Specifications

Before You Order

Confirm that model CLMM-5000-4, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
