Challenger 44040X HD XL Ex-Length Chain Driven 4-Post Lift 40,000 lb – New Black Color

Product Overview

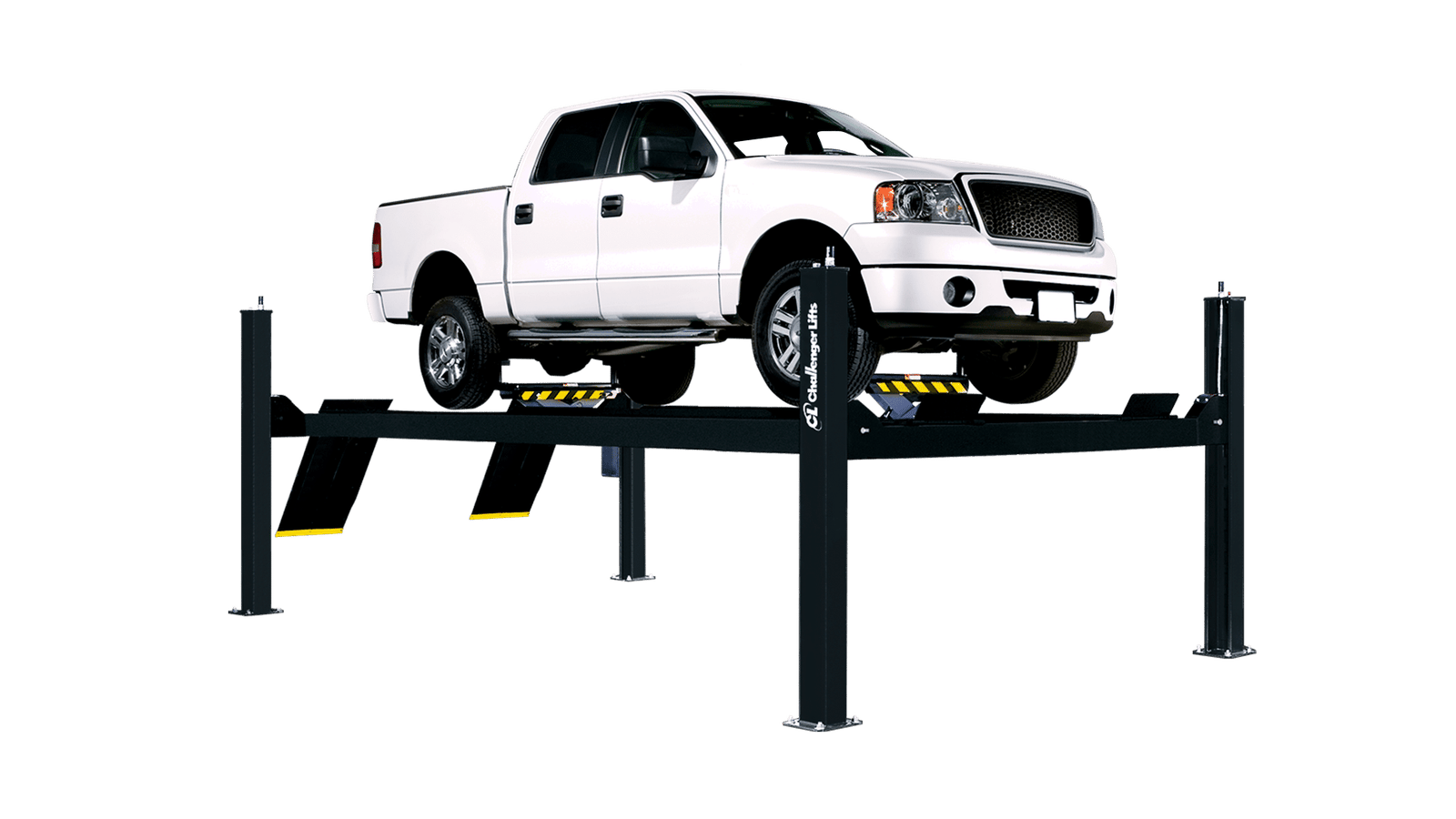

Challenger 44040X HD XL Ex-Length Chain Driven 4-Post Truck Lift 40,000 lb – New Black Color

The Challenger 44040X heavy duty four-post truck lift delivers 40,000 lb. lifting capacity engineered specifically for heavy commercial trucks, transit vehicles, and large construction equipment. This extra-length model features a 46-foot overall length and 430-inch maximum wheelbase, making it ideal for servicing extended chassis vehicles, large waste trucks, and other oversized commercial equipment. With its advanced variable-synchro power system, velocity fused redundant hydraulic safety system, and high-tensile strength leaf chain drive, the 44040X provides unmatched reliability and precision control for the most demanding professional service environments.

Engineered for Heavy Duty Commercial Applications

The Challenger 44040X is built to handle the toughest commercial vehicle service work with confidence and ease. Its heavy duty leaf chain and sealed roller bearings deliver maximum reliability and longevity even under continuous use with heavy loads. The lift's 10HP motor provides a smooth 70-second rise time through a full 73 inches of lift height, giving technicians comfortable access to undercarriage components on large trucks, buses, and specialty vehicles.

What sets this lift apart is its variable-synchro power system with dual hydraulic lift cylinders. This advanced system allows operators to raise and lower the front or rear lift suspension either simultaneously or independently, providing a stable and level platform when lifting vehicles with unbalanced weight distribution—perfect for waste trucks, cement mixers, and other construction vehicles with heavier front or rear axles.

Independent Power Control Console

The independent control console is mounted away from the hydraulic lift unit for safe and convenient operator access. This intuitive control station features the variable-synchro power controls that allow you to raise and lower the front or rear suspension either simultaneously or independently, giving you precise control over vehicle positioning. Dual pressure gauges provide real-time monitoring of system performance, while the single-point air lock release button enables the technician to disengage all column locks simultaneously with one simple action.

Safety Systems You Can Trust

Safety is paramount when lifting vehicles weighing up to 40,000 pounds. The Challenger 44040X features a velocity fused redundant hydraulic safety system that provides multiple layers of protection during lifting and lowering operations. The single-point air actuated lock release system allows technicians to disengage all column locks simultaneously, ensuring smooth and coordinated lowering. With 10 twin ladder lock positions, the lift can be secured at multiple comfortable working heights to accommodate a wide variety of service tasks and vehicle types.

Heavy Duty Runways and Approach Ramps

The diamond plate anti-skid runways and heavy duty fixed approach ramps are designed for positive vehicle traction and long-lasting durability. The ramps are bolted down for safe and easy drive-on access, eliminating movement or shifting during vehicle loading. Each runway measures 32 inches wide and sits at a 14-inch height, providing ample clearance for undercarriage work. The adjustable runways accommodate a variety of tread widths from 36 to 58 inches, making this lift versatile enough to handle everything from medium-duty trucks to wide-body commercial vehicles.

Twin Ladder Lock Positions for Maximum Versatility

The 10-level twin ladder lock positions provide precise height adjustment throughout the 73-inch rise height, allowing technicians to position vehicles at the most comfortable and efficient working height for any service task. Whether you're performing routine maintenance, exhaust work, suspension repair, or heavy undercarriage service, you can lock the lift at the ideal height for maximum productivity and reduced technician fatigue.

Built-In Accessory Rail System

The Challenger 44040X includes a built-in runway rail system that accepts optional convenience accessories such as rolling jacks and sliding oil drain pans. This integrated rail system keeps your service accessories organized and readily accessible, streamlining workflow and improving shop efficiency when servicing large commercial vehicles.

Key Highlights: Why Choose the 44040X?

• 40,000 lb. capacity handles the heaviest commercial trucks and transit vehicles

• 46-foot overall length with 430-inch maximum wheelbase accommodates extended chassis and oversized vehicles

• Variable-synchro power system with dual hydraulic cylinders independently raise front or rear for unbalanced loads

• Velocity fused redundant hydraulic safety system and single-point air lock release industry-leading safety features

• Adjustable runways (36" to 58" width) and built-in rail system maximum versatility and accessory integration

Product Features

• 40,000 lifting capacity for heavy commercial truck and transit vehicles

• Heavy duty, high tensile strength leaf chain and sealed roller bearings for maximum reliability

• Variable-synchro power system with dual hydraulic lift cylinders provide the ability to variably or simultaneously raise the front or rear lift suspension, providing a stable platform when lifting vehicles with heavier front or rear axles

• Velocity fused redundant hydraulic safety system

• Single point air actuated lock release system allows technician to disengage all column locks simultaneously

• Diamond plate anti-skid runways and heavy duty fixed approach ramps for positive vehicle traction and long lasting durability

• Adjustable runways accommodate a variety of tread and axle widths

• Built-in runway rail system for optional convenience accessories like rolling jacks and sliding oil drain pan

Product Specifications

Model Number

44040
44040E
44040X

Lift Capacity

40,000 lbs.

A Overall Length

36'

41'

46'

B Overall Width

17' 1-1/4"

C Inside Columns

144"

D Between Columns

290"

350"

410"

E Overall Height

92"

F Height of Runways

14"

G Width of Runways

32"

H Width Between Runways

36" – 58"

I Maximum Wheelbase

310"

370"

430"

J Rise Height

73"

Motor

10HP

Voltage 3 Phase

230v – 460v

Speed of Rise

70 seconds

Amps

30

Shipping Weight

12050 lbs.
(5466 kg)

13050 lbs.
(5919 kg)

14525 lbs.
(6588 kg)

Available in Black Only

Key Features

• Published product configuration: Challenger 44040X HD XL Ex-Length Chain Driven 4-Post Truck Lift 40,000 lb – New Black Color The Challenger 44040X heavy duty four-post truck lift delivers 40,000 lb. lifting capacity engineered specifically for heavy commercial trucks, transit vehicles, and large construction equipment. This extra-length model
• Exact manufacturer model or part number: 44040X
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 44040X, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.

Manuals & Technical Resources

• Manufacturer document 1
• Manufacturer document 2
