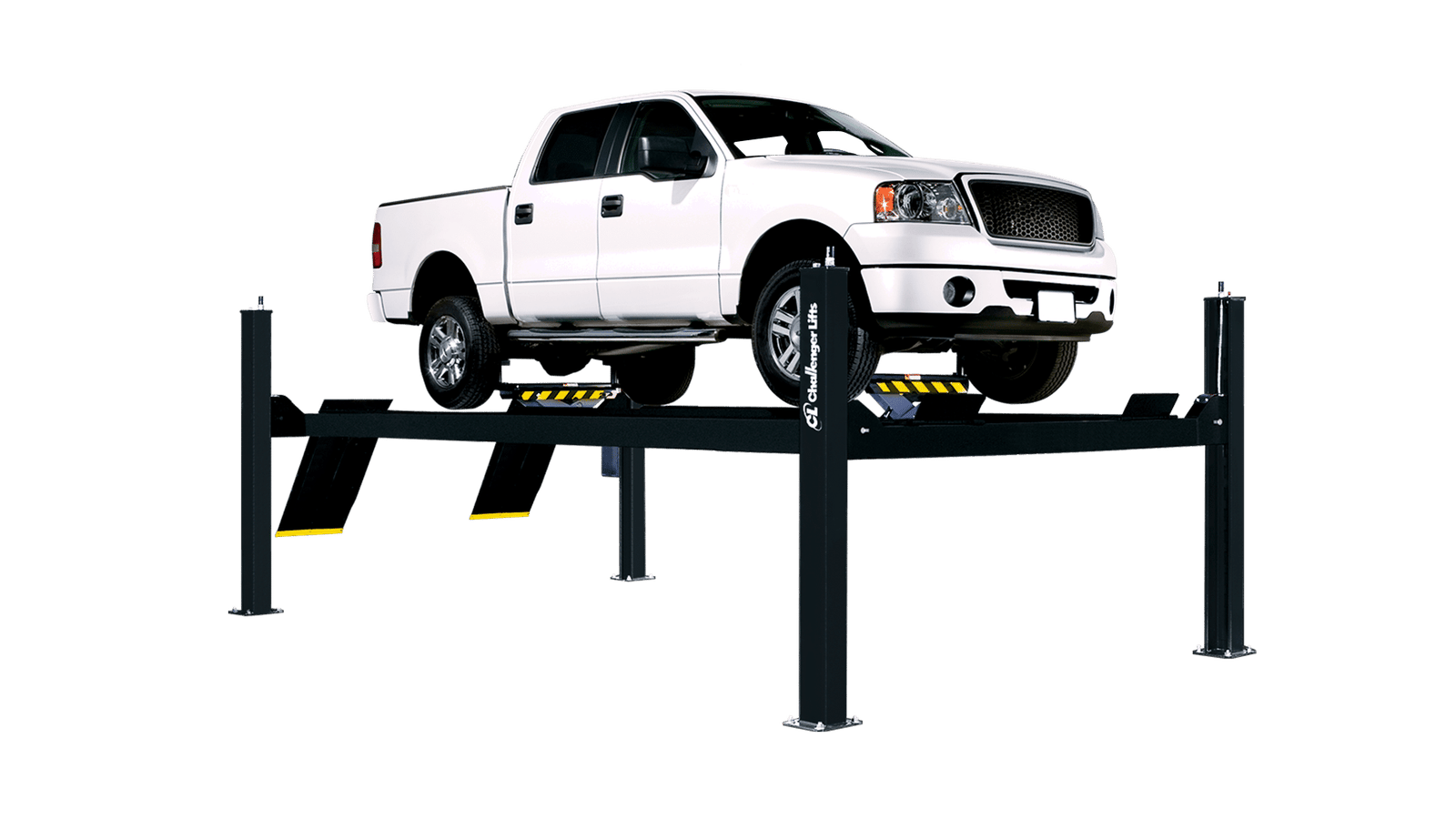

Challenger 44030AR HD 4-Post Hydraulic Alignment Lift 30,000 – New Black Color

Product Overview

Challenger 44030AR HD 4-Post Hydraulic Alignment Lift 30,000 lb Capacity

The Challenger 44030AR is a professional-grade 30,000 lb. capacity hydraulic four-post truck lift engineered for heavy-duty commercial service. This alignment rack model features turning radius gauge cutouts, making it the ideal solution for shops offering truck and large vehicle alignment services alongside routine maintenance and repair. Built with a superior lifting system utilizing high tensile strength leaf chain and sealed roller bearings, the 44030AR delivers maximum reliability and smooth, consistent operation for years of demanding use.

Designed to handle everything from commercial transit buses to heavy-duty pickups and work trucks, the 44030AR offers a 24' 7-1/2" overall length, 230" maximum wheelbase, and an impressive 68" of rise height. The heavy-duty hydraulic cylinder provides optimum lifting performance with minimal maintenance, while the 3HP motor delivers reliable power with a 105-second rise time. With adjustable runways that accommodate a wide variety of commercial vehicles and a built-in runway rail system for versatile accessory options, this lift transforms your shop into a complete heavy-duty service center.

Key Advantages of the 44030AR Alignment Rack Model

• 30,000 lb. lifting capacity handles heavy-duty trucks, commercial vehicles, and transit buses with ease

• Alignment-ready design with turning radius gauge cutouts and flush mount capability for optional 10500HD gauges

• Single point air actuated lock release disengages all column locks simultaneously for fast, efficient operation

• Diamond plate anti-skid runways and ramps provide positive vehicle traction and long-lasting durability

• Built-in runway rail system for easy integration of rolling jacks, oil drain pans, and other productivity-enhancing accessories

Built for Heavy-Duty Performance and Reliability

The Challenger 44030AR features a robust lifting system that sets the standard for commercial truck lifts. At its core is a heavy-duty, high tensile strength leaf chain paired with sealed roller bearings that ensure smooth, reliable lift operation under maximum load conditions. This superior chain-and-bearing design minimizes wear and extends service life, even in high-volume shop environments.

The lift's heavy-duty hydraulic cylinder is engineered for optimal performance with minimal maintenance requirements. Combined with a powerful 3HP motor operating on 208v – 230v power, the system raises vehicles to full height in just 105 seconds. The multi-position internal lock ladder provides a wide range of comfortable working heights, while the single point air actuated lock release system allows technicians to quickly and safely disengage all column locks at once—no need to manually unlock each post.

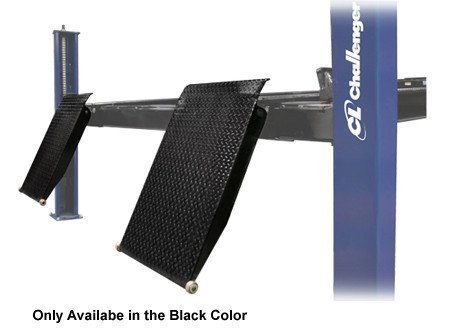

Diamond Plate Ramps and Runways for Safe, Sure-Footed Operation

Safety and traction are paramount when working with heavy commercial vehicles. The 44030AR features diamond plate approach ramps that provide superior drive-on tread traction. These ramps are built with heavy-duty steel rolling wheels designed for high-volume durability, allowing easy positioning and removal even after thousands of cycles.

The lift's 24" wide runways are also finished with diamond plate anti-skid surfaces, ensuring positive vehicle traction during approach and unload. The runways are adjustable to accommodate a variety of commercial transit buses and other large vehicles, with 54" – 75" width between runways. For shops performing wheel and brake work, the adjustable runways can be locked in place, making the lift compatible with rolling jack applications.

Internal Lock Ladder for Versatile Working Heights

The multi-position internal lock ladder inside each column provides a full range of secure locking positions throughout the lift's 68" rise height. This allows technicians to position vehicles at the optimal height for the specific task—whether performing alignments, exhaust work, undercarriage inspection, or heavy drivetrain service. The robust lock mechanism ensures the vehicle stays safely in place at any height.

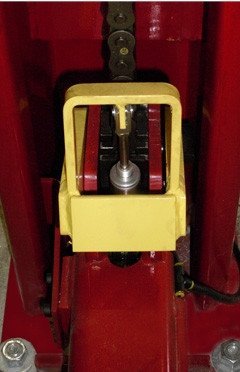

Heavy-Duty Chain with Air Actuated Lock Release

The heavy-duty, high tensile strength leaf chain is the heart of the 44030AR's lifting system. Engineered to withstand years of intensive use, the chain works in concert with sealed roller bearings to provide smooth, even lifting across all four posts. The single point air actuated lock release system is a major time-saver: with one touch, all column locks disengage simultaneously, allowing for fast lowering and efficient workflow—critical in busy commercial truck service environments.

An All-in-One Hydraulic Truck Lift Solution

The Challenger 44030AR is more than a lift—it's a complete productivity platform. The built-in runway rail system provides the versatility to add optional accessories like rolling jacks for brake and wheel work, sliding oil drain pans, ramp kits, and heavy-duty turning radius gauges. This modular approach allows you to configure the lift to match your shop's exact service offerings, transforming the 44030AR into a fully integrated heavy-duty truck service center.

As an Alignment Rack (AR) model, the 44030AR features turning radius gauge cutouts and is designed for flush mounting of optional 10500HD alignment gauges (sold separately). This makes it perfect for shops looking to expand their service capabilities to include truck and large vehicle wheel alignment a high-margin service that sets you apart from competitors and keeps customers coming back.

Specifications Overview for the 44030AR

The Challenger 44030AR offers a carefully engineered balance of capacity, footprint, and performance:

• Lift Capacity: 30,000 lbs.

• Overall Length: 24' 7-1/2"

• Overall Width: 12' 5½"

• Maximum Wheelbase: 230"

• Max 2 Wheel Alignment: 206"

• Rise Height: 68"

• Runway Width: 24"

• Width Between Runways: 54" – 75" (adjustable)

• Motor: 3HP

• Voltage: 208v – 230v (30 Amps) *Three Phase option available upon request

• Speed of Rise: 105 seconds

• Shipping Weight: 5,450 lbs. (2,472 kg)

Note: The Challenger 44030 series is also available in extended ( 44030EAR 29' 7-1/2" overall length, 290" wheelbase) and extra extended ( 44030XAR 34' 7-1/2" overall length, 350" wheelbase) configurations to accommodate longer wheelbase vehicles.

Installation Requirements

Concrete Floor Requirements:

The Challenger 44030AR requires a 4" thick, reinforced concrete floor that is free from cracks and seams, rated at 3500+ psi, and cured for at least 28 days. Proper floor preparation is critical for safe and reliable operation.

Watch these videos to see the Challenger 44030 series heavy-duty truck lifts in real-world shop environments:

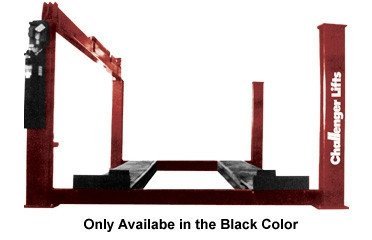

New Black Finish Available

The 44030AR is now available in a sleek black finish, offering a modern, professional appearance that complements any shop environment.

Product Features

• Heavy duty, high tensile strength leaf chain with sealed roller bearings for smooth reliable lift operation

• Heavy duty cylinder for optimal performance and minimal maintenance

• Single point air actuated lock release system allows technician to disengage all column locks simultaneously

• Diamond plate anti-skid runways and ramps provide positive vehicle traction and long lasting durability

• Adjustable runways accommodate a variety of commercial transit buses and other large vehicles (rolling jack application requires fixed runways)

• Built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pan

Product Specifications

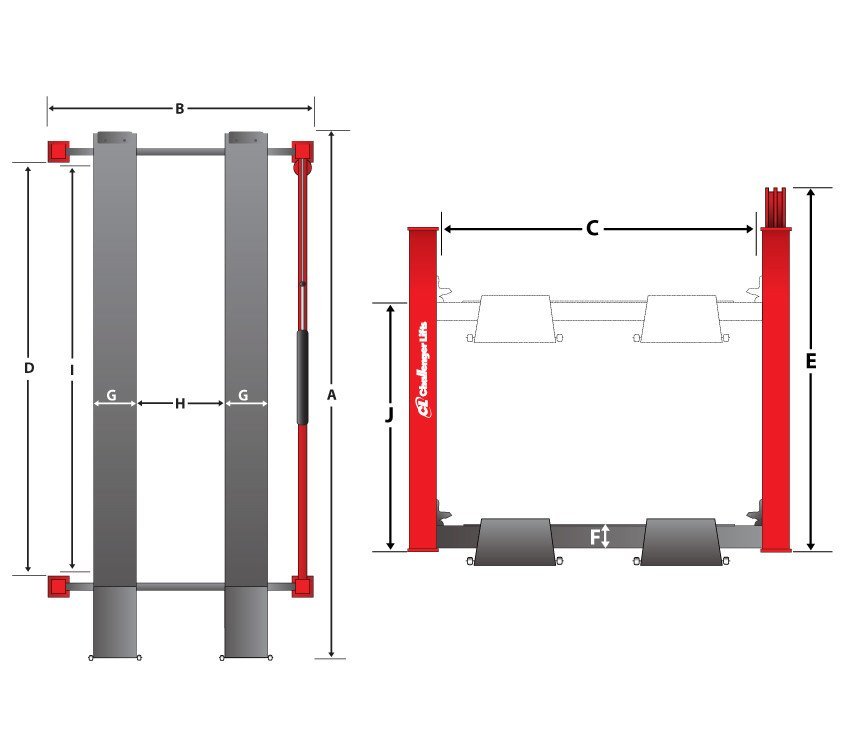

To compare the specifications for the different 44030 truck lifts, take a look at the chart below. Identify the length, width, wheelbase, speed of rise and more for six of Challenger's heavy duty lifts. Questions? Get in touch with us today.

Model Number

44030
44030AR
44030E
44030EAR
44030X
44030XAR

Lift Capacity

30,000 lbs.

A Overall Length

24' 7-1/2"

29' 7-1/2"

34' 7-1/2"

B Overall Width

12’ 5½”

C Inside Columns

132-1/2"

D Between Columns

233-3/4"

293-3/4"

353-3/4"

E Overall Height

92"

F Height of Runways

9"

G Width of Runways

24"

H Width Between Runways

54" – 75"

I Maximum Wheelbase

230"

290"

350"

J Rise Height

68"

Max. 2 Wheel Align

N/A

206"

N/A

266"

N/A

326"

Motor

3HP

Voltage

208v – 230v

Speed of Rise

105 seconds

Amps

30

Shipping Weight

5250 lbs
(2381 kg)

5450 lbs
(2472 kg)

5750 lbs
(2608 kg)

5950 lbs
(2699 kg)

6250 lbs
(2835 kg)

6450 lbs
(2926 kg)

Requires a 4" Thick, Reinforced, Free from cracks/seams, rated at 3500+ psi and cured at least 28 days

*Optional Three Phase Electrical Power Available. Please Specify at time of order.

Available in Black Only
