Challenger 4030XFX Closed Front Ex-Length Flat Deck 4 Post Lift – New Black Color

Product Overview

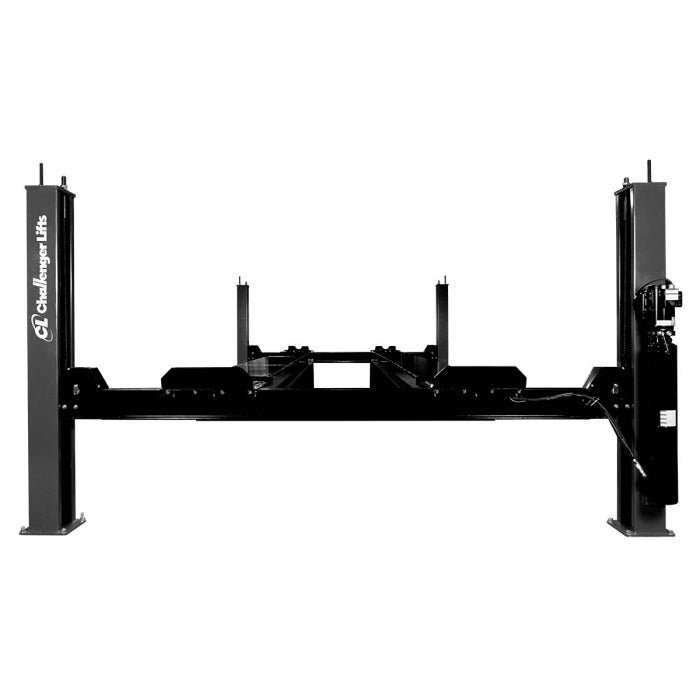

Challenger 4030XFX Closed Front Ex-Length Flat Deck 4 Post Lift – New Black Color

The Challenger 4030XFX represents the pinnacle of heavy-duty four-post lift engineering, combining ALI-certified reliability with an extra-length design that accommodates wheelbases up to 317 inches. Built on a time-proven cable and cylinder design system using heavy-duty steel sheaves and cables, this 30,000 lb capacity flat deck lift is engineered for professional shops that demand maximum performance, exceptional durability, and unmatched versatility for servicing extended wheelbase trucks, commercial vehicles, and specialty equipment.

With a 71.75-inch rise height, the 4030XFX provides generous work space underneath vehicles while maintaining an 8.5-inch low-profile runway height for easy vehicle loading. The closed front design with adjustable runways (adjustable from 46 to 52 inches between runways) ensures compatibility with a wide range of vehicle types and tire configurations. This model features durable non-skid louvered approach ramps for positive vehicle traction and technician safety, plus fold-down approach ramps with integrated jack rails for added convenience.

Time-Proven Performance & Heavy-Duty Construction

Challenger Lifts' 4030 Series is built on decades of engineering excellence. The 4030XFX features a heavy-duty cylinder for optimal performance and minimal maintenance, combined with large heavy-duty steel sheaves and cables that ensure smooth, reliable operation under the most demanding conditions. The time-proven cable and cylinder design system delivers consistent lifting power across the full 30,000 lb capacity range.

This lift is equipped with a six-position locking system and pneumatic single-position safety release, giving technicians the flexibility to work at multiple heights for alignment and general service tasks. The single point air actuated lock release disengages all column locks simultaneously for fast, safe operation. An integrated anti-sway device ensures stability during lifting and lowering cycles.

Built-In Versatility & Convenience Features

The 4030XFX includes a built-in runway rail system that provides versatility to add convenience options like rolling jacks and sliding oil drain pans (sold separately), transforming this lift into a complete service solution. The flat deck design is perfect for general service work, tire service, and maintenance tasks requiring full undercarriage access.

The closed front configuration offers maximum structural rigidity and allows technicians to work safely at the front of the vehicle. The lift's overall length of 380.125 inches and 318.625 inches between columns accommodates the longest commercial truck chassis and specialty vehicles, while the 3 HP motor delivers reliable power for smooth lifting cycles.

Why Choose the Challenger 4030XFX?

• Extra-Length Design: 380.125-inch overall length handles wheelbases up to 317 inches ideal for extended cab trucks, commercial vehicles, and specialty equipment

• ALI-Certified 30,000 lb Capacity: Professionally engineered and certified for heavy-duty commercial use with complete peace of mind

• Generous 71.75" Rise Height: Provides maximum working clearance underneath vehicles while maintaining an 8.5-inch low-profile runway height

• Six-Position Locking System: Pneumatic single-point release and multiple locking positions for versatile service work

• Built-In Rail System: Ready to accept rolling jacks, sliding drain pans, and other accessories for enhanced productivity

Video Overview

Technical Specifications at a Glance

The Challenger 4030XFX is engineered with precision dimensions to fit a 34' x 17' minimum recommended bay size. It features an overall width of 172.75 inches, with 152 inches inside the columns and 24-inch wide runways. The lift operates on 208-230V single phase power and requires 90-120 PSI air pressure for the pneumatic lock release system. The overall height of 92.25 inches fits standard commercial bay ceilings while providing exceptional rise capability.

This lift is available in black only and is proudly Made in USA, ensuring the highest quality standards and long-term parts availability. The 4030XFX is also compatible with the industry's latest camera imaging alignment systems, making it suitable for shops looking to upgrade to modern alignment technology in the future.

Made in USA Quality

Every Challenger 4030XFX lift is manufactured in the USA with premium materials and rigorous quality control standards. This commitment to domestic manufacturing ensures superior craftsmanship, reliable parts availability, and responsive technical support for the lifetime of your lift.

Product Features

• ALI-Certified Cable-Driven 30K 4 Post!

• Adjustable runways

• Anti-sway device

• Six position locking and pneumatic single position safety release

• Fold down approach ramps with jack rails

• Large heavy-duty steel sheaves and cables

• Time-proven cable and cylinder design system

• 71.75” rise height provides more work space underneath vehicles

• Heavy-duty cylinder for optimal performance and minimal maintenance

• Single point air actuated lock release disengages all column locks simultaneously

• Multiple locking positions for a variety of alignment and general service tasks

• Compatible with the industry’s latest camera imaging alignment systems

• Available recessed heavy duty steel turnplates provide accurate readings

• Durable non-skid louvered approach ramps for positive vehicle traction and technician safety

• Built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pan (Sold Separately)

Product Specifications

Closed Front

Flat Deck
Alignment Rack Package

Model

4030SFX

4030EFX

4030XFX

4030SAX

4030EAX

4030XAX

Lift Capacity

30,000 lbs.

A Length Overall

308.125”
(7826mm)

344.125”
(8741mm)

380.125”
(9655mm)

308.125”
(7826mm)

344.125”
(8741mm)

380.125”
(9655mm)

B Width Overall

172.75” (4388mm)

C Inside of Columns

152” (3861mm)

D Between Columns

246.125”
(6252mm)

282.625”
(7179mm)

318.625”
(8093mm)

246.125”
(6252mm)

282.625”
(7179mm)

318.625”
(8093mm)

E Height Overall

92.25” (2343mm)

F Height of Runways

8.5” (216mm)

G Width of Runways

24” (610mm)

H Width Between Runways

46” Min – 52” Max (1168mm – 1321mm)

I Maximum Wheelbase 1

244.5” (6210mm)

281” (7137mm)

317” (8052mm)

244.5” (6210mm)

281” (7137mm)

317” (8052mm)

J Rise Height

71.75” (1822mm)

Max. 2 Wheel Alignment

N/A

N/A

N/A

219.5” (5575mm)

256” (6502mm

292” (7419mm)

Motor

3 HP

Voltage (Single Phase)

208v – 230v

Air Required

90 – 120 psi

Speed of Rise

TBD

Min. Recomm. Bay Size

28’ x 17’

31´ x 17´

34´ x 17´

28’ x 17’

31´ x 17´

34´ x 17´

1. Maximum wheelbase is based on a tire diameter of 30"

Available in Black Only
