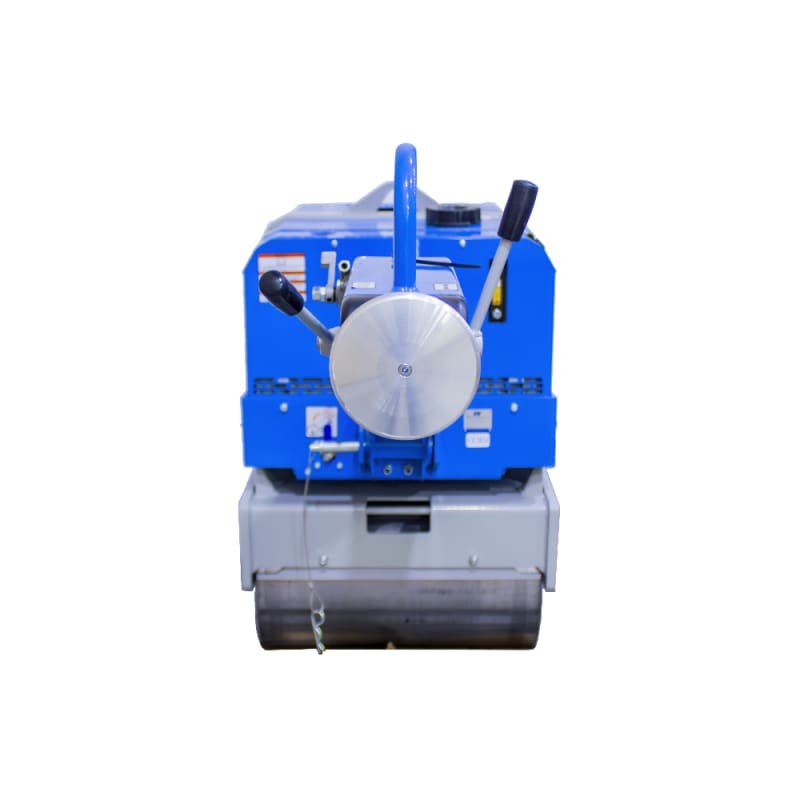

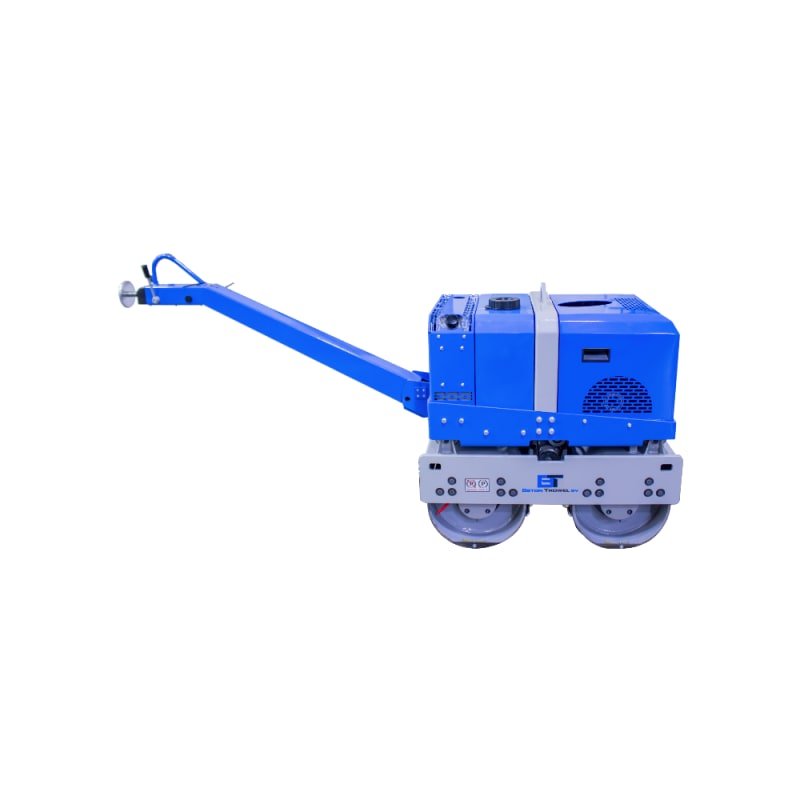

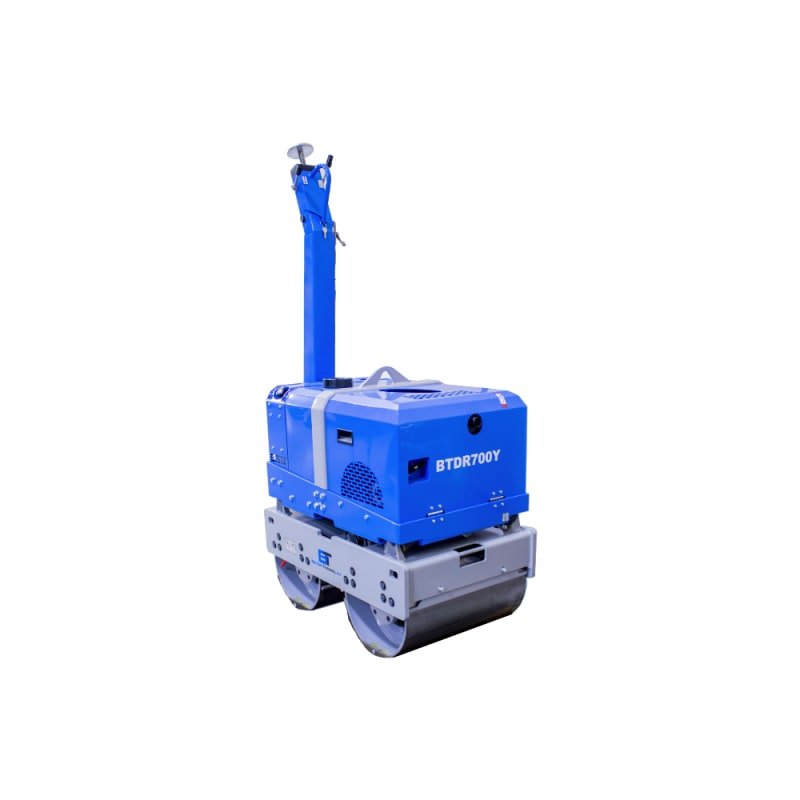

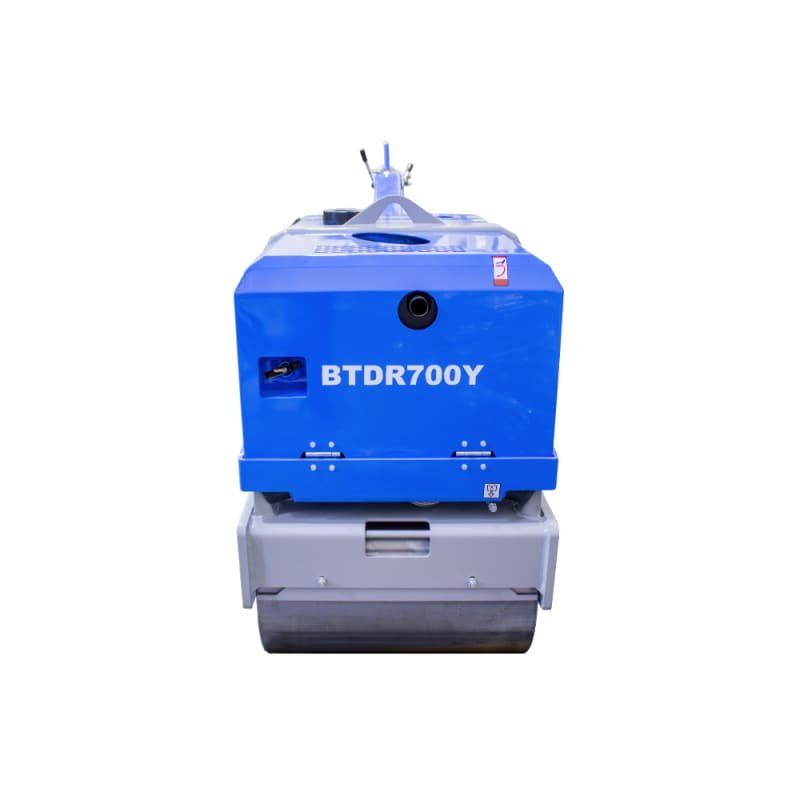

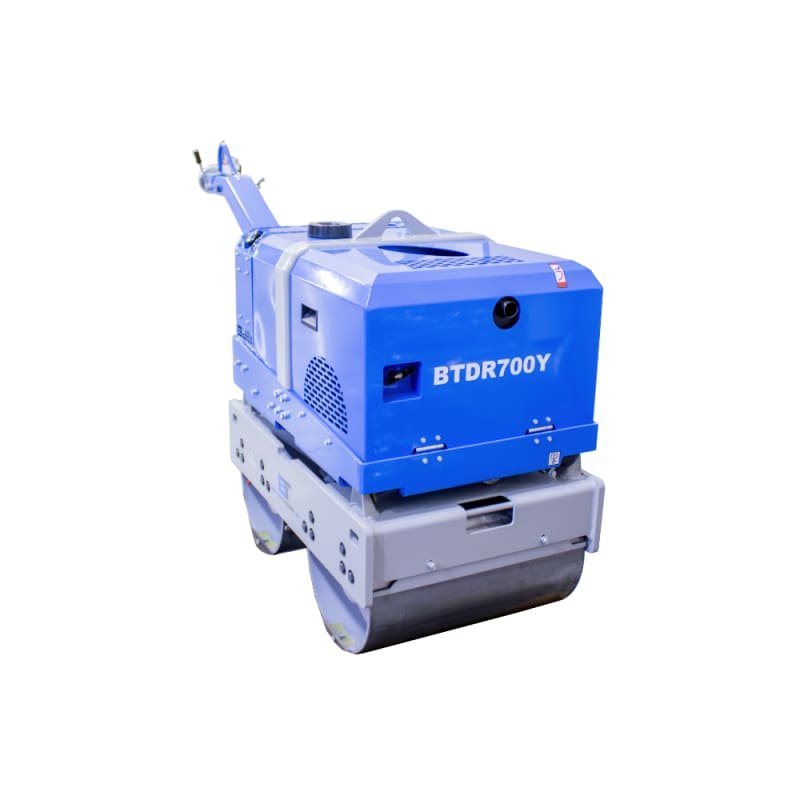

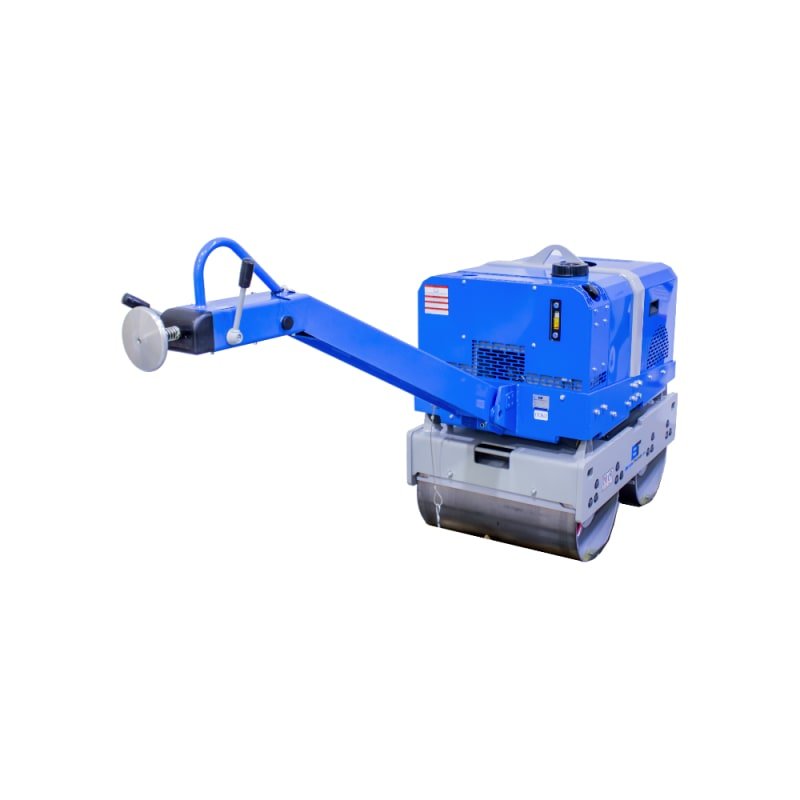

BT Walk Behind Roller | 28 In. | Yanmar L100 | Smooth Drum | 2000 Lb.
$10,985.00
Beton Trowel BTDR700Y Compaction Roller is configured for larger soil and asphalt areas requiring uniform rolling coverage. Key configuration: 22.2 kN / approx. 4,991 lbf centrifugal force, 820 kg / approx. 1808 lb weight, and L100AE Diesel engine.
Beton Trowel BTDR700Y Compaction Roller is a compaction roller designed for larger soil and asphalt areas requiring uniform rolling coverage. The BTDR700Y configuration pairs 22.2 kN / approx. 4,991 lbf centrifugal force, 820 kg / approx. 1808 lb weight, and L100AE Diesel engine.
Key differentiators
- 22.2 kN compaction or impact output for jobsite production planning
- Yanmar L100AE diesel; official table also lists KAMA 186 FE MAX option power package matched to the listed SKU
- 820 kg / approx. 1808 lb machine weight helps crews plan loading and freight
- 60 m/min / approx. 197 ft/min travel speed supports productivity estimates
- 48-62 Hz / approx. 2,880-3,720 VPM vibration rate for soil, asphalt, or paver compaction
- 60 L water setup supports asphalt or paver work where applicable
Specifications
- Equipment Type
- Walk Behind Roller
- Engine
- L100AE Diesel
- Centrifugal Force (Lb.)
- 22.2 kN / approx. 4,991 lbf
- Dimensions
- 2550 x 700 x 1250 mm
- Width
- 25.5 in.
- Gradient Climb
- 40%
- Travel Speed
- 60 m/min / approx. 197 ft/min
- Vibrations Per Minute
- 48-62 Hz / approx. 2,880-3,720 VPM
- Warranty
- 1 Year
- Horsepower
- 6.5 HP
- Weight
- 820 kg / approx. 1808 lb
- Model
- BTDR700Y
- Engine Type
- Yanmar L100AE diesel; official table also lists KAMA 186 FE MAX option
- Max. Output Power
- 6.5 kW
- Roller Length
- 650 mm
- Roller Diameter
- 420 mm
- Vibration Frequency
- 48-62 Hz
- Max.Traveling Speed
- 60 m/min
- Limited Gradient
- 40%
- Water Tank Capacity
- 60 L
- Water Tank
- 60 L
- Advance
- Hydraulic
- Vibration
- Manual
- Source Conflict Note
- Equipment Broker Group title lists 2000 lb; manufacturer table lists 820 kg operating weight
- Included
- Machine in listed SKU configuration; optional accessories only when stated in title or source listing
Best-fit applications
The BTDR700Y is best matched to larger soil and asphalt areas requiring uniform rolling coverage where the job requires 22.2 kN / approx. 4,991 lbf centrifugal force, 820 kg / approx. 1808 lb weight, and L100AE Diesel engine.
- Tooling or working setup: Machine in listed SKU configuration; optional accessories only when stated in title or source listing
- Handling reference: 820 kg / approx. 1808 lb
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
