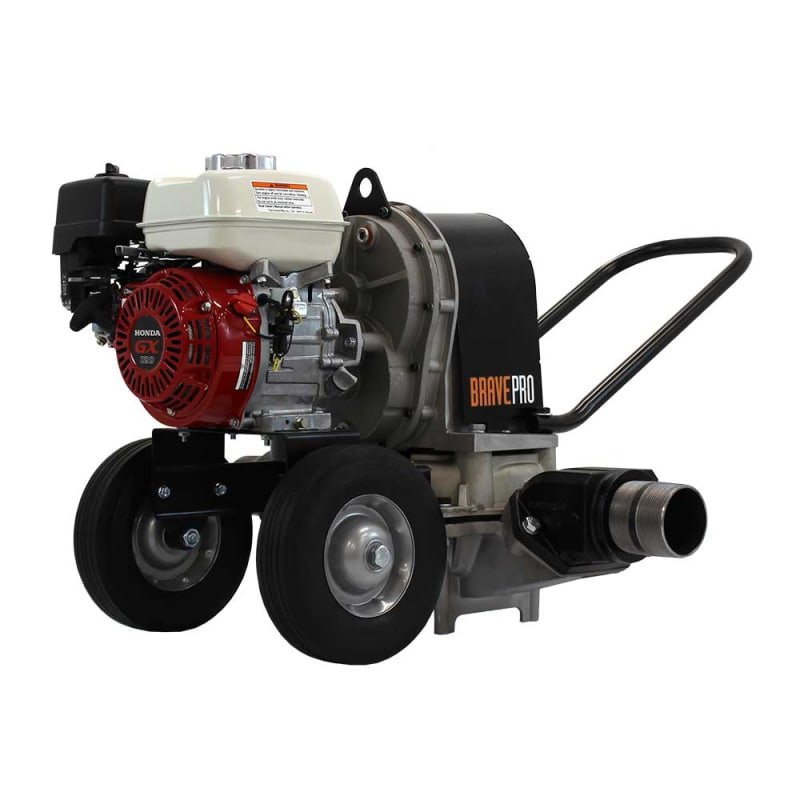

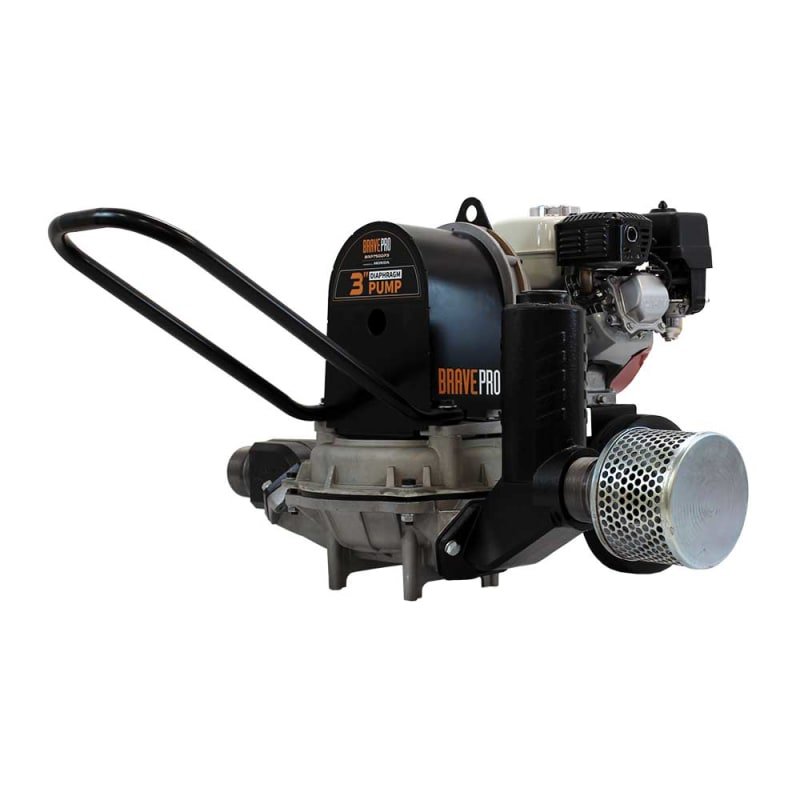

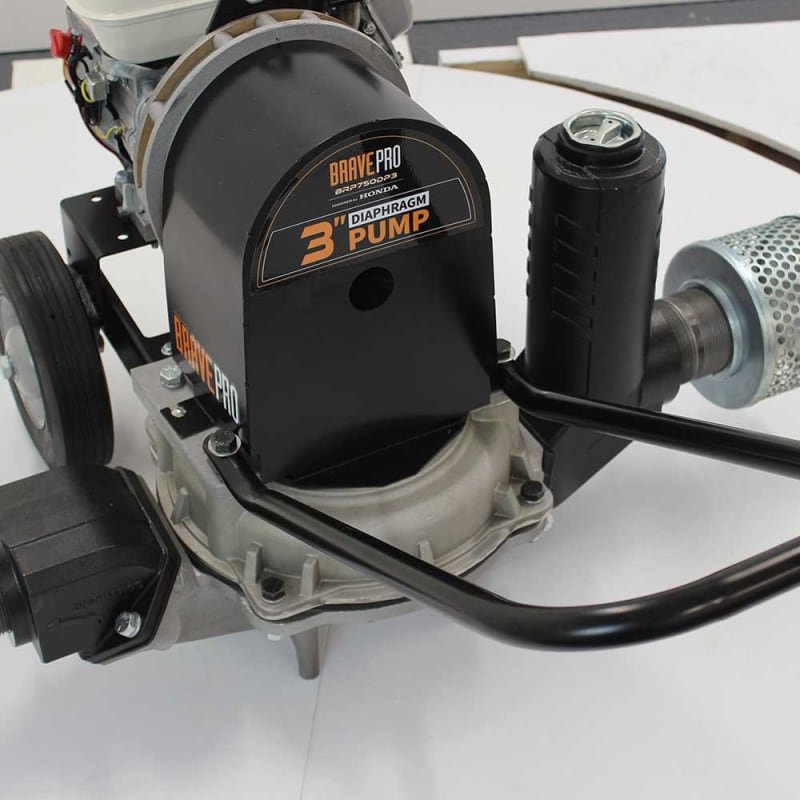

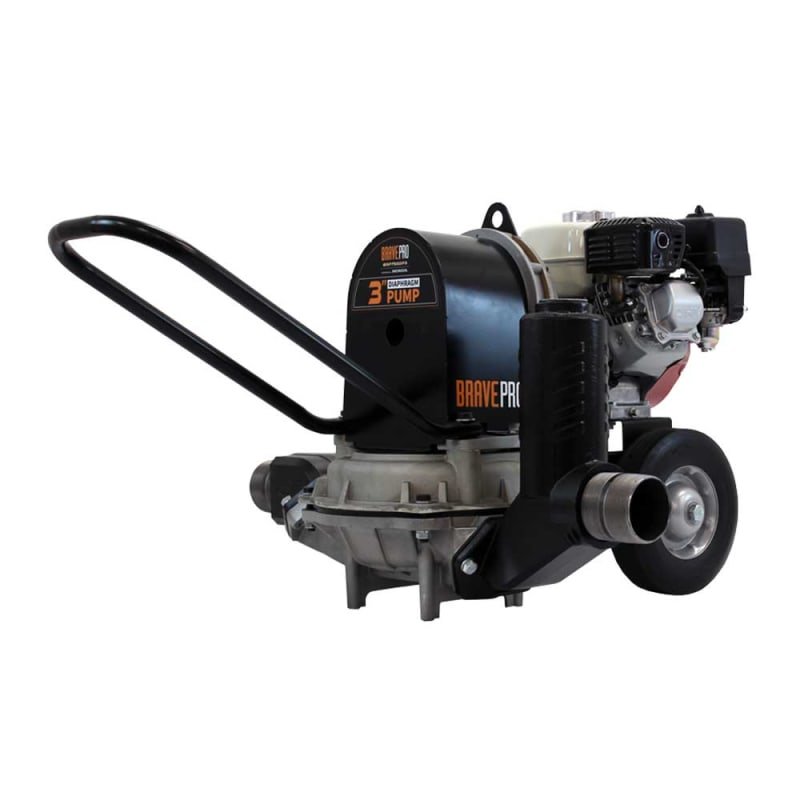

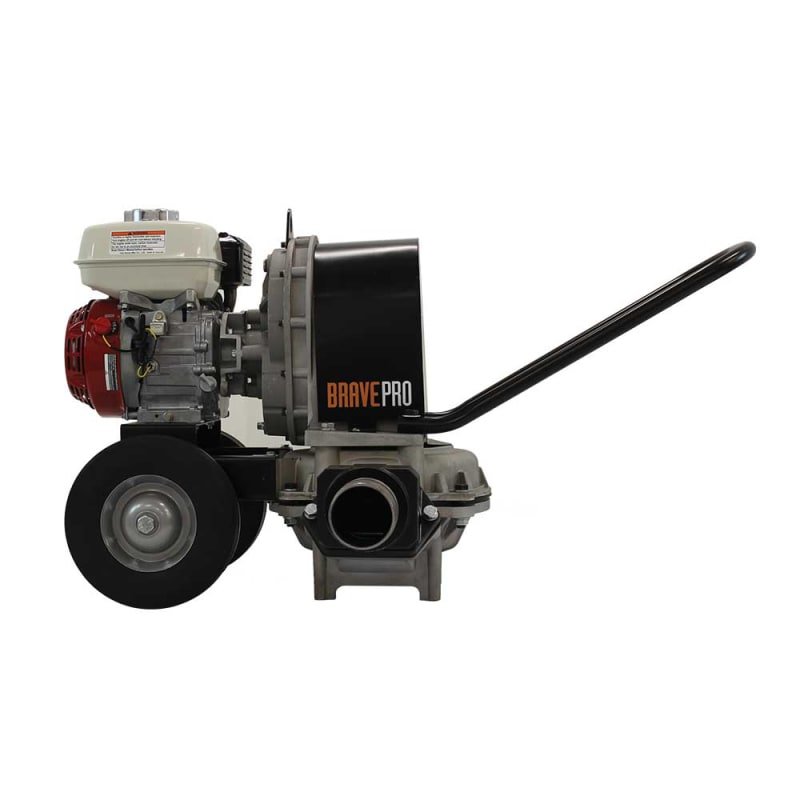

BravePro Diaphragm Pump | 3 In. | Honda GX120

Brave BRP750DP3 Diaphragm Pump is a diaphragm pump designed for dewatering mud, sludge, and abrasive fluids where centrifugal pumps are unsuitable. The BRP750DP3 configuration pairs Honda GX120 engine, Honda engine brand, and 122 cc engine displacement.

Key differentiators

• Diaphragm design is suited to mud, slurry, silt, sand, and abrasive water mixtures.
• 89 GPM capacity supports controlled dewatering where trash pumps are not ideal.
• Honda GX120 engine provides compact gasoline power.

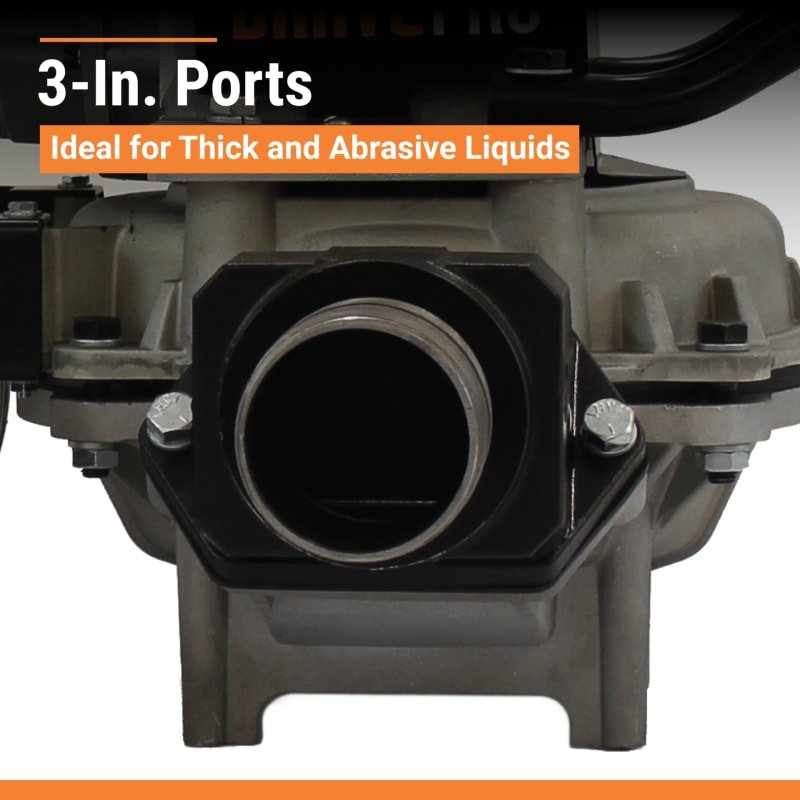

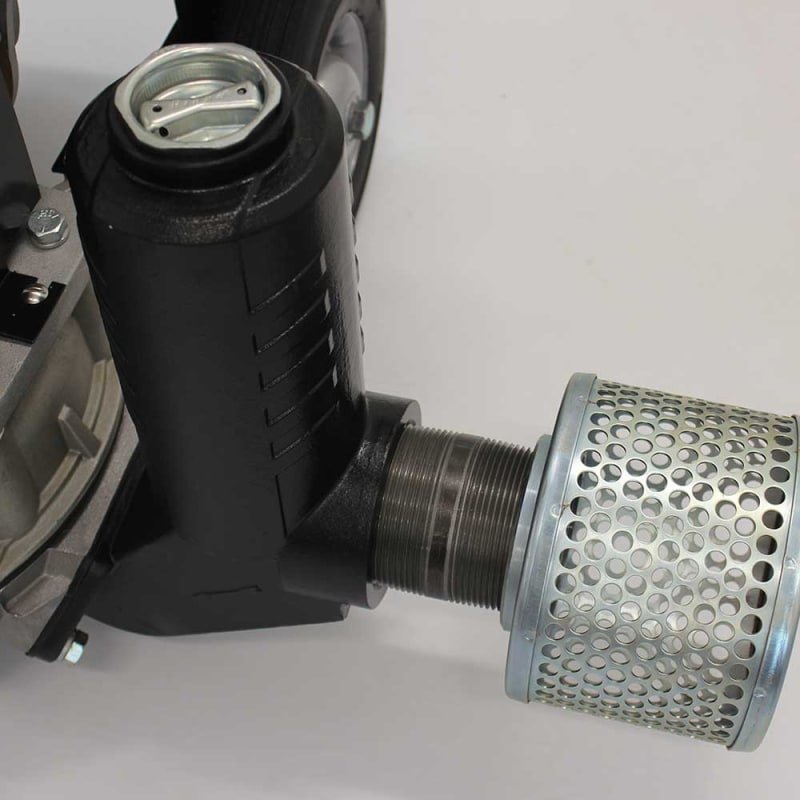

• 3 in NPT suction and discharge ports match common hose kits.
• Thermoplastic/TPE diaphragm and neoprene check valve are captured for maintenance review.
• 175 lb dry weight and standard assembled unit details support freight planning.

Specifications

Manufacturer Model

BRP750DP3

Equipment Type

3 in gas diaphragm pump

Engine

Honda GX120

Engine Brand

Honda

Engine Displacement

122 cc

Pump Type

Diaphragm pump

Material

Aluminum

Diaphragm

Thermoplastic/TPE

Check Valve

Neoprene

Gearbox

Oil bath

Bearings

Needle

Discharge Capacity

89 gal/min

Suction Port Diameter

3 in NPT

Discharge Port Diameter

3 in NPT

Pressure

11 psi max / 10.9 psi manual caution

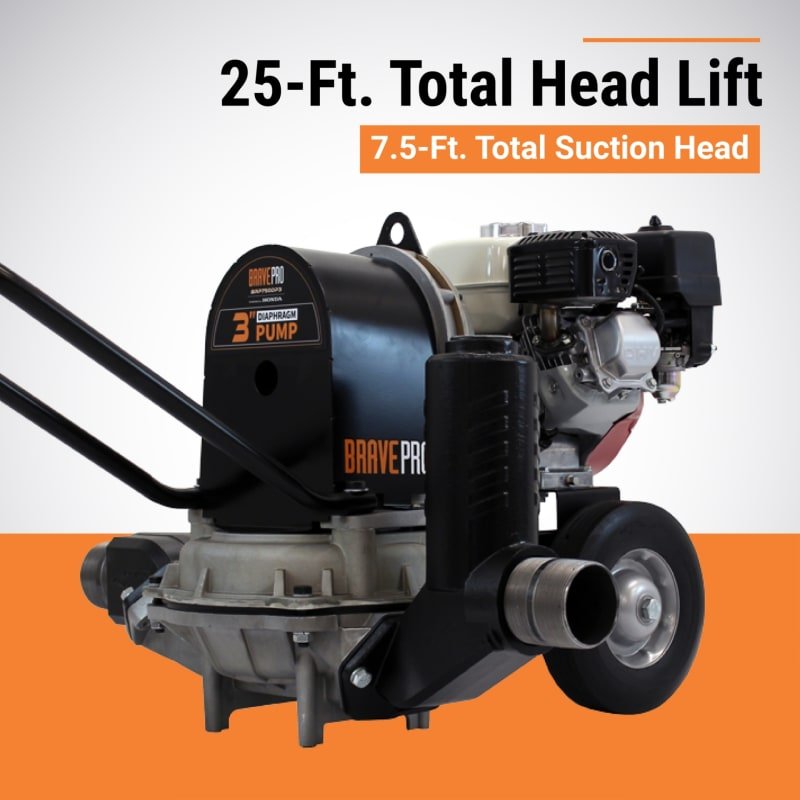

Total Head Lift

25 ft

Suction Head Lift

7.5 ft listed by retailers

Solids Handling

Up to 1-5/8 in diameter

Liquid Temperature Range

40-180 deg F

Dry Weight

175 lb

Warranty

1-year limited manufacturer warranty listed by Northern Tool; other retailers list 2-year limited / 1-year commercial

Best-fit applications

The BRP750DP3 is best matched to dewatering mud, sludge, and abrasive fluids where centrifugal pumps are unsuitable where the job requires Honda GX120 engine, Honda engine brand, and 122 cc engine displacement.
