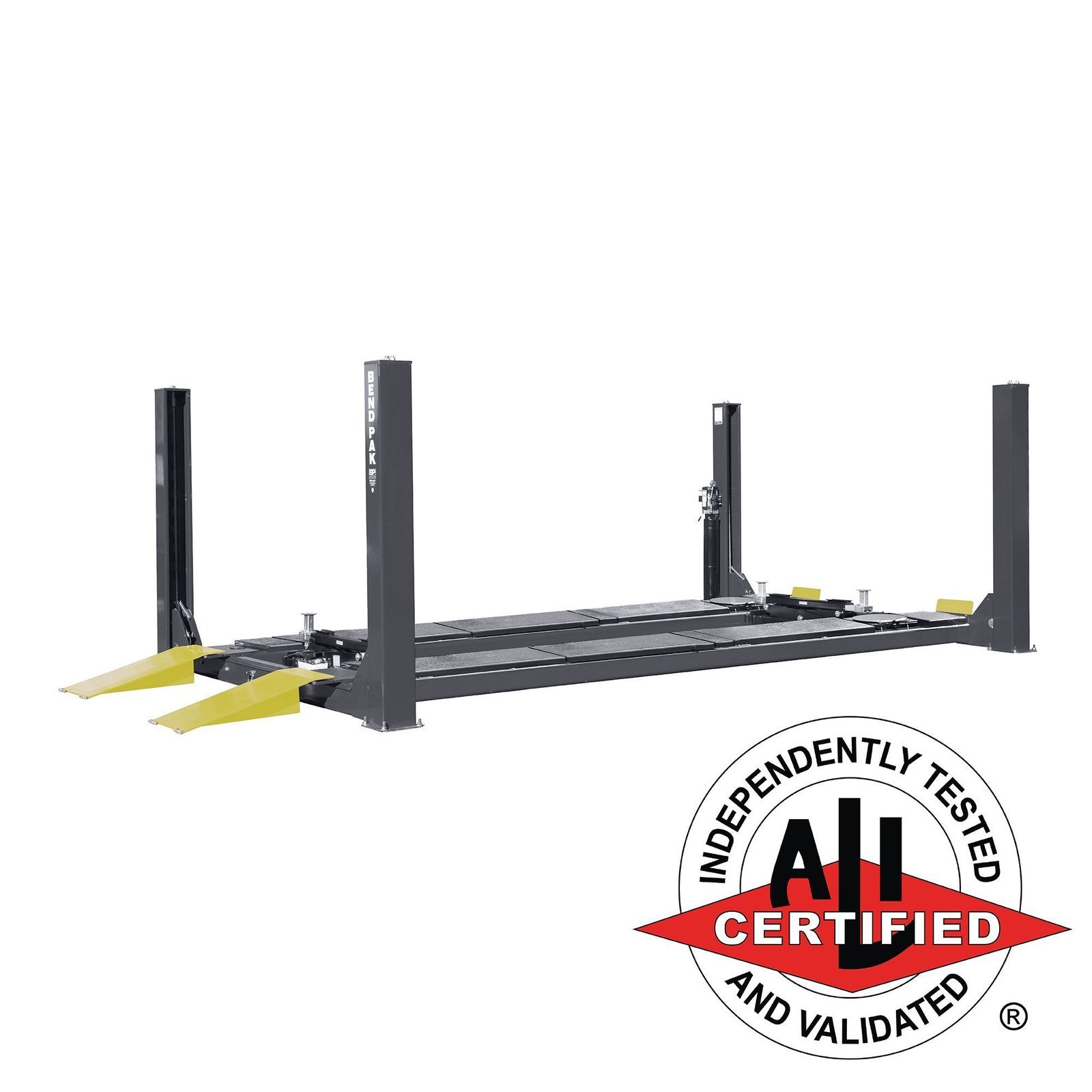

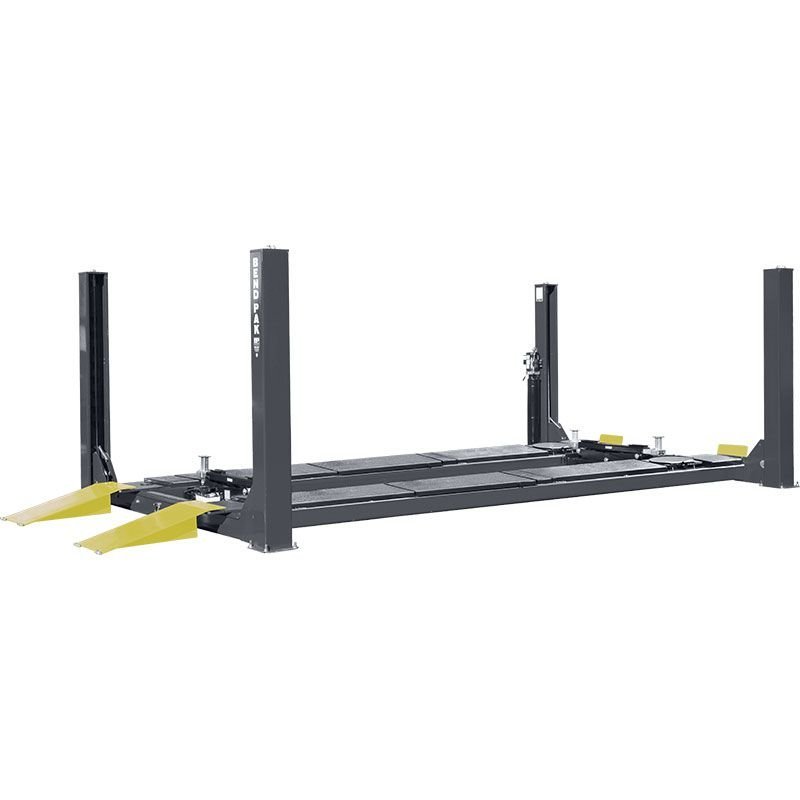

BendPak HDS-18EA Alignment 4 Post Car Lift 18,000 lb. – New Gray

Product Overview

BendPak HDS-18EA Alignment 4 Post Car Lift 18,000 lb. – New Gray

The BendPak HDS-18EA is the ultimate heavy-duty four-post alignment lift for professional shops that demand maximum capacity without sacrificing versatility. With an impressive 18,000 lb. lifting capacity, this lift handles everything from lightweight sports cars and race vehicles to full-size trucks and heavy SUVs with absolute confidence. CE Approved and Certified to meet or exceed European Standard EN 1493, the HDS-18EA delivers uncompromising safety, precision alignment capabilities, and world-class engineering that BendPak is known for worldwide.

Engineered for high-volume shops where floor space is at a premium and equipment must perform multiple roles, this alignment lift provides exceptional value. You won't need multiple specialty lifts when the HDS-18EA can service virtually any vehicle that rolls through your bay doors. From the aircraft-quality stainless-steel cables and massive 12-inch diameter cable sheaves to the spring-loaded automatic safety locks and secondary slack-cable detection system, every component is over-engineered for longevity and reliability. Backed by BendPak's industry-leading warranty, the HDS-18EA represents the best value in professional-grade alignment lifts, period.

Perfect Alignment on Every Vehicle Type

The HDS-18EA is purpose-built for precision wheel alignment work on vehicles of all sizes. Whether you're aligning a compact car, a lifted truck, or a heavy-duty SUV, this lift provides the stable, level platform and advanced features you need for accurate results every time.

Multi-Caster Slip Plates

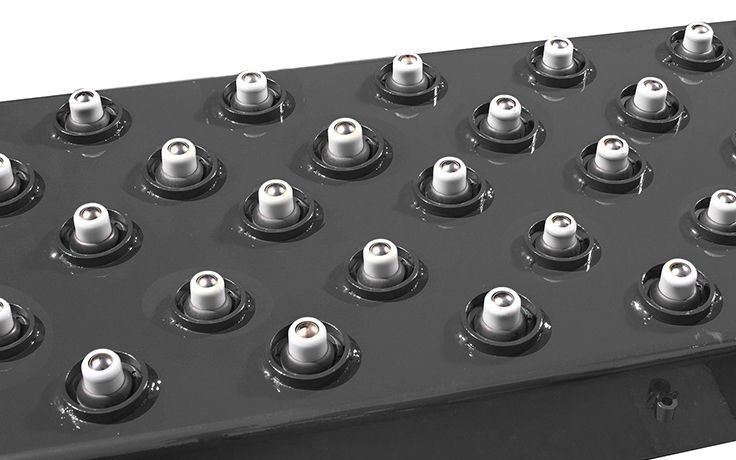

The rear-seated, free-floating slip plates are a game-changer for professional alignment work. They allow you to perform four-wheel alignments on heavy trucks and SUVs while keeping the vehicle's suspension completely relaxed and naturally settled. The slip plates securely hold the rear wheels, eliminating the need for individual wheel jacking that can cause suspension flex or tire wall pressure loss. This translates to more accurate alignment readings and faster service times. Your customers get better results, and your shop gets higher throughput.

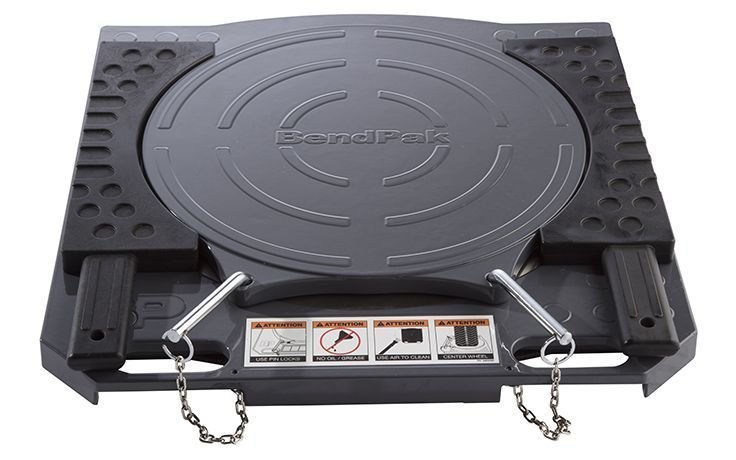

Precision Front Turn Plates

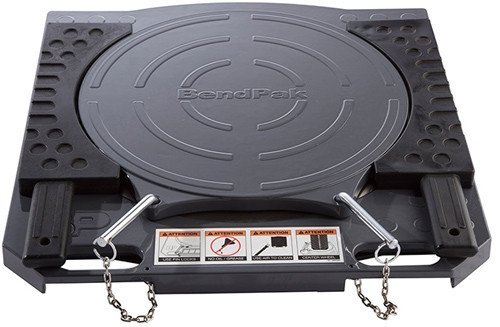

The HDS-18EA features galvanized, corrosion-resistant front-alignment turn plates with dual recessed pockets that make vehicle positioning effortless. Whether you're installing 3D alignment pads or other modern alignment equipment, these turn plates accommodate your setup with minimal effort. The recessed design keeps alignment tools secure and stable throughout the entire alignment procedure, giving you confidence in every measurement.

Extended Wheelbase Alignment Range
This lift accommodates an impressive range of wheelbases. Minimum four-wheel alignment wheelbase is just 83 inches, while maximum four-wheel alignment extends to 138 inches. For two-wheel alignments, you can service vehicles with wheelbases up to 211 inches. That kind of flexibility means you can confidently accept alignment jobs on nearly any passenger vehicle, light truck, or SUV on the road today.

World-Class Engineering and Safety Features

Supersized Dual-Hub Cable Sheaves

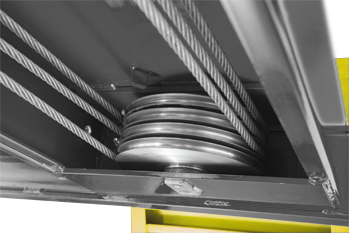

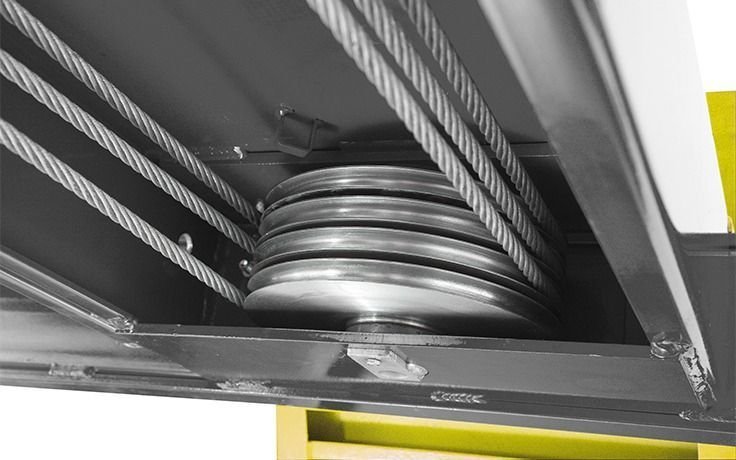

The heart of any cable-driven lift is the sheave system, and BendPak doesn't cut corners. The HDS-18EA is equipped with massive 12-inch diameter cable sheaves paired with equally robust 4-inch diameter sheave axles. These aren't just generic steel pulleys—they're precision-engineered, heavy-duty components designed to last decades. When you pick one up, the sheer weight and quality are immediately apparent. Located internally within the runways, these sheaves handle the stresses of daily lifting operations without showing wear. Grease nipples at every sheave and axle keep the system lubricated and operating smoothly with minimal periodic maintenance.

Heavy-Duty Aircraft-Quality Lifting Cables
Four 1/2-inch diameter, 6 x 25 stainless-steel lifting cables provide the muscle to hoist up to 18,000 lbs. with speed and confidence. These cables are the same aircraft-quality construction used in critical aerospace applications, meaning they are built to exacting standards for strength and durability. The cables are internally routed through the columns, protecting them from shop hazards, yet the open-sided column design allows you to visually inspect them at any time. You'll see for yourself that BendPak cables remain lubricated, free of corrosion, and virtually wear-free even after years of heavy use.

Spring-Loaded Automatic Safety Locks
Safety is non-negotiable in any professional lift, and the HDS-18EA is engineered with multiple redundant safety systems. Spring-loaded automatic safety locks engage at nine adjustable locking positions spaced 6 inches apart, giving you precise control over your working height. These locks automatically engage as the lift rises and accommodate slight slopes in your shop floor, ensuring a stable, secure lock every time.

Push-Button Pneumatic Lock Release
Once your vehicle is safely locked in place, releasing the locks to lower the vehicle is equally effortless. A single push-button pneumatic control releases all four locks simultaneously. The system uses stainless-steel and aluminum pneumatic cylinders that are built to withstand the rigors of daily shop use for many years. The pneumatic release system is fast, reliable, and keeps your workflow moving efficiently.

Secondary Slack-Cable Detection Lock System
In addition to the primary safety locks, the HDS-18EA features an advanced secondary lock system that constantly monitors cable tension. If cable slack is detected beyond normal operating parameters, the system immediately engages a secondary lock and shuts down the power unit until the issue is resolved. This vigilant safety feature provides an additional layer of protection and peace of mind, ensuring that even in the unlikely event of a cable issue, the lift and vehicle remain secure.

Integrated Hydraulic Flow Restrictor
The single hydraulic under-runway cylinder is equipped with an integrated flow restrictor (also called a flow divider) that ensures the lift platforms rise evenly and smoothly. In the extremely unlikely event of a hydraulic failure, the flow restrictor ensures the lift descends slowly and in a controlled manner rather than dropping suddenly. This is a critical safety feature that BendPak includes as standard equipment on every alignment lift.

Built for Speed, Comfort, and Convenience

Fast Lifting Speed
Time is money in a busy alignment shop. The HDS-18EA reaches its full 59-inch maximum rise in just 75 seconds, getting vehicles up to working height quickly so your technicians can get to work. The lift's maximum lifting height of 71.5 inches provides generous clearance for undercarriage work, tire service, and alignment procedures.

Multiple Adjustable Locking Heights
Technician comfort and ergonomics are critical to productivity. With nine adjustable locking positions, you can choose the exact working height that keeps your team comfortable and efficient. Whether you're performing alignments, inspections, or undercarriage work, you can position the vehicle at the ideal height for the job.

Ergonomic Control Placement
The electric-hydraulic power system features conveniently located controls with an intuitive, user-friendly interface. Start, stop, and emergency shutoff functions are logically arranged and easy to access. The control display provides clear status readouts and warnings, so you always know exactly how your lift is operating. Training new technicians is fast and straightforward.

Non-Skid Runways for Safe Vehicle Loading
The runway surfaces feature a durable, non-skid tread pattern that holds vehicles firmly in place during lifting and lowering. Even if the runways are wet or have traces of oil or fluids, the textured surface provides reliable traction. Your vehicles stay put, and your technicians stay safe.

Extended Approach Ramps
Loading a variety of vehicles throughout the day is a breeze thanks to the lift's longer approach ramps. Low-profile sports cars won't bottom out, and larger trucks and SUVs can drive onto the lift without needing excessive throttle or sudden braking. The gradual slope makes vehicle positioning smooth, quick, and worry-free.

Durable Construction and Integrated Protection

Fully Integrated Design
One of the standout features of the HDS-18EA is its clean, integrated design. All cables, hydraulic lines, and airlines are internally routed and protected within the lift structure. This isn't just about aesthetics—it's about longevity and safety. By enclosing the critical working components, BendPak protects them from weather, corrosive chemicals, accidental impacts, and other shop hazards. Your lift will look better and last longer with less maintenance.

Flexible Protective Conduit
Even the externally routed connections are protected. All hydraulic lines and airlines run through tough, durable, non-conductive flexible conduit. If there's any potential exposure to the elements or shop traffic, BendPak has it covered—literally.

Durable Powder Coat Finish
The HDS-18EA comes with a tough, professional-grade powder coat finish in a sleek new gray color. This finish is resistant to chipping, scratching, and corrosion, keeping your lift looking sharp and professional for years. The powder coat also makes the lift easy to clean and maintain.

Robust Column and Base Construction
The lift columns stand 91.25 inches tall and are built from heavy-gauge steel for maximum strength and rigidity. Each column is anchored with oversized 12" x 12" base plates that distribute the load evenly and provide a rock-solid foundation. This lift is built to last a lifetime in a professional shop environment.

Optional Rolling Bridge Jacks for Maximum Versatility

Transform Your Alignment Lift into a Full-Service Bay

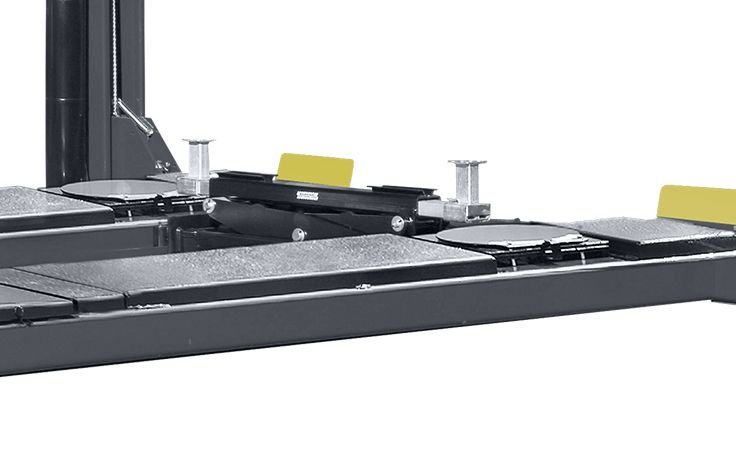

The HDS-18EA can be equipped with optional rolling bridge jacks (sold separately) that turn your alignment lift into a true multi-purpose service tool. These jacks engage the vehicle's frame and lift it completely off the runways, giving you full access to all four wheels for tire changes, brake service, suspension work, and more.

Using two bridge jacks together, you can lift the entire vehicle for complete undercarriage access without needing to move it to another lift. This is a massive time-saver in busy shops and maximizes the utility of your floor space. Each rolling bridge jack features telescoping arms and frame contact pads designed to reach the lift points on virtually any vehicle, from compact cars to heavy-duty trucks and SUVs. If you want the ultimate in flexibility and productivity, bridge jacks are an investment that pays for itself quickly.

Key Highlights

• 18,000 lb. lifting capacity handles everything from sports cars to heavy trucks and SUVs

• CE Approved and Certified meets or exceeds European Standard EN 1493

• Multi-caster slip plates and front turn plates included professional-grade alignment capability out of the box

• Massive 12-inch cable sheaves and aircraft-quality stainless-steel cables engineered for decades of reliable service

• Spring-loaded automatic safety locks with push-button pneumatic release fast, safe, and easy operation

• Secondary slack-cable detection system additional layer of safety protection

• Integrated flow restrictor ensures controlled lowering even in the event of hydraulic failure

• 75-second full rise time maximum productivity in high-volume shops

• Nine adjustable locking positions perfect working height for every job

• Fully enclosed cables, airlines, and hydraulics protected from shop hazards for long life

• Durable powder coat finish in new gray professional appearance that lasts

• Optional rolling bridge jacks available transform your alignment lift into a full-service station

Important Notes

Product Features

• 18,000-lb. lifting capacity

• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493

• Multi-caster slip plates

• Spring-loaded automatic safety locks

• Supersized 12" diameter cable sheaves

• Four stainless-steel lifting cables

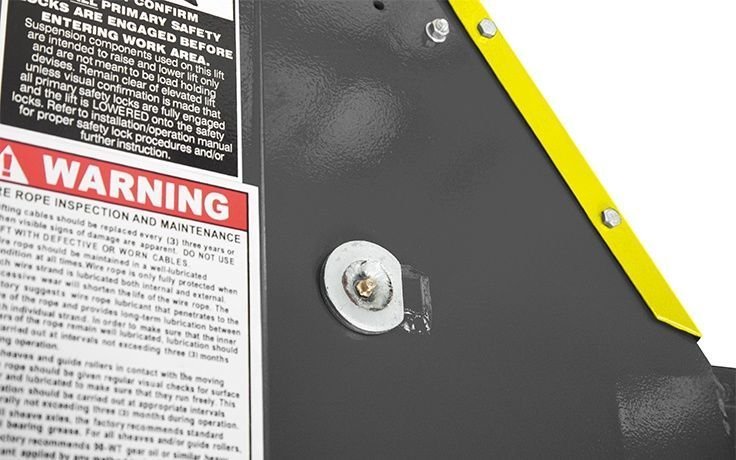

• Grease nipples on every sheave and axle

• Single hydraulic under-runway cylinder

• Integrated hydraulic flow restrictor

• Durable powder coat finish

• Push-button pneumatic lock release

• Secondary lock system on constant guard

• Enclosed cables, airlines, safety latches

• Multiple adjustable locking positions

• Maintenance-free power system

• Conveniently located controls

• 12" x 12" base plates

• Non-skid runways

• Optional rolling jacks available

Includes

• Turnplates & Slip Plates

Product Specifications

Model

HDS-18EA

Capacity

Lifting Capacity: (*)
18,000 lbs. (8,165 kg)

*Max Capacity / Front Axle
9,000 lbs. (4,082 kg)

*Max Capacity / Rear Axle
9,000 lbs. (4,082 kg)

Rise

A Min. Runway Height
10.5" (267 mm)

B Max. Rise
59" (1,499 mm)

C Max. Lifting Height
71.5" (1,822 mm)

Time to Full Rise
75 seconds

Outside Dimensions

D Overall Width
153.5" (3,899 mm)

E Outside Length
257" (6,528 mm)

F Overall Length
312.75" (7,944 mm)

G Height of Columns
91.25" (2,318 mm)

Inside Dimensions

H Width Between Columns
133.5" (3,391 mm)

I Drive-Thru Clearance
109" (2,769 mm)

Runways

J Runway Width
22" (559 mm)

K Length of Runways
257.5" (6,541 mm)

L Width Between Runways
40" or 45.5" (1,016 or 1,156 mm)

Alignment

M Min. 4-Wheel Alignment
83" (2,108 mm)

N Max 4-Wheel Alignment
138" (3,505 mm)

O Max 2-Wheel Alignment
211" (5,359 mm)

Minimum Wheelbase

Rated Capacity
185" (4,699 mm)

75% Capacity
160" (4,064 mm)

50% Capacity
135" (3,429 mm)

25% Capacity
110" (2,794 mm)

Locking

Locking Positions
9

Lock Spacing
6

Power Unit

Motor
220 VAC / 60 Hz / 1 Ph

Noise
45 dB

Shipping

Dimensions
265" x 26" x 38" (6,731 mm x 660 mm x 965 mm)

Weight
6,790-lbs. (3,079 kg)

Note An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
