Atlas® Platinum PVL14OF-EXT ALI Certified Open Front 4 Post Alignment Lift 14,000 lbs

Product Overview

Atlas® Platinum PVL14OF-EXT ALI Certified Open Front 4 Post Alignment Lift 14,000 lbs

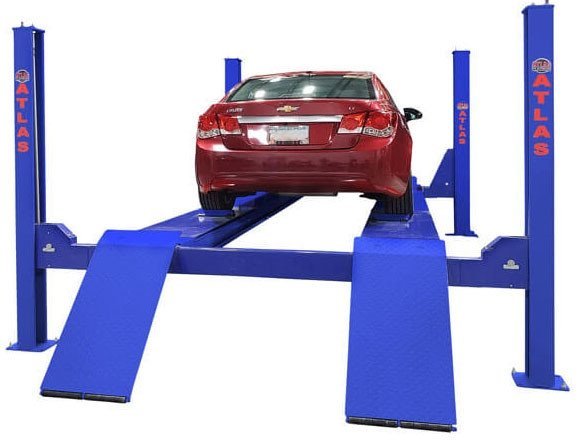

The Atlas® Platinum PVL14OF-EXT is engineered for professional automotive shops that demand precision, durability, and uncompromising performance. This 14,000 lb capacity four-post alignment lift features an innovative open front design that eliminates the front crossbeam, providing unrestricted access to the vehicle's undercarriage for all alignment, service, and diagnostic operations.

Built for the busiest commercial shops, the PVL14OF-EXT offers extra-long runways that accommodate long-wheelbase vehicles and meet the rollback requirements of modern camera tower alignment systems. With its 223 1/2" runway length and 203" maximum wheelbase capacity, this lift handles everything from compact cars to full-size trucks with ease.

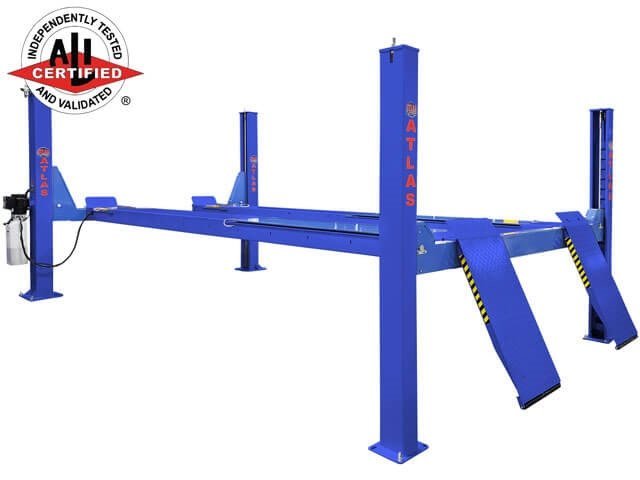

This lift is ALI Certified, meeting the industry's highest safety standards, and is backed by an exceptional warranty: 5-year structural and 2-year hydraulic coverage. It features the premium ALLY Hydraulic AL3000 Power Unit, certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. The AL3000's heavy-duty design with extra windings and increased silver metal content delivers superior heat management and constant torque throughout every lift cycle.

Key Advantages of the PVL14OF-EXT

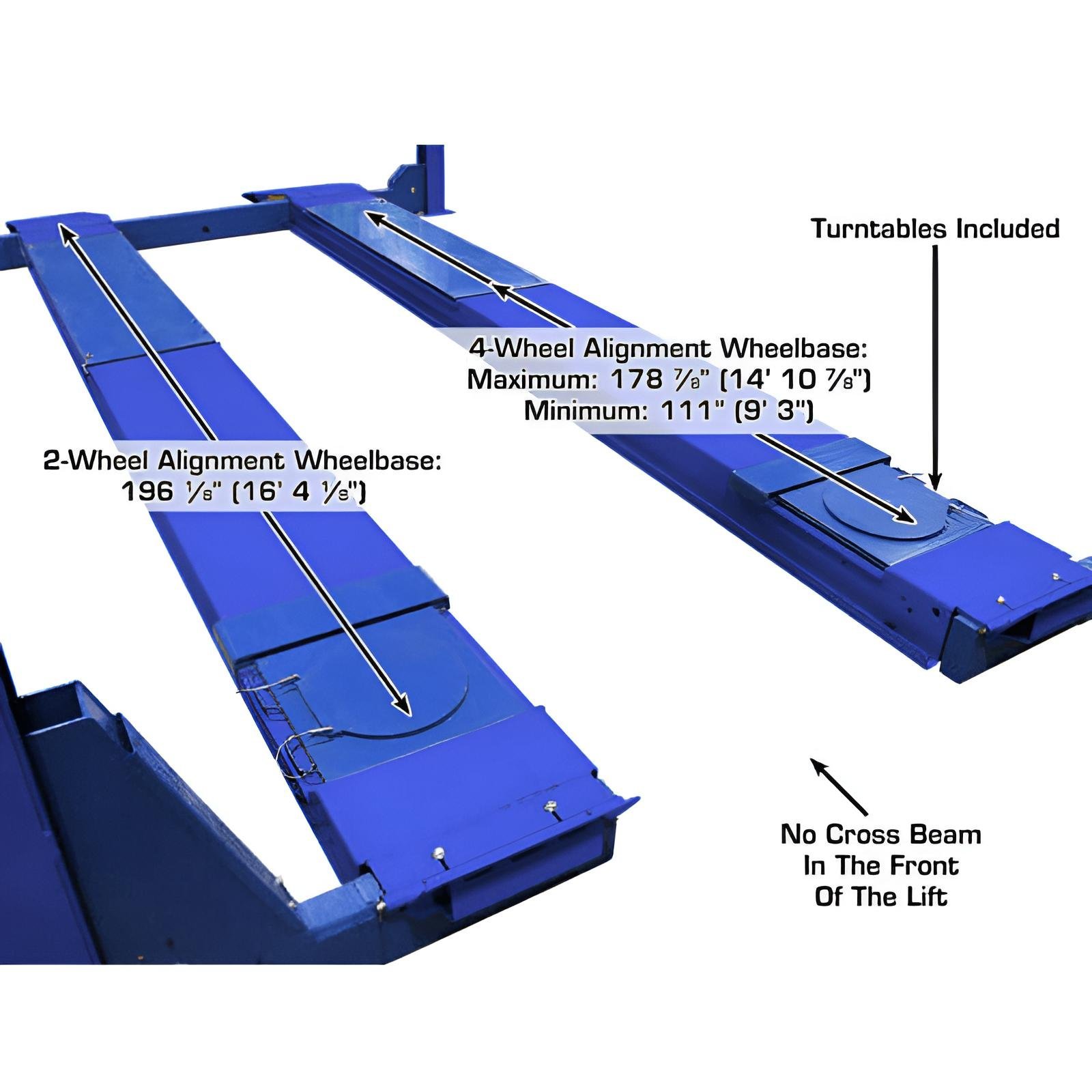

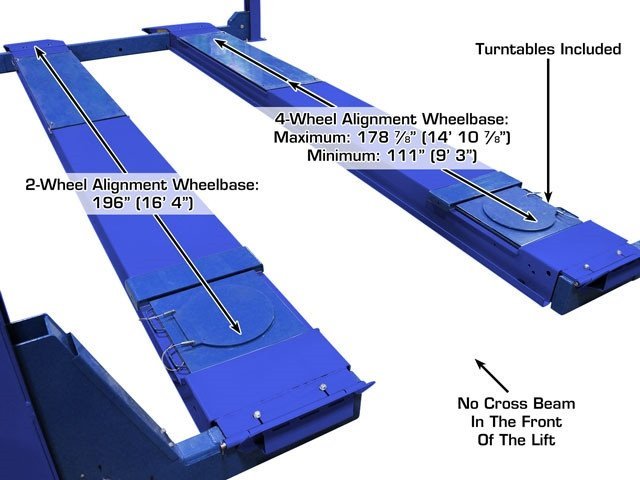

• Open Front Design: No front crossbeam means total access for wheel alignment work, suspension service, and undercarriage diagnostics without obstruction

• Extra Long Runways: With 223 1/2" of runway length and support for wheelbases up to 203", this lift is ideal for shops with camera tower alignment systems requiring vehicle rollback

• Built-In Alignment Tools: Integrated slip plates and turntables come standard, so you're ready to perform precision alignment work immediately

• Heavy-Duty Commercial Construction: Engineered with robust materials, an adjustable lock ladder system, and double lock safety system for maximum reliability and longevity

• Premium ALLY AL3000 Power Unit: MET-certified power unit with industry-leading two-year warranty delivers consistent performance with reduced heat generation and superior torque control

Premium Build Quality & Features

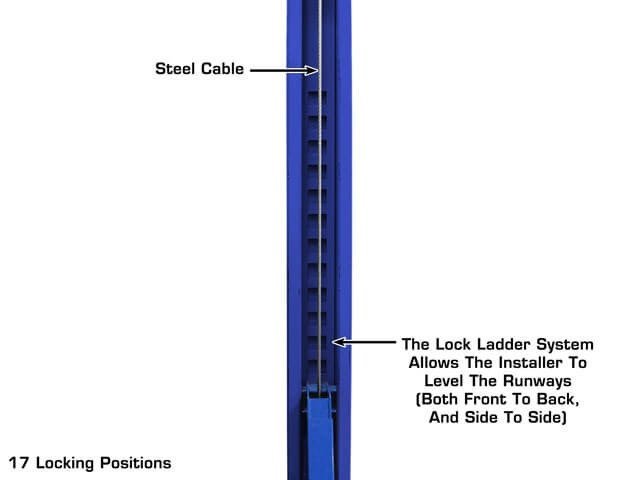

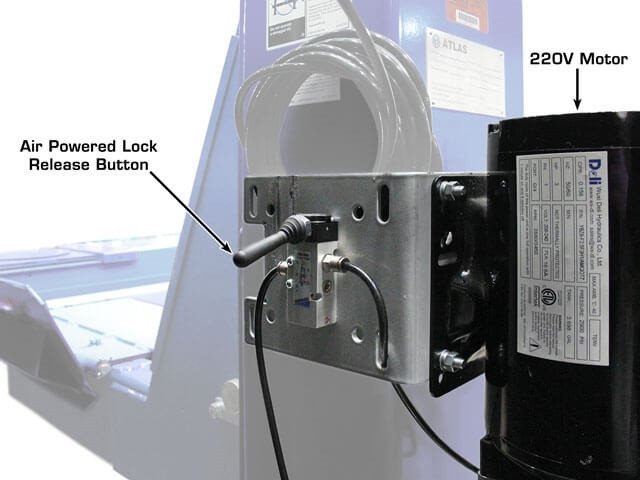

Every aspect of the PVL14OF-EXT reflects its commercial-grade pedigree. The lift uses an air-operated single point lock release system for smooth, efficient operation (external air supply required, 85-115 PSI ). The adjustable lock ladder design with double lock safety system ensures secure positioning at any height, while the 73 1/4" lifting height provides ample clearance for the most demanding jobs.

The lift's higher-quality powder coat finish resists corrosion and maintains a professional appearance even in high-volume environments. Steel approach ramps and all mounting hardware are included, simplifying installation and getting your shop operational faster.

Important Installation Note:
After installation, the lift cylinders must be bled according to the Atlas 4 Post Cylinder Bleeding Procedure. (do this immediately after installation).

What's Included

The Atlas® Platinum PVL14OF-EXT comes complete with everything you need for professional alignment service:

• Turn plates and integrated slip plates for precision wheel alignment

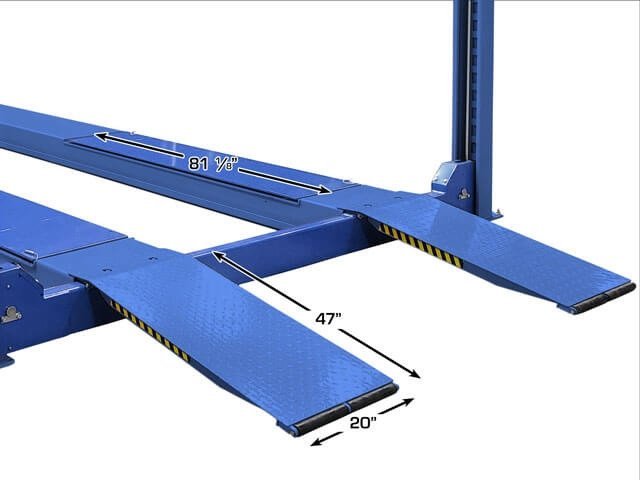

• Steel approach ramps for smooth vehicle loading

• Complete mounting hardware for secure installation

• Premium ALLY AL3000 Power Unit with 2-year warranty (view power unit specs)

Why Choose the PVL14OF-EXT?

✓ ALI Certified Safety
Meets rigorous industry standards for structural integrity and operational safety

✓ Commercial-Grade Durability
Built to withstand the demands of high-volume professional shops with heavy-duty components throughout

✓ Extended Wheelbase Capacity
207" between columns and 203" maximum wheelbase handles long trucks, vans, and specialty vehicles

✓ Open Front Access
No front crossbeam obstruction means faster, easier alignment work and undercarriage service

✓ Industry-Leading Warranty
5 years structural and 2 years hydraulic coverage for long-term peace of mind

Power & Operation

The lift operates on 220-volt single-phase power (requires 30-amp breaker) and uses 3-5 gallons of AW32/AW46 hydraulic oil (not included). An external air supply of 85-115 PSI is required for the air-operated lock release system. With a total weight of 4,462 lbs, proper floor anchoring is essential for safe operation.

The ALLY AL3000 power unit features extra heavy-duty armatures and enhanced motor windings with increased silver metal content in wires and connections. This advanced design dramatically reduces heat generation while maintaining constant torque throughout the lifting cycle, ensuring smooth, reliable operation for years of service.

Need detailed specifications? View the complete ALLY AL3000 Power Unit specs and parts list:

Inspection & Maintenance Resources

Product Features

• 14,000 lb. Capacity

• ALI Certified

• Heavy Duty, Commercial Grade

• Alignment Lift, Includes Built in Slip Plates & Turntables

• Open Front Design for Better Access

• Extra Long Runways

• Adjustable Lock Ladder Design

• Higher Quality Powder Coat Finish

• Air Operated Single Point Lock Release (External Air Supply Required)

• Lock Ladder Design

• Double Lock Safety System

• Powder Coat Finish

• Steel Approach Ramps Included

• Mounting Hardware Included

• Premium ALLY AL3000 Power Unit View Power Unit Specs

Includes

• Turn Plates & Integrated Slip Plates

• Steel Approach Ramps

• Mounting Hardware

Product Specifications

Specifications
PVL14OF-EXT

Capacity
14,000 lbs

Height of Columns
Rear: 92 1/2" (7' 8 1/2")
Front: 109 1/4" (9' 1 1/4")

Lifting Height
73 1/4" (6' 1 1/4")

Overall Width w/ Motor
148 3/4" (12' 4 3/4")

Overall Width w/o Motor
140 1/8" (11' 8 1/8")

Overall Length w/Approach Ramps
272 1/8" (22' 8 1/8")

Overall Length w/o Approach Ramps
234 1/4" (19' 6 1/4")

Length Between Columns
207" (17' 3")

Runway Length
223 1/2" (18' 7 1/2")

Runway Width
20"

Thickness Of Runway
7"

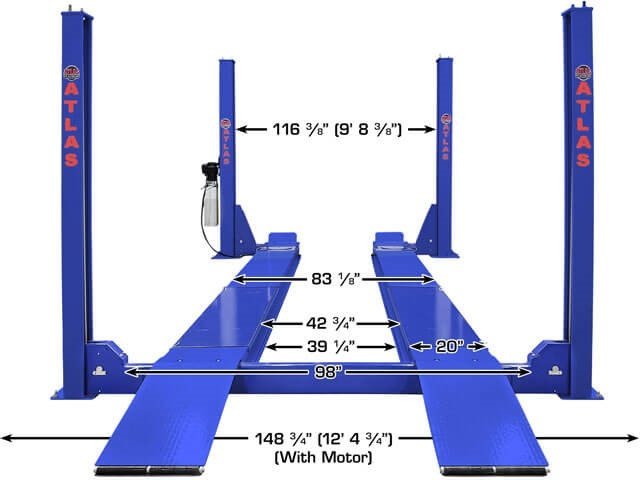

Width Between Runways
42 3/4" (w/ Rail 39 1/4")

Outside Runway to Outside Runway
83 1/8" (6' 11 1/8")

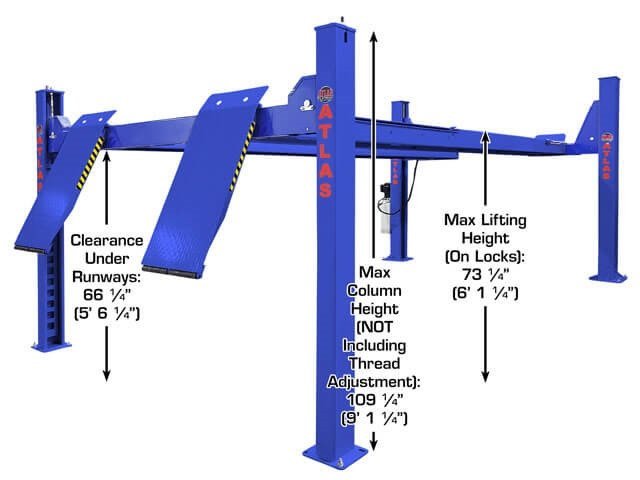

Clearance Under Runways
66 1/4" (5' 6 1/4")

Clearance Between Columns
116 3/8" (9' 8 3/8")

Maximum Wheel Base
203" (16' 11")

Drive Thru
94 1/2" (7' 10 1/2")

Oil Requirement
3-5 Gallons AW32/AW46 (NOT Included)

Air Requirement
85-115 PSI (External Air Supply Required)

Power Unit
220 volt single (1) phase. A 30 amp breaker is required

Weight
4,462 lbs

Key Features

• Published product configuration: Atlas® Platinum PVL14OF-EXT ALI Certified Open Front 4 Post Alignment Lift 14,000 lbs The Atlas® Platinum PVL14OF-EXT is engineered for professional automotive shops that demand precision, durability, and uncompromising performance. This 14,000 lb capacity four-post alignment lift features an innovative open front
• Exact manufacturer model or part number: AP-PVL14OF-EXT
• Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model AP-PVL14OF-EXT, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
